Wired delta loop antenna 6m 12m & 15m multiband SIGMA DELTA15-HP

No review at the moment

The DELTA 15-HP is a delta loop antenna designed to operate on 15m (21 MHz), 12m (24 MHz) and 6m (50 MHz) without the need for a tuner.

It also works on other bands (20m, 17m & 10m), this time with an external tuner.

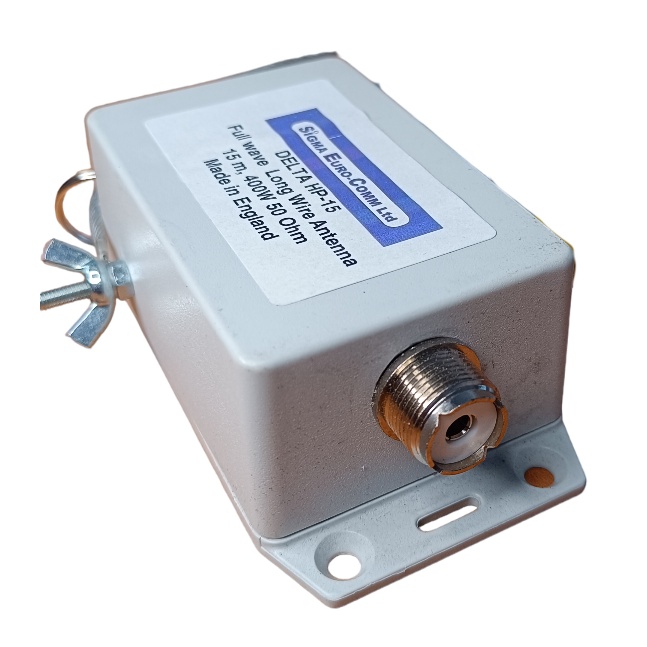

There's a 4:1 balun at the feed point for direct connection with a 50 ohm coaxial cable.

Supplied with three insulators to provide anchor points. It can be mounted flat (horizontally) in the form of a square loop or an equilateral triangle, or raised in a vertical or inclined position.

If mounted flat, it will work well for local DX or NVIS contacts in close proximity, and if raised in a vertical or inclined position, it will work better for long-distance DX contacts.

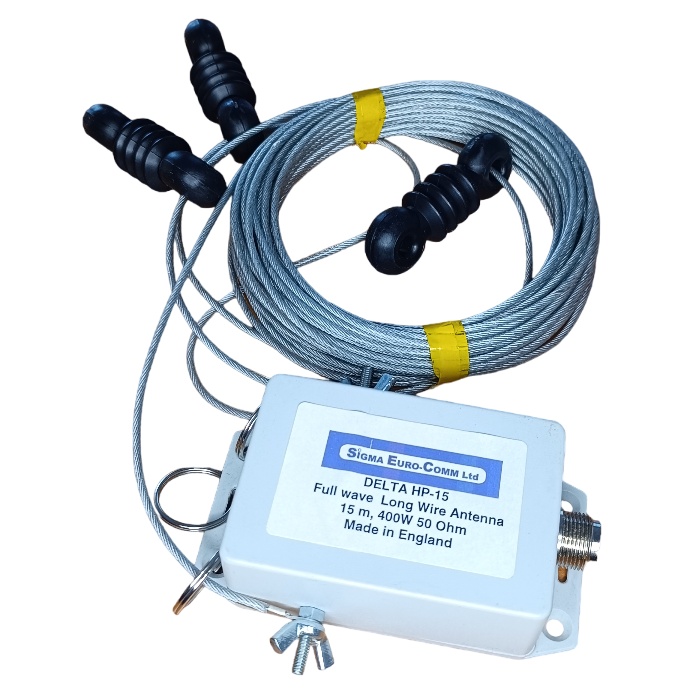

Supplied with: 1 DELTA 15-HP and manual.

More details

Download

Manuel DELTA 15-HP (EN)

539.55k

Data sheet

Maximum power 400W CW, 500W PEP
Front gain: 3.2 dBd max
Dimensions of entire loop: 13.60 m
Three equal sides: 4.53 m
Four equal sides: 3.4m
Poly flex radiating wire
Feed point: Balun 4:1
Connector: SO-239 (UHF female)
