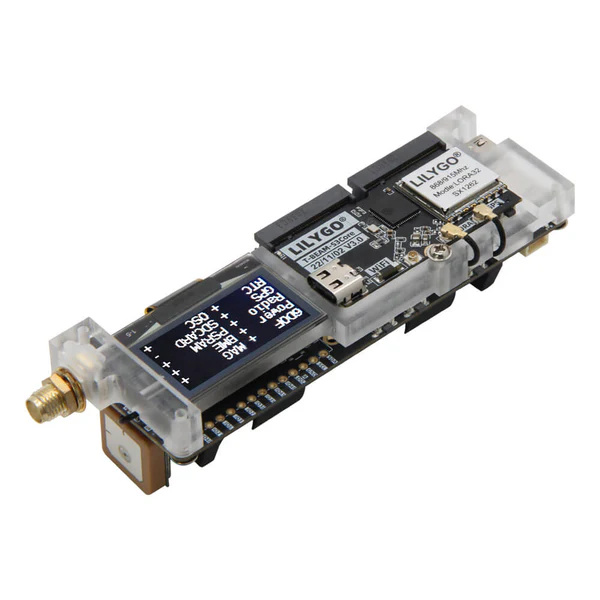

TTGO T-BEAM SUPREME SX1262 Meshtastic 868 MHz Lora WiFi BT5 GPS
Read the 2 reviewsEvolution of the T-BEAM SUPREME board with Meshtastic firmware installed, IoT development board for the LoRa 868 MHz ISM band, with 802.11 b/g/n WIFI connection , Bluetooth/BLE 5, 2.4cm soldered OLED screen, L76K GPS module and battery holder (battery not included).

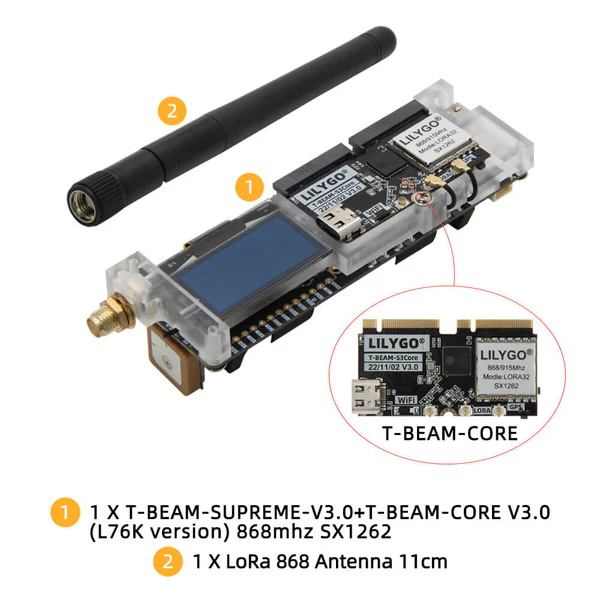

Supplied with: 1 TTGO T-BEAM Supreme 3.0 Meshtastic module, 1 868 MHz antenna, 2 headers (soldered), 1 OLED screen (soldered). Battery and USB cable not included.
Data sheet
- Microprocessor : ESP32-S3FN8 dual-core LX7
- LoRa module : SX1262
- ISM frequencies: 868 MHz
- Max. transmission power +20dBm - 100mW
- Frequency stability: +/- 15KHz
- Interface: SPI
- Operating temperature: -40° / +85° C
- RSSI digital function
- Automatic frequency correction
- Automatic gain control
- Fast wake-up and frequency hopping
- Data packet manager
- Antenna connector: SMA female
- GPS modules L76K
- With integrated ceramic GPS antenna
- Bluetooth 5 module
- WIFI module: 2.4 GHz
- EEPROM configuration data backup
- LED signal indicator
- Battery management
- Power supply: 3V-5V
- Power supply: USB-C or 18650 battery (not included)
- Serial chip: CH9102
- Preloaded firmware : Meshtastic
- TTGO T-BEAM version: SUPREME
- Flash memory: 8MB
- PSRAM memory: 8MB
- 3 buttons : Power+IO38+Reset
