> LoRa & IoT>WIFI>2.4 Ghz 500mW EBYTE PCB transceiver with TCXO & LNA E01-2G4M27D
Reduced price!

-50%

nRF24L01P 2.4 Ghz 500mW TCXO LNA View larger
Previous Next

EBYTE

EBYTE-E01-2G4M27D-1047

New product

China

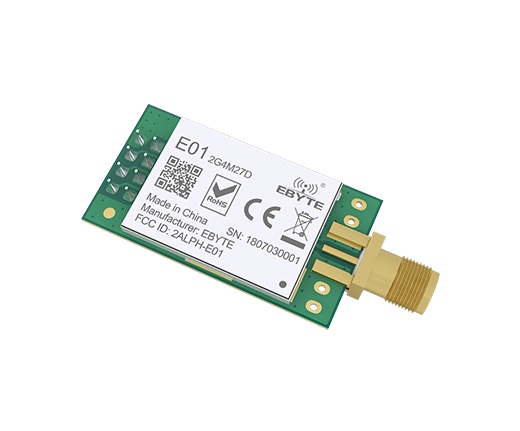

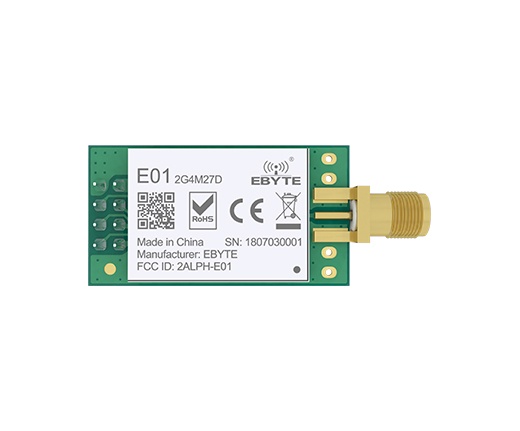

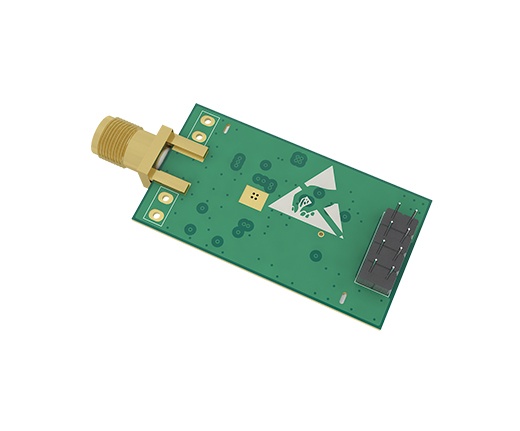

2.4 Ghz 500mW EBYTE PCB transceiver with TCXO & LNA E01-2G4M27D

rating No review at the moment

EBYTE PCB 2.4Ghz transceiver module, based on nRF24L01P RF chip, with 500mW power, TCXO, built-in LNA and SMA female antenna connector.

Delivered with: 1 RF transceiver module 2.4Ghz PCB EBYTE E01-2G4M27D.

More details

5,15 € tax excl.

10,30 €

This material is no longer available

Download

Datasheet E01-2G4M27D

911.3k

Data sheet

Datasheet nRF24L01P EBYTE

Operating voltage 2.5 V to 5.0 V (typical 3.3V)
Frequencies: 2400 to 2525 MHz
Output power: +27 dBm (500mW)
RF module: nRF24L01P
Sensitivity -99dBm
With integrated LNA
TCXO
SPI interface
Bit rates: 250Kbps to 2 Mbps
Dimensions: 18 x 33.4 mm (excluding SMA connector)
Antenna connector: SMA female
Rohs, CE and FCC certified

Reminder: This radio communication equipment is to be used in accordance with the legislation in force in the country of use and under the sole responsibility of the user.
