BAZOKA-PRO wideband HF Komunica antenna 7-30Mhz + 50Mhz Komunica Wide-band KOM-BAZOKA-PRO-1008

View larger

Display all pictures

Manufacturer: Komunica

Reference: KOM-BAZOKA-PRO-1008

Condition: New product

Country of origin:

Spain

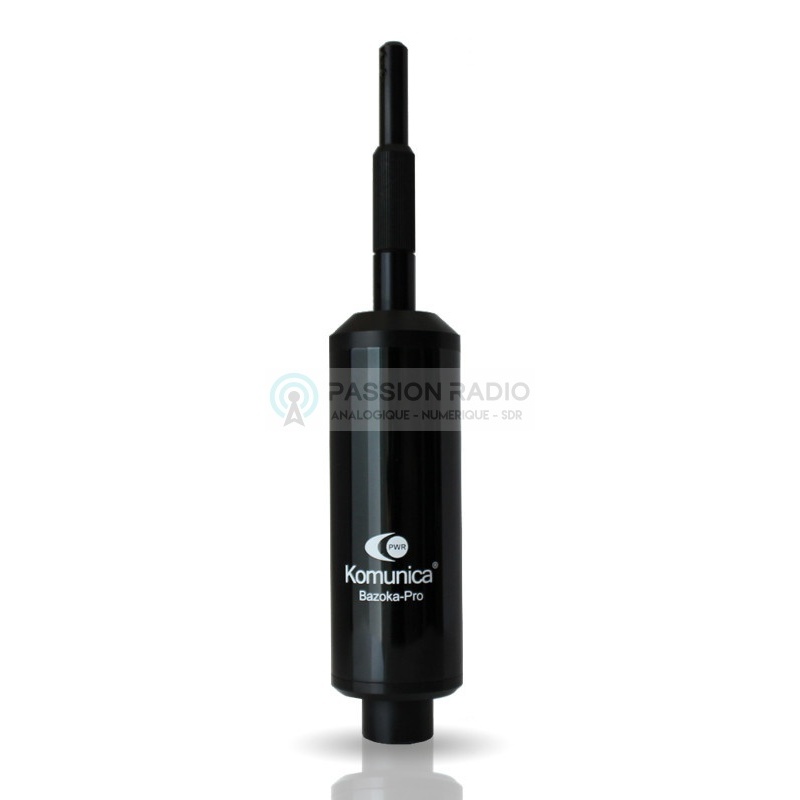

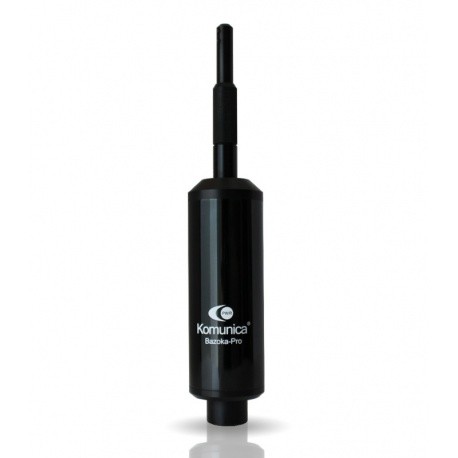

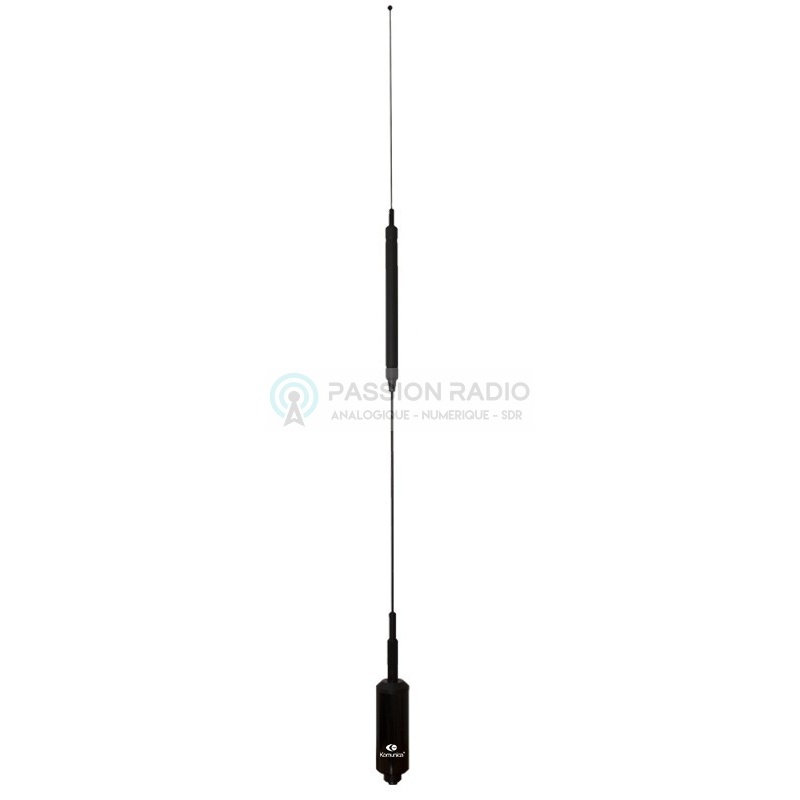

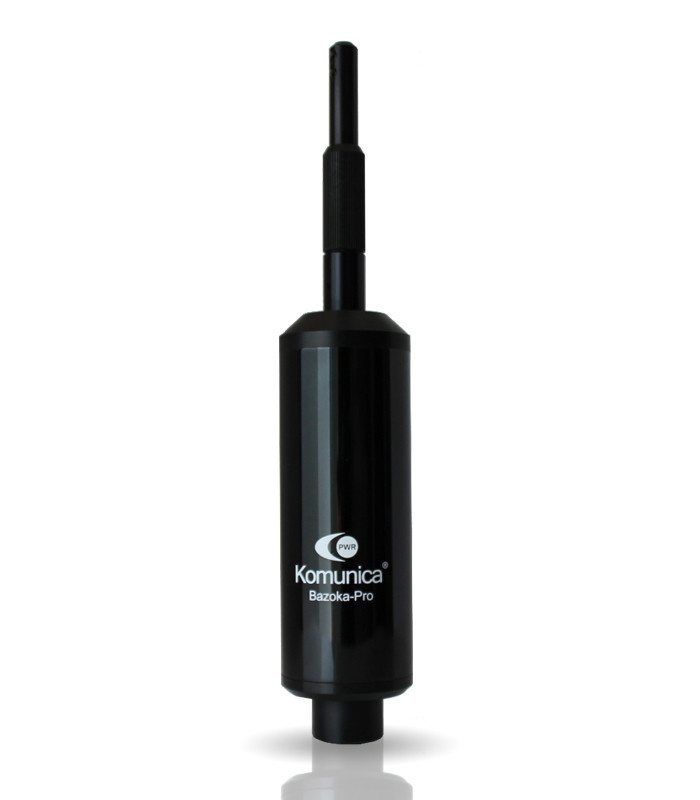

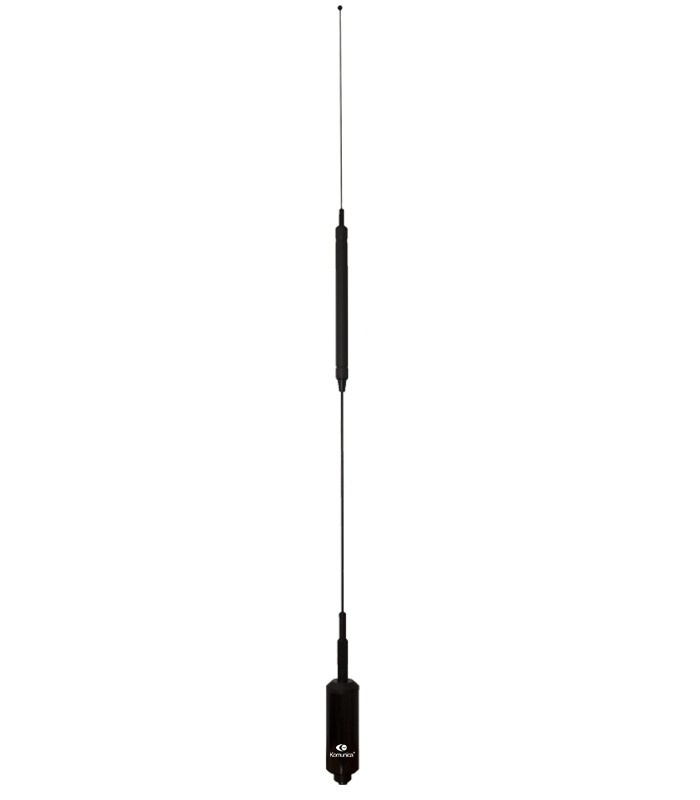

BAZOKA-PRO wideband HF Komunica antenna 7-30Mhz + 50Mhz

Read the 2 reviews

Average rating: 5/5 Number of reviews: 2

Wideband transmit-receive antenna from 7 to 30Mhz with the 6m (50Mhz) band Komunica BAZOKA-PRO for use in mobile and portable.

The Bazoka Pro antenna is preset from the factory for the amateur radio bands and does not require any adjustments, except on the 40m band (7Mhz). Outside these bands, the use of an automatic tuner is recommended.

RX frequencies: 3 to 30 Mhz
TX frequencies: 7 - 30MHz and 50-54Mhz
Max Power: 120W (SSB) and 40W (FM)
Height: 1.22m
Weight: 680g
Connector: SO-239
Type: 1/4 wave reduced for HF bands, 1/4 wave on 50Mhz
ROS: Less than 1.5: 1
Impedance: 50Ω

Please note: This antenna offers very average performance at long distances, it is rather suitable for use over short distances.

Supplied with: Komunica BAZOKA-PRO antenna.

Delivery info: This antenna is considered a large package and the carriers apply an extra charge for shipping.

More details

Download

Manuel Bazoka-PRO (FR)

285.02k

Data sheet

The Komunica BAZOKA-PRO antenna can be used in portable or in mobile stopped or while driving and requires a good ground plane to function correctly.

If a ground plane is not possible, in this case we recommend using a coaxial cable with a length of 10 meters minimum to act as a counterweight.

The BAZOKA PRO antenna can also be mounted on a metal balcony, ensuring good conductivity and mass between the antenna and the balcony.

The antenna is pre-adjusted and no adjustment is necessary to use it, except on the 7Mhz band (20m), by slightly sliding the upper rod until the good resonance is obtained.

Recommendations:

It is a mobile broadband type antenna and of small dimensions, this means that the performance cannot compete with larger or mono-band antennas on days of low propagation.

Given the weight of the antenna, the use of a resistant mobile support is recommended.

The location of the antenna on the vehicle directly affects its performance and the manufacturer recommends not fixing the antenna in the center of the roof and trying different configurations and the influence on the SWR.

In portable use, the antenna must have a good earth or failing this add 4 radians in single electric wire and 8 to 10 meters long each.
