> Ham & radio equipment>HT Handheld>Pack DUO Walkie Talkie 2X TH-UV88 + Headset + HP Battery (USB-C) + Cable
Pack DUO Walkie Talkie 2X TH-UV88 + Headset + HP Battery (USB-C) + Cable View larger

PACK-TYT-UV88-DUO-2545

New product

Online only

Pack DUO Walkie Talkie 2X TH-UV88 + Headset + HP Battery (USB-C) + Cable

rating No review at the moment

This DUO pack includes 2 TYT TH-UV88 walkie-talkies, usable with an amateur radio licence, in FM on the 144/430MHz bands (2m and 70cm) with a power of 5 Watts in VHF and 4 Watts in UHF, and includes the following accessories: 2 x 1400mAh batteries + 2 x 3200mAh HP batteries (with USB-C recharging port), 2 earpieces and 1 USB programming cable.

The TH-UV88 is equipped with an 88-108 MHz FM radio (WFM), LED light, 200 programmable channels, CTCSS/DCS, 1750 Hz call tone for relays, DTMF encoding/decoding, 2 and 5 tone, 2 simultaneous frequency standby and VOX hands-free function.

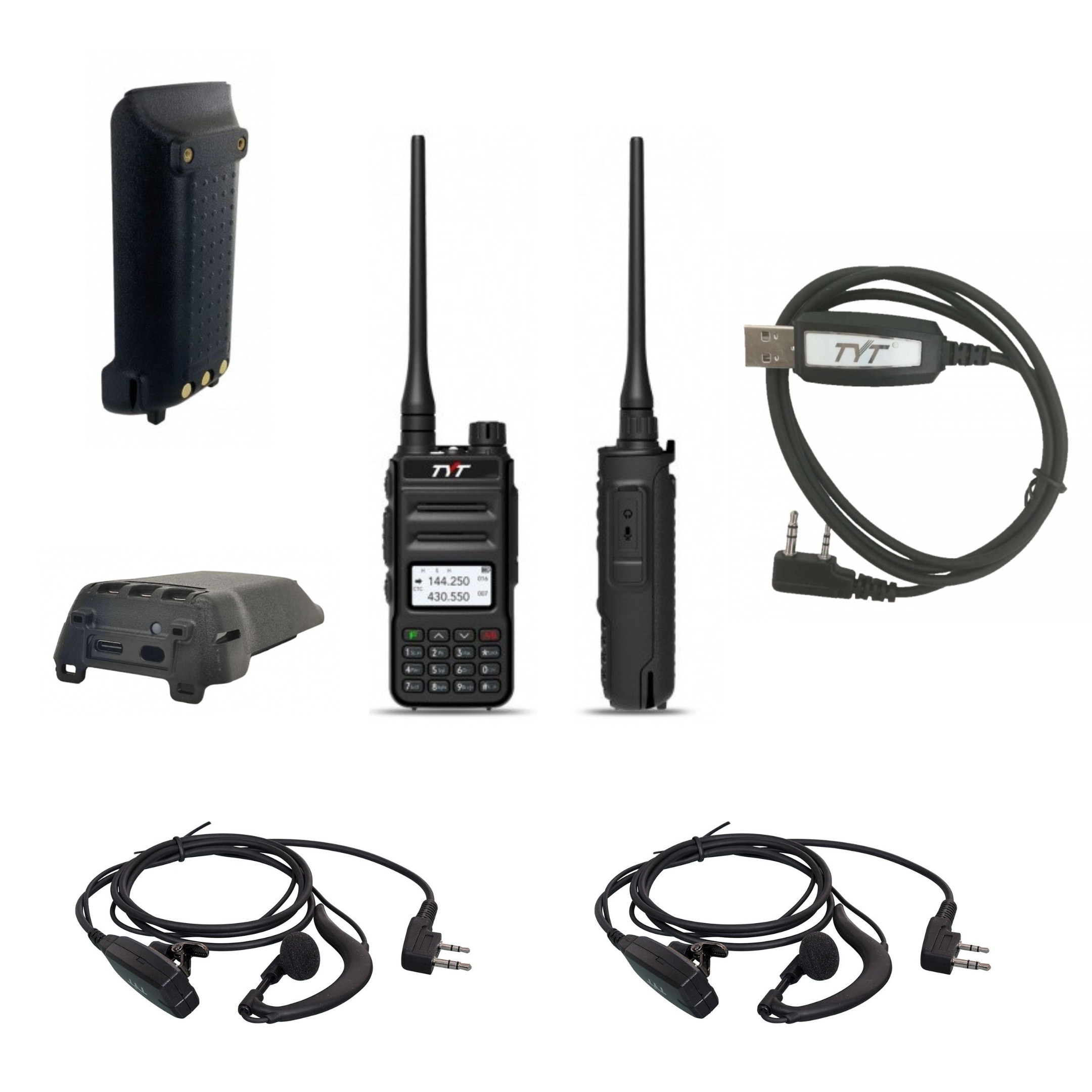

Supplied with: 2 TYT TH-UV88, 2 desktop chargers EU 220V socket, 2 belt clips, 2 dual-band VHF-UHF antennas, 2 1400mAh batteries, 2 HP 3200mAh batteries, 2 earpieces, 1 USB programming cable and 1 French manual.

The range is 3 to 5 km in an open area, from a few hundred metres to 1 km in an urban environment open to the outdoors, and more than 10 km on a high point in the mountains, for example, with a direct line of sight.

To improve the range: use an antenna with an SMA male connector, such as the Diamond SRH-771 (40cm) or the Nagoya NA-771 (39cm SMA male).

More details

QuantityPriceYou Save
2 96,03 € Up to 5,94 €
5 95,04 € Up to 19,80 €
10 94,05 € Up to 49,50 €
20 93,06 € Up to 118,80 €
50 92,07 € Up to 346,50 €

99,00 € tax excl.

Instead of 101,25 €

Out of stock, available within 1 month

Availability date: 2024-11-22

Pack content

  • Micro-headset TYT for MD-380 & MD-390 TYT TYT TYT-OREILLETTE-MD380-348
    9,90 €

    Reference: TYT-OREILLETTE-MD380-348

    2 x Micro-headset TYT for TH-UV88 MD-380 & MD-390 Retevis RT85

    Genuine TYT earpiece with remote microphone (micro-headset) for TH-UV88 FM analog walkie-talkie, Retevis RT85 and digital radio handheld DMR TYT MD-380 and MD-390. The point to point spacing between

    9,90 €
  • TYT TH-UV88 Walkie-Talkie Dual-band FM VHF-UHF 5W
    29,95 € 34,95 € tax excl. Out of stock, available within 1 month
    Sale!

    -5,00 €

    Reference: TYT-TH-UV88-HAM-1056

    2 x TYT TH-UV88 Walkie-Talkie Dual-band FM VHF-UHF 5W

    The TYT TH-UV88 is a rugged, cost-effective VHF 144-146Mhz and UHF 430-440 Mhz dual-band walkie talkie for everyday use and for those who need the same functionality and versatility of the popular

    29,95 €

    34,95 €

  • USB programming cable 2 pins for TYT walkie-talkie and Baofeng
    7,90 €

    Reference: TYT-CABLE-PROG11-UV88-1057

    1 x USB programming cable 2 pins for TYT UV88 walkie-talkie and Baofeng

    USB programming cable for the TYT TH-UV88 walkie-talkie and all analog TYT and Baofeng walkie talkie with 2-pin connectors.This USB cable allows you to easily and quickly program from a PC the

    7,90 €
  • Battery 3200 mAh for TYT TH-UV88
    13,65 €

    Reference: TYT-BATT7-UV88-3200-USBC-2728

    1 x HP 3200 mAh battery with USB-C port for TYT TH-UV88 TH-UV98 & Retevis RT85

    Original TYT 3200mAh high-capacity Li-ion battery for the TH-UV88 with USB-C port, FM analog walkie talkie, also compatible with the Retevis RT85 and TYT TH-UV98. This HP battery is compatible with

    13,65 €

Data sheet

Dual-Band display, dual frequency watch
Amateur radio band frequencies: 144-146 Mhz and 430-440 MHz
Output power: 0.5 W minimum, 4W in UHF and 5W in VHF maximum
Setting: 0.5-1W (L = Low), 2-2.5W (M = Medium) and 4-5W (H = High)
200 channels, 50 CTCSS and 104 CDCSS
VOX hands-free
Tone 1750Hz and relay function (adjustable shift)
DTMF, 2-tone and 5-tone
ZVEI1 and ZVEI2 compatible
Antenna connector on talkie : SMA female
FM radio (87MHz-108MHz)
LED light
Large LCD display
Switchable pitch 25KHz/12.5KHz
Emergency alert function
Headset socket: 2-pin (Kenwood K, Baofeng compatible)
Dual frequency monitoring (dual watch): VHF+VHF, VHF+UHF, UHF+VHF or UHF+UHF
Incrementing steps: 2.5/5/6.25/10/12.5/25KHz
Scan of frequencies and memories
Scrambler, Roger bip
Battery: 1400 mAh + 3200mAh HP battery
Autonomy: 8 to 10 hours or 10 to 16 hours (HP)
Weight: 223g (with antenna and battery)
Dimensions: 11.6 x 5.3 x 3.6 cm (excluding antenna)
Operating temperature : -10°C to +50°C
2-year warranty
CE, FCC and RoHS standards

Using the 1750 Hz

To activate the 1750hz tone and trigger the opening of an amateur radio relay, press and hold the button on the left-hand side: Site Key 1 (above the PTT button). The walkie-talkie then switches to transmit and transmits the 1750 hz tone.

Changing VFO / Memory mode

To switch from VFO mode to memory mode, or vice versa, briefly press the # key at the bottom right of the keypad.

Recording a memory channel

In VFO mode, enter the frequency to be recorded from the keypad or select the frequency with the one keys by pressing 【▲】or 【▼】and then press and hold down the F key.

The channel number flashes on the right of the LCD, press 【▲】or 【▼】to select the desired number, then press the # (radio) key on the keypad to save it.

To delete a memory channel

1) In VFO mode, press and hold the F key, the number will flash on the right of the LCD screen
2) Press the 【▲】or 【▼】keys to select the number of the channel you wish to delete, then press the * (lock) key to confirm.

Switching on the torch

To switch the torch on, briefly press Site Key 1 above the PTT button. briefly press Site Key 1 again to switch it off.

Switching on the 88-108 MHz FM radio

To switch on the FM radio, press and hold the # key at the bottom right of the keypad. To turn it off, press and hold down the # key. While listening to an FM radio, if a signal is detected and the dual monitor DW function is activated (menu 34), the walkie-talkie will mute the FM radio to switch to the active VHF/UHF frequency.

Reminder: Use of the TYT TH-UV88 walkie-talkie is subject to compliance by the user with the frequencies and legislation in force in the country of use and requires a radio licence to be legally used for transmission. If the radio is unbundled and used outside the frequency bands indicated on the equipment, the walkie-talkie will no longer be CE-compliant and will not be covered by the warranty.
