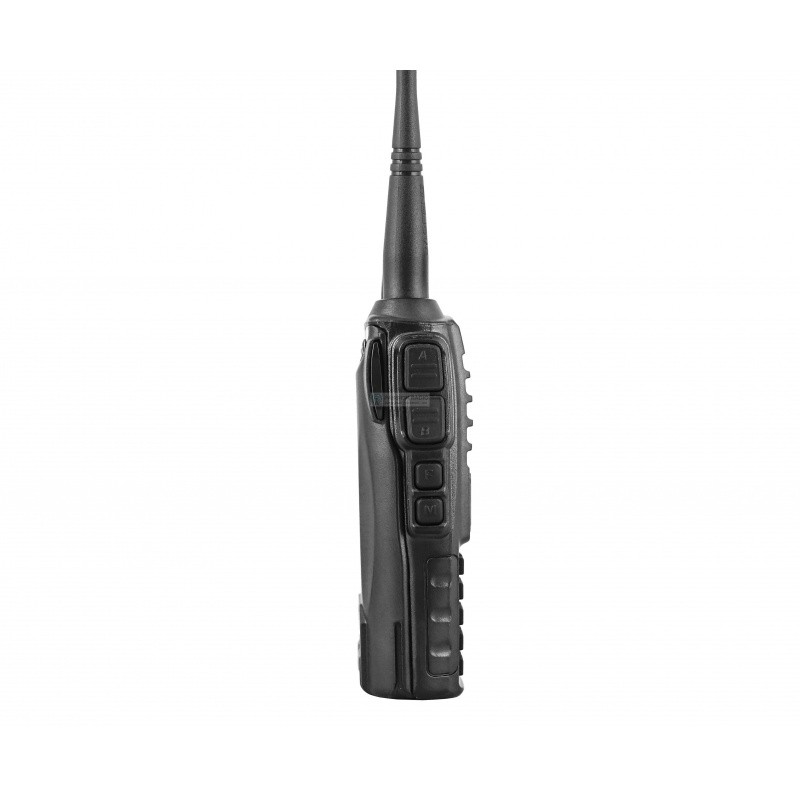

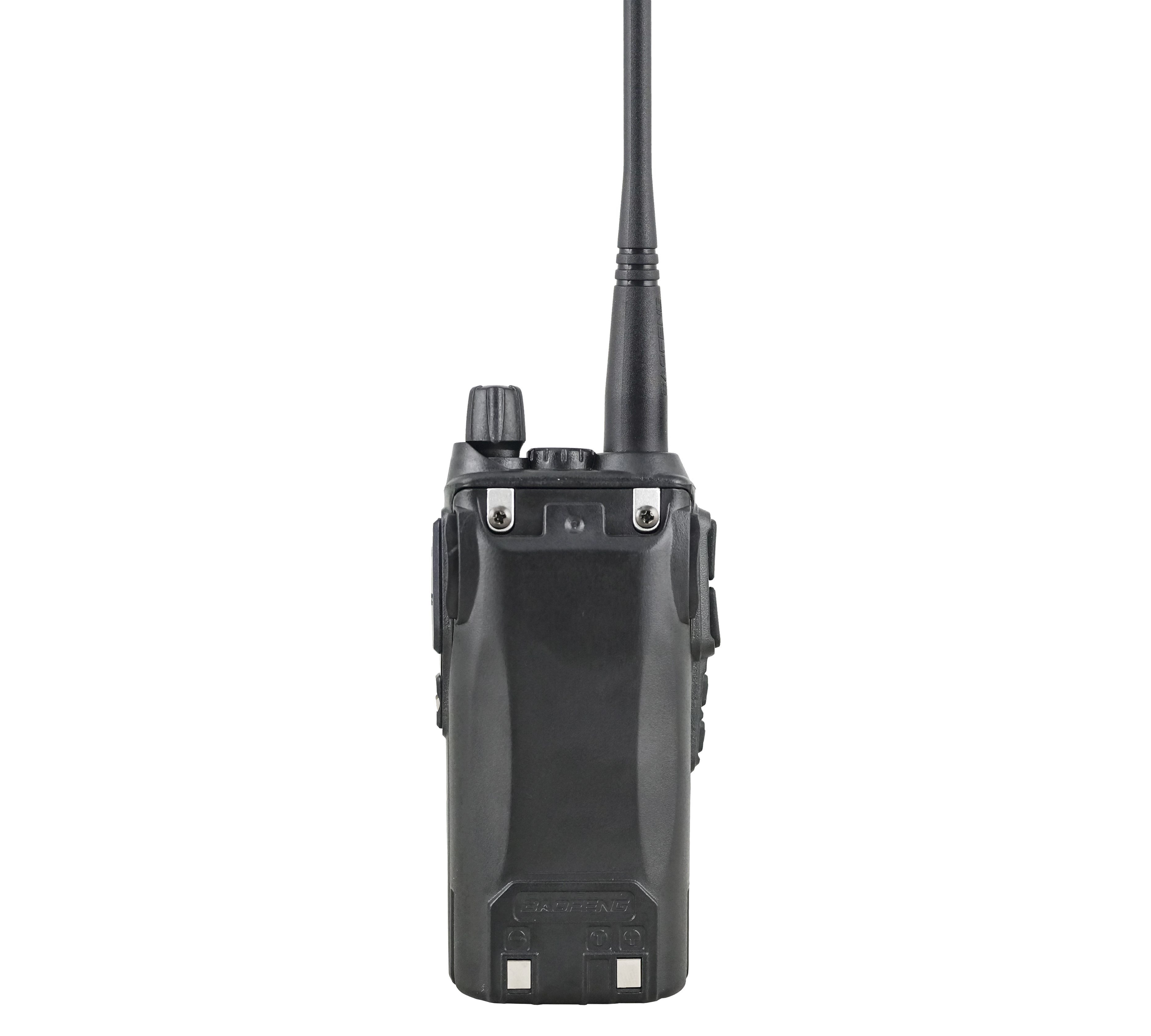

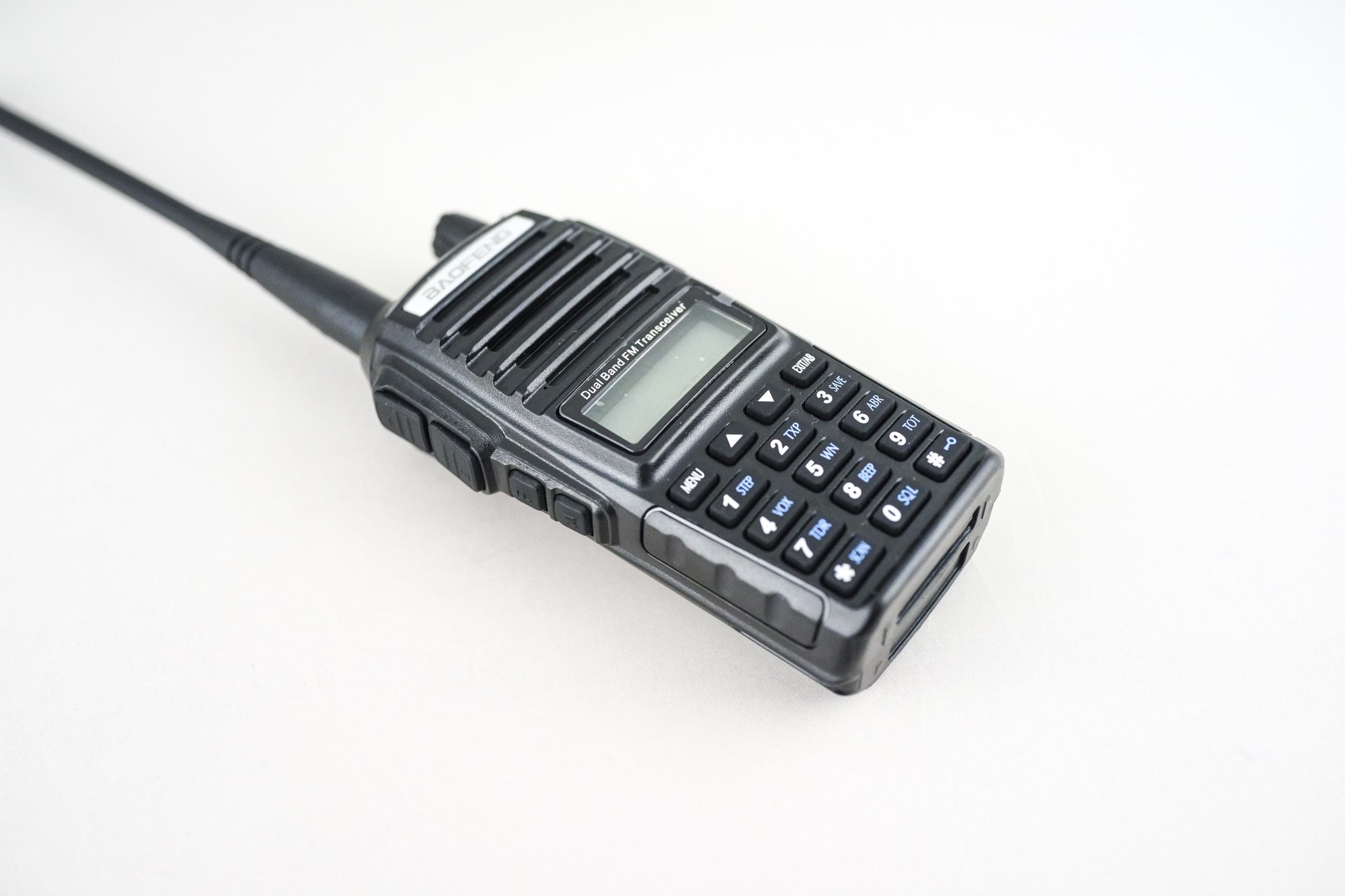

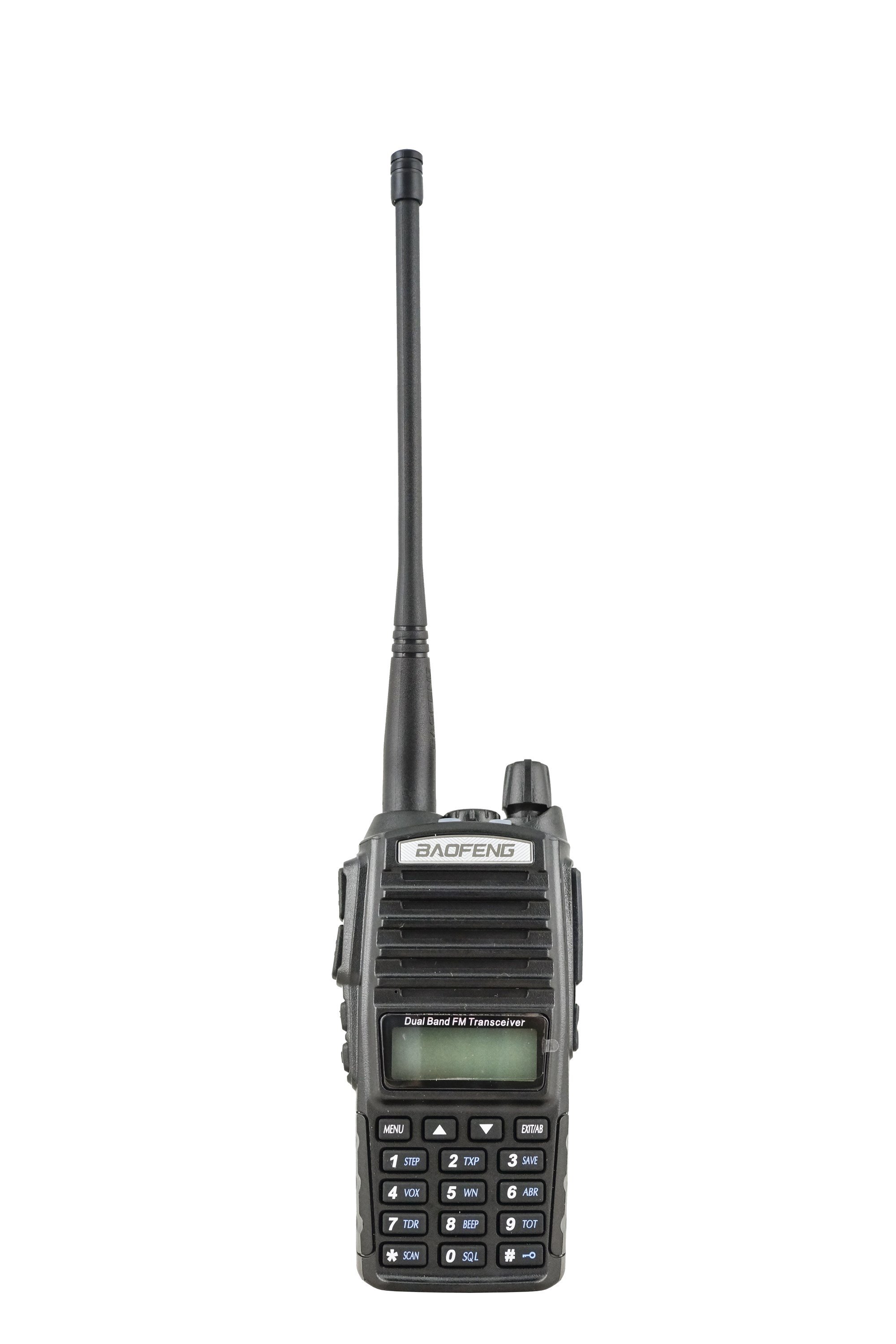

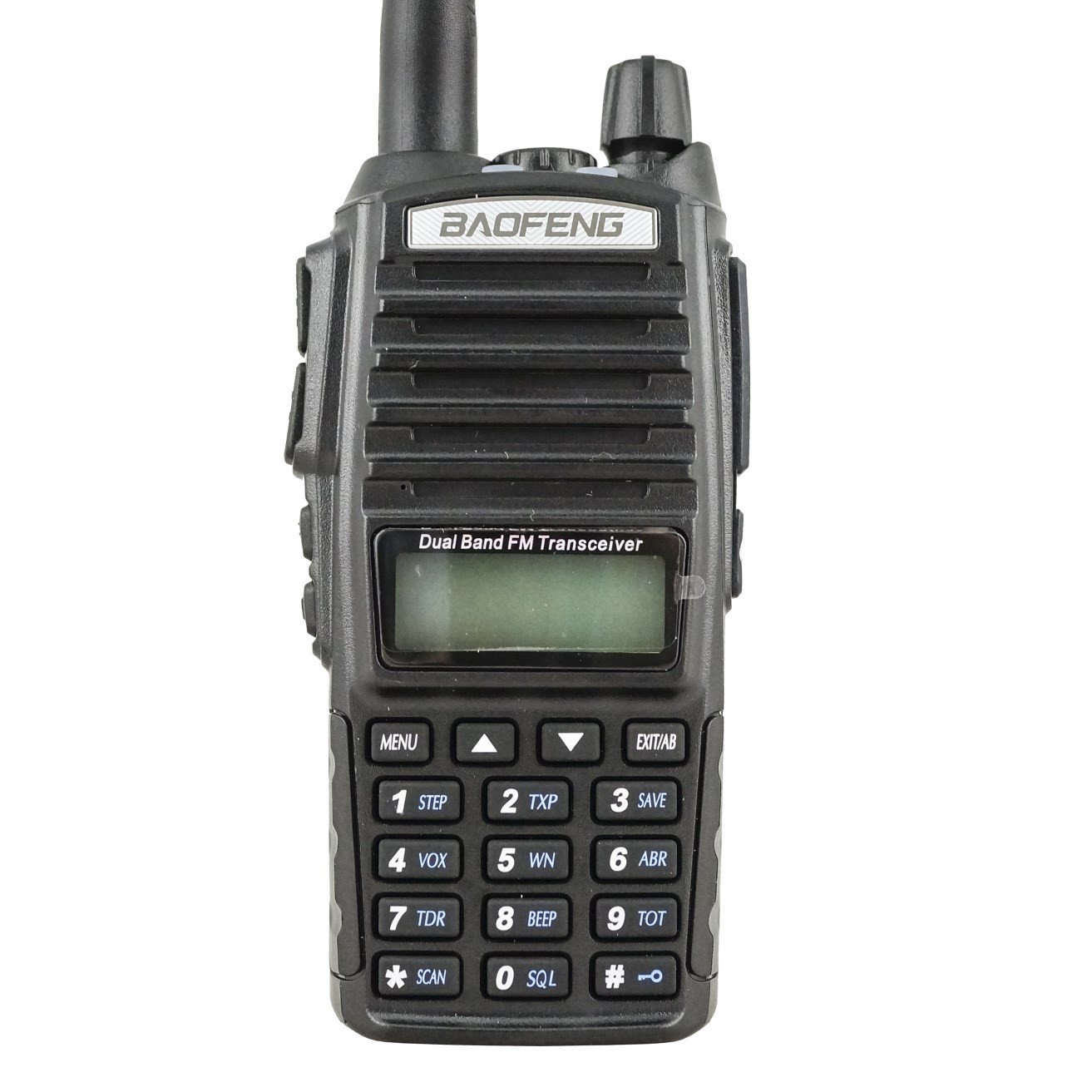

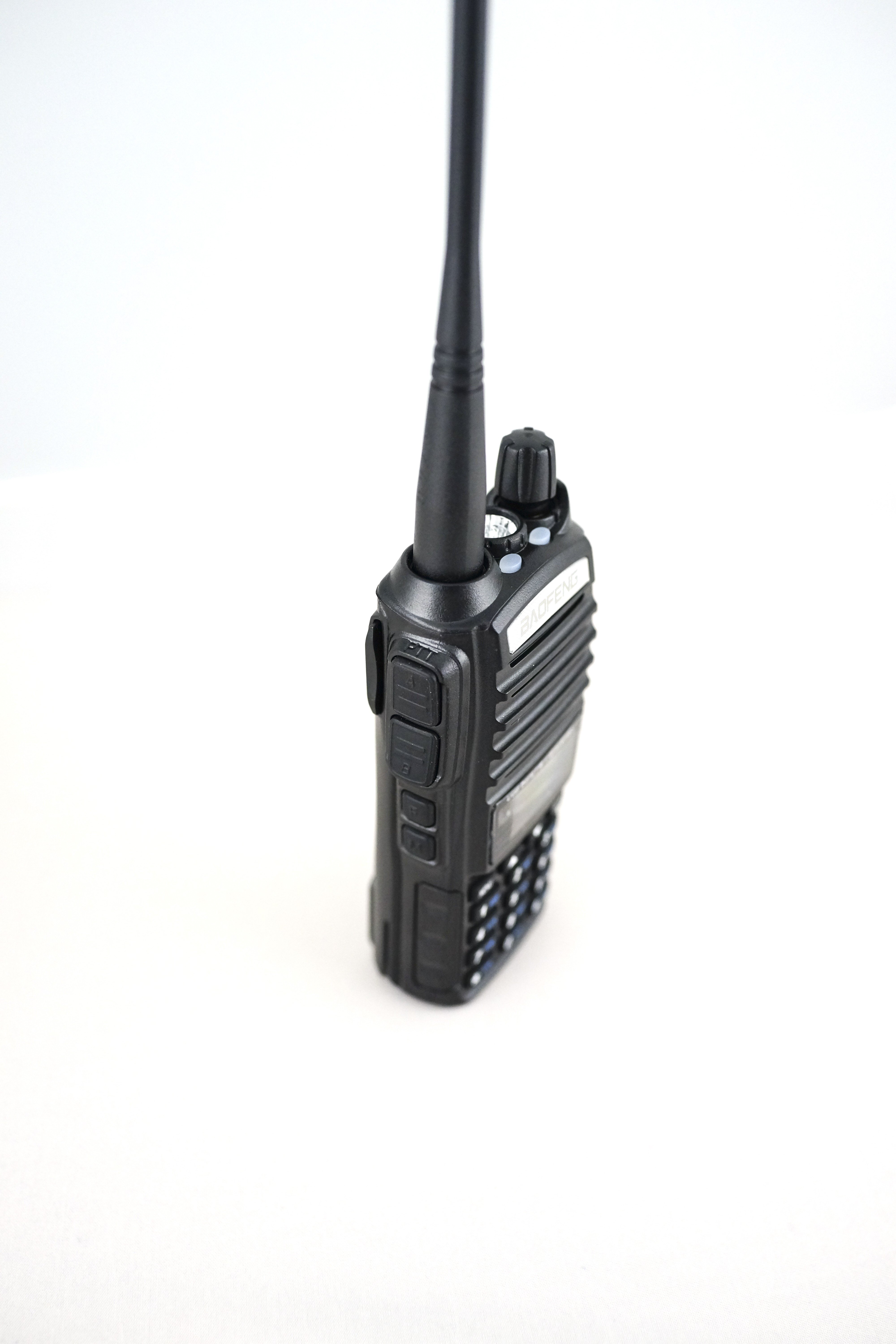

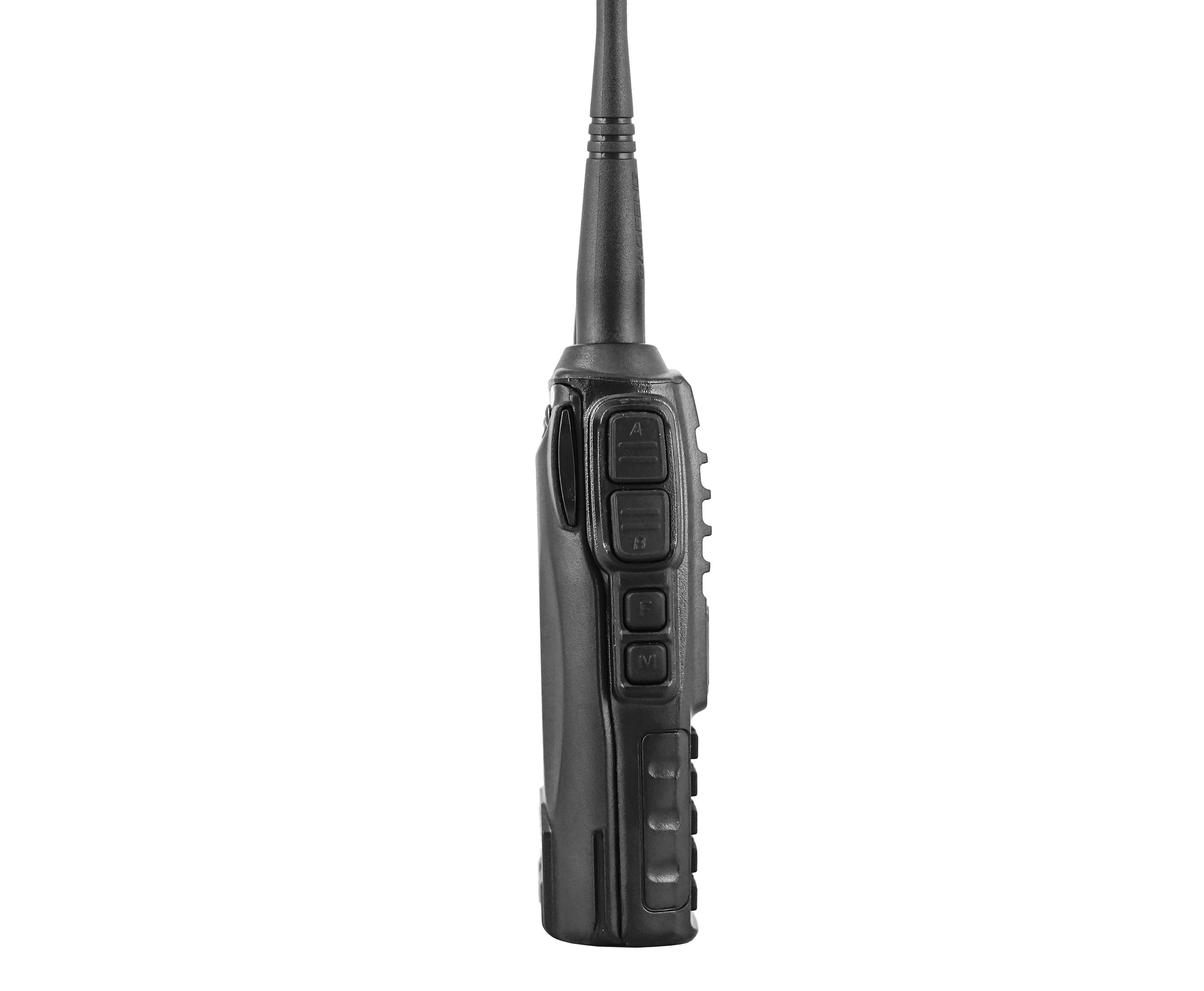

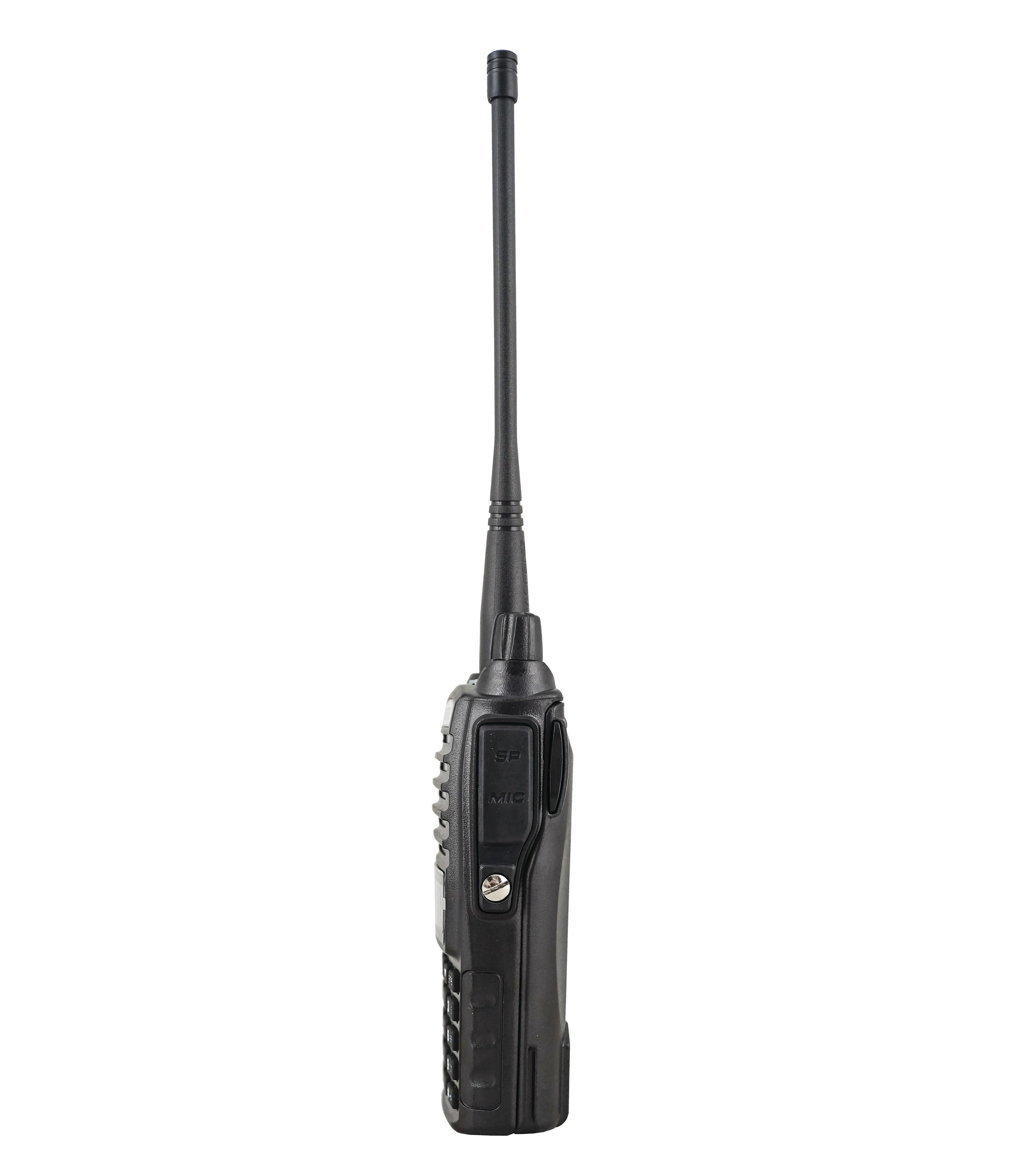

Baofeng UV-82 Dual-Band Dual PTT 5W

Tip for UV-82

To switch display mode "Memory" to "Frequency" mode also called "VFO": Turn the device off, press the "Menu" button and then turn on the device while still pressing the "Menu". Repeat this operation to switch from one display mode to another.

The 1750Hz tone is now adjustable from a new TONE menu (# 41). To trigger the 1750Hz tone, press the PTT + F button below.

Baofeng UV-82 comes with

•      1 x Battery 7.4V 2800mAh Li-ion
•      1 x Antenna VHF/UHF
•      1 x Belt Clip
•      1 x English manual
•      1 x Desktop Charger (100V ~ 240V) EU
•      1 x headset double PTT



UV-82 features

25KHz/12.5KHz Switchable (Wide/Narrow Band)
FM Radio (65.0MHz-108.0MHz)
Large Tri-color LCD Display
LED Flashlight
High /Low RF Power Switchable
VOX 50 CTCSS/ 104DCS coder & tone searching
Dual standby
PC programmable
Wide/Narrow Band (25kHz/12.5kHz)
Transmitter time-out timer (TOT)
High/Low TX power selectable
Busy channel lock-out (BCLO)

Technical specifications

Channel No: 128
Stability: ±2.5ppm
Antenna: High Gain, Dual Band
Antenna Impedance: 50Ω
Operating Voltage: DC 7.4V
Battery: 2800mAh
Modes: Simplex or semi-duplex
Antenna: SMA Male
Accessory Plug: Kenwood
Weight: 250g (including battery, antenna)
Power adapter: Input: AC220V, 50-60Hz;
Output: DC10V/500mA
Output power: 5W max. VHF and 4W max. UHF
Modulation Mode: FM
Maximum deviation: 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation: 7μW
Current: ≤1.6A
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: ≤10%

2 years warranty and CE, FCC and RoHS standards.

What is the difference between UV-82, UV-82L, UV-82-HP?

From features point of view, power and design, there is no difference between the versions UV-82 and UV-82L. Some resellers are announcing a UV-82L version with a larger capacity battery at 3000 or 3800mAh but actually offers a genuine 2800mAh battery.

About the UV-82HP version: The "marketing" version called HP for High-Power 7-8 watts is very popular, but we decided to no longer offer the UV-82-HP version. The actual gain in terms of range is not significant from 5 to 7W.

In terms of radio communication, it is necessary to multiply the transmission power by 3 to gain 1 point of signal on the bargraph. In order to perceive a real difference in terms of emission range, the UV-82-HP would have to get a power of at least 15W and in any case emit such a power close to the head is not recommended.

Replacing the original antenna or deporting an outdoor antenna will be much more efficient, because the antenna representing 90% of the importance of a radio station!

Finally, counterfeit walkie-talkies and Baofeng accessories can circulate. At Passion Radio Shop, we only offer original direct warranty products from the manufacturer and the Baofeng factory (Po Fung) in China

The use of any radio transmitting device such as handheld Baofeng UV-82 or UV-82HP is subject to the respect by the user of the frequencies and the legislation in force and requires a radio license to be legally used in transmission, as is the case with an amateur radio license ;-)
