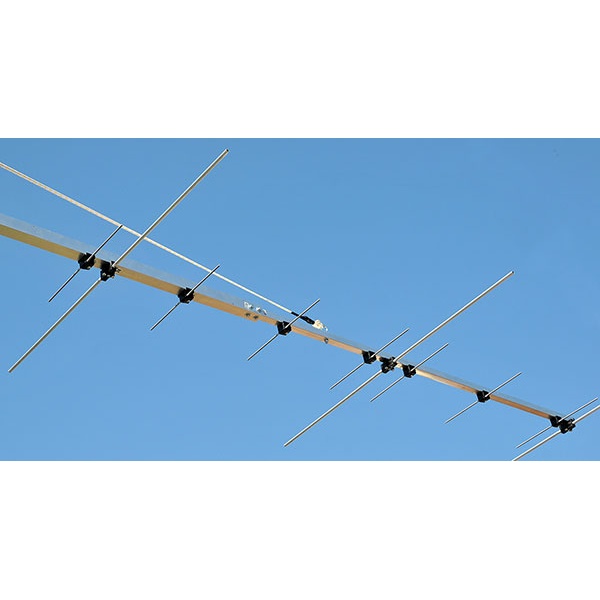

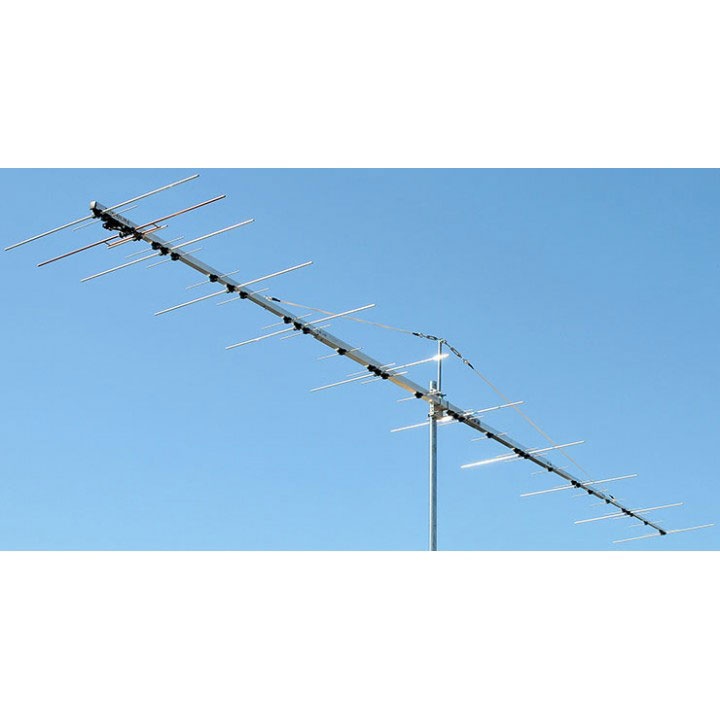

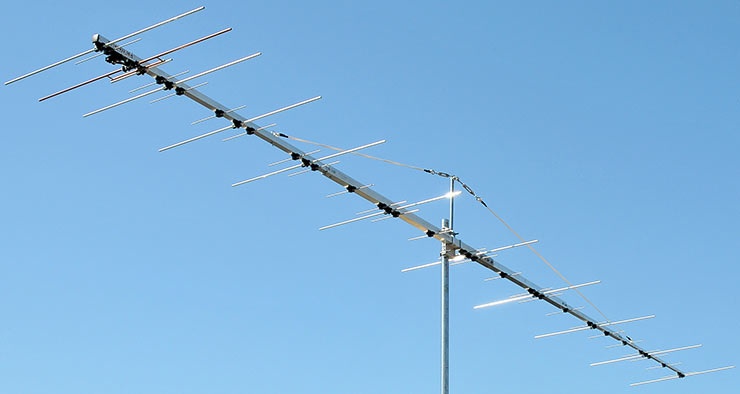

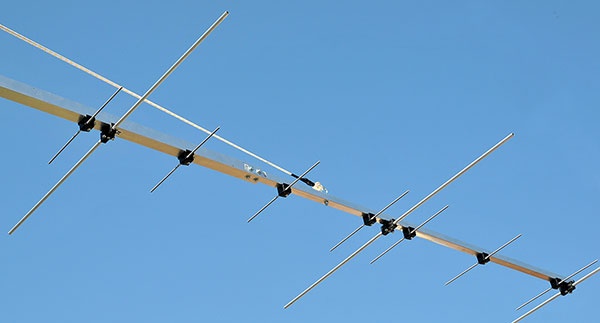

144 MHz & 432 MHz DualBand EME 11 & 25 element Antenna 2m70cm36DXP (AA)
No review at the momentDual Band Antenna 2 meter and 70 cm with common connector.
High power 2m and 70cm dual band Yagi antenna with common connector 2m70cm36DXP.
Former reference was : PA144-432-36-6BGP.
Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.
Data sheet
| Electrical Specifications 2 m | |
| Frequency Range: | 144 – 146 MHz |
| Free Space Forward Gain: | 15.1 dBi |
| Front to Back Ratio: | 31 dB |
| 3 dB Horizontal Beamwidth: | 33.5° |
| 3 dB Vertical Beamwidth: | 36.1° |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 1000 W |
| Matching Method: | Voltage Balun |
| Connector: | “N” (Common connector for both bands) |
| Mechanical Specifications 2 m | |
| Number of elements: | 11 |
| Element Diameter: | 8 mm Aluminum tube |
| Dipole Diameter: | 8 mm Hard Copper tube |
| Longest element: | 1030 mm |
| Element Mounting Position: | Below othe Boom |
| Balun and Connector: | Included |
| Electrical Specifications 70 cm | |
| Frequency Range: | 432 – 434 MHz |
| Free Space Forward Gain: | 17.2 dBi |
| Front to Back Ratio: | 24 dB |
| 3 dB Horizontal Beamwidth: | 20.1° |
| 3 dB Vertical Beamwidth: | 22.2° |
| Polarization: | Horizontal |
| Nominal Input Impedance: | 50 Ohms |
| SWR Across Entire Band: | < 1.2 |
| Maximum Power Input: | 750 W |
| Matching Method: | Voltage Balun |
| Connector: | “N” (Common connector for both bands) |
| Mechanical Specifications 70 cm | |
| Number of elements: | 25 |
| Element Diameter: | 4 mm Aluminum rod |
| Dipole Diameter: | 8 mm (Common dipole for both bands) |
| Longest element: | 350 mm |
| Element Mounting Position: | Below the Boom |
| Balun and Connector: | Included |
| Common Mechanical Specifications | |
| Boom Length: | 5.84 m |
| Boom Size: | Tapered Boom 20x20mm, 30x30mm, 40x40mm |
| Number of Boom Pieces: | 5 |
| Guy rope support: | Yes, Included |
| Mounting Mast Diameter: | 43 – 70 mm 1-11/16″ – 2-3/4″ OD |
| Survival Wind Speed: | 150 km/h |
| Net Weight: | 8.4 kg |
| Gross Weight: | 10.5 kg |
| Transportation Length: | 1.49 m |
2 meter azimuth radiation pattern:
70 cm azimuth radiation pattern:
Duo band Yagi antenna with one connector
Measured 2 meter Return-Loss (S11) 144-146MHz
Measured SWR 144 – 146MHz
2 meter Smith Chart :
Measured 70cm Return Loss (S11) 432 – 434 MHz
Measured 70 cm SWR 432 – 434 MHz:
All necessary parts included. Including balun, connector and guy rope support.
Stacking versions with connector forward so antennas can be stacked with feeds pointing toward each other.
