Magnetic SMA antenna 144/430Mhz Diamond MR75SJ Diamond Antenna VHF-UHF DIAMOND-MR75SJ-FEMELLE-363 View larger

Diamond Antenna

New product

Japan

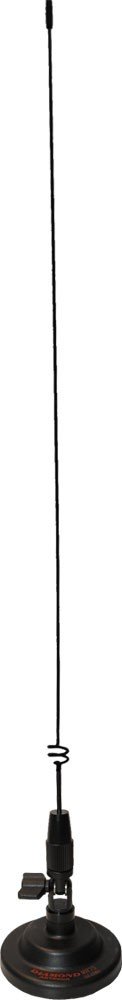

Magnetic SMA antenna 144/430Mhz Diamond MR75SJ

rating Read the review
Average rating: 5/5 Number of reviews: 1

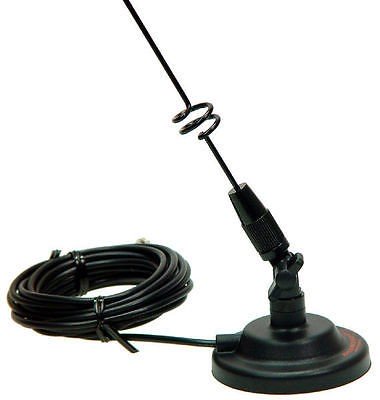

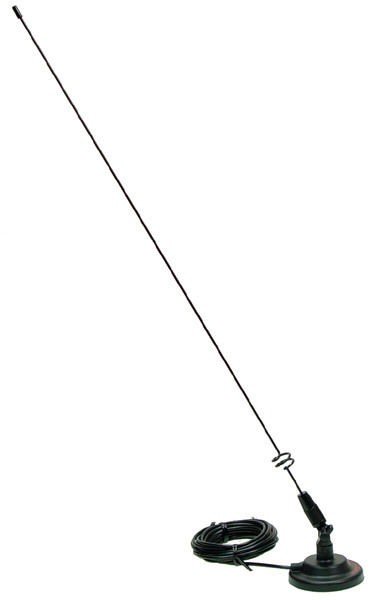

High performance dual band antenna with 2.15dbi gain in VHF and 3.4dbi in UHF, with mini-magnetic base and tilt angle adjustable + coaxial cable of 3 meters with SMA female or male connector.

This antenna is preset on 144/430Mhz bands and can not be adjusted.

Frequency emission: 144 / 430MHz
Maximum power: 35W
Reception frequency: 100-200Mhz and 400-500Mhz
Cable connector: SMA femelle or male
Antenna length: 50 cm
Diameter of the magnetic base: 6cm
Cable length: 3 meters

Supplied with: 1 antenna with magnetic base Diamond MR75SJ (SMA female) or MR75S (SMA male) + cable with SMA.

More details

39,90 € tax excl.

Out of stock, available in 2 to 3 months

  • SMA Male
  • SMA Female

Data sheet

Specifications 144/430 MHz antenna SMA

TX frequency: 144 / 430MHz
RX frequency: 100-200Mhz and about 400-500Mhz
Gain: 2.15dBi in 144MHz and 3.4dBi in 430MHz
Type Polarization: Vertical
Wavelength: 1/4 VHF and UHF 5/8
VSWR: ≤1.5
Maximum power: 35W
Impedance: 50 Ohms
Length: 50cm
Cable length: 3 meters
Coaxial cable: LMR100
Connector: SMA female Diamond MR75SJ or sma male Diamond MR75S
Support: magnetic base Mini
Weight base + antenna + cable: 130g

Reviews

Click here to leave a review

rating 5
Livraison rapide
Comme d’habitude, livraison super rapide. Dès reçeption de l’adaptateur SMA une retour sera fait sur la qualité de l’antenne
