HB9-70 2 elements HB9CV 70cm Beam Antenna Moonraker View larger
MOONRAKER

MOON-11-081-HB970-2106

New product

United Kingdom

HB9-70 2 elements HB9CV 70cm Beam Antenna Moonraker

rating Read the review
Average rating: 4.5/5 Number of reviews: 1

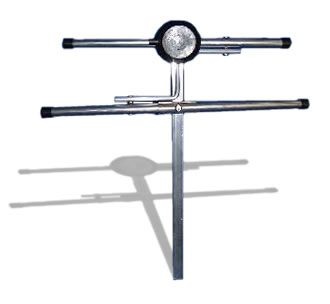

The HB9CV is the world's most popular directional antenna. Thanks to its excellent parameters, this antenna has been in use since 1954. The gain of this two-element antenna is the same as that of the classic three-element YAGI antenna.

Main features/specifications:

  • Type: HB9CV two-element antenna
  • Frequency: 430-440MHz
  • Gain: 3.5dBd
  • Boom length: 30cm
  • Longest element: 30cm
  • Gain: 3.5dBd
  • VSWR: 1.5:1 or better
  • Power: 200 Watts
  • Connection: Direct connection to variable capacitor

27,90 € tax excl.

In stock

   3 Items
