Handheld VHF air band 8.33 khz Yaesu FTA-550L / FTA-550AA AM 108-136 Mhz View larger
Previous Next

YAESU

New product

Japan

Handheld VHF air band 8.33 khz Yaesu FTA-550L et FTA-550AA

rating Read the 4 reviews
Average rating: 5/5 Number of reviews: 4

As of 1 January 2018, all aircraft are required to use new channel spacing  8.33 kHz and instead of 25 kHz for air band VHF communication radio.

The Yaesu handhelds FTA-550 and FTA-750 (with GPS) VHF are radios 8.33 kHz & 25 kHz compatible and provide VOR & ILS display.

This equipment is LA3 approved by CAA UK for use on the ground and can be connected to an outdoor AM VHF antenna by a BNC male adapter.

Available in 3 versions:

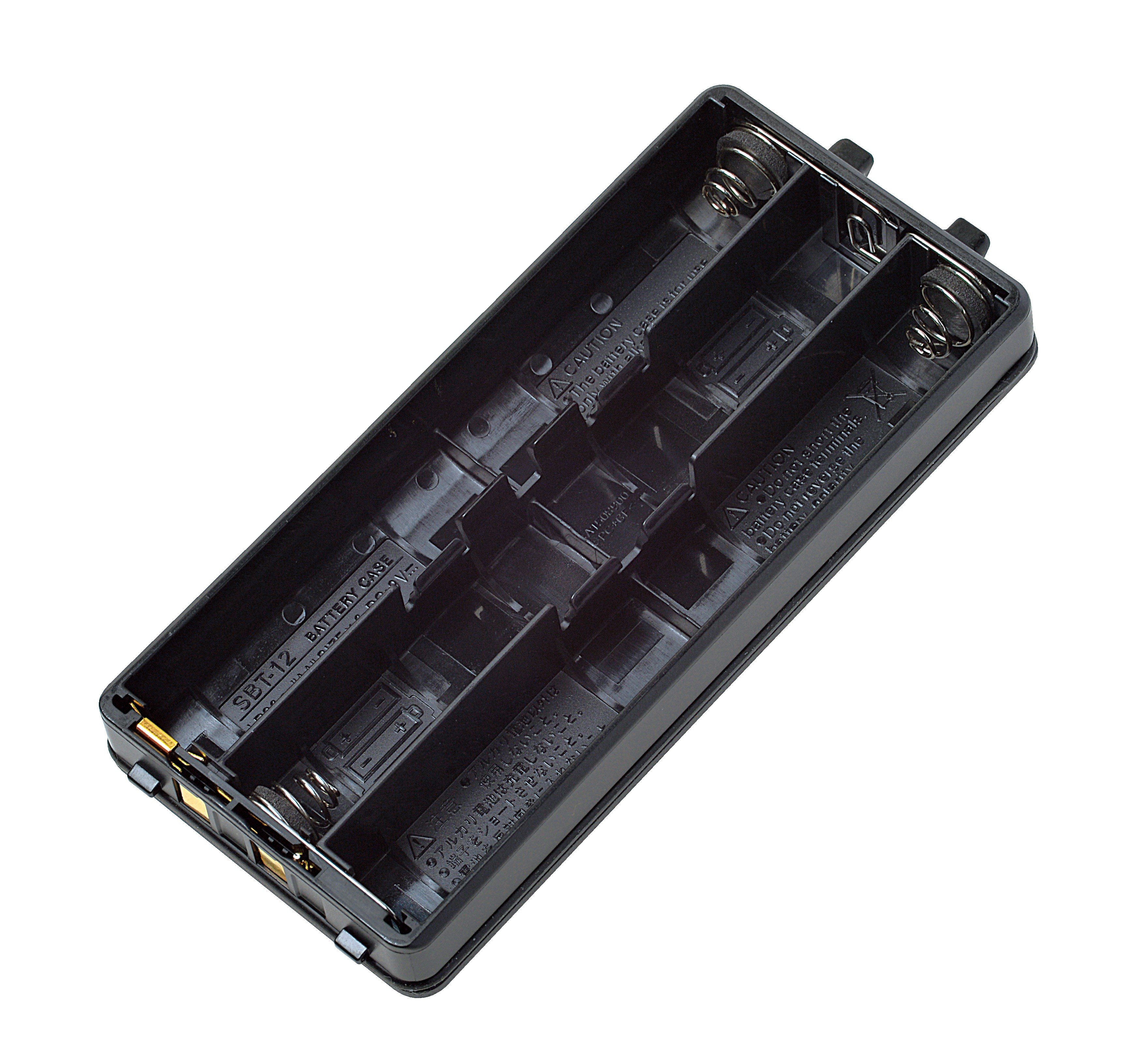

FTA-550AA: comes with AA battery box, BNC antenna, belt clip and SCU-15 headphone adapter.

FTA-550L: comes with 1800mAh lithium-ion battery, 220V desktop charger, BNC antenna, belt clip and SCU-15 headphone adapter.

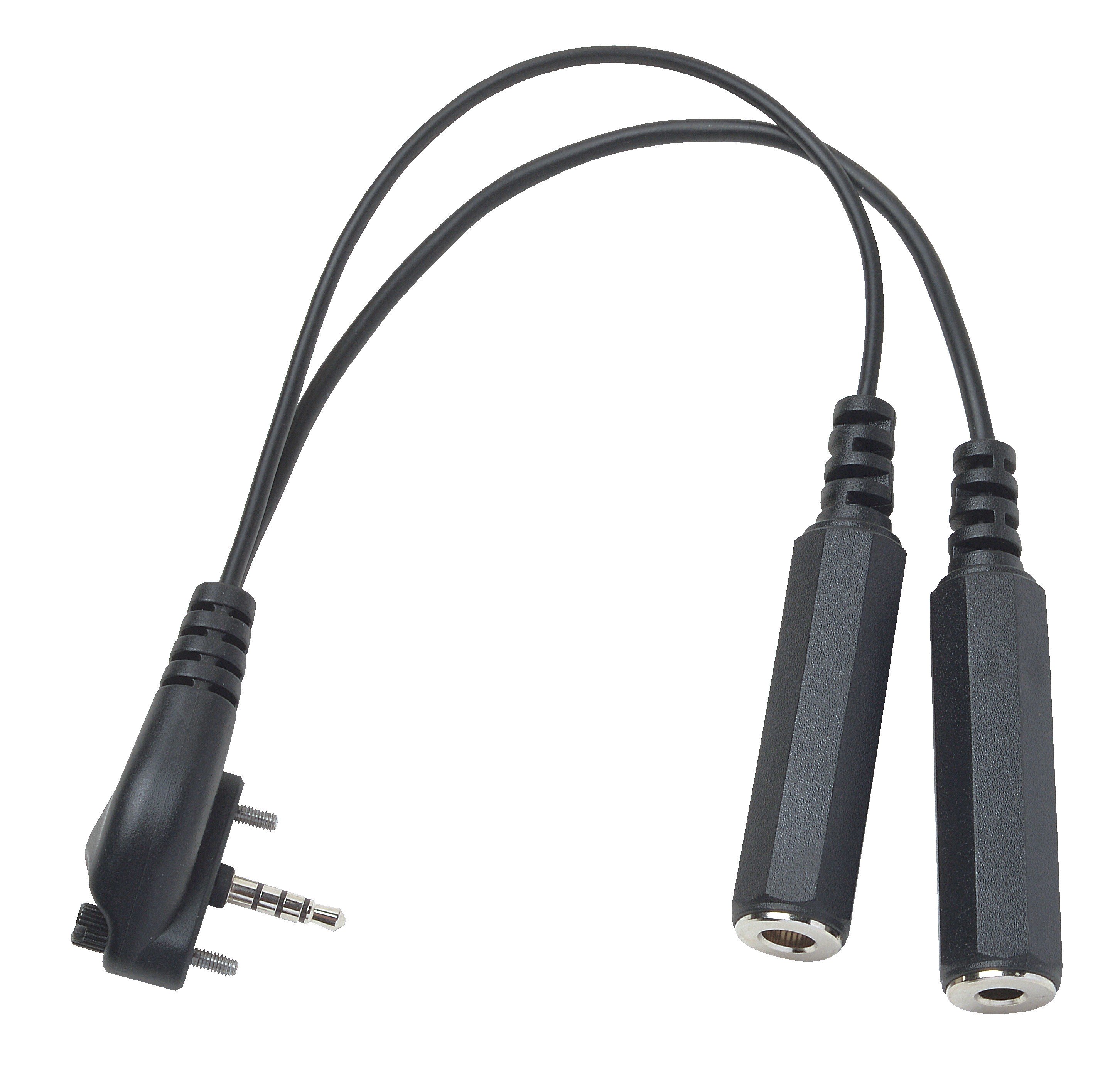

All versions include a Yaesu SCU-15 adapter for connecting aviation headphones with a 6.3mm (PJ-055) and 5.23mm (PJ-068) jack.

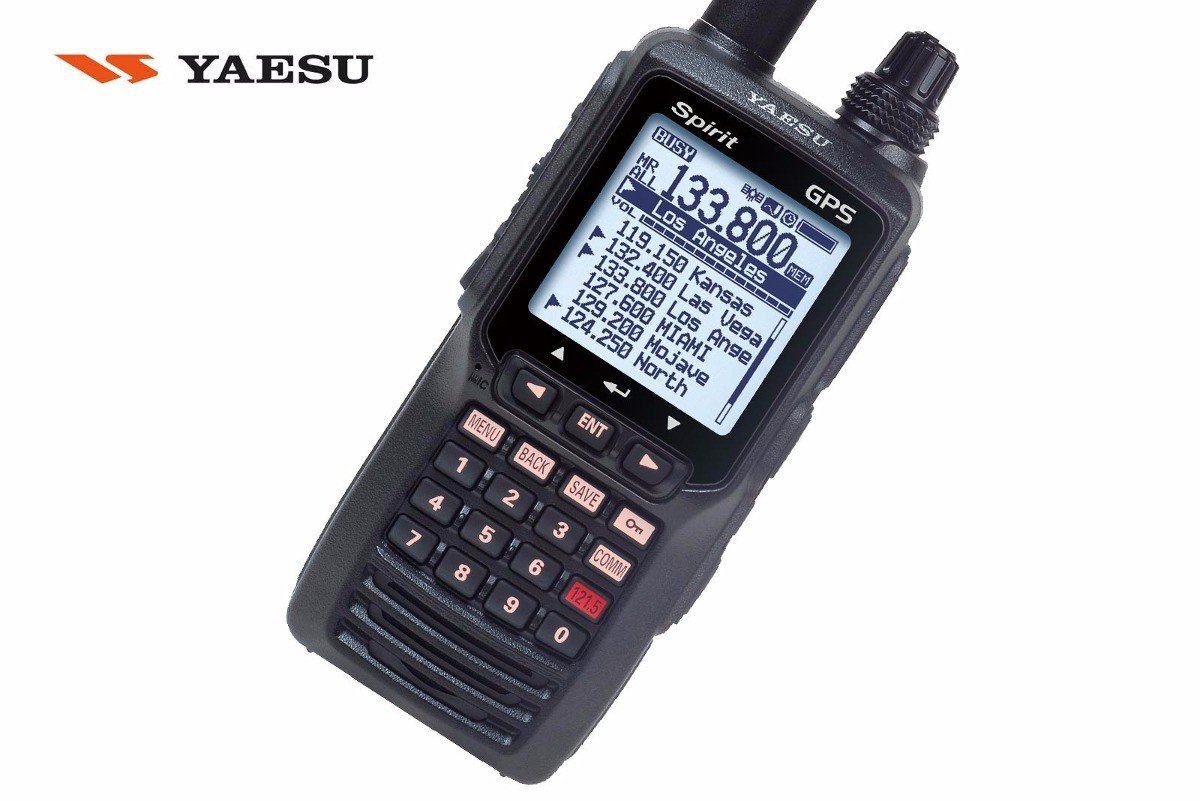

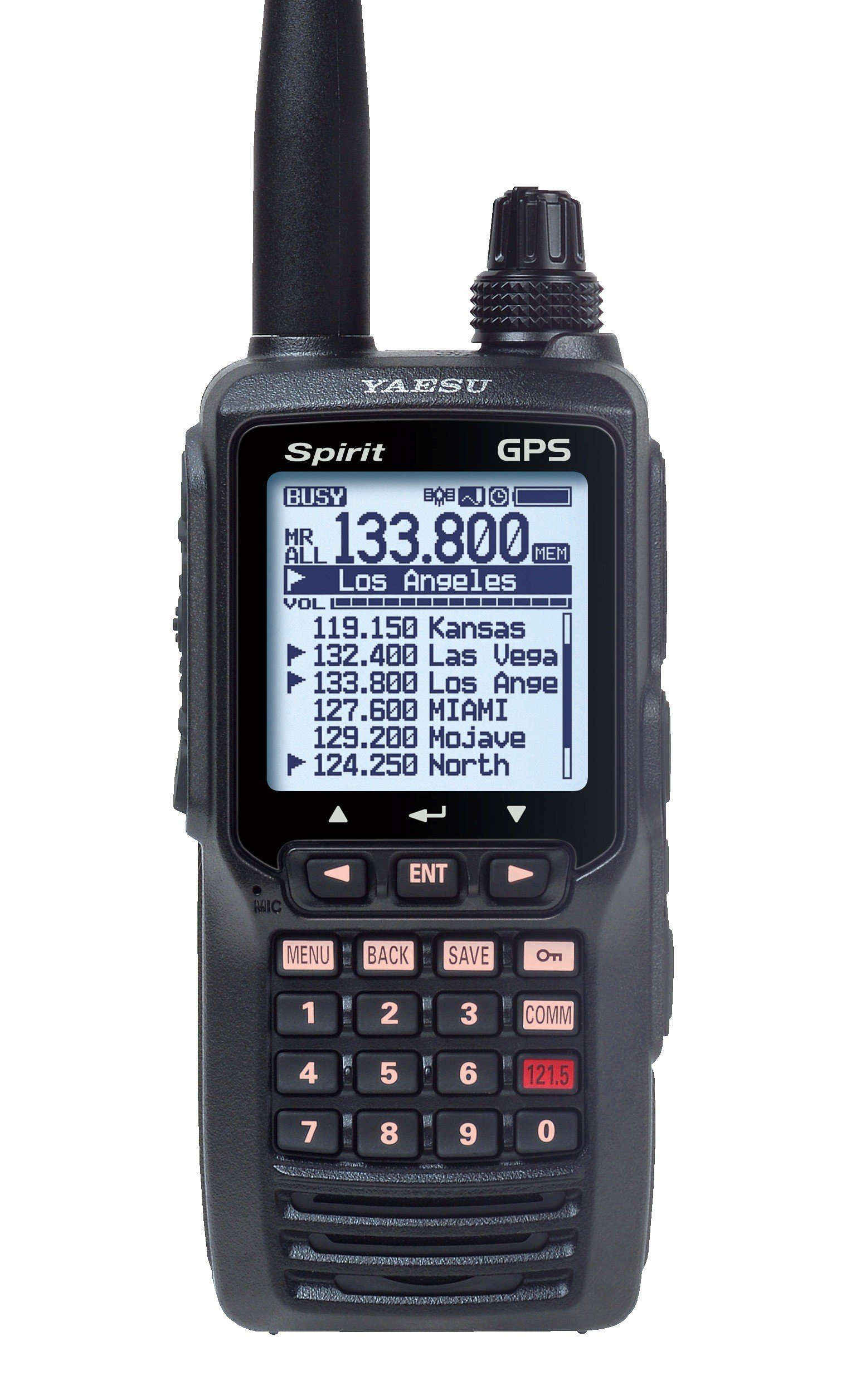

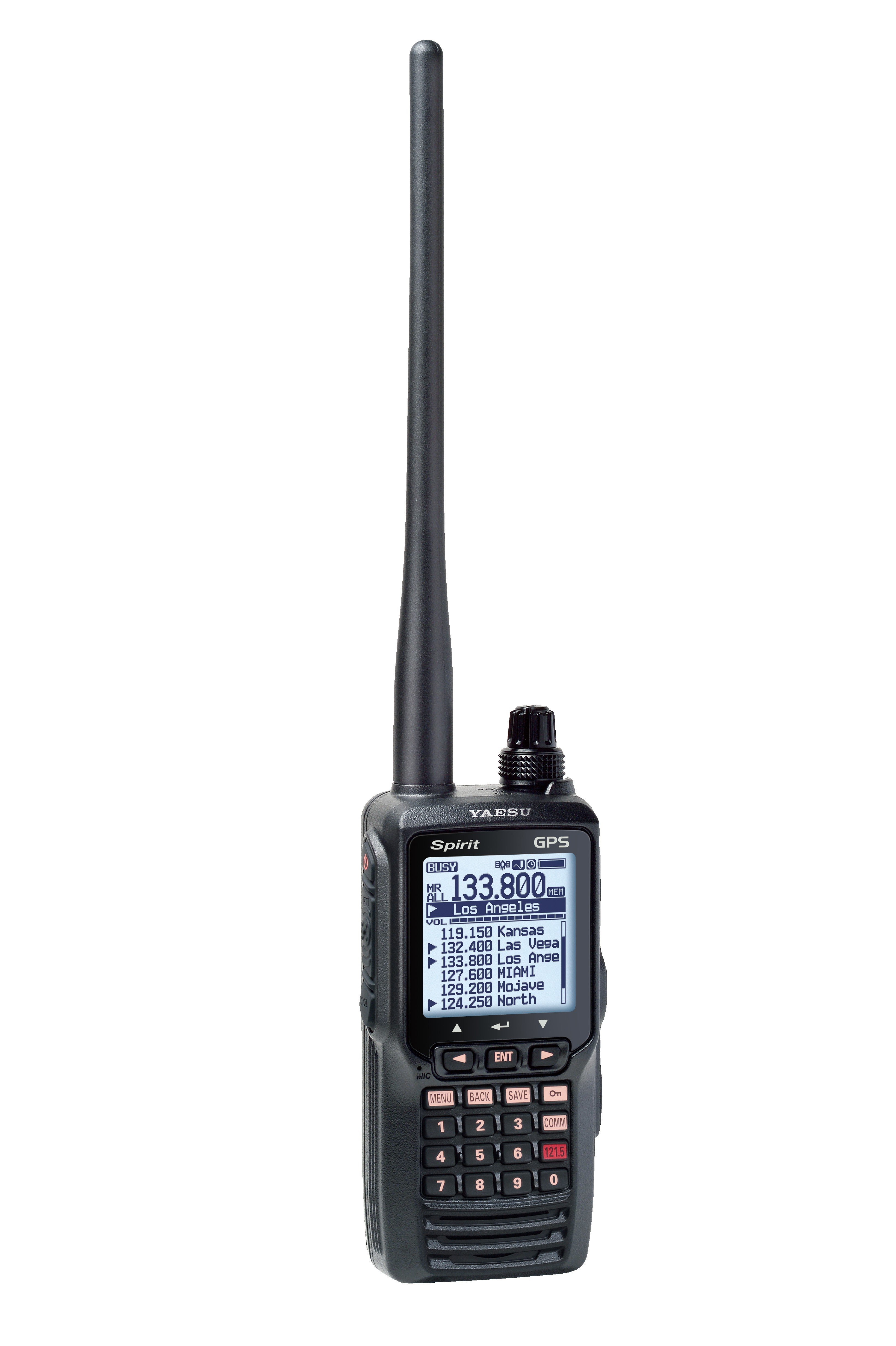

Also available Yaesu aero FTA-750L with GPS.

More details

259,00 € tax excl.

In stock

   5 Items

  • FTA-550AA - Alkaline case
  • FTA-550L- Lithium 1800mAh

Download

Brochure FTA-550L & FTA-750L

2.7M

Manuel FTA-750 550 450 (EN)

In english for FTA-750 FTA-550 and FTA-450 7.45M

FTA Yaesu notice VHF Air band

Yaesu FTA series Air Band Radio Information, audio adapter SCU-15, 8.33kHz step frequency, 937.05k

Manual FTA-750 550 450 (FR)

In french 4.33M

Yaesu YCE01 FTA-x50 software

YCE01 programming software for Yaesu FTA-450, FTA-550 and FTA-750 2.74M

Drivers Windows CP210x SCU17

Windows USB CP210x Drivers for Yaesu SCU17. 3.68M

Yaesu Aviation Handheld Guide

Comparative portable aviation radio aero Yaesu FTA series 5.19M

Fimware 4.0 for FTA-550

Includes the verification program that checks if the FTA-550 aviation radio version can be updated to V4.00 firmware. 3.74M

Certification CE RED FTA-550

208.89k

Data sheet

Specifications FTA-550L & FTA-550AA

Frequency range:

RX / TX 118,000 - 136,975 MHz (COM band)
RX 108,000 - 117,975 MHz (NAV band)
Weather Frequencies VHF aviation WX-01 - WX-10
Channel spacing: 25 kHz or 8.33 kHz
Output power: 5 W (PEP), 1.5 W (carrier power) @ 7.2 V DC
Speaker outpout: 800mw
Large LCD display
Display navigation VOR & ILS
Waterproof IPX5 handheld
Connector antenna : BNC Female
Dimensions: 62 x 133 x 34 mm (without the antenna)
Weight: 410g with battery and antenna
CE & Rohs
5 years Yaesu warranty

The Yaesu FTA-550 is 8.33 khz certified LA3 by the CAA, for use on the ground.
