> Pro equipment>VHF Air Band>Handheld aviation talkie ICOM IC-A25CEFRII VHF AM 6W IP57 JAA FORM ONE

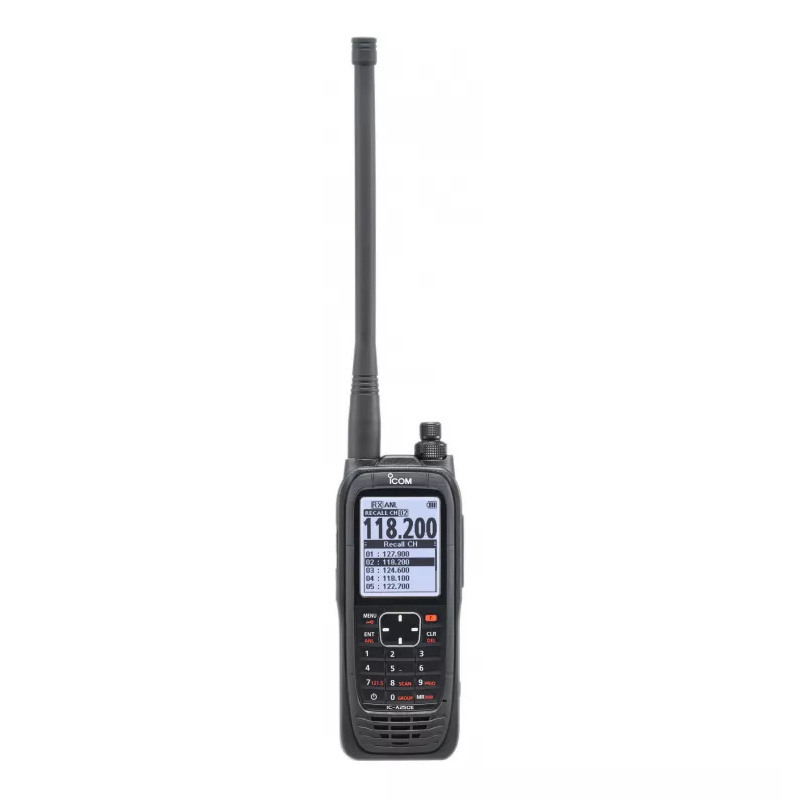

IC-A25CE : ICOM VHF AM 6W IP57 Aviation Portable Talkie View larger

ICOM PRO

ICOM-ICA25CEFRII-2863

New product

Japan

Handheld aviation talkie ICOM IC-A25CEFRII VHF AM 6W IP57 JAA FORM ONE

rating No review at the moment

Portable aviation walkie-talkie ICOM IC-A25CEFRII VHF 108-136MHz, 6W PEP, graphic display, keypad, 300 channels, 8.33kHz spacing, IP57 waterproofing. VOX function, side-tone, flip-flop (automatic channel memory), dual standby, ANL noise reducer.

Meets MIL-STD810G standard. E/R VHF certified as LSA main onboard radio - DSAC/NO 22-044 approval(delivered with JAA FORM ONE)

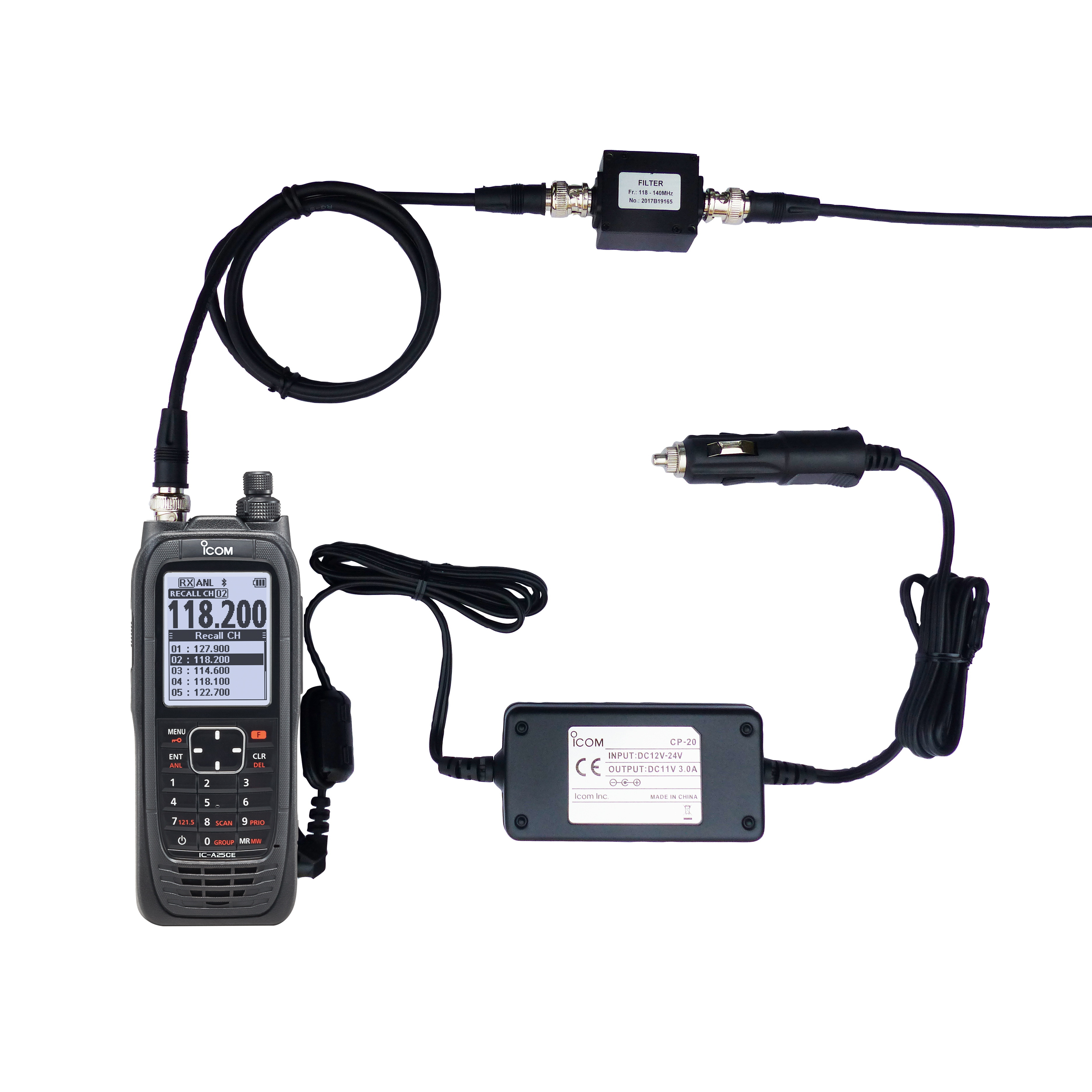

Supplied with: 1 IC-A25CEFRII, 1 FA-B02AR antenna, 1 BP-288 battery, 1 BC-224 charger (with BC-123SE mains supply), 1 MB-133 clip, 1 dragone, 1 FL- IFFL2 filter, 1 CP-20 power supply, 1 BNC 1-metre cable and JAA FORM 1

Max. SAR exposure Head 0.570 W/kg

More details

799,00 € tax excl.

Available to order only

Download

Notice IC-A25CEFRII (FR/EN)

2.76M

Manuel IC-A25CEFRII (EN)

30.35M

Approbation DGAC IC-A25CEFRII

227.97k

Data sheet

Technical specifications :

  • General:

    • Frequency Band (MHz):
      • Transmit (Tx) and Receive (Rx): 118,000 - 136,992
    • Number of Memory Channels: 300 channels / 15 groups
    • Channel Spacing: 8.33 kHz / 25 kHz
    • Transmission Mode: AM (6K00A3E, 5K60A3E)
    • Power supply:
      • Battery: 7.2 V (BP-288)
      • External Jack: 11 V DC
    • Power consumption:
      • Transmit (high): 1.8 A standard
      • Audio output max. Less than 500 mA standard, 90 mA typical (GPS, Bluetooth, lighting: OFF)

    Audio and Radio performance:

    • Antenna Impedance: 50 Ω
    • Sensitivity (COM): Less than 0 dBμ (at 6 dB S/N)
    • Adjacent Channel Rejection: More than 60 dB
    • Audio Power:
      • Internal: 1200 mW typical
      • External (at 8 Ω): 530 mW typical
    • Transmit Power:
      • 6 W PEP
      • 1.8 W Carrier power
    • SAR (Specific Absorption Rate) Max: 0.57 W/kg
    • Frequency stability: ±1 ppm
    • Microphone Impedance: 150 Ω

    Operating conditions:

    • Operating Temperature: -20°C to +55°C
    • MIL-STD 810G Certification: Yes
    • Waterproofing: IP57 (submersible to 1 metre for 30 minutes)

    Dimensions and Weight:

    • Dimensions (W x H x D): 58.9 × 148.4 × 31.8 mm
    • Weight: 384 g (with antenna and BP-288 battery)
