> Pro equipment>VHF Air Band>Walkie-talkie Yaesu FTA-750L VHF Aviation AM 8.33 khz + GPS

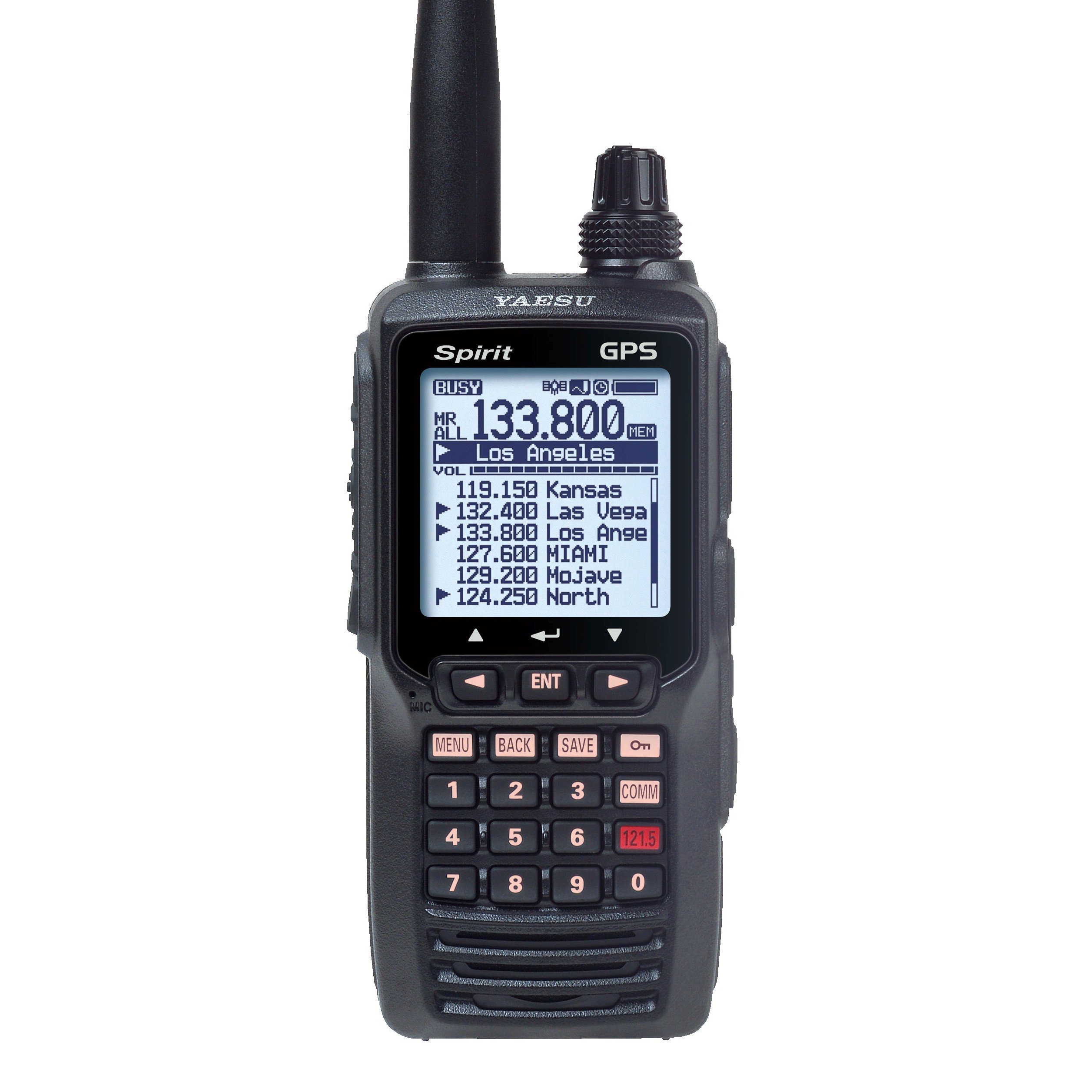

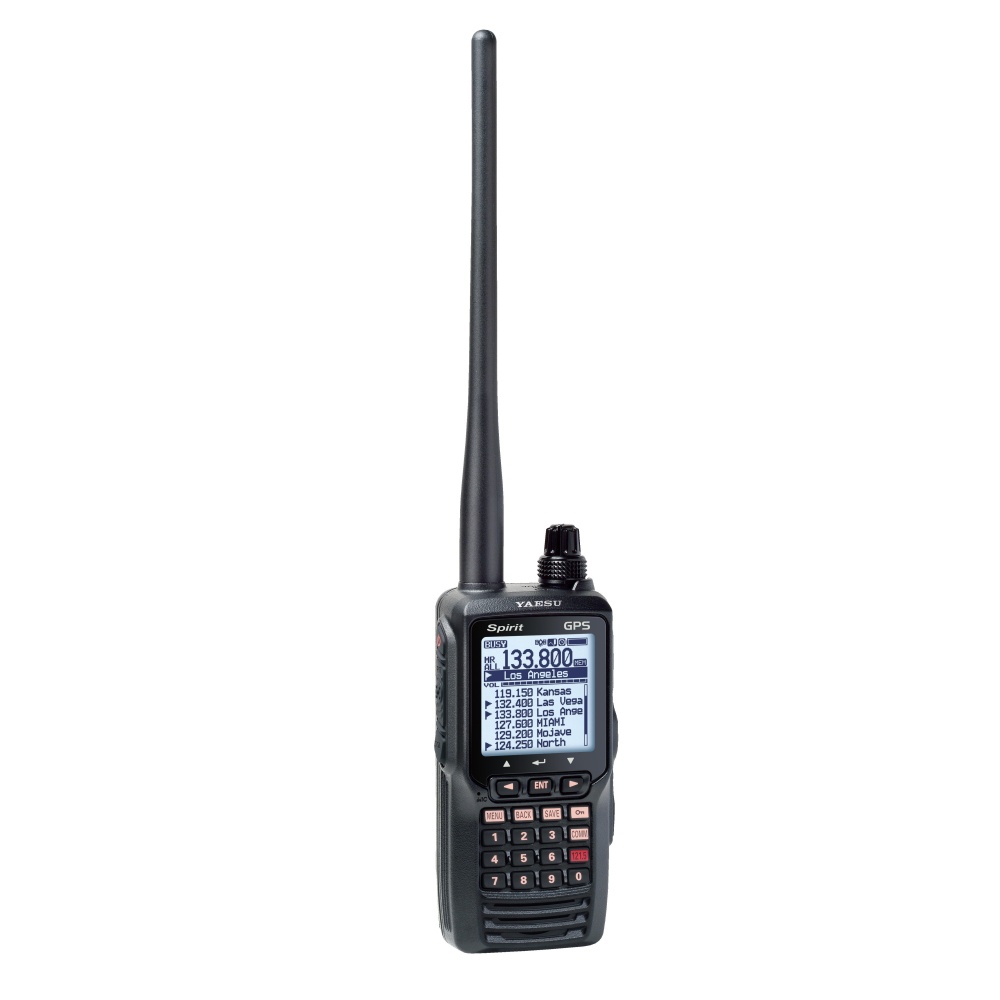

handheld Yaesu FTA-750L VHF AM air-band 8.33 khz GPS View larger
Previous Next

YAESU

YAESU-VERTEX-FTA750L-1043

New product

Japan

Walkie-talkie Yaesu FTA-750L VHF Aviation AM 8.33 khz + GPS

rating No review at the moment

The Yaesu FTA-750L (Spirit GPS) VHF AM Aviation Handheld Walkie Talkie is 8.33 kHz and 25 kHz compatible and has VOR & ILS display and GPS.

Since January 1, 2018, all aircraft are required to use the new 8.33khz standard, instead of 25 kHz on the VHF aviation band AM 118-137Mhz and for all air-ground communications below FL 195 in Europe.

Supplied with: 1 FTA-750-L (Spirit GPS), 1 AA battery box, 1 lithium-ion battery 1800 mAh, 1 desktop charger 220V, 1 BNC antenna, 1 belt clip and 1 SCU-15 adapter.

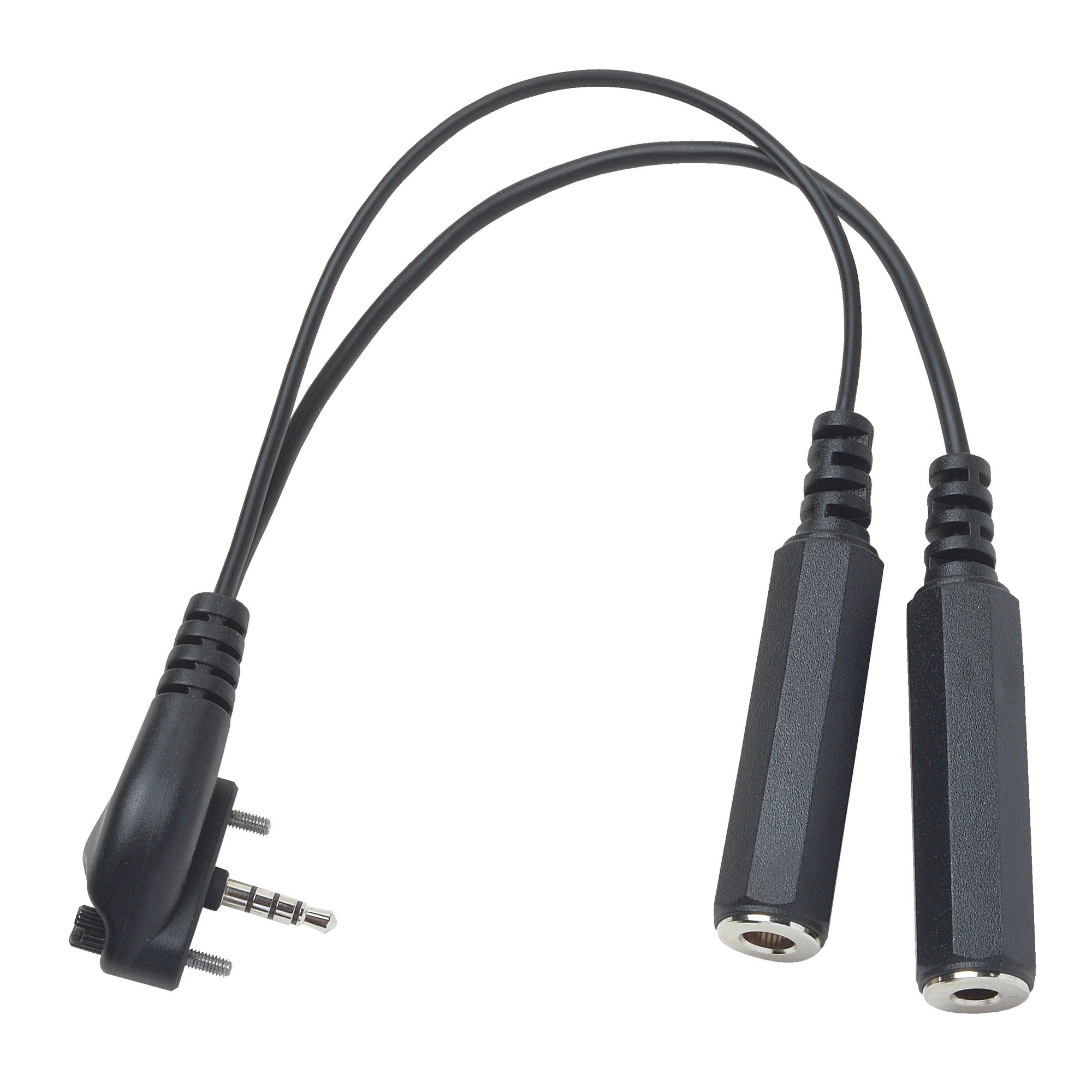

Includes the Yaesu SCU-15 adapter to connect an airplane headset with 6.3mm (PJ-055) and 5.23mm (PJ-068) plug.

This equipment is no longer manufactured by Yaesu and replaced by the FTA-850L model.

More details

425,00 € tax excl.

In stock

   1 Item

Download

Brochure FTA-550L & FTA-750L

2.7M

Manuel FTA-750 550 450 (EN)

In english for FTA-750 FTA-550 and FTA-450 7.45M

FTA Yaesu notice VHF Air band

Yaesu FTA series Air Band Radio Information, audio adapter SCU-15, 8.33kHz step frequency, 937.05k

Manual FTA-750 550 450 (FR)

In french 4.33M

Yaesu YCE01 FTA-x50 software

YCE01 programming software for Yaesu FTA-450, FTA-550 and FTA-750 2.74M

Drivers Windows CP210x SCU17

Windows USB CP210x Drivers for Yaesu SCU17. 3.68M

Yaesu Aviation Handheld Guide

Comparative portable aviation radio aero Yaesu FTA series 5.19M

Certification CE RED FTA-750L

209.07k

Data sheet

Handheld Walkie Talkie Frequency Range:
RX / TX 118,000 - 136.975 MHz (COM band)
RX 108,000 - 117.975 MHz (NAV band)
Aviation VHF weather frequencies WX-01 - WX-10
Channel spacing: 25 kHz and 8.33 kHz
Output power: 5W (PEP), 1.5W (carrier power) @ 7.2V DC
Speaker power: 800mw
Output power: 5W max.
Large LCD display
VOR and ILS display
GPS coordinates display
IPX5 waterproof
Antenna connector: BNC Female
Case dimensions: 62 x 133 x 34 mm (without antenna)
Weight: 410g with battery and antenna
CE, Rohs standards
5 years Yaesu warranty

Yaesu FTA-750 approval

From the CAA UK, this portable radio is LA3 approved, and can be used as a secondary radio (on board or on the ground) but not as a primary radio in areas that require it.

The Yaesu FTA-750 does not come with a JAA FORM ONE form.
