> Pro equipment>VHF Air Band>VHF Aviation AM 8.33 kHz walkie-talkie Yaesu FTA-250L
VHF Aviation AM 8.33 kHz walkie-talkie Yaesu FTA-250L YAESU VHF Air Band YAESU-VERTEX-FTA-250L-1025 View larger
YAESU

YAESU-VERTEX-FTA-250L-1025

New product

Japan

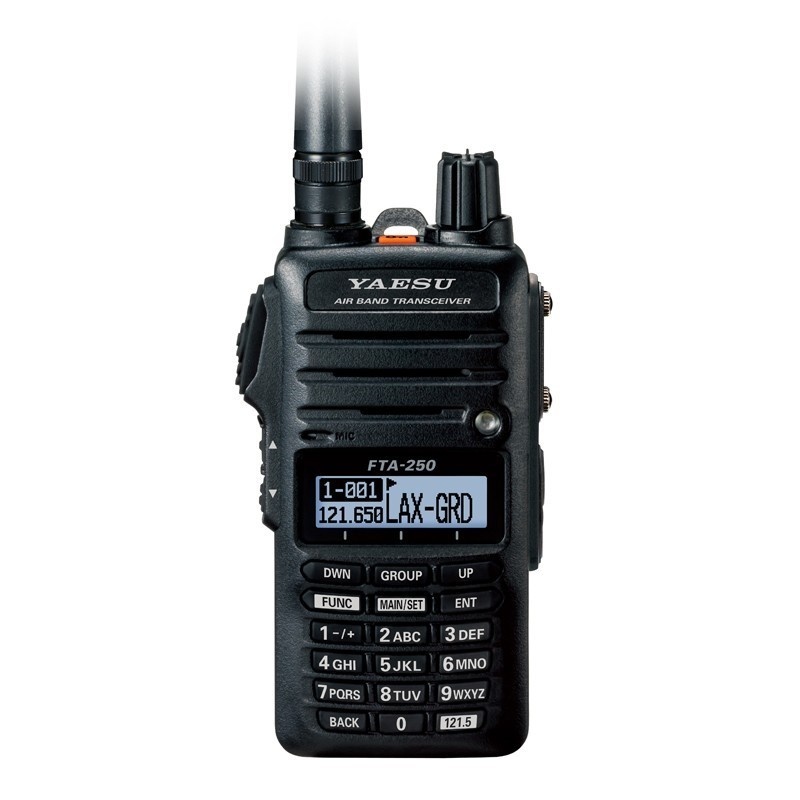

VHF Aviation AM 8.33 kHz walkie-talkie Yaesu FTA-250L

rating Read the 5 reviews
Average rating: 5/5 Number of reviews: 5

The Yaesu FTA-250L is a transceiver for the VHF AM aviation band from 118 to 136Mhz, IPX5 and MIL-STD-810F approved for use in harsh environments with rain, splashes and projections.

The new Yaesu FTA-250L aviation VHF handset is 8.33 kHz and 25 kHz compatible.

An audio output of 700 mW ensures that radio calls are not lost even in noisy environments. The FTA-250 also includes a noise reduction function on reception and transmission.

With Yaesu SCU-15 audio adapter included to connect a headset with 6.3mm (PJ-055) and 5.23mm (PJ-068) plug.

Comes with: 1 Yaesu FTA-250L, Li-Ion Battery (SBR-25LI 7.4V, 1950 mAh), 220V charger, cigarette lighter cord, antenna, belt clip, aviation headset adapter cord (SCU-15), manual in english to download below, 3 year warranty.

Max. SAR exposure Head 0.460 W/kg

More details

220,83 € tax excl.

In stock

   6 Items

Download

Manual FTA-250L (EN)

Full user guide and manual for airband FTA250L, in english. 5.57M

Manual FTA-250L (FR)

Manual and user guide for the FTA250L, in french. 5.63M

Yaesu Aviation Handheld Guide

Comparative portable aviation radio aero Yaesu FTA series 5.19M

Certification CE RED FTA-250L

51k

Data sheet

Specifications Yaesu FTA-250L VHF aviation

Frequency range:
RX / TX 118,000 - 136,975 MHz (COM band only)
Channel spacing: 25 kHz or 8.33 kHz
Output power: 5 W (PEP), 1.5 W (carrier power) @ 7.4 V DC
Speaker power: 700mw
Output power: 5W max.
LCD display
Dual watch
Receiving NOAA bulletins and alerts (not available in all countries)
Waterproof IPX5
MIL-STD-810F standards
1950mAh battery
Memory bank of 250 programmable channels
Computer programmable with the SCU-37 USB cable
Antenna connector: BNC Female
Case dimensions: 52 x 105 x 30 mm (without the antenna)
Weight: 410g with battery and antenna
Yaesu 3 year warranty, CE standards, Rohs

Since January 1, 2018, all aircraft will be required to use the new 8.33khz standard, instead of 25 kHz on the VHF aviation AM 118-137Mhz band (aero COM band) and for all air-ground communications in below FL 195 in Europe.


Approval of Yaesu FTA-250L for air operation

OSAC response thanks to the connection via the DGAC:

"It is a" leisure "radio to talk between two planes or two gliders or an aircraft and a man on the ground. As for portable equipment, the OSAC indicates that this equipment does not require be on the LSA. This radio can be used on board and on the ground, and it is up to the pilot to determine if the AM VHF is interfering with some of these on-board instruments and to use it or not. used as radio equipment on the LSA and in areas where control requires 8.33khz radio equipment. "

On the CAA UK side, this radio is LA3 approved, and can be used as a secondary radio (on board or on the ground) but not as a main radio in areas that require it.

The Yaesu FTA-250L does not come with the JAA FORM ONE.

How to setup 8.33 Khz frequency step
