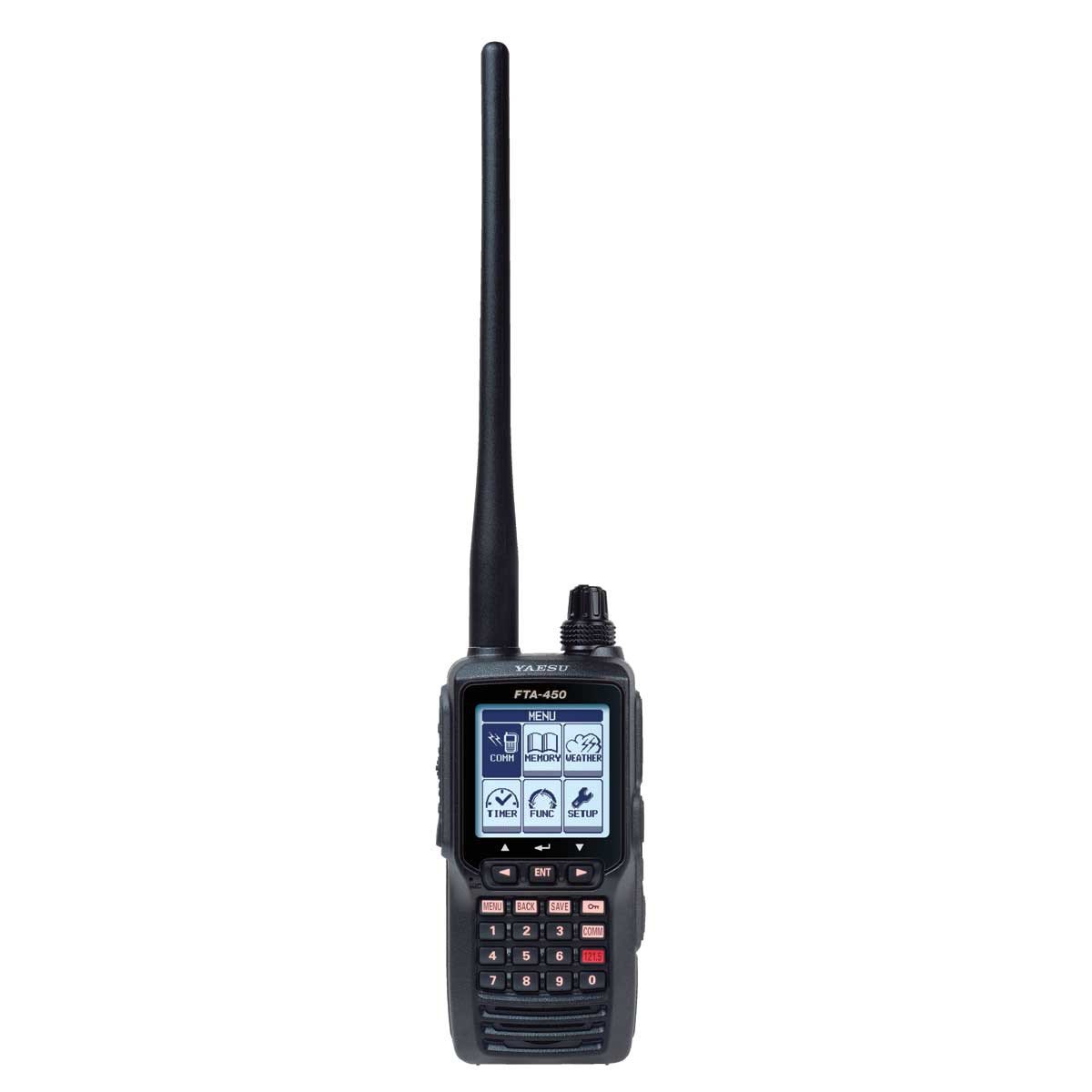

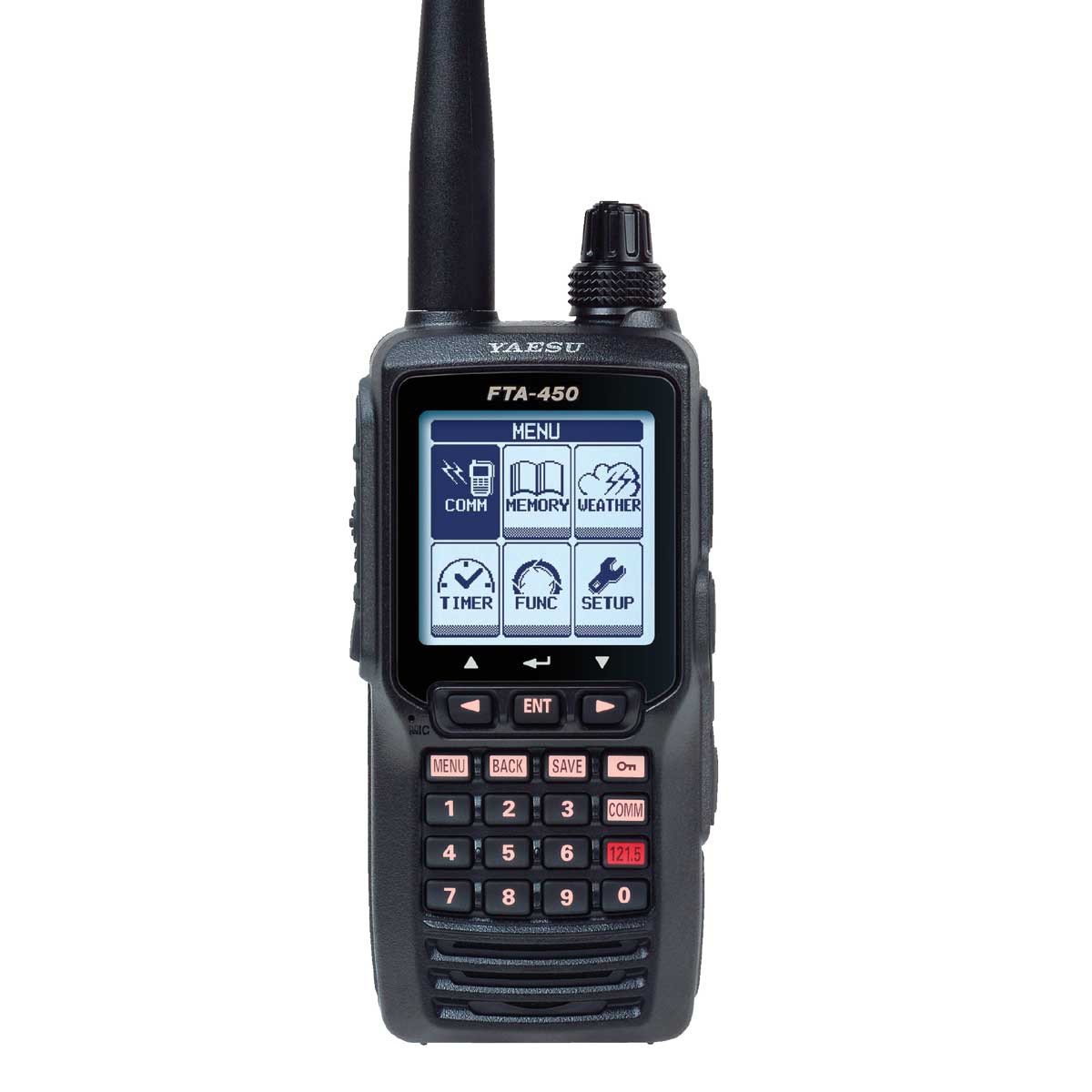

Handheld VHF air band 8.33 khz Yaesu FTA-450L

rating Read the review
Average rating: 5/5 Number of reviews: 1

As of 1 January 2018, all aircraft are required to use new channel spacing  8.33 kHz and instead of 25 kHz for air band VHF communication radio (COMM ONLY).

The new Yaesu handhelds FTA-450 VHF are 8.33 kHz & 25 kHz compatible.

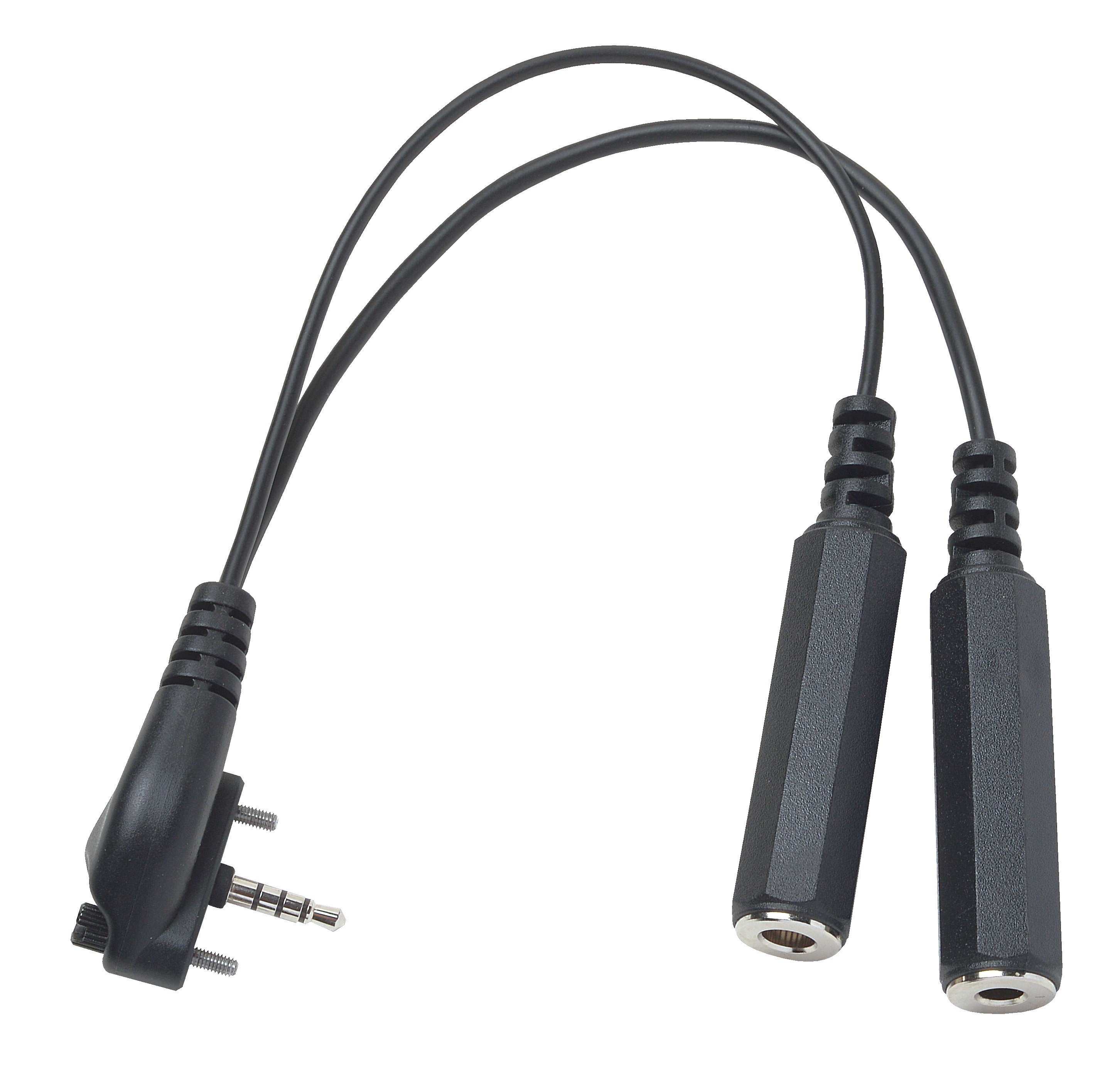

The Yaesu SCU-15 audio adapter included, allows to connect a headset with 6.3mm (PJ-055) and 5.23mm (PJ-068).

This equipment is LA3 approved by CAA UK for use on the ground and can be connected to an outdoor AM VHF antenna by a BNC male adapter.

Come with: FTA-450L, Li-Ion Battery Pack (SBR-12LI 7.4V, 1800 mAh), Charger Cradle (SBH-11), AC Charger (SAD-11), Cigarette Lighter DC/DC Converter (SDD-12), Antenna (SRA-13A), Belt Clip (SHB-11), Headset Adapter Cable (SCU-15), Alkaline Battery Tray (SBT-12 6 x AA), USB Cable (T9101606), Operating Manual, Warranty Card.



More details

289,00 € tax excl.

319,00 €

Out of stock, available within 1-2 months

Download

Manuel FTA-750 550 450 (EN)

In english for FTA-750 FTA-550 and FTA-450 7.45M

Manuel FTA-450 (EN)

3.88M

FTA Yaesu notice VHF Air band

Yaesu FTA series Air Band Radio Information, audio adapter SCU-15, 8.33kHz step frequency, 937.05k

Manual FTA-750 550 450 (FR)

In french 4.33M

Yaesu YCE01 FTA-x50 software

YCE01 programming software for Yaesu FTA-450, FTA-550 and FTA-750 2.74M

Drivers Windows CP210x SCU17

Windows USB CP210x Drivers for Yaesu SCU17. 3.68M

Yaesu Aviation Handheld Guide

Comparative portable aviation radio aero Yaesu FTA series 5.19M

Certification CE RED FTA-450L

208.82k

Data sheet

Specifications Yaesu FTA-450L

Frequency range:

RX / TX 118,000 - 136,975 MHz (COMM band)
Channel spacing: 25 kHz or 8.33 kHz
Output power: 5 W (PEP), 1.5 W (carrier power) @ 7.2 V DC
Speaker outpout: 800mw
Large LCD display
Waterproof IPX5 handheld
Battery: 1800mAh
Connector antenna : BNC Female
Dimensions: 62 x 133 x 34 mm (without the antenna)
Weight: 410g with battery and antenna
CE & Rohs
5 years Yaesu warranty

The Yaesu FTA-450L are 8.33 khz certified LA3 by the CAA, for use on the ground but no JAA FORM ONE included.

  • Customers also bought

    • Magnet BNC base bracket Diamond Antenna Diamond Antenna Accessories DIAMOND-MRX-141
      41,70 €

      Reference: DIAMOND-MRX-141

      Magnet BNC base bracket Diamond MRX

      Diamond MRX is a magnet base bracket for handheld transceivers and any devices with BNC connector. Coaxial cable: RG58 3m Connector: BNC Male / BNC FemaleMagnet diameter: 76.5mm

      41,70 €
    • Nagoya NA-771A Air Band antenna 118-136Mhz RX/TX Nagoya Antenna VHF Air Band NAGOYA-NA771A-SMAM-560
      15,54 €

      Reference: NAGOYA-NA771A-SMAM-560

      Nagoya NA-771A Air Band antenna 118-136Mhz RX/TX

      The Nagoya antenna NA-771A for walkie-talkie on the VHF Aviation band, it works in reception and transmissionfrom 118 to 136MHz.Frequencies: 118-136MHz Length: 39cm SWR: Less than 1.5: 1 Impedance:

      15,54 €

  • We also recommend

    • BNC to SMA Adapter for handheld Diamond Antenna Handheld ADAPT-DIAMOND-BNCPSMAJ-257
      10,90 €

      Reference: ADAPT-DIAMOND-BNCPSMAJ-257

      BNC Male to SMA female RF Adapter for handheld

      Adapter for walkie-talkie, handheld VHF-UHF or scanner equipped BNC to use SMA antennas.- The adapter has a BNC Male connector on one side and the other is SMA Female- The design is specially adapted

      10,90 €
    • Handheld VHF air band 8.33 khz Yaesu FTA-550L / FTA-550AA AM 108-136 Mhz
      259,00 €

      Reference: YAESU-VERTEX-FTA550-4803

      Handheld VHF air band 8.33 khz Yaesu FTA-550L et FTA-550AA

      As of 1 January 2018, all aircraft are required to use new channel spacing  8.33 kHz and instead of 25 kHz for air band VHF communication radio.The Yaesu handhelds FTA-550 and FTA-750 (with GPS) VHF

      259,00 €
    • Nagoya NA-771A Air Band antenna 118-136Mhz RX/TX Nagoya Antenna VHF Air Band NAGOYA-NA771A-SMAM-560
      15,54 €

      Reference: NAGOYA-NA771A-SMAM-560

      Nagoya NA-771A Air Band antenna 118-136Mhz RX/TX

      The Nagoya antenna NA-771A for walkie-talkie on the VHF Aviation band, it works in reception and transmissionfrom 118 to 136MHz.Frequencies: 118-136MHz Length: 39cm SWR: Less than 1.5: 1 Impedance:

      15,54 €
    • 220v power charger Yaesu SAD-41C for FT-70 FTA-450/ 550/750 YAESU Accessories HT YAESU-CHARGEUR-SAD-41C-1018
      14,95 €

      Reference: YAESU-CHARGEUR-SAD25C-1018

      220v power charger Yaesu SAD-25C for FT-70 FTA-450/ 550/750

      Yaesu SAD-25C (formely SAD-11C) 220v power charger for FT-70, FTA450/550/750 walkie-talkie, allows recharging the batteries either from the device or by powering the Yaesu CD-41, SBH-11 and SBH-28

      14,95 €

Reviews

Click here to leave a review

rating 5
VHF Aviation 8.33 khz Yaesu FTA-450L

J'ai du abandonner une Yaesu VERTEX Standard VXA-710 25kHz en raison de l'impossibilité de modifier l'espacement en 8.33 kHz, j'ai choisi une Yaesu FTA-450L.
L'interface de gestion a été simplifiée, la qualité de la réception et de l'émission est excellente.
La programmation des fréquences par le port USB est facile.
