> Radio Antennas>Mounting bracket>Tuners>mAT-10 MAT-TUNER for YAESU FT-817 and FT818 transceivers
mAT-10 Tuner for YAESU FT-817/818 transceivers View larger
Previous Next

MAT-TUNER

MTUNER-MAT-10-1600

New product

China

mAT-10 MAT-TUNER for YAESU FT-817 and FT818 transceivers

rating Read the review
Average rating: 5/5 Number of reviews: 1

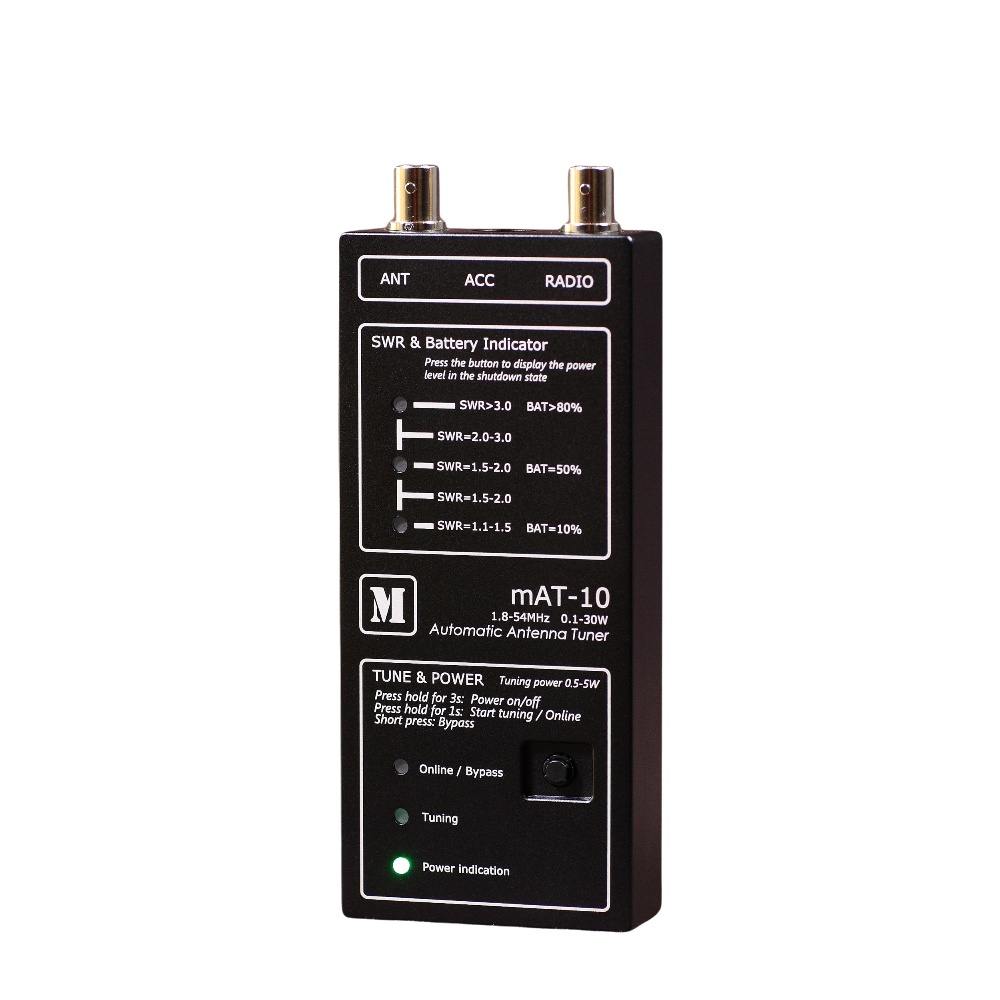

The mAT-10 is a compact tuner for use with the YAESU FT-817 and FT-818 transceivers and can also be used with other QRP transceivers.

It can tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It accommodates an amazing range of antennas and impedances, including the built-in tuners on many radios.

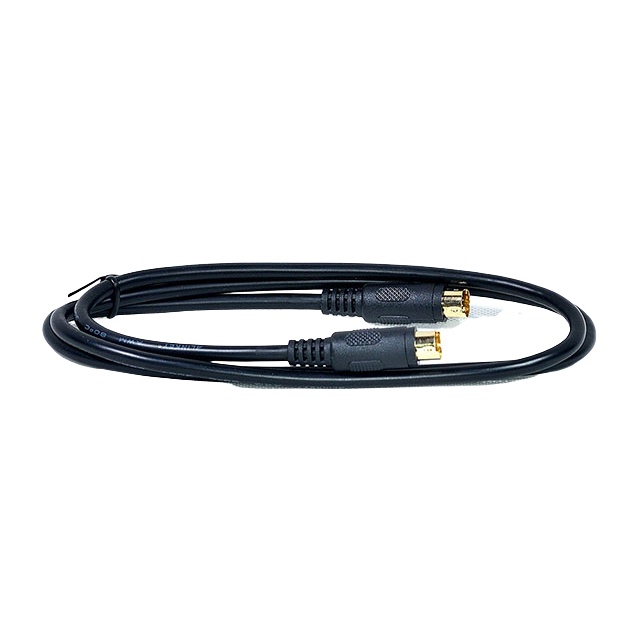

The mAT-CY control cable of the mAT-10 is used to connect the YAESU FT-817/818 transceiver. It can also be used by the mAT-30 to connect other YAESU transmitters.

The charger can also be used in the mAT-125E tuner. Please do not use other chargers for charging, as this may endanger the tuners.

Frequency range: 1.8MHz to 54MHz

Maximum power: 30 Watts

Supplied with: 1 mAT-10 tuner, 1  USB charging cable, 1 mAT-CY cable with 8-pin mini-DIN plug

More details

255,00 € tax excl.

In stock

   3 Items

Download

Manuel d'utilisation EN

378.23k

Manuel d'utilisation FR

356.73k

Data sheet

When connected to the FT-817/818 via a dedicated mAT-CY control cable, it is a dedicated tuner, which can perform convenient "one-key tuning". If no control cable is used, it becomes a universal QRP tuner for all low power transceivers.

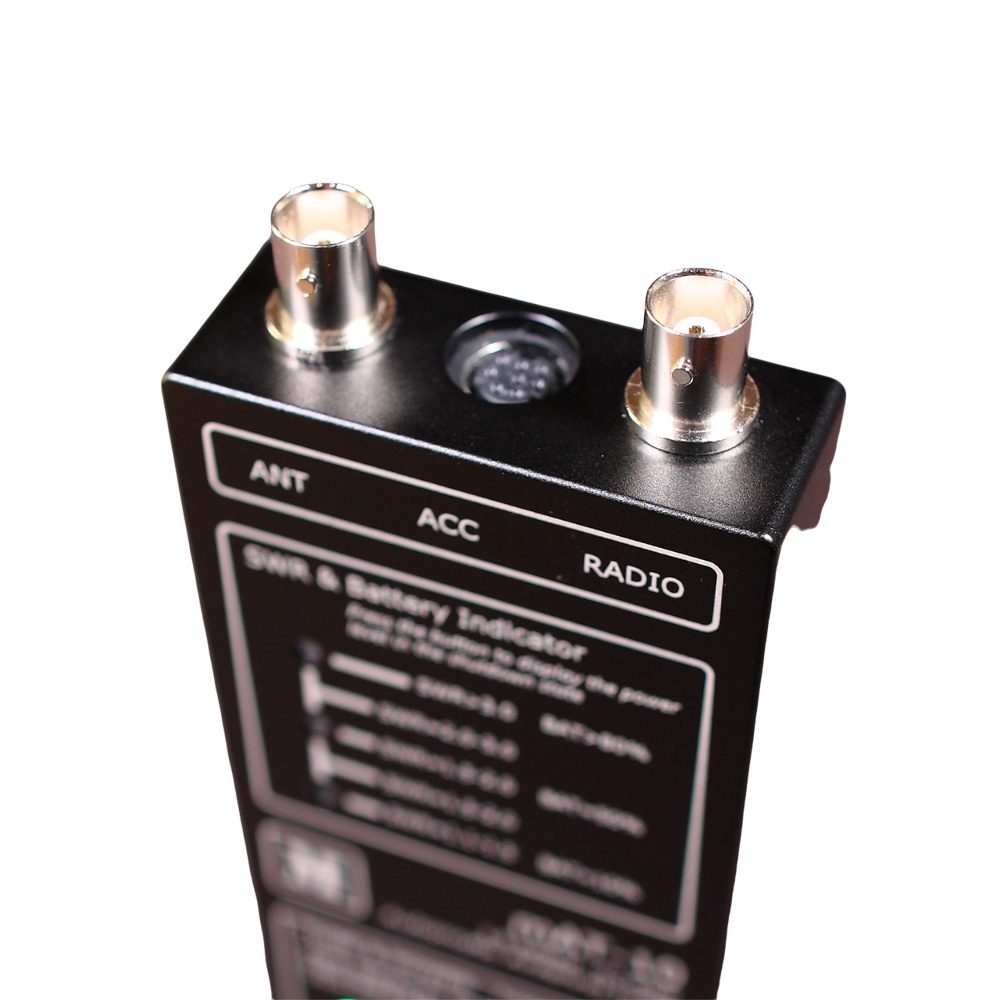

The mAT-10 is connected to the ACC port of the FT-817/818 transceiver by a control cable. The ACC interface allows an external device such as a PC or the mAT-10 to control the FT-817/818 by sending serial commands. The mAT-10 has a "one key tuning" function. When the multi-function button on the tuner is pressed, the mAT-10 will automatically control the tuning of the transceiver.

When used in other QRP transceivers, it does not need control cables and can operate only by connecting RF cables. The tuning process can be completed by pressing the Multi-Function on the panel, its operation is very simple.

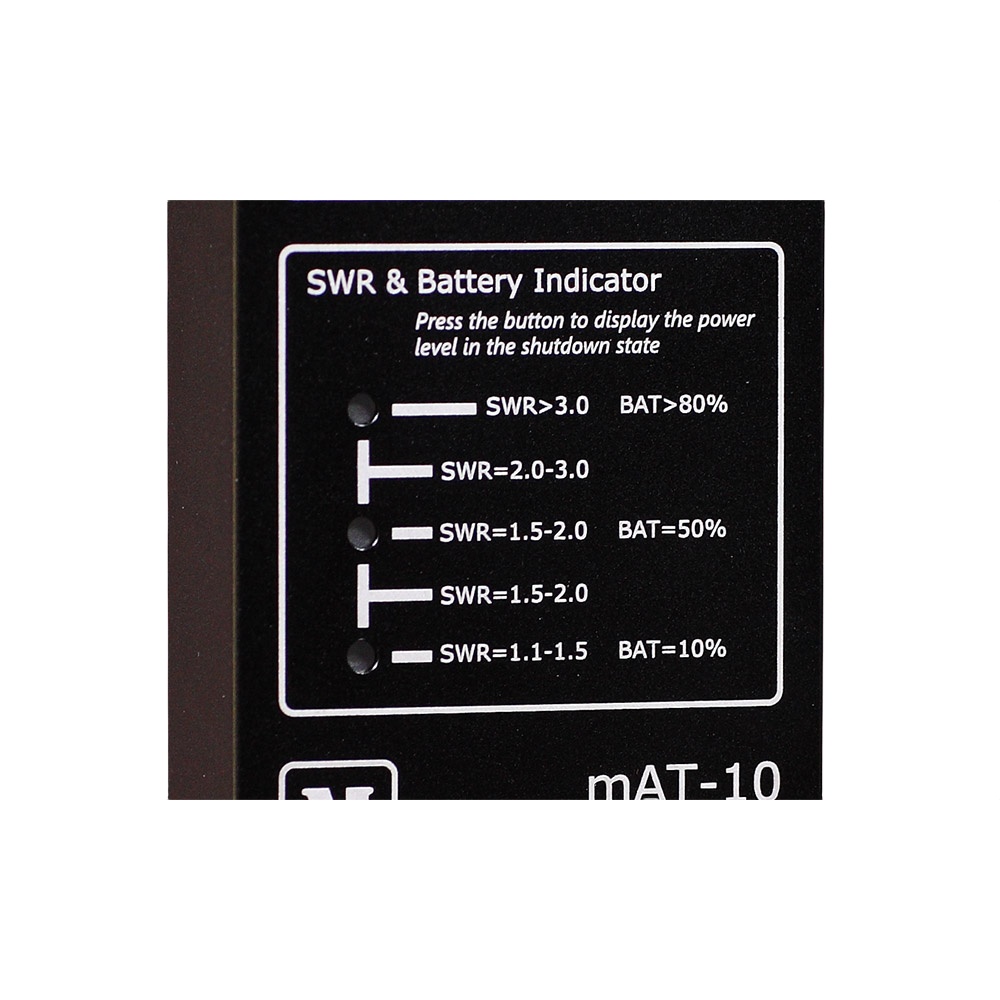

The three LEDs in the top half of the tuner are used to display the battery power or the current SWR. In the off state, after pressing the multi-function button, the three lights indicate the battery power level inside the tuner. At start-up, these three lights are used to indicate the current SWR.

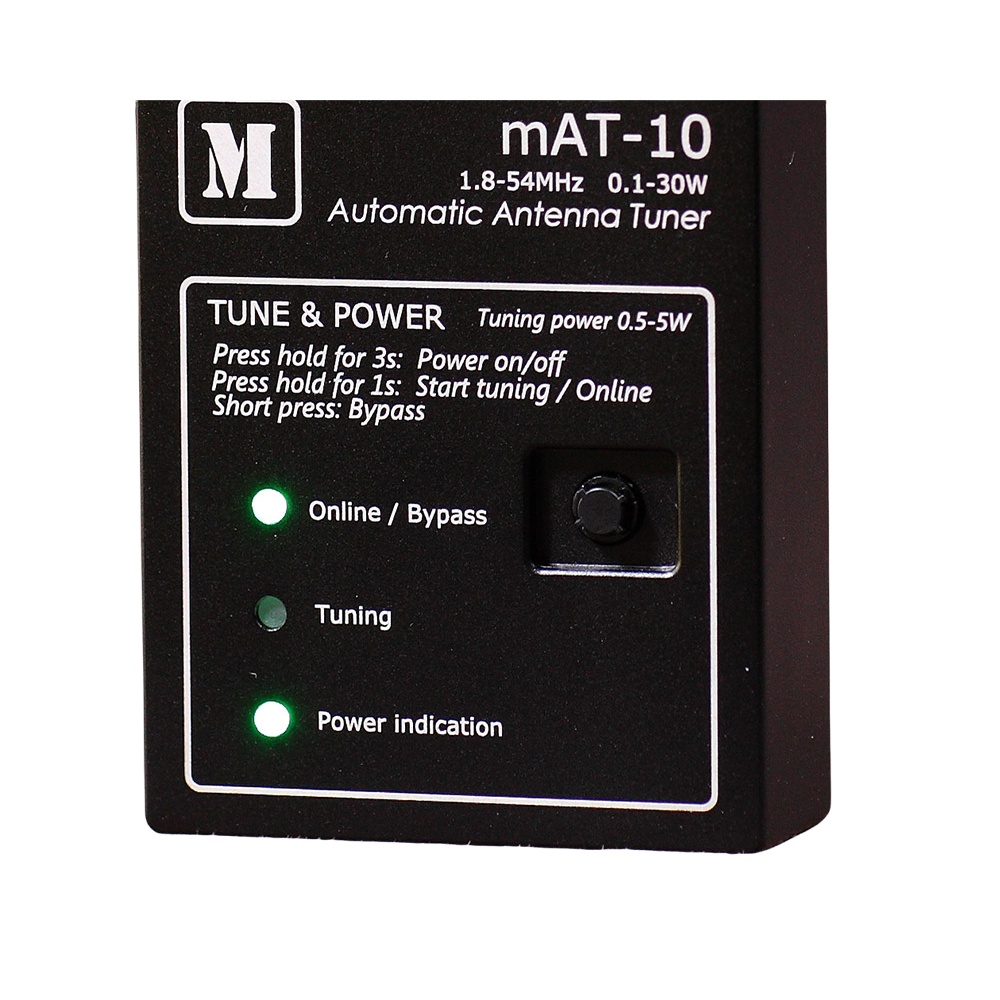

The mAT-10 has a single button, which can perform multiple functions. Whether it is for the FT-817/818 or other transceivers. This button has the function to switch power, start tuning, switch online/bypass status, etc. The bottom half of the tuner has three LEDs, which are used to indicate "online/bypass", "tuning process" and "power".

The mAT10 has 16,000 frequency memories. If no stored settings are available, the tuner performs a complete tuning cycle, storing the settings for recall to memory in subsequent tuning cycles on that frequency. In this way, the mAT-10 "learns" as it is used, adapting to bands and frequencies as it goes. You can also initiate a tuning cycle manually when necessary.

Two 10440 mAh lithium batteries are installed inside the mAT10 to power the tuner. Due to the use of advanced magnetic holding relays, the power consumption of the mAT-10 is very low, and the lithium battery can operate for a long time after being fully charged. It is ideally suited for outdoor use. Special chargers are supplied with the tuners. You must use its own charger to charge the tuner. It is dangerous to charge it with an incorrect charger.

Before using the tuner for the first time, it must be charged to activate the internal battery protection circuit. During transport, the tuner is in a protective state and can only be switched on if you charge it. You must do the same after changing the battery.
