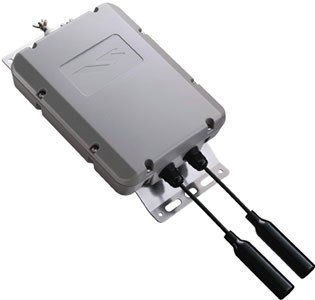

Yaesu FC-40 Automatic Antenna Tuner 1.8-54Mhz for FT-450 FT-857D FT-891 FT-991A FT-710

No review at the moment

Automatic antenna tuner Yaesu FC-40 for transceivers of series : FT-450, FT-857, FT-897, FT-857D, FT-891, FT-991A, FTDX-3000, FTDX-101D, FTDX-10 et FT-710.

The FC-40 automatic tuner is designed to be placed outdoors on the antenna mat, works with a maximum power of 100 watts, from 7 to 54 MHz with the whip antenna YAESU YA-007 and 1,8 to 54 MHz when the coupler is used with a long wire of more than 20 meters.

The coupling time is generally 5 seconds and the power used is from 4 to 60 Watts.

The FC-40 automatic tuner has 200 memories for instant recall of the coupling settings.

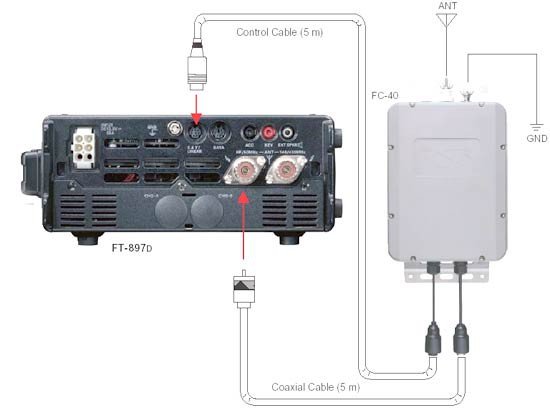

Delivered with: 1 automatic tuner FC-40 Yaesu, 1 control cable 5m, 1 coaxial cable 5m, 1 sealing tape 50cm, 1 ferrite core, U fixing kit and bolts, screws, nuts and washers.

More details

Download

Certification CE RED FC-40

171.4k

Data sheet

Yaesu FC-40 automatic tuner

- Directly controlled by the transceiver
- Frequency tuning range: 1.8 to 54 MHz with a long wire of 20 meters minimum and 7 to 54 MHz with the mobile antenna Yaesu YA-007
- Maximum power: 100 Watts
- ROS: Less than 2: 1
- 200 memories
- Impedance: 50 Ohms
- Power supply 13,8 V DC
- Weight 1.2 kg
- Dimensions: 23,6 x 17,5 x 5,3cm
- 5 years Yaesu / Passion Radio warranty

Compatible with Yaesu transceivers series: FT-450, FT-857, FT-897, FT-857D, FT-891, FT-991A, FTDX-101D, FTDX-10 and FT-710.
