> Ham & radio equipment>HF Transceiver>Xiegu X108G V2 HF RX-TX 0-30Mhz 20W QRP
Xiegu X108G V2 HF RX-TX 0-30Mhz 20W QRP Xiegu HF / 50Mhz Transceiver XIEGU-X108G-419 View larger
Previous Next

Xiegu

XIEGU-X108G-419

New product

China

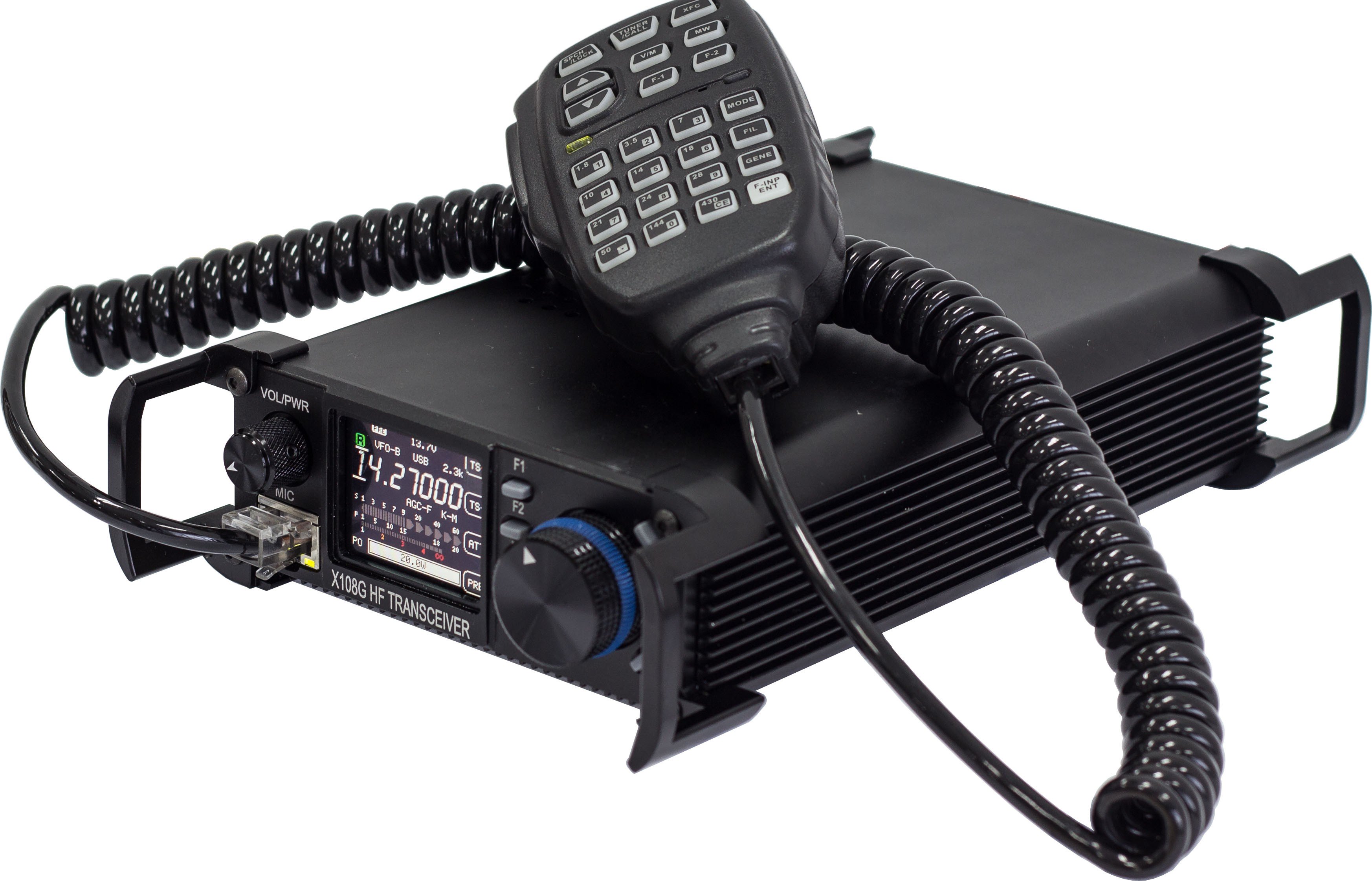

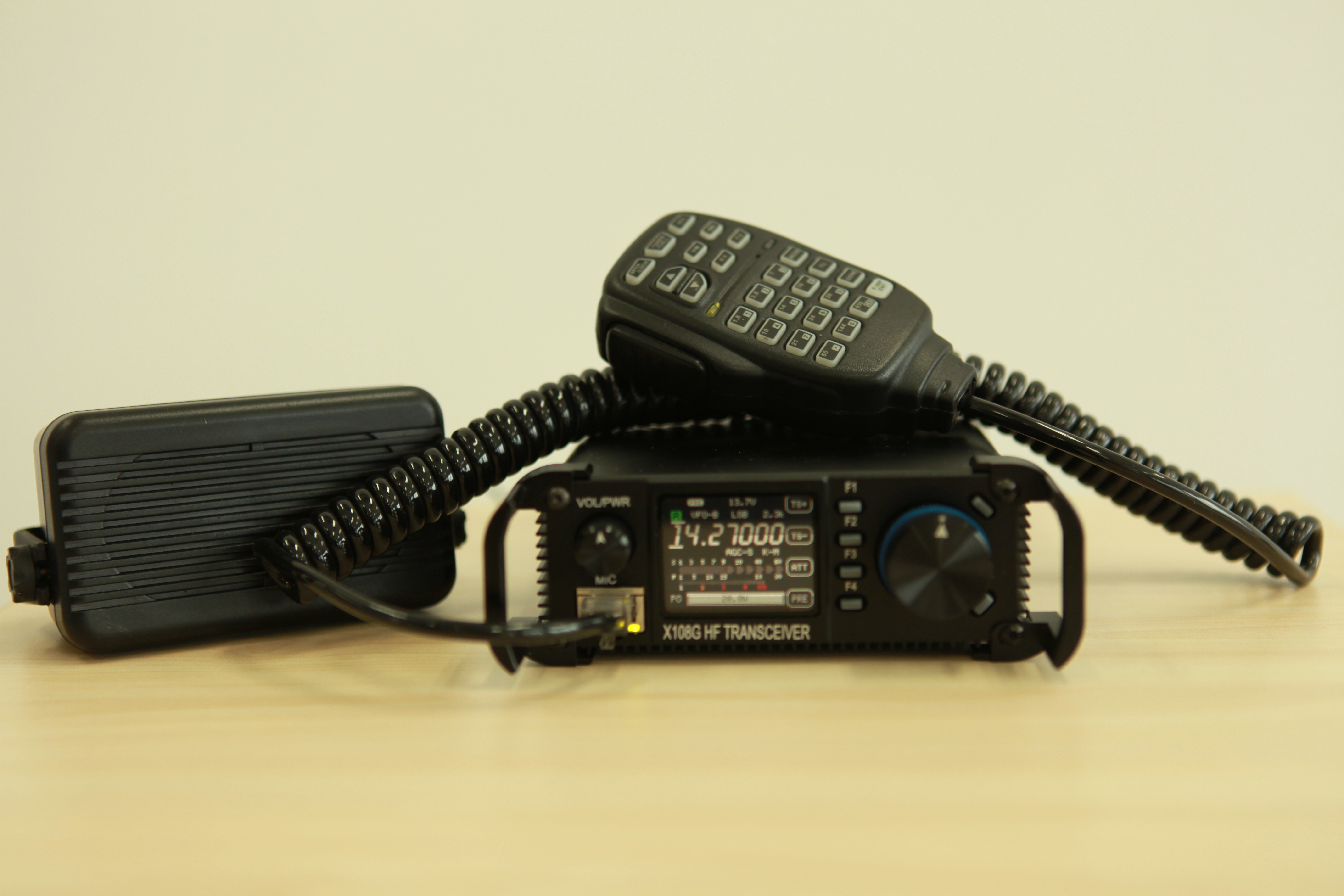

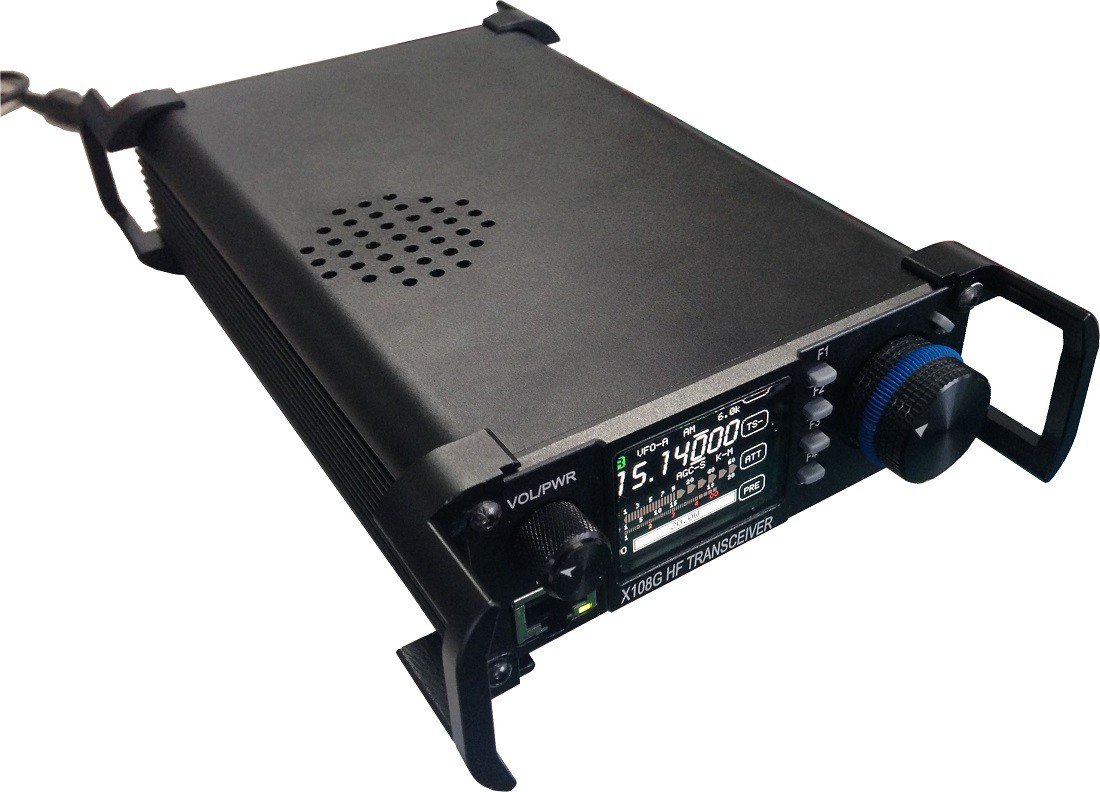

Xiegu X108G V2 HF RX-TX 0-30Mhz 20W QRP

rating Read the review
Average rating: 5/5 Number of reviews: 1

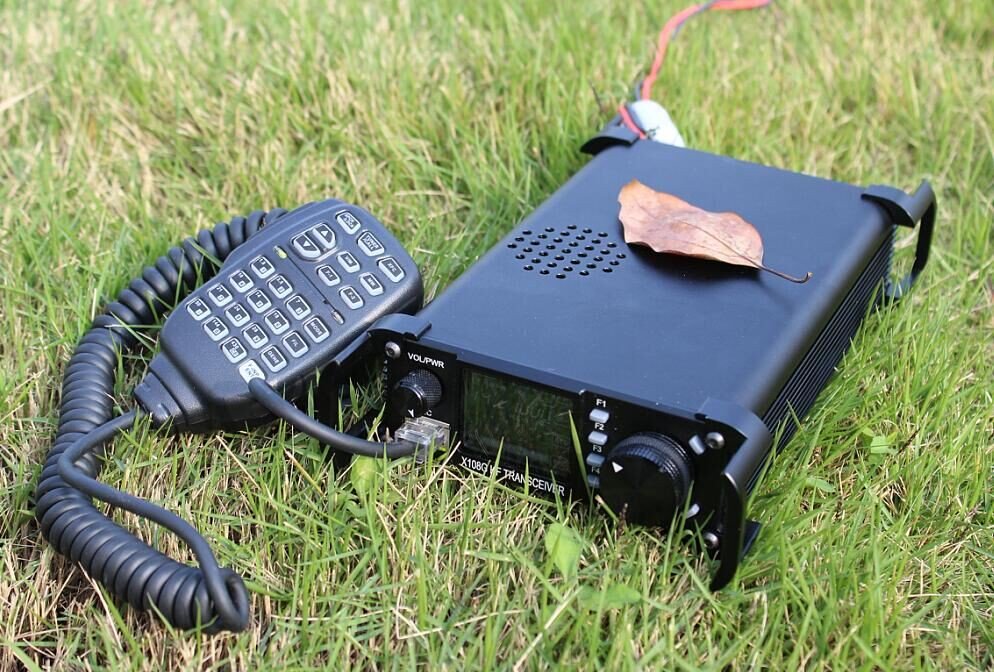

This QRP HF transceiver is for use at home, in mobile or portable activity, Xiegu X108G Outdoor V2 is a transceiver for HF bands covering 0.5 to 30 MHz with 20 watts maximum in AM, SSB and CW. This is the new upgraded version of the previous X108.

With better reception and an improved signal-noise, the new Xiegu X108G Outdoor version has a 2.4k filter for SSB and a narrow 500 Hz filter for CW (Morse), TCXO 0.5ppm and Noise Blanker filter included.

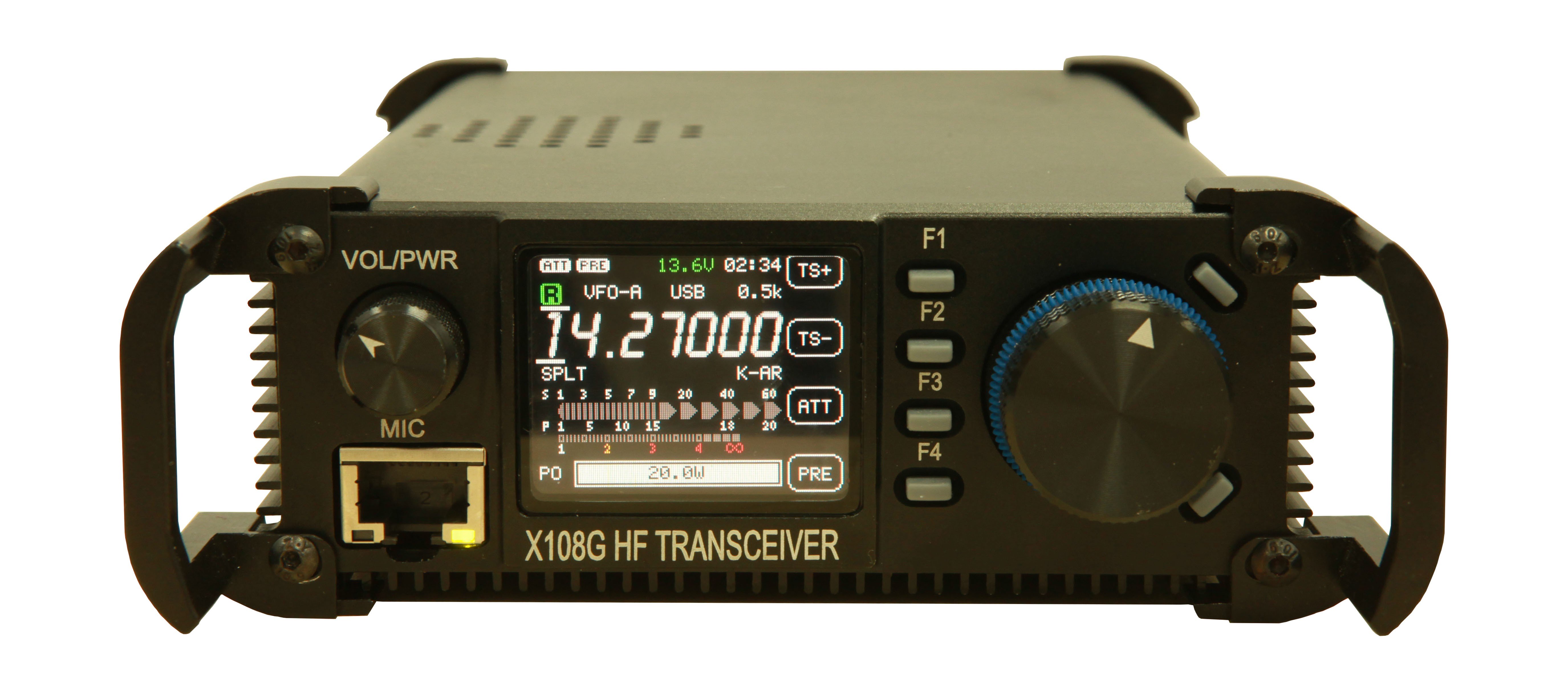

Main functions of X108G V2: Large OLED color display, double VFO, AGC, preamplifier and signal attenuator, RIT control, power adjustable from 1 to 20 Watts, mode split, SWR, PWR and ROS display with protective circuit in case of high SWR to protect the transceiver.

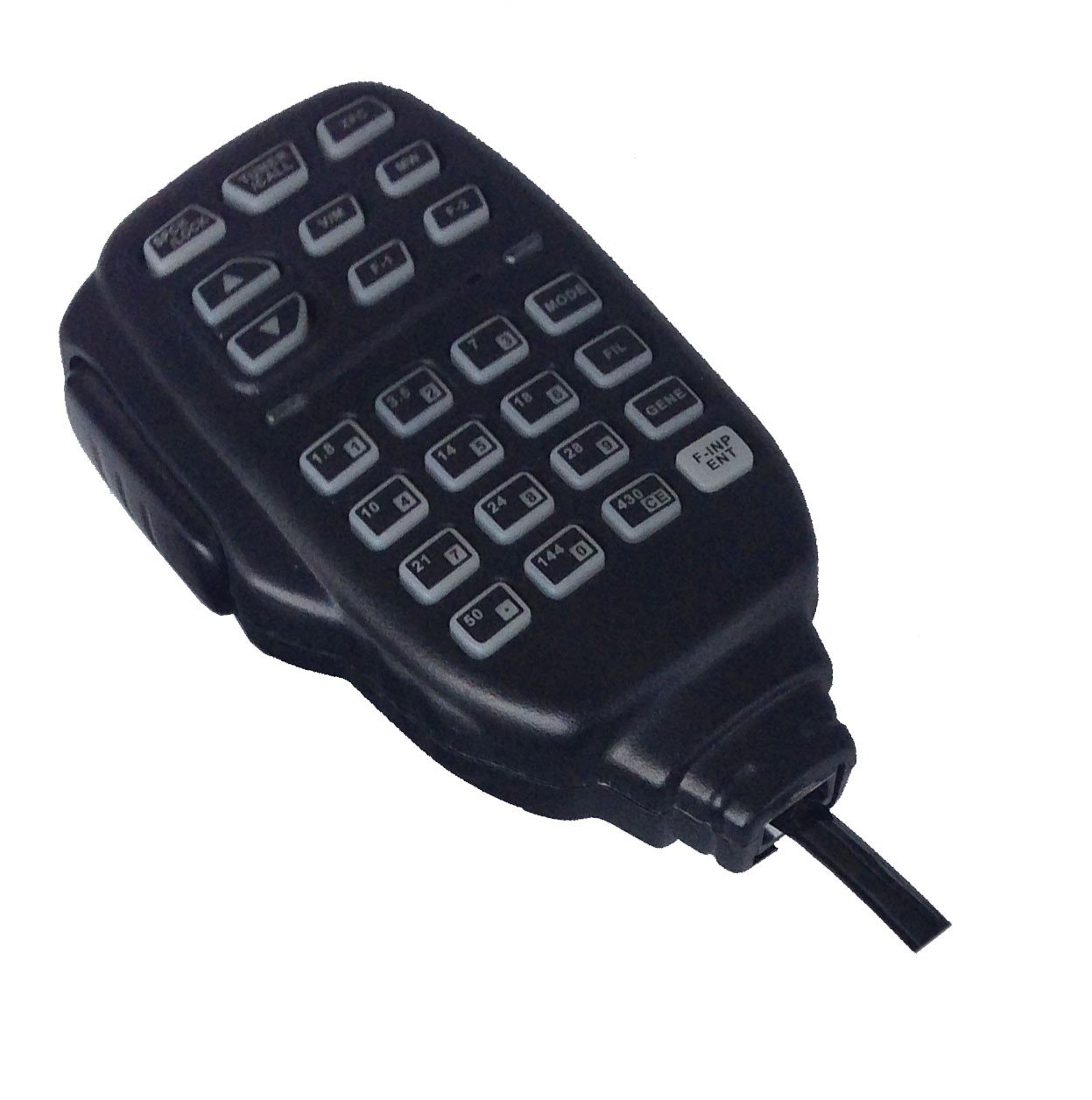

Comes complete with: QRP Xiegu X108G V2, DC 12V power cable, hand microphone with numeric keypad, USB programming cable, manual in english.

This material is no longer available in our shop, it is replaced by the HF SDR Xiegu G90.

More details

This material is no longer available

Download

Drivers X108G Win 32bits

5.53M

Drivers X108G Win 64bits

Drivers V1.3.1 for X108G Outdoor & Windows 64 bits 5.53M

Manual X108G (EN)

Manual and documentation Xiegu X108G Outdoor 2016 (in english) 933.76k

Firmware 2.00.1 X108G V2

136.65k

Data sheet

Specifications Xiegu X108G V2 Outdoor

RX frequency: 0.5 ~ 30MHz
TX frequencies: All Amateur HF bands
Modulation Mode: SSB (J3E), CW (A1A), AM (A3E)

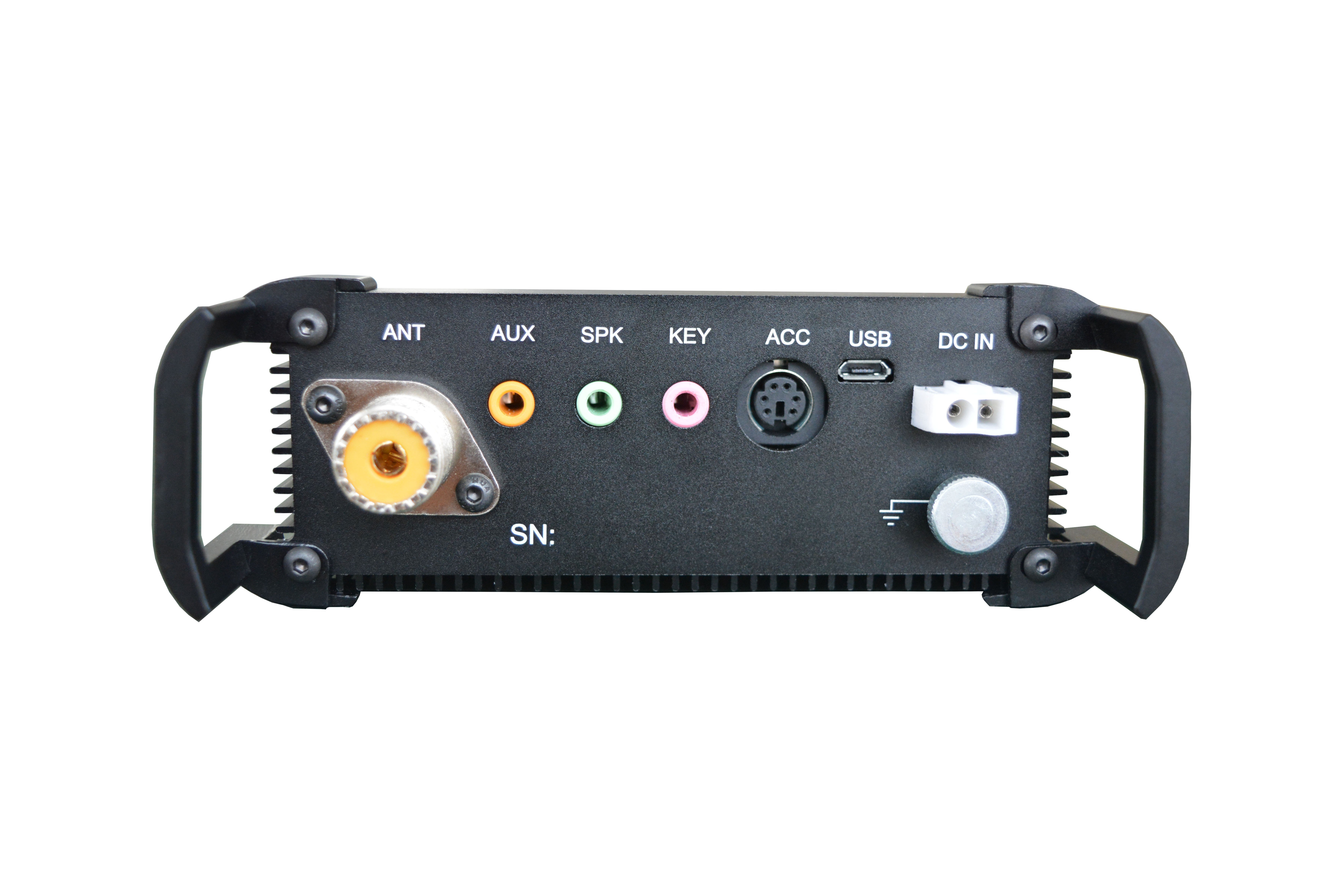

Antenna Connector: SO239 (UHF female)
Frequency stability: ± 0.5ppm
Operating voltage: 12 ~ 14.5V DC
Consumption RX: 600mA max
Consumption TX: 7.5A max 20 watts
Power: from 1 to 20W (@ 13.8V)
Selective filters SSB 2.4kHz (-6dB) and narrow CW 500Hz (6dB)
IF frequency 10.7 MHz
Audio output: 0.5W Speaker 8 ohm
Operating temperature: -10 ℃ ~ + 60 ℃
Dimensions: 120 * 45 * 180 (mm)
Weight: Around 1kg
1 year warranty, CE

The Xiegu X108G can be controlled by CAT mode using the configuration for ICOM IC-7000, it can also be updated by firmware via PC (USB cable included).

The transceiver can be TX opened on all frequencies, this modification voids the warranty of the unit and consists of removing a CMS resistance on the PCB. under the sole responsibility of the user.

Update firmware X108 G


- Press the button VFO and hold
- Connect the USB cable to the computer and X108G
- Open Windows Explorer and go to the tree "My Computer," you must find a new X108 storage device
- Open Update X108, delete the file on the radio , a progress bar is displayed
- Copy the latest firmware update and wait for the complete copy of the file on the radio and unplug the computer's USB cable
- Restart X108G, the firmware update is complete!

Find the group of users Xiegu X108G on:
- Yahoo: https://groups.yahoo.com/neo/groups/X108-Transceiver/info
- Facebook: https://www.facebook.com/groups/578581345625251/
