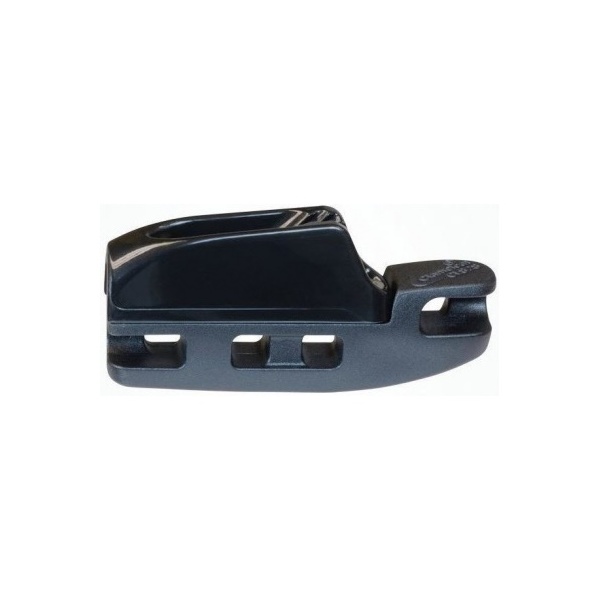

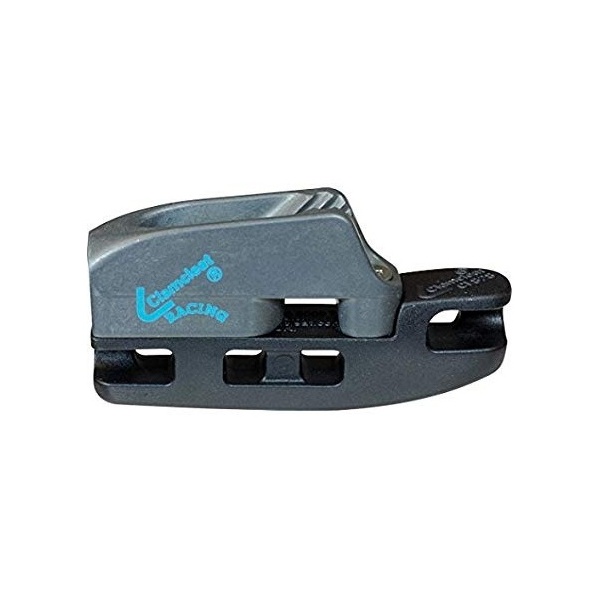

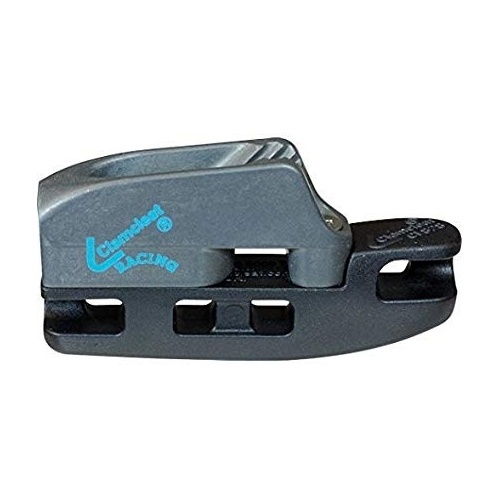

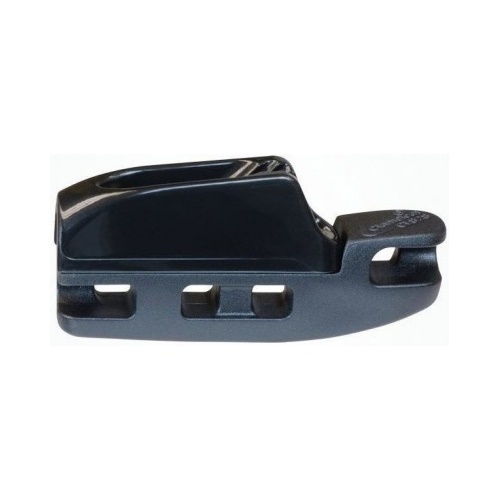

Black aero cleat tensioner with blocker for 3 to 4 mm rope
Read the reviewBlack aero cleat tensioner with blocker for 3 to 4 mm diameter rope UV stabilised nylon.
The Clamcleat® CL828-70 cleat is made of Micros Aero alloy and has a rigging spout with a 4:1 ratio.

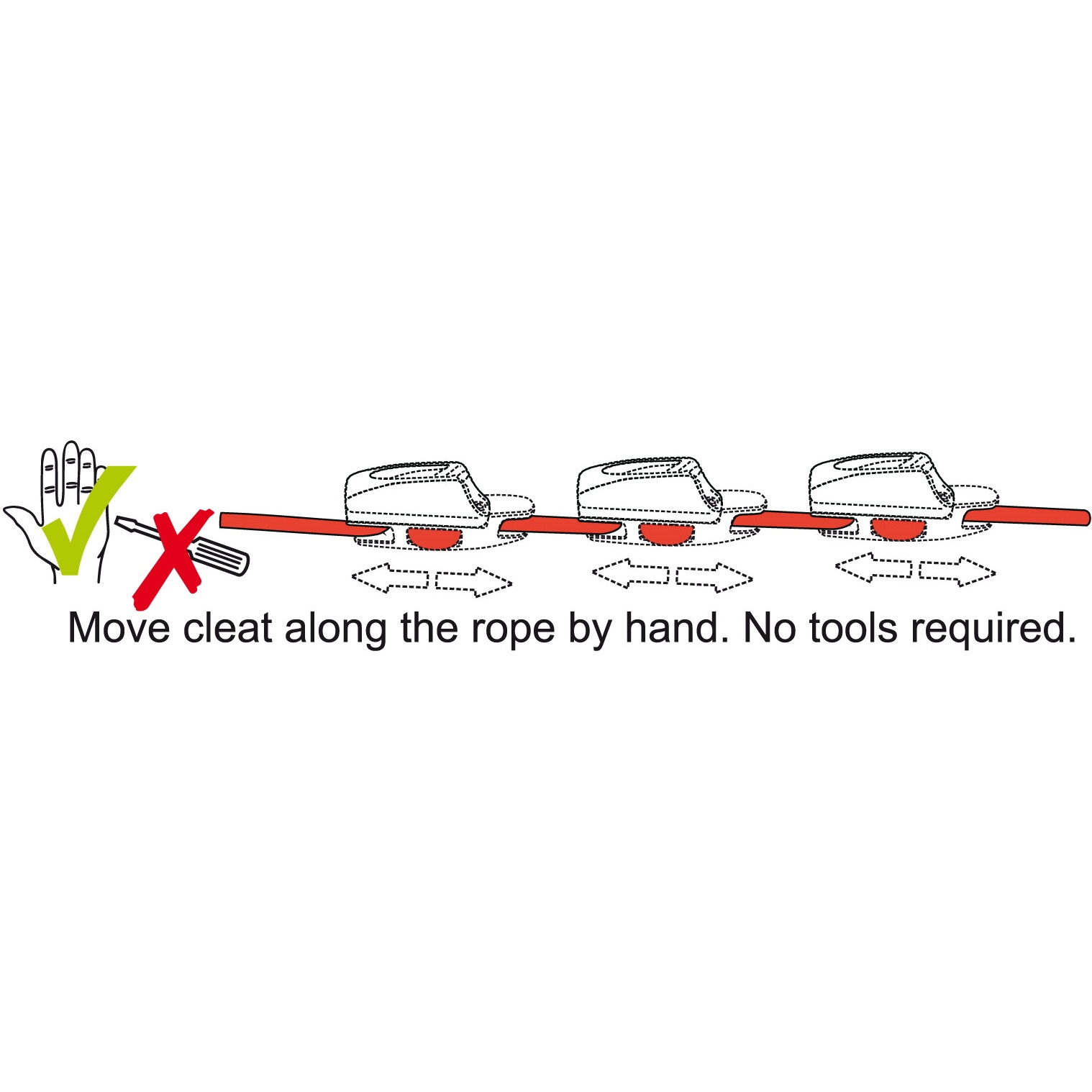

The position of the cleat on the rope can be adjusted by hand. No tools are required, ideal for light loads.
Use for antenna masts, wire antenna systems, sports nets, canvas structures and lashings.
- Dimensions: 60 x 13 x 29 mm
- Strength: 280 daN, ~kg
- Working load [daN, ~kg] 84
Download
Guide in French to choose your Mastrant guying antenna system and accessories. 994.98k
Guide in English to choose your Mastrant guying antenna system and accessories. 1.02M
Data sheet
The service life depends on how the cleats are used. When used for light loads on control lines, cleats can last 10 years.
However, stretching a rope by pulling it back through the teeth will burn out a nylon cleat more quickly. This is why alloy cleats were originally developed.
Alloy cleats can withstand this type of use, provided the rope is clean. A dirty, sandy rope will wear out any binding.
Hard anodised cleats have a slightly higher wear resistance than silver cleats. Nylon cleats are completely resistant to corrosion in salt water. They are also resistant to many acids and chemicals. Alloy cleats have excellent corrosion resistance. Anodised cleats have slightly better corrosion resistance than silver cleats.
To help you choose the correct guy ropes and the necessary and compatible accessories, see the installation diagrams and tables in the Mastrant guide, available in the"Download" section.
