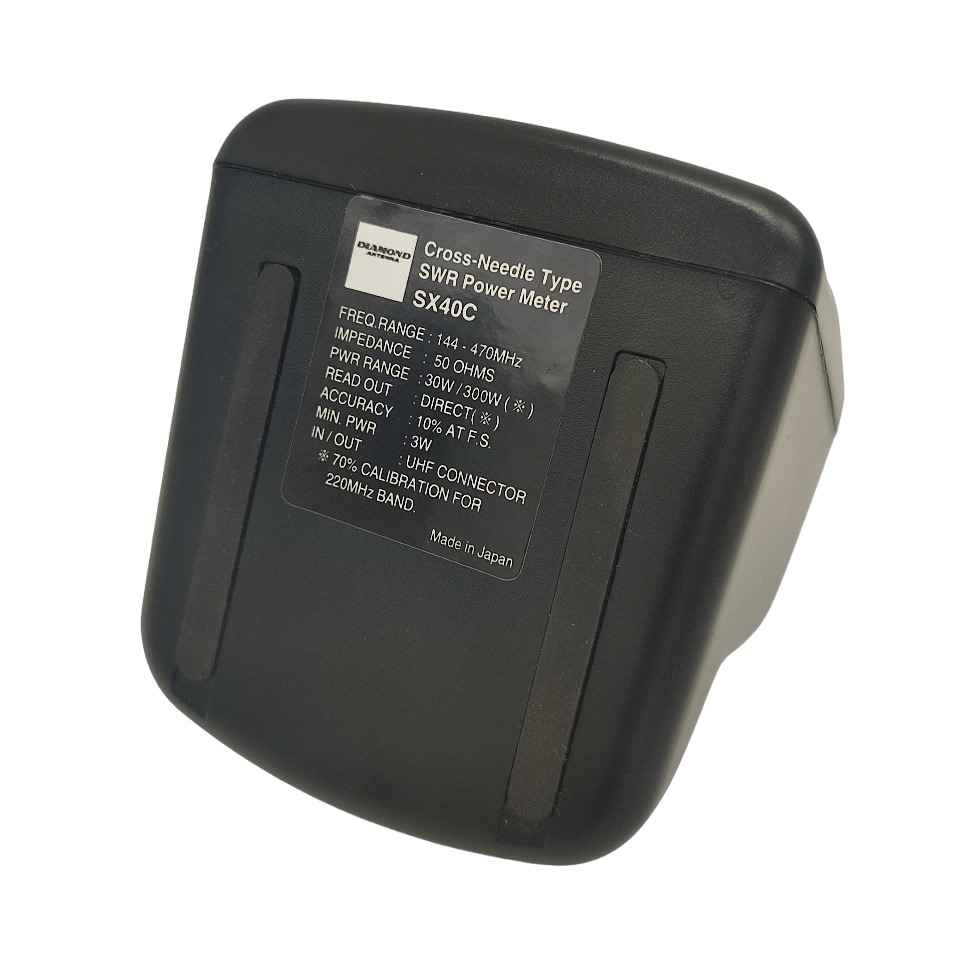

DIAMOND-SX40C Mobile VHF & UHF SWR-Power Meter

Read the 3 reviews

Average rating: 5/5 Number of reviews: 3

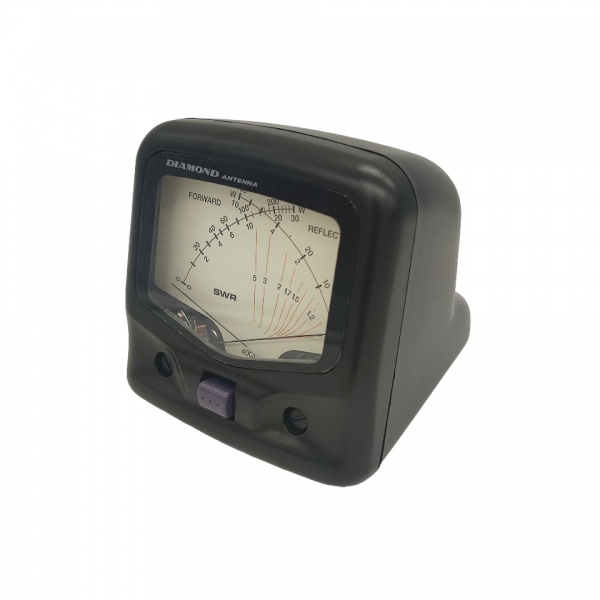

Compact and stylish Diamond SX-40C SWRMeter and wattmeter with cross-shaped needles, for simultaneous measurement of output power and VSWR.

Frequency range: 144 MHz to 470 MHz

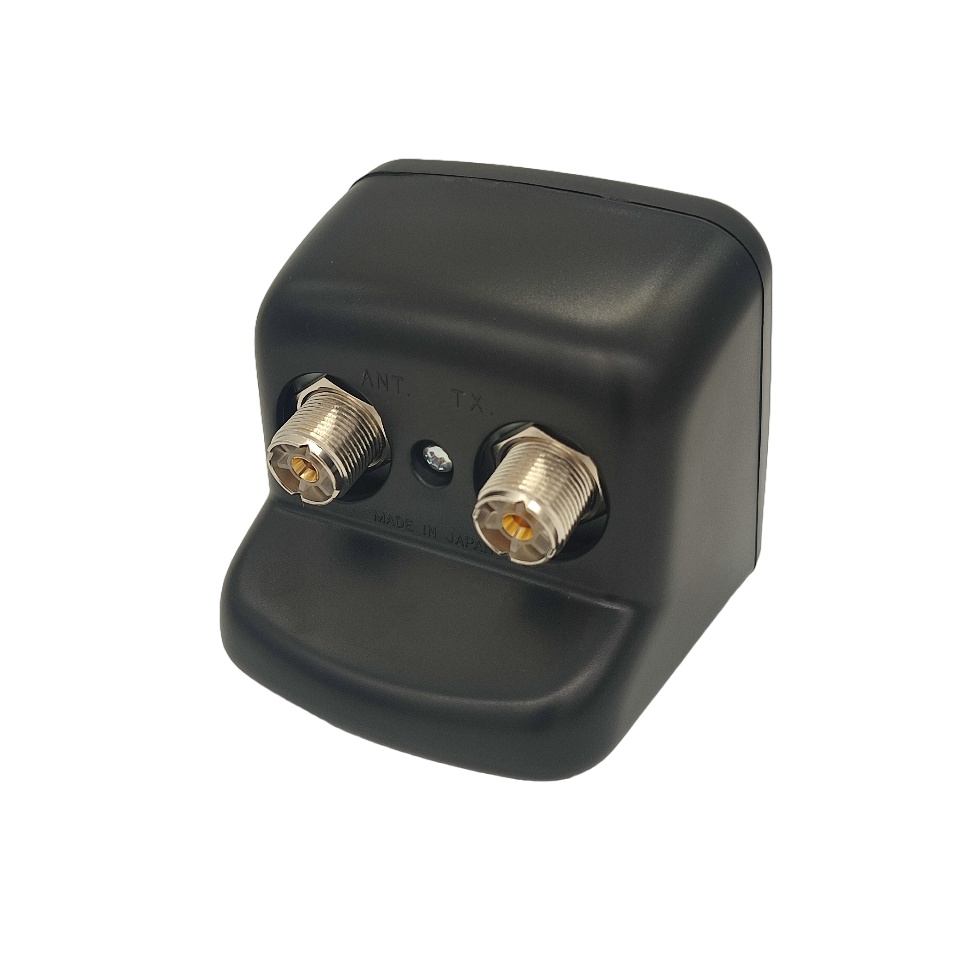

Connector type: UHF female (SO-239)
Impedance: 50 Ohms
Power range: 30W to 300W switchable
Minimum input power: 3W
SWR measurable: 1.0 to 3.0
Weight: 650g
Dimensions: 87 x 85 x 95 mm

Supplied with: 1 Diamond SX40C Diamond Japan original warranty. Without optional PL-PL cord.

Download

Manuel SX40c

25.93k

Montage SX40C

84.48k
