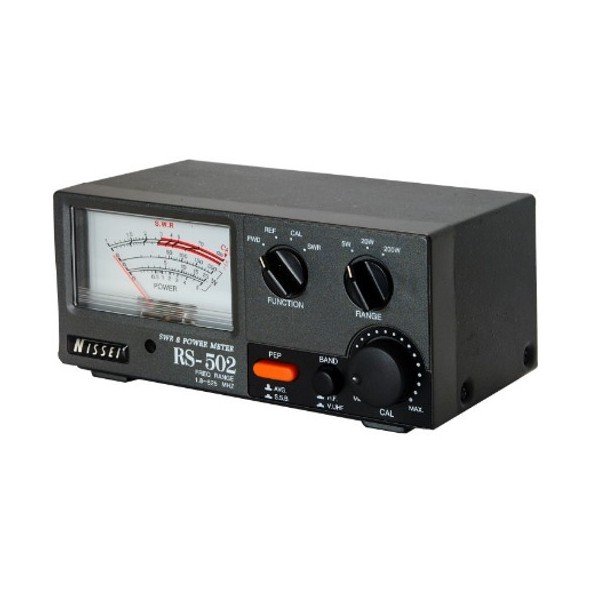

SWRmeter WattMeter 1.8-525 MHz Nissei RS-502

Read the review

Average rating: 5/5 Number of reviews: 1

The Nissei RS-502 SWRMeter and WattMeter allows the measurement of the SWR for HF and VHF-UHF frequencies from 1.8 to 525 MHz and the power up to 200 Watts maximum.

Delivered with: 1 Nissei RS-502 with 1 power cable 13.8V included.

More details

Download

Manual Nissei RS-101/502

316.03k

Manuel Nissei RS-10/502 (FR)

260.96k

Data sheet

Features Wattmeter SWRmeter RS-502

Frequency: 1.8-525 MHz
Illuminated meter (with power cable included)
Measures direct power, reflected and TOS
Power Range: 5/20/200W
Minimum measurement power for SWR: 3W
Measurement accuracy: +/- 5%

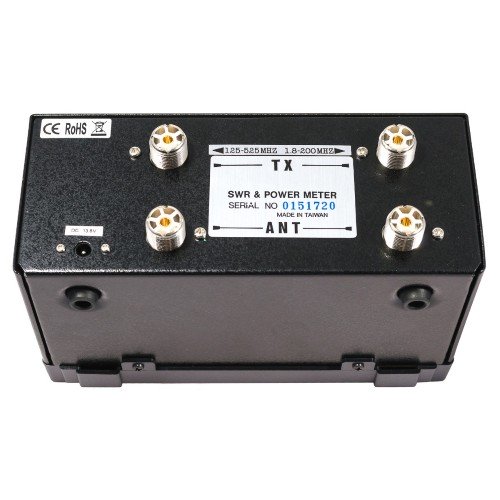

Antenna Connector: Female UHF (SO-239)
Dimensions: 135 x 85 x 90 cm
Weight: 980g
