> RF Measuring Instruments>SWR-Power meter>Komunica SX-1000 1.8-160MHz 400W & 430-1300MHz 200W SWR & power meter

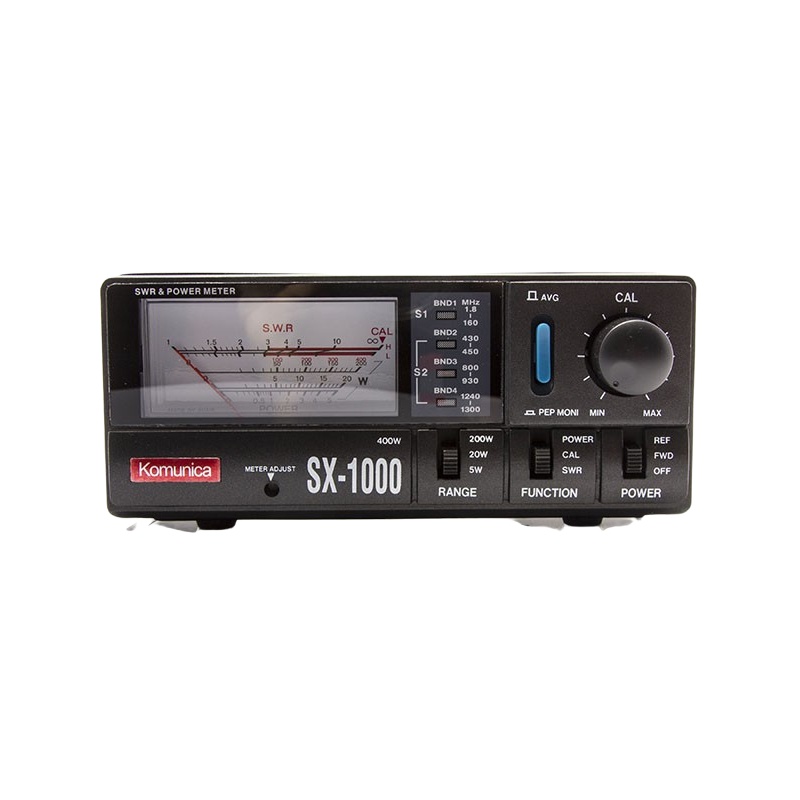

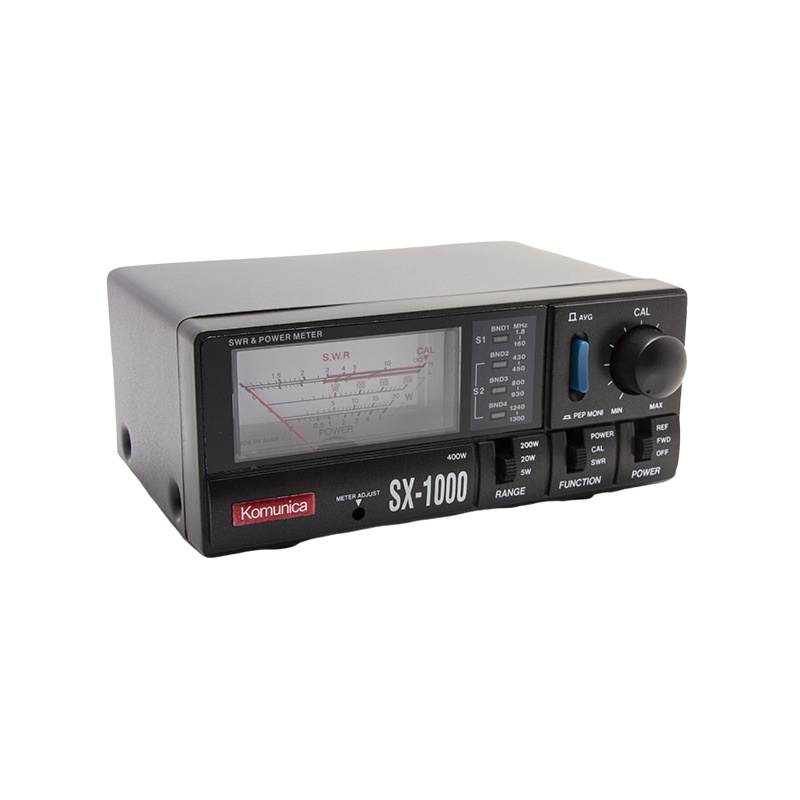

SX-1000 Komunica 1.8-160 / 430-1300Mhz power and distance meter View larger
Previous Next

Komunica

KOMUNICA-SX1000-1665

New product

Spain

Komunica SX-1000 1.8-160MHz 400W & 430-1300MHz 200W SWR & power meter

rating Read the review
Average rating: 5/5 Number of reviews: 1

The Komunica SX-1000 VSWR Meter provides SWR measurement for frequencies from 1.8-160 / 430-1300Mhz with power up to 200 Watts.

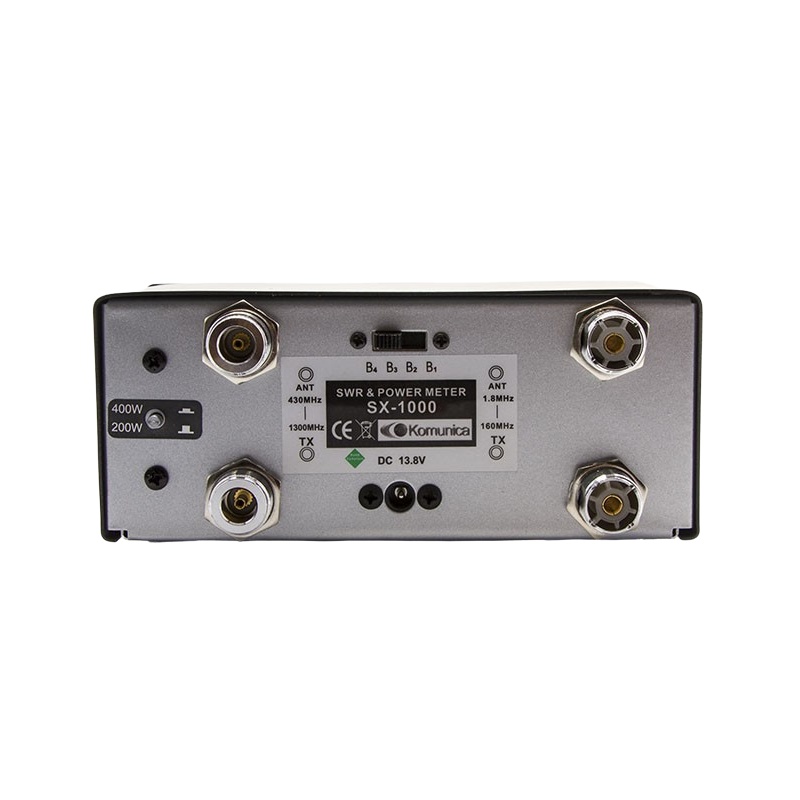

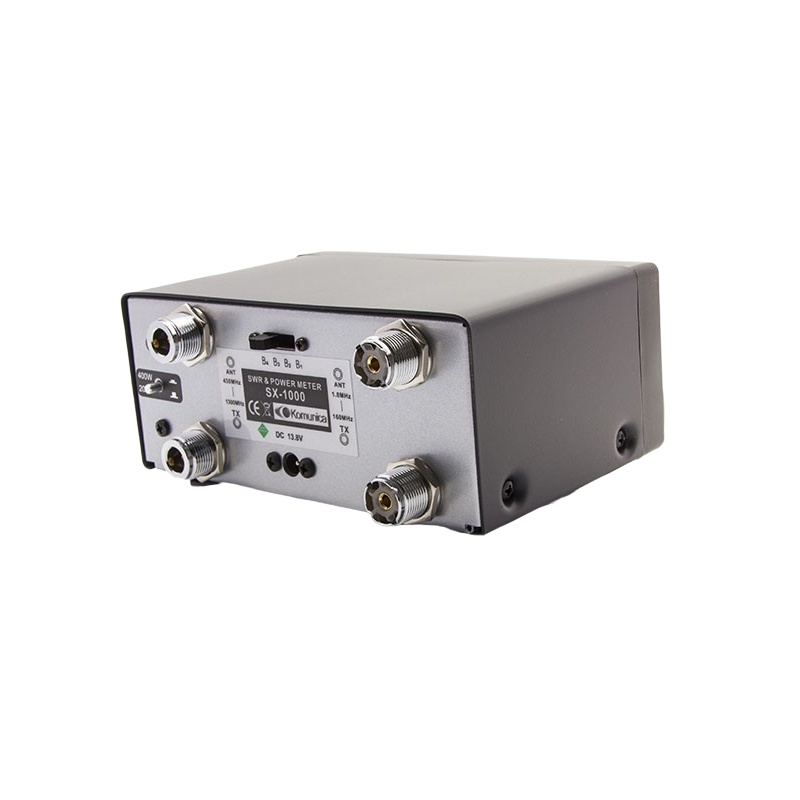

SO-239 (UHF female) and N female connectors.

Supplied with: 1 SX-1000, 1 power cable.

More details

145,00 € tax excl.

In stock

   2 Items

Data sheet

  • Frequency range: 1.8 to 160 MHz, 430 to 1300 MHz
  • Power measurement range: 0.5~400W (5W/20W/200W/400W) 430~1,300 MHz (200W)
  • Minimum input power: 0.5W
  • Accuracy: 5W range ±5%, 20W range ±7.5%, 200W range ±10%, 400W range ±12.5
  • Input impedance: 50 ohms
  • Input loss: 0.2db (1.8~160MHz), 0.3db (430-1300MHz)
  • Connector:
  • TX-PL (1.8 -160 MHz)
  • TX-N (430 -1300 MHz)
  • Dimension: 15 X 6.5 X 10 cm
  • Weight: 730gr
  • SWR : 1 to infinity
  • Power supply : 12V DC
