> Radio Antennas>Mounting bracket>Antenna Switches>Diamond CX-310N 3 position antenna switch N female plug

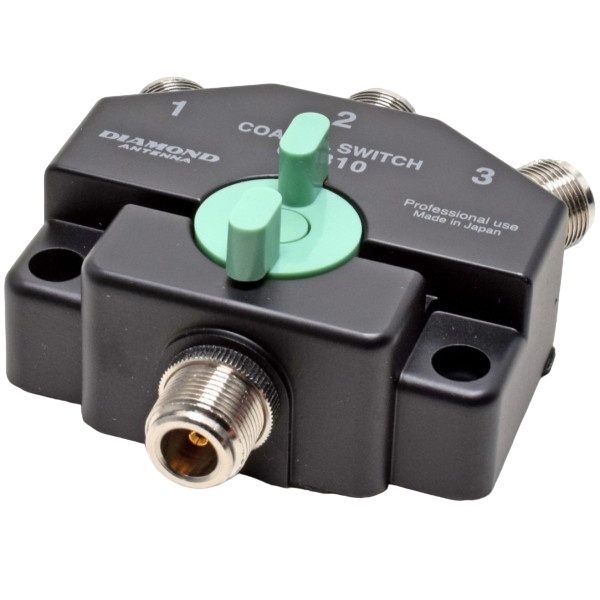

Diamond CX-310N 3 position antenna switch N female plug View larger
Diamond Antenna

DIAMOND-CX310N-2009

New product

Japan

Diamond CX-310N 3 position antenna switch N female plug

rating No review at the moment

DIAMOND CX-310N 3-position antenna switch with N-plug female connector, offering very low loss and high isolation, for use at frequencies from 0 to 1500 Mhz.

This rugged antenna switch operates up to 1500 MHz and 1500 watts at HF frequencies. It uses N-type connectors for input and output.

Supplied with: 1 CX-310N switch, 100% original warranty.

More details

119,00 € tax excl.

In stock

   1 Item

Data sheet

  • Frequency: 0-1500 MHz
  • Connector: Type N female for input and outputs
  • Power handling: 1500 watts max. 0-30 MHz; 1000 watts max. 30-150 MHz; 500 watts max. 150-800 MHz; 250 watts max. 500-1000 MHz; 150 watts max. 1000-1500 MHz
  • Insertion loss: Less than 0.10 dB, 0- 500 MHz; 0.20 dB 500-1500 MHz
  • Isolation: Over 60dB, DC to 500MHz; over 50dB, 500 to 1500MHz
  • Impedance: 50 ohms
  • Dimensions (WHD): 2.795 x 2.126 x 1.653 in. (71 x 57 x 42 mm)
  • Weight: 440 g
