> Radio Antennas>Mounting bracket>Antenna Switches>Diamond CX-310A 3 position UHF female antenna switch (SO239)

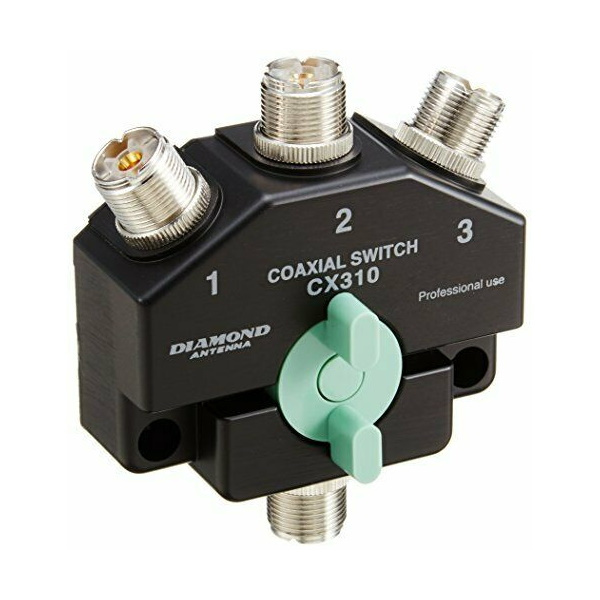

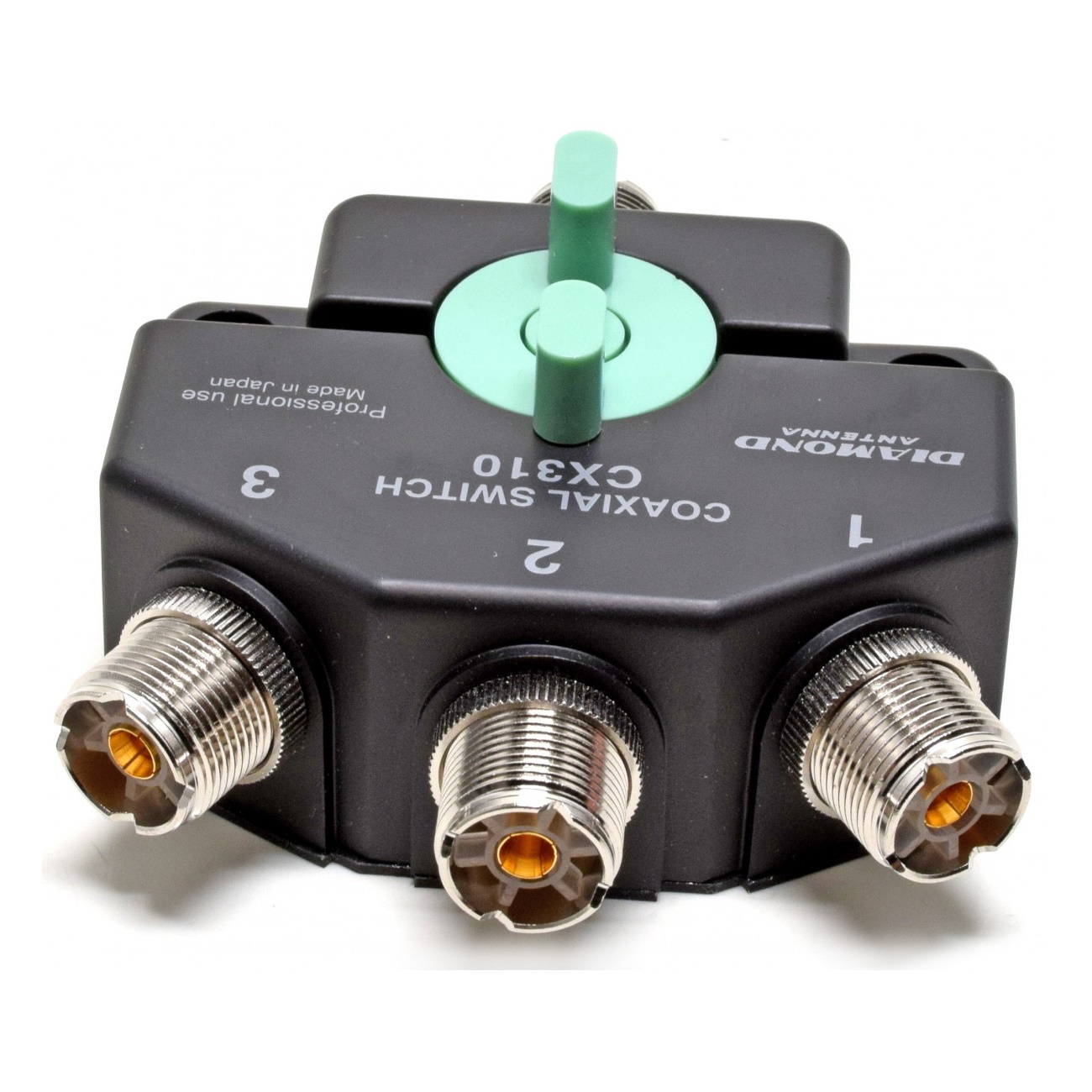

Diamond CX-310N 3 position antenna switch UHF female plug SO239 View larger

Diamond Antenna

DIAMOND-CX310A-2965

New product

Japan

Diamond CX-310A 3 position UHF female antenna switch (SO239)

rating No review at the moment

DIAMOND CX-310A 3-position antenna switch with SO239 plug connector (UHF female), offering very low loss and high isolation, for use at frequencies from 0 to 800 MHz.

This robust antenna switch operates up to 800 MHz and 1500 watts at HF frequencies.

Supplied with: 1 CX-310A switch, guaranteed 100% original Diamond Antenna.

More details

119,00 € tax excl.

Out of stock, available within 1 to 3 months

Estimate directly shipping costs by clicking on "Add to cart", then enter your country and zip code on the cart page.

Data sheet

  • Dimensions (mm):80W x 41H x 60D
  • Weight : 575g
  • Frequency range: DC to 800MHz
  • Impedance : 50ohms
  • Connector : SO239 (UHF Female)
  • VSWR: Less than 1.1:1 (DC to 500MHz), Less than 1.2:1 (500 to 1000MHz)
  • Insertion loss: Less than 0.1dB (DC to 500MHz), Less than 0.15dB (500 to 1000MHz)
  • Isolation: More than 60dB (DC to 500MHz), more than 50dB (500 to 800MHz)
  • Maximum power: (VSWR < 1.2:1) 1.5KW (DC to 30MHz), 1KW (30 to 150MHz) 500W (150 to 800MHz)
