1290–1310 MHz 20.4 dBi 36 elements Low Noise Super Yagi DX & EME Antenna 23cm36DXP (AA)

View larger

Manufacturer: Antennas Amplifiers

Reference: AA-1870-23cm36DXP-2376

Condition: New product

Country of origin:

Serbia

1290–1310 MHz 20.4 dBi 36 elements Low Noise Super Yagi DX & EME Antenna 23cm36DXP (AA)

No review at the moment

23 cm Competition and EME Super Yagi Antenna 23cm36DXP.

Super high gain 23cm Yagi.

Wide band operation 1290 – 1310 MHz 20.4 dBi.

Antennas Amplifiers (AA) equipment is available in backorder only, and will be shipped within 10 to 15 days after the order.

More details

Data sheet

1296 MHz 23cm Winning Record Yagi Antenna 20.4dBi PA1296-36 3BUT

Electrical Specifications
Frequency Range:	1290 – 1310 MHz
Free Space Forward Gain:	20.4 dBi
Front to Back Ratio:	32 dB
3 dB Horizontal Beamwidth:	18°
3 dB Vertical Beamwidth:	18.4°
Polarization:	Horizontal
Nominal Input Impedance:	50 Ohms
SWR Across Entire Band:	< 1.2
Maximum Power Input:	300 W
Matching Method:	Voltage balun. UT141 or similar Teflon cable
Connector:	“N”
Mechanical Specifications
Number of Elements:	36
Element Diameter:	4 mm Aluminum rod
Dipole Diameter:	3 mm Copper
Longest Element:	120 mm
Element Mounting Position:	Above the Boom
Balun and Connector:	Included
Boom Length:	2.92 m
Boom Size:	20 x 20 mm
Number of Boom Pieces:	2
Guy rope support:	No
Mounting Mast Diameter:	30 – 50 mm 1-1/4 – 2″ OD
Survival Wind Speed:	120 km/h
Net Weight:	1.75 kg
Gross Weight:	3.65 kg
Transportation Length:	1.5 m

23cm 2458 km Distance Record Yagi Antenna 20.4 dBi 23cm36DXP from VK7 to ZL

23cm 1296MHz 2458km Distance Record Yagi Antenna 20.4 dBi PA1296-36-3BUT

Vertical Stacking Distance:

Two antennas for F/S -13.6 dB	650 mm
Gain:	23.2 dBi

Horizontal Stacking Distance:

Two antennas for F/S< -13.6 dB	650 mm
Gain:	23.2 dBi

23cm Yagi Antenna 1296MHz Stainless Steel (Inox) Extended Bracket and Boom Join View 1296MHz

23cm Yagi Antenna 1296MHz Extended Bracket and Boom Join View 1296MHz

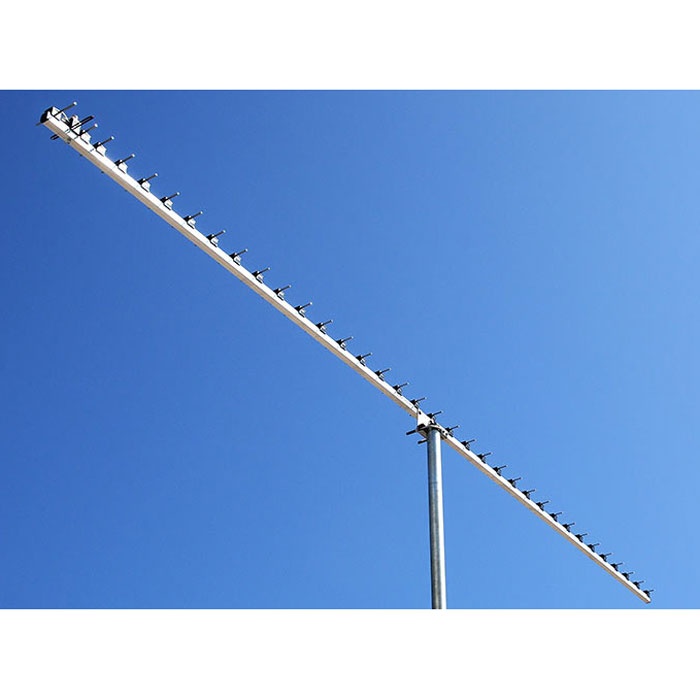

23cm 36 elements appearance:

1296 MHz Super Gain low Noise Yagi Antenna 20.4dBi PA1296-36-3BUT 36 elements
