> Radio Antennas>HF 0-30 Mhz>Wire antenna>Single-band wire>Wired delta loop 10m & 11m single-band antenna SIGMA DELTA 10HP
Single band delta loop wired antenna SIGMA DELTA 10HP for 10m View larger

Sigma Euro-Comm

SIGMA-DELTA10HP-2702

New product

United Kingdom

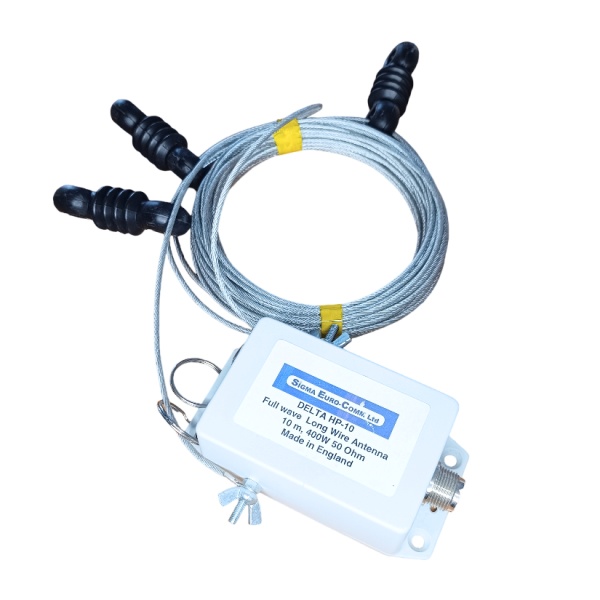

Wired delta loop 10m & 11m single-band antenna SIGMA DELTA 10HP

rating No review at the moment

The DELTA 10-HP is a full-wave loop designed to operate on 10m (28MHz) without a tuner and on 11m (27MHz) with an external tuner, 400W PEP max (CW or SSB), 50-60W max en FT8, AM, RTTY.

There is a 4:1 balun at the feed point allowing it to be fed directly with 50 ohm coaxial.

The delta loop 10/11m is supplied with three insulators to provide anchor points. It can be mounted flat (horizontally) in the form of a square loop or an equilateral triangle, or raised in a vertical or inclined position. If mounted flat, it is suitable for local DX or NVIS traffic, and if raised in a vertical or inclined position, it is suitable for long-distance DX traffic.

Supplied with: 1 DELTA 10HP and a manual.

More details

79,31 € tax excl.

Available to order within 1 to 2 months

Download

Manuel DELTA 10HP (EN)

681.35k

Data sheet

IMPORTANT: Maximum power is indicated in PEP and is for amateur radio use in intermittent mode (CW or SSB) only.

Not suitable for AM broadcasting or constant carrier data modes (such as FT8 or RTTY) at high power (100W). For these modes, reduce power considerably (50W max recommended) to avoid overheating and damage to the balun. For full-power use in constant-carrier modes, opt for a QRO balun.
