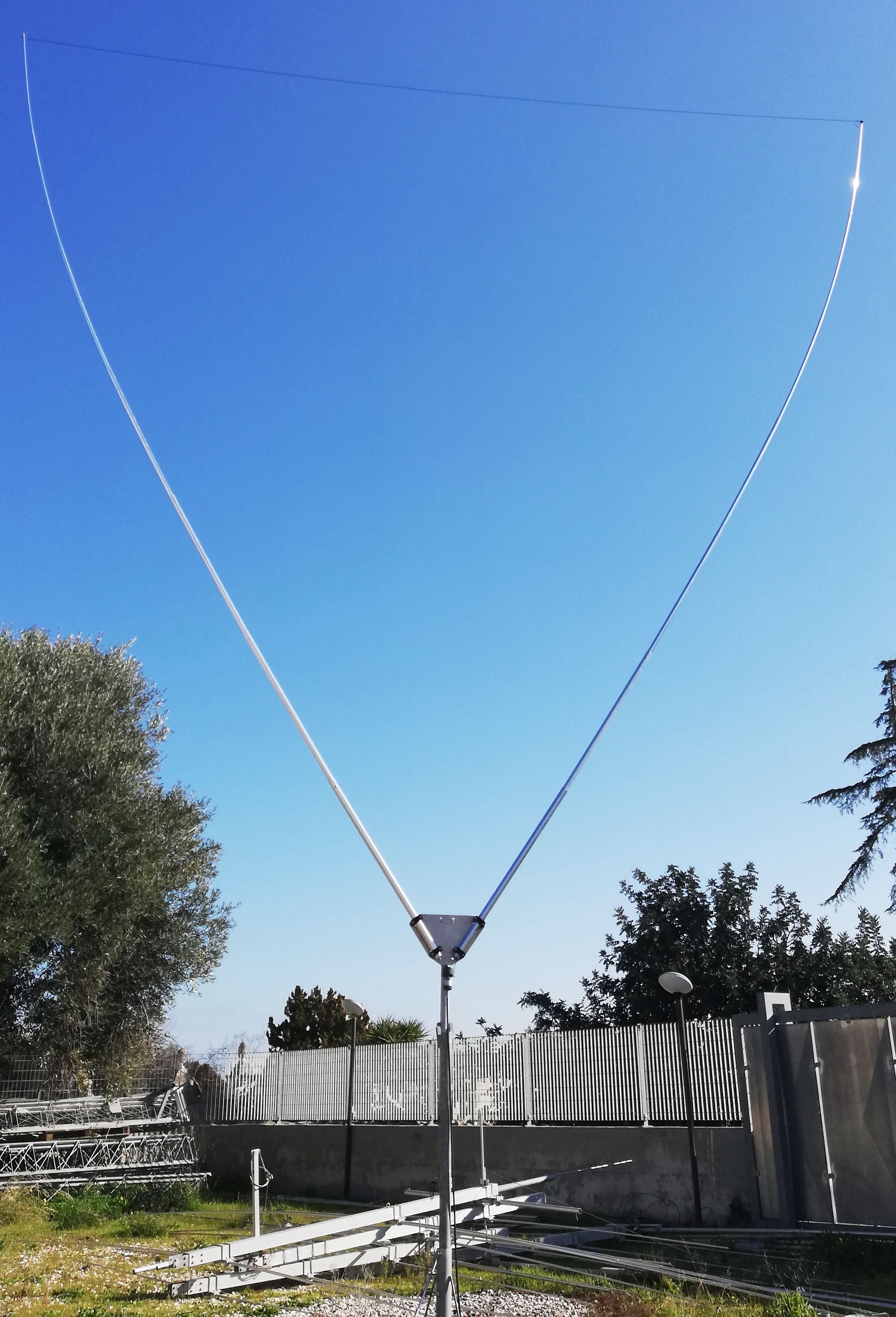

PST-LOOP1-20 20m single-band delta loop antenna with rigid single element ProSisTel

rating No review at the moment

Features :

  • Rigid Delta loop for 20m.
  • Arm length: approx. 7 m, ground projection: approx. 4 m per arm.

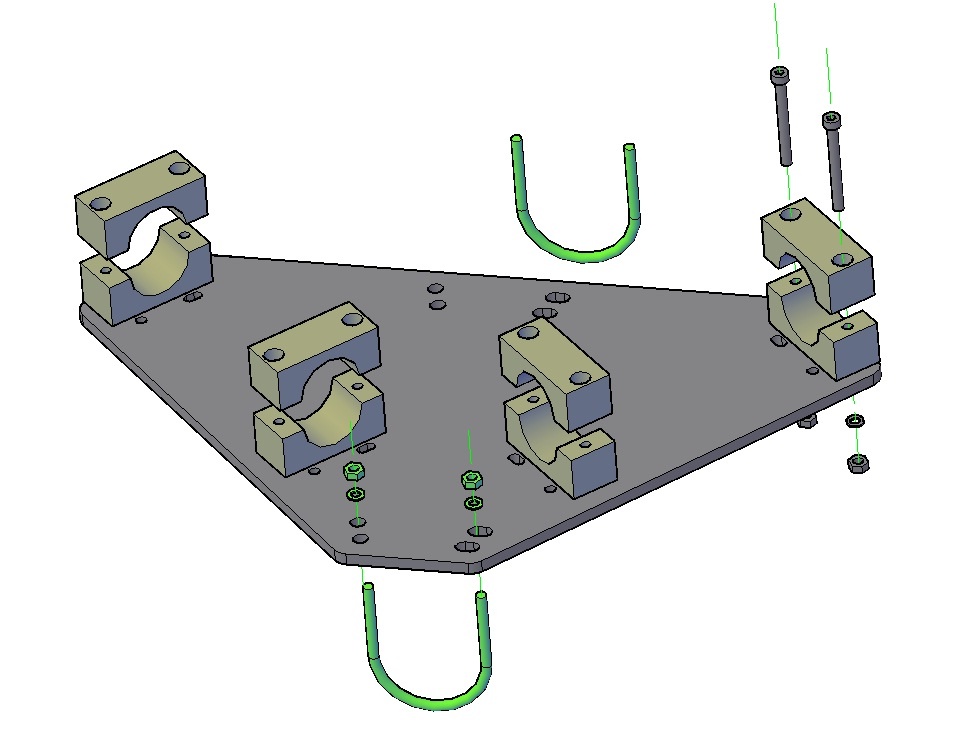

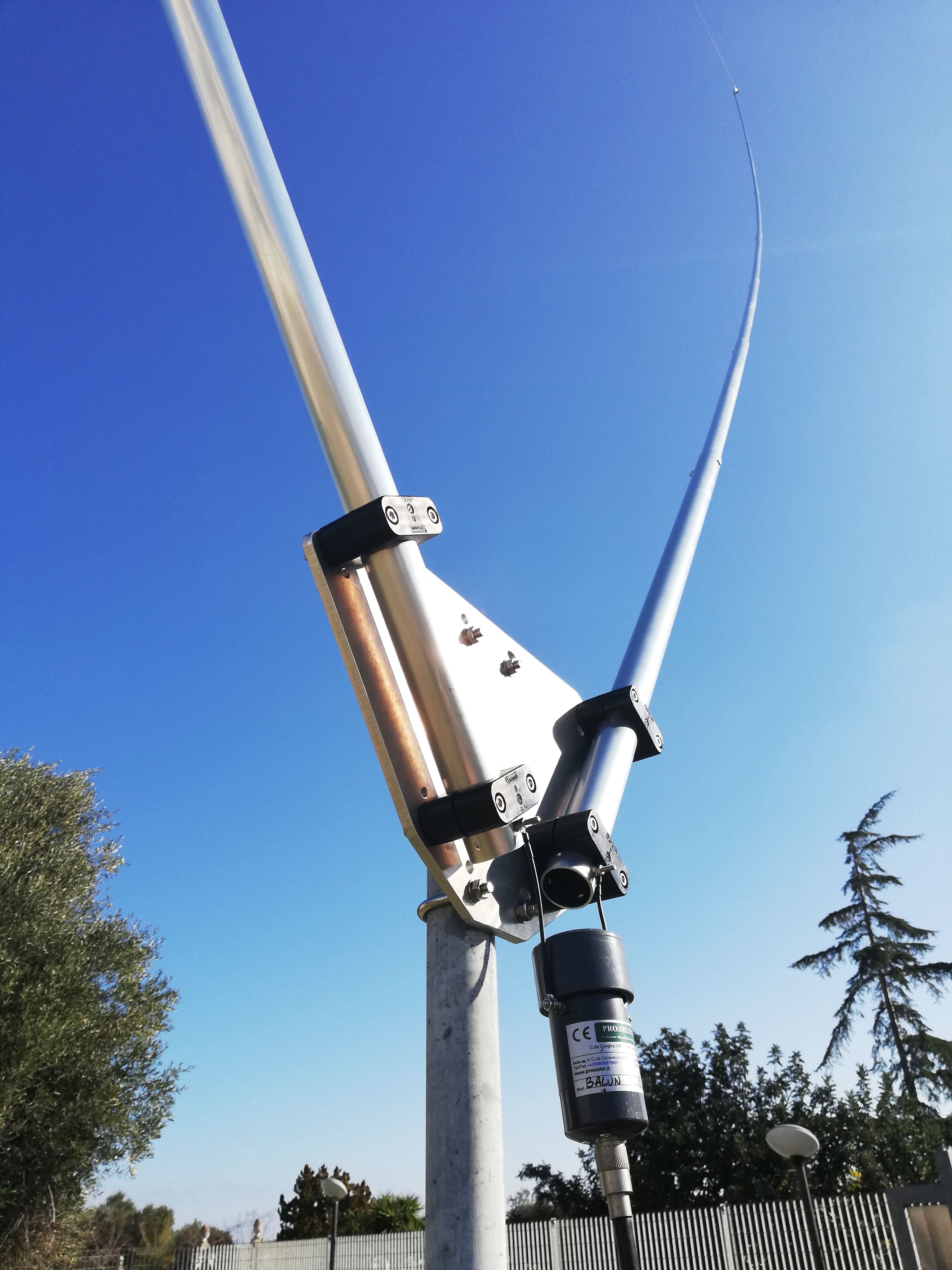

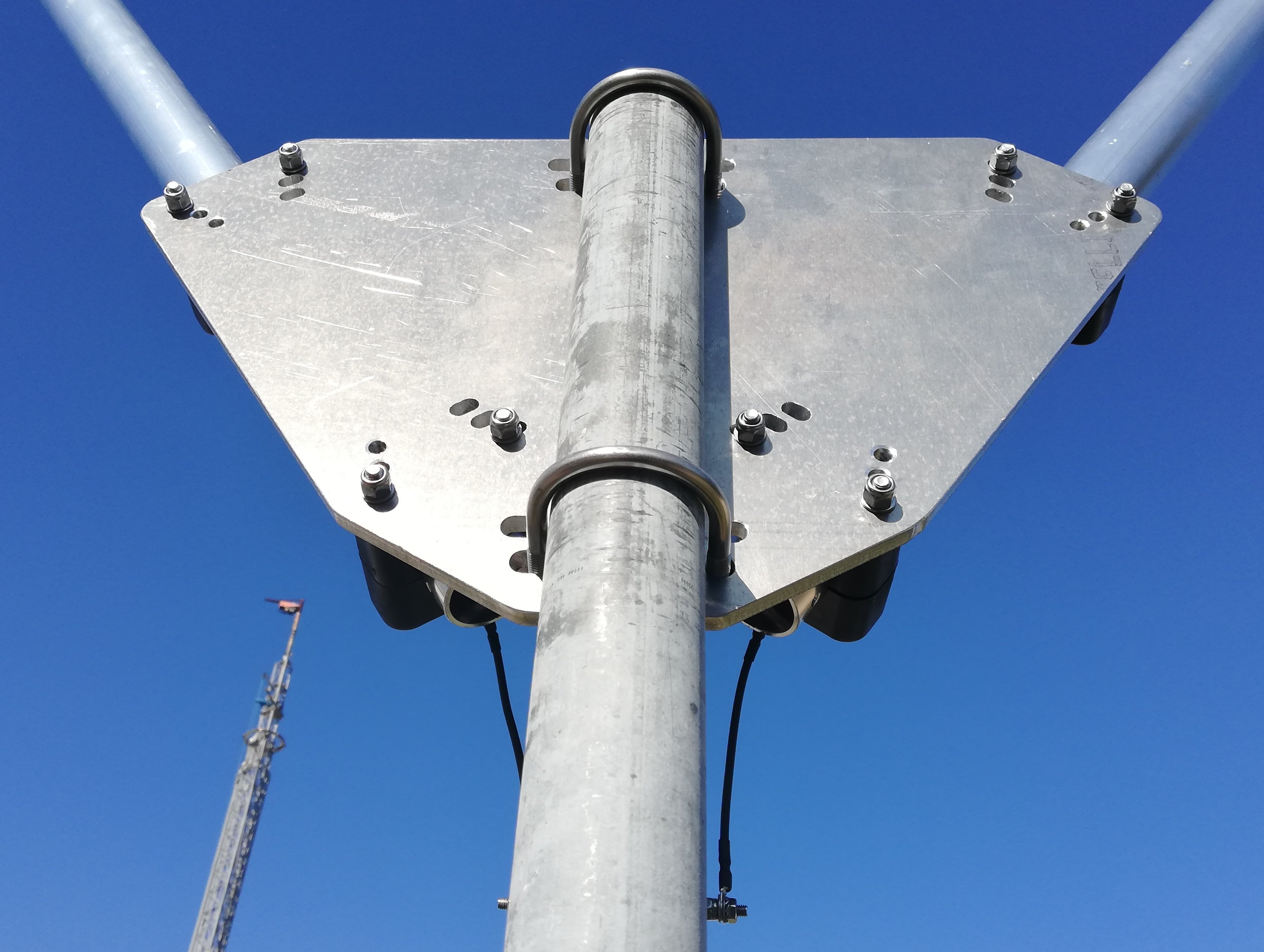

  • Mounts on 40 to 50 mm poles, 60 mm optional. Suggested height is at least 5 m, but also works well at 2 m.
  • The antenna does not need to be guyed.

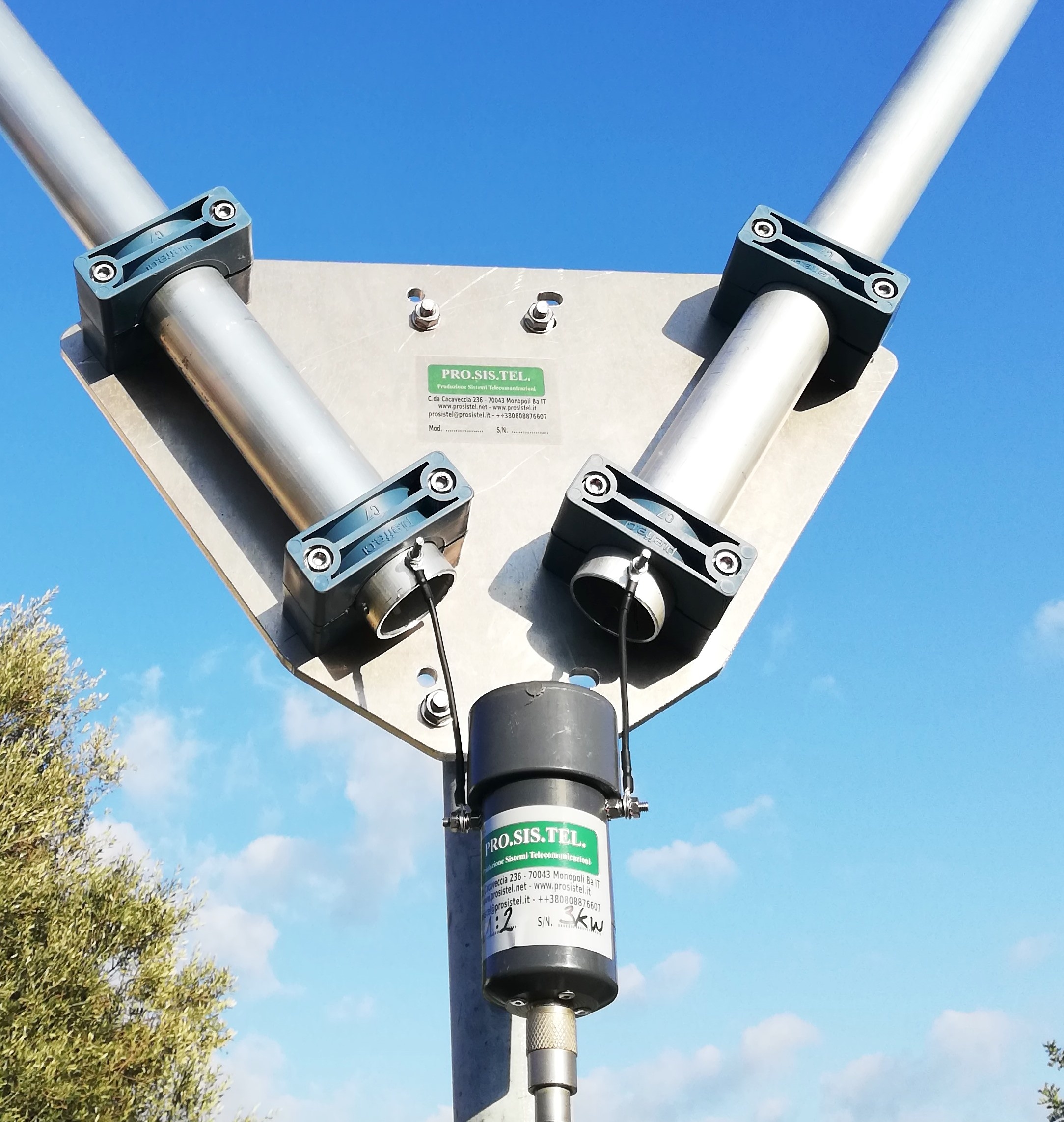

  • Balun 2:1 included
  • SO239, 50ohm, full band coverage
  • 2KW pep
  • Wind surface: 025m2 - max. wind 130Km
  • Weight 8Kg
  • Aluminium 6060T6 - stainless steel hardware.

292,30 € tax excl.

This material is no longer available

Download

Manuel PST-LOOP1-20 (FR)

1.62M
