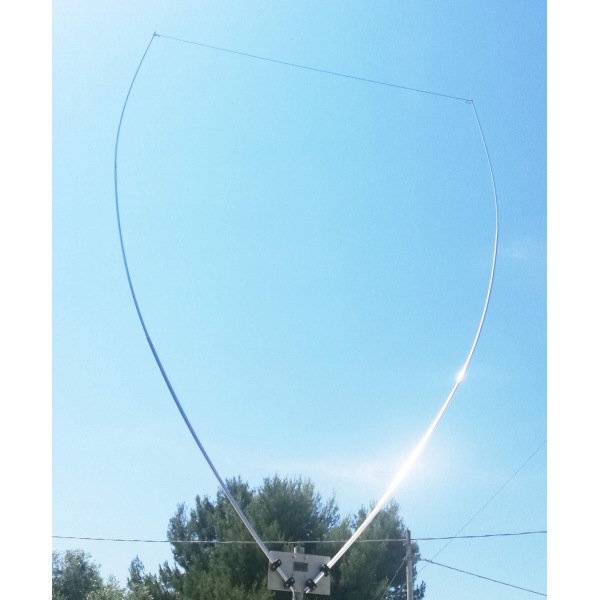

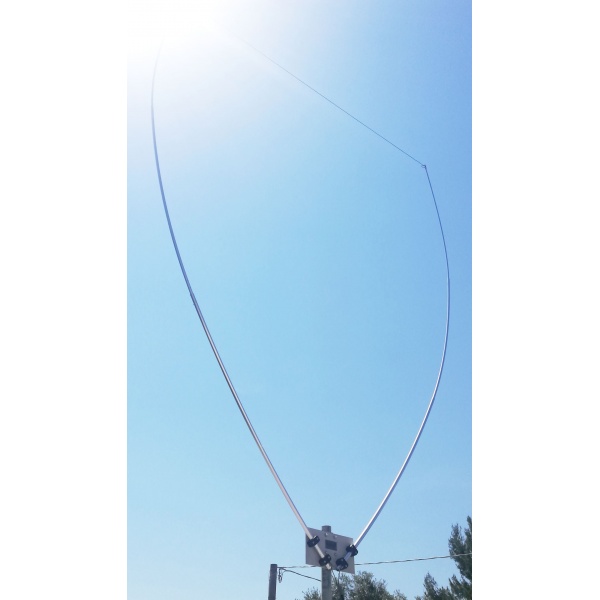

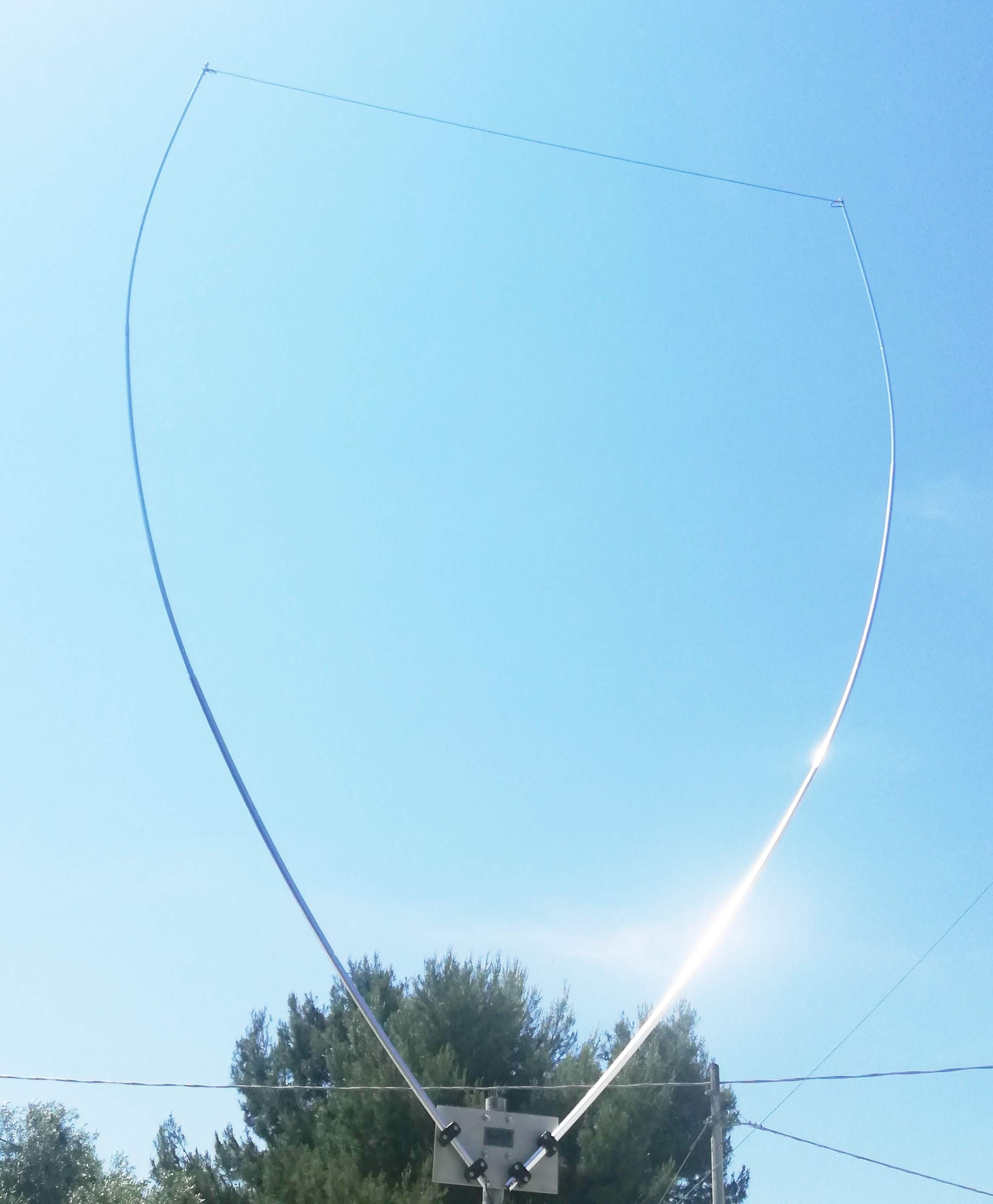

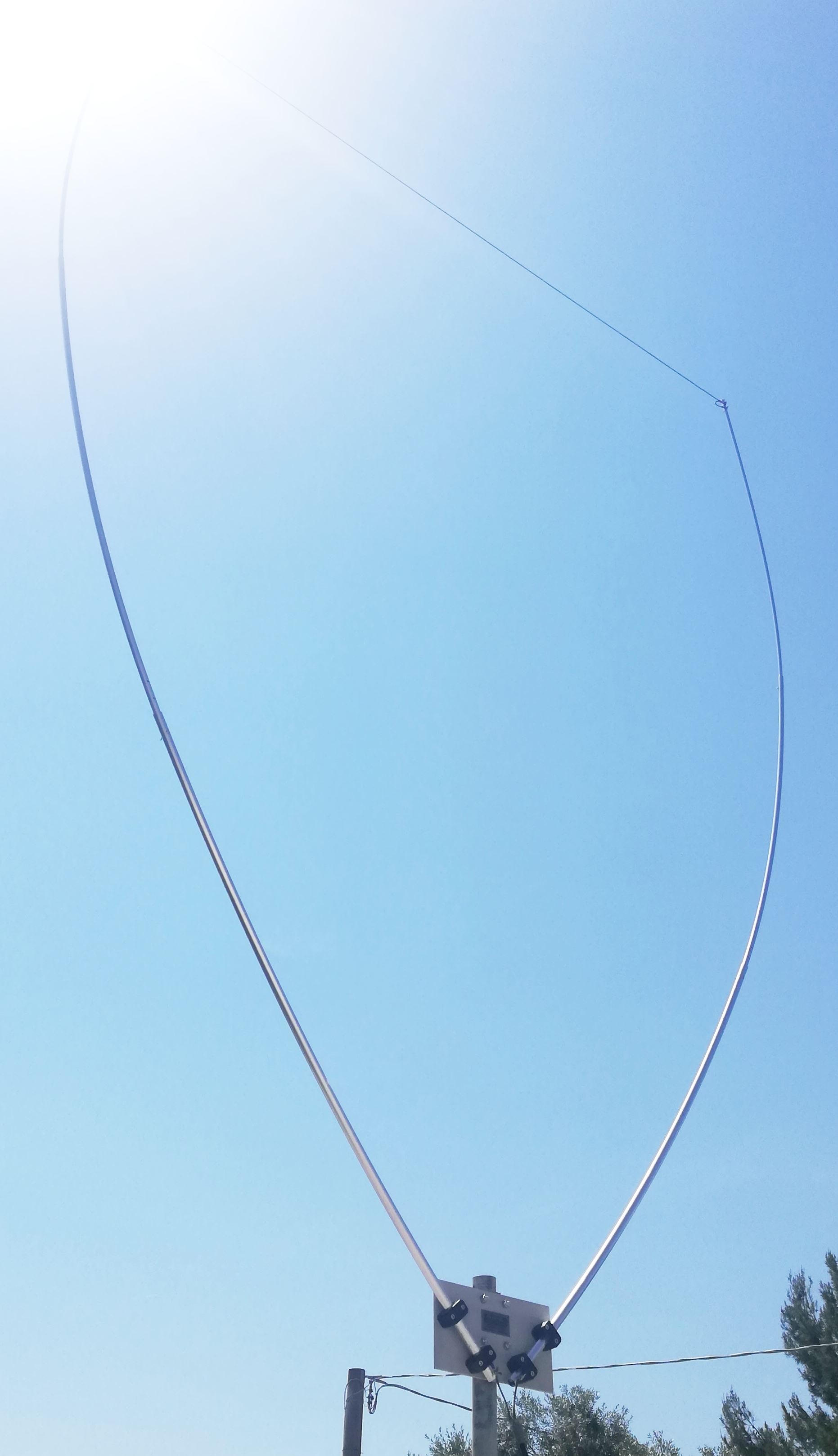

PST-LOOP1-12 single-element 12m rigid delta loop antenna ProSisTel

Features :

• Rigid delta loop for 12m.
• Arm length approx. 4.7 m, ground projection approx. 2.7 m per arm.

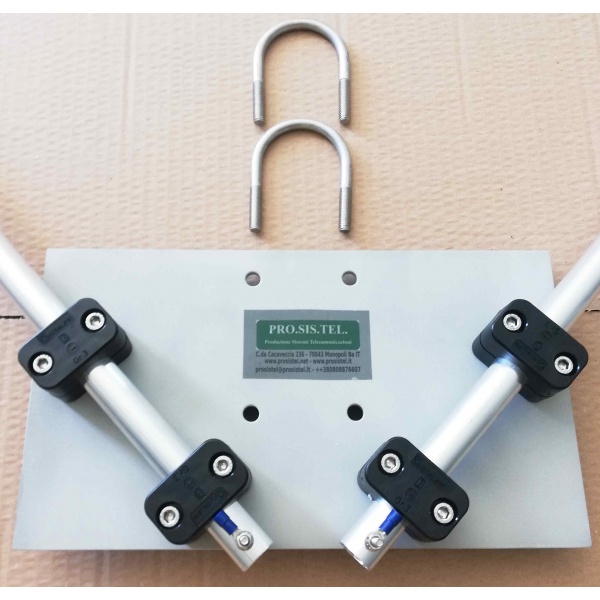

• Mounts on 40 to 50 mm poles, 60 mm optional. Suggested height is at least 4 to 5 m, but works equally well at 2 m.
• The antenna does not need to be guyed.
• 50ohm, covers the whole band
• 2KW pep
• Wind surface: 0.15m2 - max. wind 130Km
• Weight 5Kg
• Aluminium 6060T6 - stainless steel hardware.
