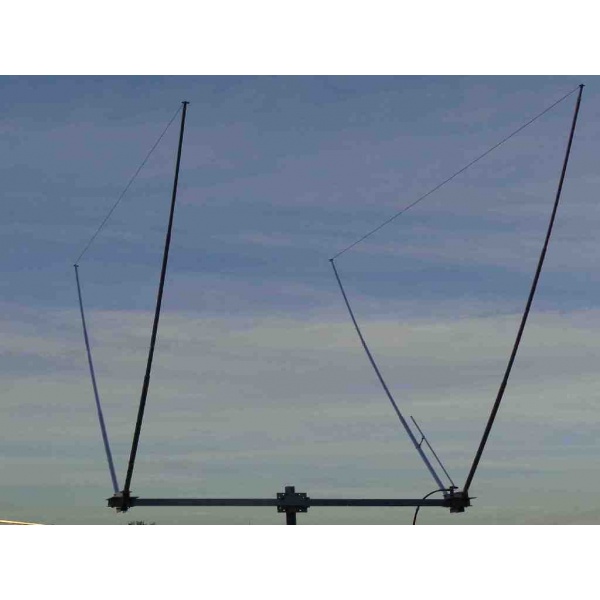

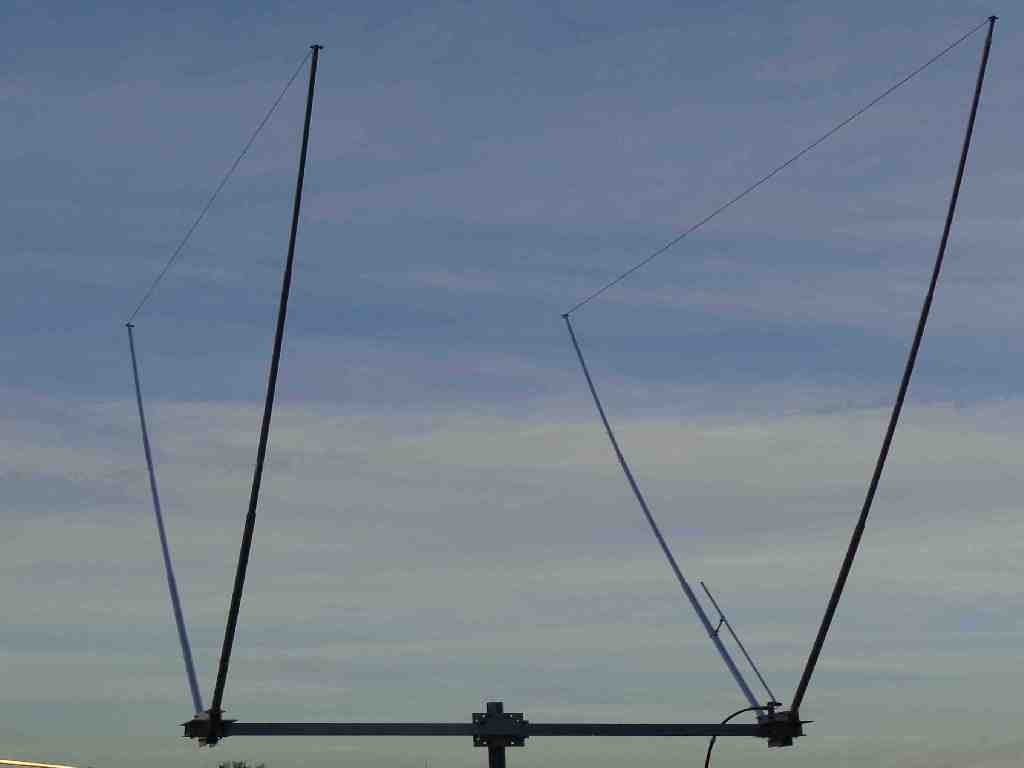

Single-band delta loop antenna for 10m (28 MHz) PST10DL rigid with 2 elements ProSisTel
No review at the momentMonoband mini 2-element Delta Loop antenna covering 10m.
Robust construction, earthed elements.
The gamma match coupler gives better performance in terms of impedance matching and excellent usable bandwidth.
Its small size and light weight make it easy to use, even in confined spaces.
For optimum operation, it is recommended to mount it at a height of at least 4-5m from the ground.
Data sheet
Characteristics :
- Gain = 6-8 dBd
- Impedance 50 ohms
- F/B = approx. 18-20dB
- Front panel => 25dB
- VSWR <= 1 : 1 at the centre of the band, band edge within the limit of 1 : 1.8
- Maximum power 2KW
- Boom length = 1.3m
- Radius of rotation = 65cm
- Wind surface = 0.2m2
- Maximum wind = 130 km / h
- Weight = approx. 8kg
- Acceptance mast 48mm (standard) or 60mm (optional)
- Material = AL6060T6, stainless steel bolts.
