XTRX PRO Embedded SDR 30MHz - 3.8GHz 2x2 MIMO

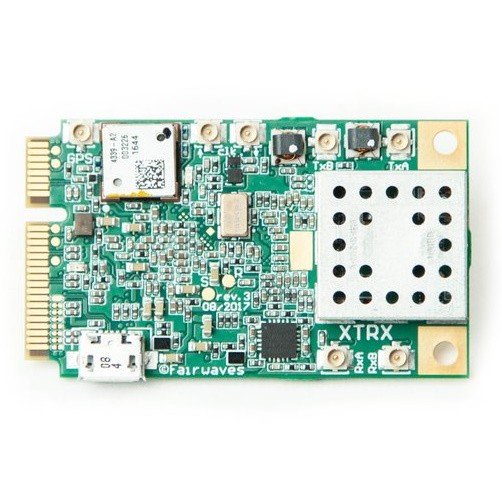

No review at the momentThe XTRX PRO is the first embedded SDR in Mini PCI format and with RX and TX in Full-Duplex (2x2 MIMO) for frequencies from 30Mhz to 3.8Ghz, stabilized with integrated GPSDO, sampling rate up to 120 Mhz in 12-bit, transmission power from 0 to 10 dBm max. (depending on the frequency) and built-in SIM card reader.
The embedded SDR XTRX is mainly designed for R&D SDR and/or prototype to production needs in the field of GSM / LTE mobile (2G, 3G and 4G), it also allows to cover SDR applications in the amateur radio, drone or LoRa.

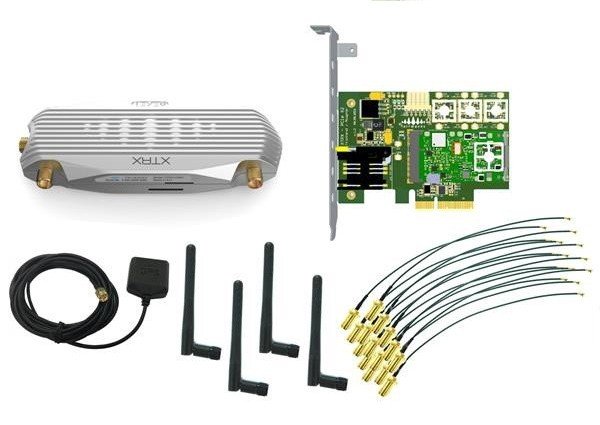

Optional Starter Pack: GPS antennas with cable, aluminum housing, USB adapter 3, PCIe x2 metal adapter, 4 U.FL - U.FL cables and 4 U.FL - SMA cables.
SDR software compatible: SDRangel, osmo-trx, Kalibrate and gr-osmosdr.
Comes with: 1 XTRX Pro (optional starter pack), Fairwaves genuine.
Data sheet
Specifications

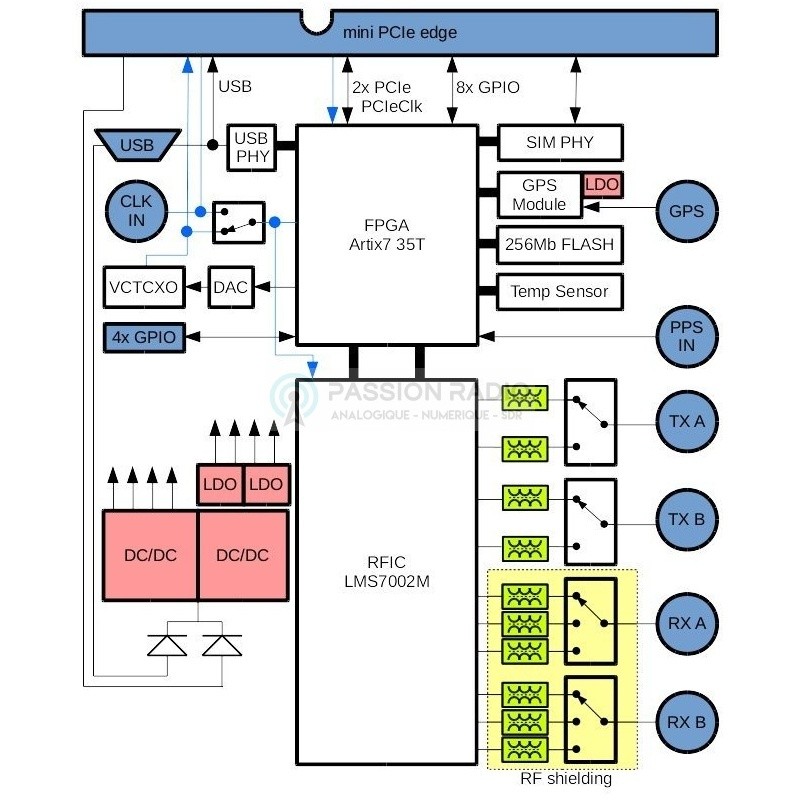

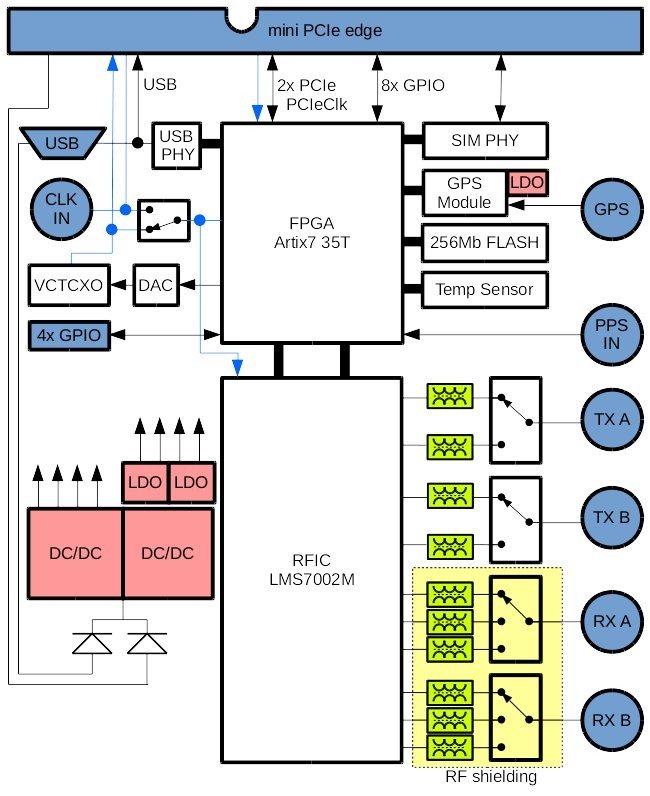

RF Transceiver Chip: Lime Microsystems LMS7002M FPRF

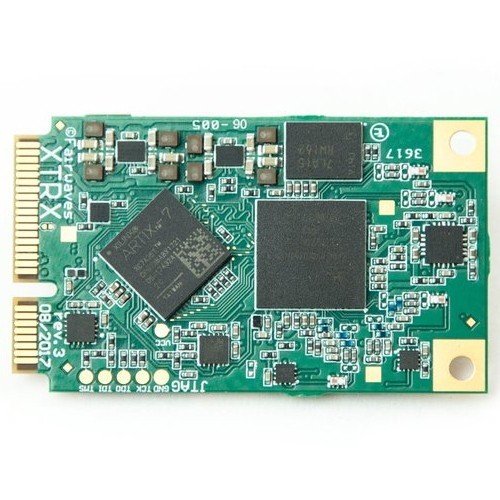

FPGA: Xilinx Artix 7 35T / 50T (CS / Pro)
Channels: 2×2 MIMO
Output power: 0 to 10dBm depending on the frequency
12-bit sampling rate: 0.2 Mhz to 120 Mhz SISO / 90 Mhz MIMO
Adjustment range: 30 MHz - 3.8 GHz
RX / TX frequency: 10 MHz - 3.7 GHz and 100 kHz - 3.8 GHz with signal degradation
PCIe throughput: 2 to 8 Gbit / s depending on the type of PCI
GPSDO and Reference Clock (26 MHz)
Stability without GPS: 0.1 to 0.5ppm
Stability with GPS: 0.01ppm after GPS / GNSS lock
Card size: Mini PCIe
Connector antenna : 7x U.FL
Dimensions: 30 × 51mm
More info at : https://xtrx.io/
