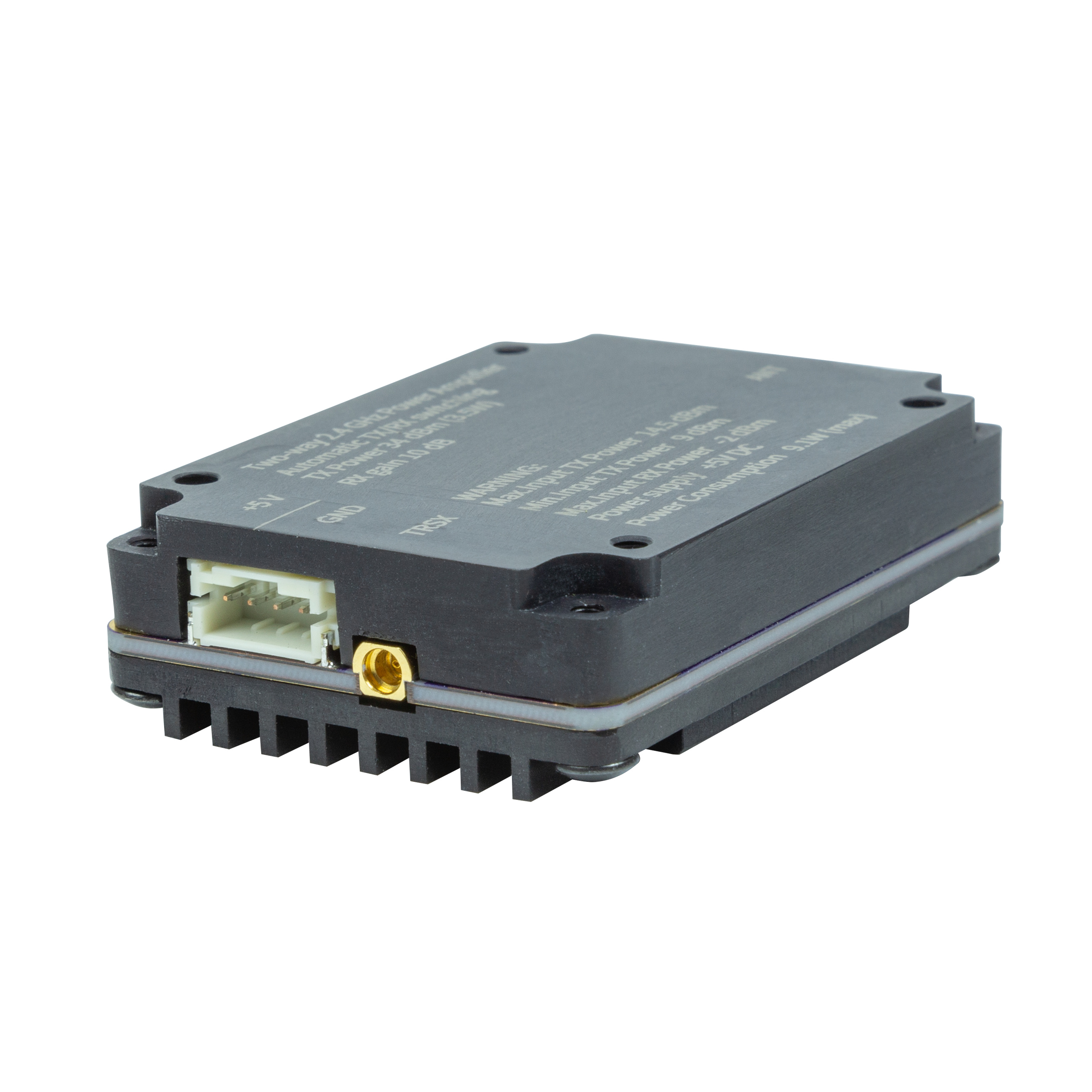

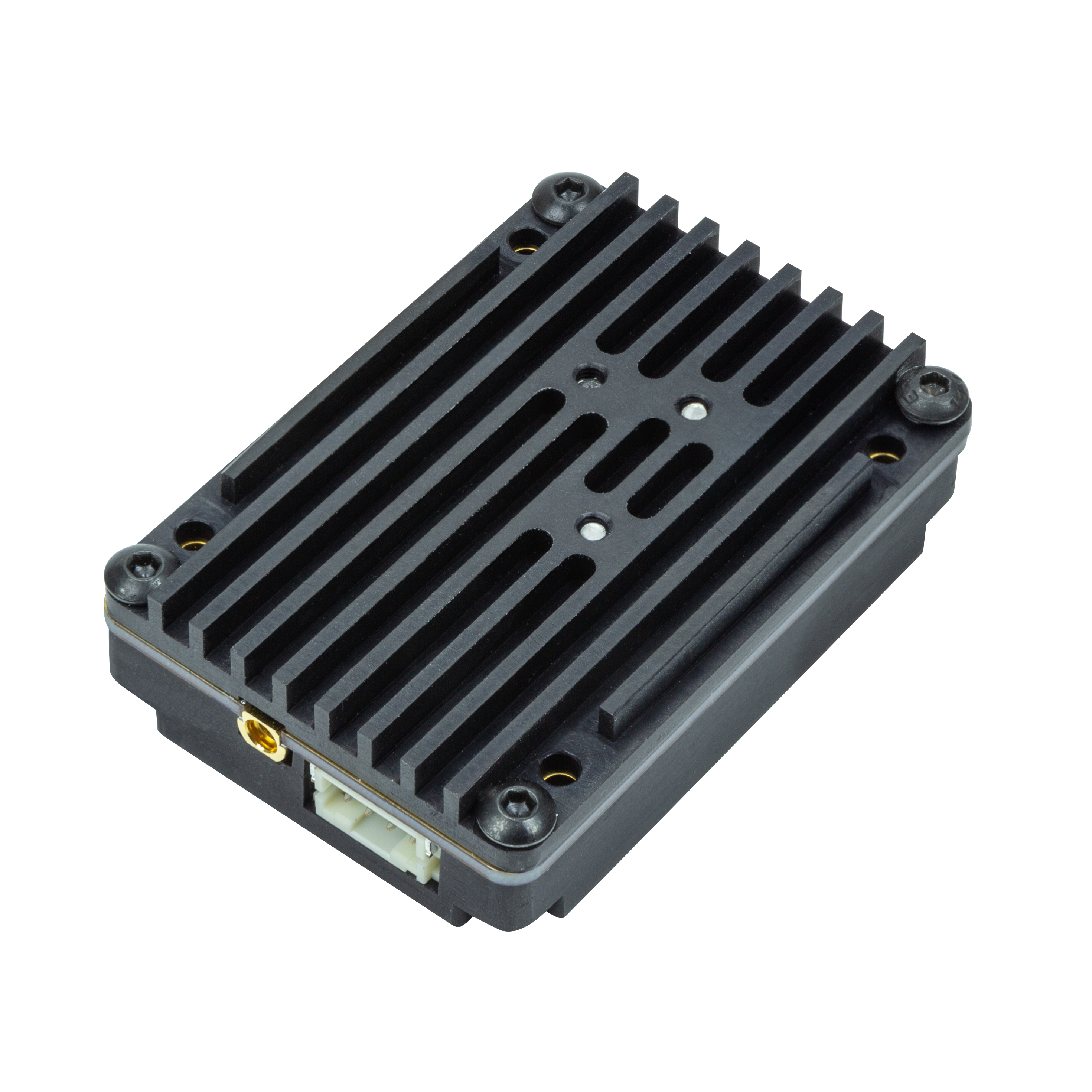

2.4GHz TX 2.5W Max Bidirectional Amplifier + 10dB RX Preamp
No review at the momentRigExpert's 2.4GPA power amplifier is designed to operate in the 2.0 to 2.6 GHz frequency band, including 2.4GHz frequencies.
It can be used with an input power of 9-14.5 dBm (8-28mW) and a maximum output power of 34dBm (2.5W) with a maximum gain of 22dB.
This compact amplifier features automatic switching between transmit (TX) and receive (RX) modes and is equipped with a receive preamp with 10dB gain.
- Operating frequency range: 2.0 - 2.6 GHz
- Transmit RF gain (TX): 22 dB
- RF receive gain (RX): 10 dB
- Continuous output power (CW) TX: 34 dBm
- Pulse TX output power: 36 dBm
- Requires 5 V low-voltage power supply
- ESD protection: Protection against electrostatic discharges
- Antenna connector: MMCX female
Download
Data sheet
- Operating frequency range: 2000 - 2600 MHz
- CW output power: 33.5 to 35 dBm (at 13 dBm RF input power at 2.4 GHz)
- Pulsed output power: 34 to 36 dBm (at an RF input power of 13 dBm at 2.4 GHz)
- CW power consumption: 9.1 W
- RX power consumption: 0.3 W
Recommended operating conditions :
- TX RF input power: 9 to 14.5 dBm
- Device Voltage: +4.75 to +5.25 V
Mechanical Specifications:
- Dimensions: 40 x 56 x 15 mm
- Weight: 46 grams
Important Note:
TX input power can be adjusted by changing the input attenuation (ATT).
