RSP1B SDR receiver 1kHz to 2GHz 14-bit + LNA + Bias-T + Metal case View larger
SDRPlay

SDRPLAY-RSP1B-2669

New product

United Kingdom

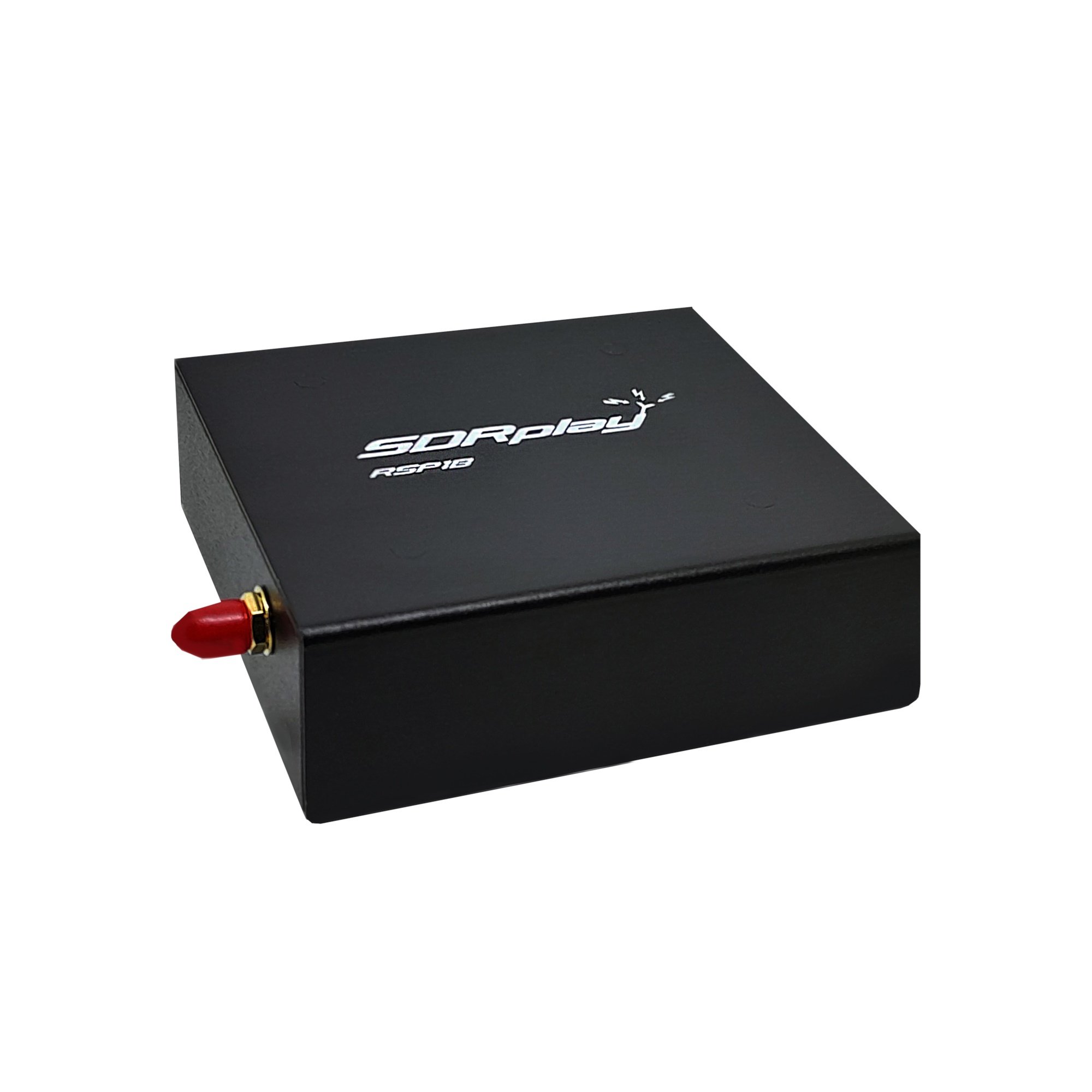

RSP1B SDR receiver 1kHz to 2GHz 14-bit + LNA + Bias-T + Metal case

rating Read the 8 reviews
Average rating: 5/5 Number of reviews: 8

A new version of SDRPlay's receiver, the RSP1B covers all frequencies from 1 kHz to 2 GHz without gaps, in all modes*, with up to 10 MHz of screen bandwidth and 14-bit sampling.

The differences with the RSP1A :

  1. Solid metal case, painted black
  2. Noise reduction below 1 MHz and frequencies 3.5-5.5 MHz, 50-60 MHz and 250-320 MHz
  3. Improved signal management for HF frequencies

Supplied with: 1x SDRPlay RSP1B assembled in plastic case (without power cable).

See below for instructions for use and SDRplay support below.

* By default, the decoded modes are analogue AM, FM and SSB. By coupling other software for other modes, including digital, it is possible to decode any type of signal, depending on the decoding software used in addition to the SDR software.

More details

154,87 € tax excl.

In stock

   More than 10 Items

Download

Datasheet RSP1B (FR)

In french. 317.23k

Datasheet RSP1B (EN)

In english. 230.52k

SDRPlay comparison (FR)

In french. 77.56k

SDRPlay comparison (FR)

In english. 65.5k

DOC CE RED RSP1B

143.95k

SDRuno Quick Guide (FR)

For SDRplay receivers: RSP1A, RSP1B, RSPduo and RSPDX. 483.93k

Data sheet

  • Reception from 1 kHz to 2 GHz
  • Up to 10 MHz bandwidth
  • 14-bit sampling
  • TCXO 0.5PPM
  • Software-adjustable gain LNA preamp
  • 4.7V BIAS-T power supply
  • 11 AM / FM / DAB notch filters
  • RF shielding with metal case
  • Antenna connector: SMA female
  • Open PLC
  • Power supply via USB 2.0 Male A - Male B cable (printer cable not included)
  • Compatible with SDR : SDR Uno (recommended for Windows), HDSDR, SDR Console, CubicSDR (Mac/Linux) and SDRConnect (Windows, Linux, Mac)
  • Power consumption: 120-175mA (without BIAS-T enabled)
  • Minimum recommended Windows PC configuration: Intel Core i3, 4GB memory
  • Weight: 200g
  • Dimensions: 99x88x36mm
  • 2-year warranty and CE standards


Online installation and configuration

You will find an online guide for quick installation of the RSP1B: http://www.sdrplay.com/start-here/

To download the latest SDRPlay drivers and software for Windows, Mac, Linux (Ubuntu & Debian): http://www.sdrplay.com/downloads/

Recommendations for use

1 - Do not connect the SDR receiver directly to the same aerial as your transmitter, or to an aerial in the near field of a transmitting aerial, or switch to transmission and transmit signals close to the RSP, as this may cause irreversible damage.

2 - It is strongly recommended that you disconnect the antenna during stormy weather and ensure that the antenna is earthed. Finally, before reconnecting the coaxial cable after a storm, it must be discharged (braid and core) by earthing it.

In these 2 cases of loss of reception and RF damage, the warranty will not apply and the equipment will not be repaired, exchanged or refunded. Signs of RF damage are characterised by signs of heat on or around components close to the signal input, a burning smell is also an indication of RF damage.

SDRPlay support request

For any technical support request, SDRPlay offers an online platform to get in touch directly with the technical support team for our customers.

Although the interface is in English, it is possible to leave your message in French: Official SDRPlay support request.

A Facebook group, independent of SDRPlay and Passion Radio, also offers help in French: FB Group SDRPlay France.

  • Customers also bought

  • We also recommend

    • Pigtail SMA Male to BNC Male Passion Radio SMA PIGTAIL-SMA-M-BNC-M-78
      6,70 €

      Reference: PIGTAIL-SMA-M-BNC-M-15CM-78

      Pigtail SMA Male to BNC Male RG-316 50 ohms

      Pigtail cable with BNC Male - SMA Male connector and RG-316 50 ohm coaxial cable for use in frequencies from 0 to 3000Mhz. Available in different lengths: 15cm, 30cm or 50cm Connector 1: BNC

      6,70 €
    • Pigtail SMA Male UHF Female 15/50/100cm Passion Radio SMA PIGTAIL-SMA-M-UHF-F-80
      5,90 €

      Reference: PIGTAIL-SMA-M-UHF-F-80

      Pigtail SMA Male UHF Female 15/50/100cm RG316

      Adapter cable pigtail SMA Male to plug UHF Female. RG 316 50 ohm coaxial cable. Available in 3 lengths: 15, 50 and 100 cm.

      5,90 €
    • Pigtail SMA Male - SMA Male 15/50/100cm Passion Radio SMA PIGTAIL-SMA-M-81
      5,00 €

      Reference: PIGTAIL-SMA-M-SMA-M-81

      Pigtail SMA Male - SMA Male 15/30/50/100cm RG316

      SMA Male to SMA Male pigtail adapter, for connecting a card, for example converter Ham it upconverter card to the SDR transceiver HackRF One SDR transceiver, or the SDRPlay broadband receiverwideband

      5,00 €
    • Pigtail SMA Male to BNC Female Passion Radio SMA PIGTAIL-SMA-M-BNC-F-83
      7,90 €

      Reference: PIGTAIL-SMA-M-BNC-F-83

      Pigtail SMA Male to BNC Female 15cm RG316

      SMA Male to BNC Female pigtail adapter. RG 316 50 ohm coaxial cable, approx. 15 cm long.

      7,90 €

Reviews

Click here to leave a review

rating 5
Excellent !
Écouteur depuis les années 80, j'ai possédé une multitude de récepteurs divers et variés. J'étais jusqu'à maintenant sceptique sur les SDR, et bien franchement je ne regrette pas mon achat ! J'ai mis derrière un long fil (LW-40 disponible sur ce site) de 40m de long dans mon jardin et une vieille discone Sirtel à 10m de hauteur pour la réception VHF/UHF avec un commutateur deux positions, et les résultats sont excellents. J'ai téléchargé le logiciel SDRuno et, après deux heures pour me familiariser avec le programme, je commençais l'écoute et rentrais mes mémoires favorites. Je suis conquis par ce SDR-Play !
rating 5
Excellent Récepteur SDR HF+VHF+UHF
Acheté en complément d\'une clé SDR RTL SDR BLOG v3 (ancienne génération : gris métal), j\'ai été agréablement surpris dès la première utilisation.
Quel changement, quel bond en terme de qualité, le jour et la nuit !
Les QRM disparaissent et les signaux sortent de nulle part.
Les filtres sont d\'excellente qualité et très efficaces.
La qualité de construction est TOP : boitier Alu sobre de toute beauté !
Utilisé avec SDRCONSOLE (mon favori), SDRSHARP modifié pour accepté les SDRPLAY (cool pour ses plugins DMR/TETRA, ...) et SDRUNO (très bon, mais une usine à gaz).
Les résultats sont époustouflants.
Je suis en appartement et j\'utilise une MLA30+ ainsi qu\'un dipole (de chez Passion-Radio à pas cher livré avec la clé SDR).
Ce récepteur me change la vie !
Si vous voulez investir dans un deuxième récepteur SDR de qualité : allez-y les yeux fermés.
Je conseillerai toujours de passer par une clé peu onéreuse pour commencer et appréhender la réception SDR.
rating 4.5
bon produit
manque un peu de sensibilité .
rating 5
Impeccable
Livraison rapide, produit fonctionne très bien
rating 4
SDRConnect
L\'électronique est conforme à la description et aux spécificités techniques, mais si comme moi vous êtes sous Mac OSX (m2) le logiciel SDRConnect reste perfectible et pas pratique. Comme il s\'agit d\'une version \"preview\" (Aout 24), j\'attends une amélioration de l\'ergonomie de ce logiciel. En résumé, globalement satisfait !
rating 5
Évaluation
Transaction parfaite.
Merci
rating 5
Genial
Par le passé j ai possedé le Rsp1A dont j etait entierement satisfait. Avec le Rsp1B on monte d un cran dans la qualité . Excellente reception sur toutes bandes, et une nette amelioration en hf. Bref que du bonheur. Et merci a Passion Radio, comme toujours envoi ultra rapide
rating 5
RSP1B
Excelent product. with a metal case (*****). SDRplay is the best for SDR receivers.
CU3AK
