Malachite SDR V5 10kHz-250MHz and 400MHz-2GHz receiver with DSP

rating Read the review
Average rating: 5/5 Number of reviews: 1

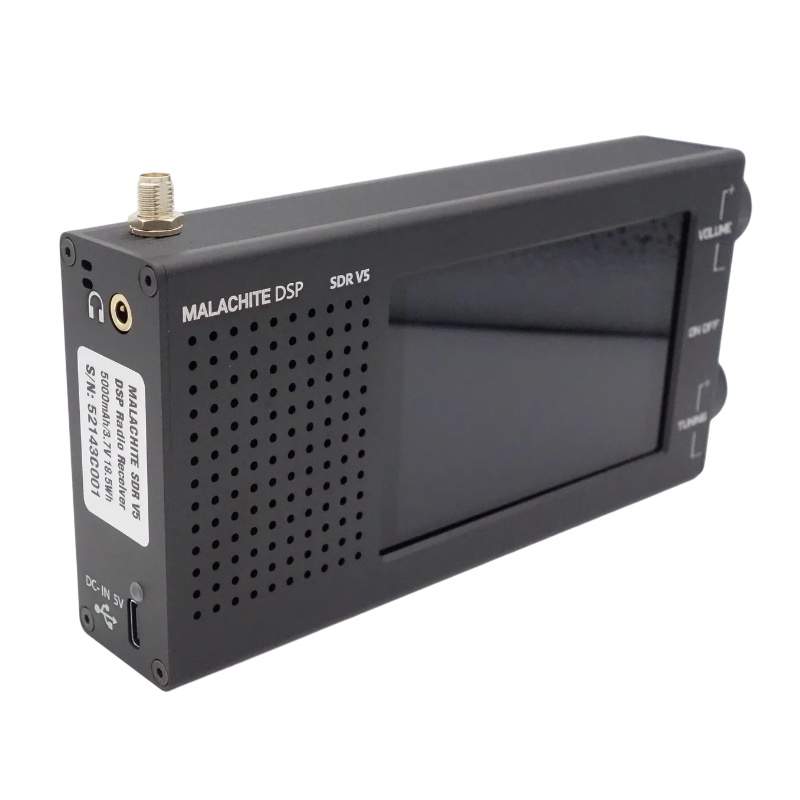

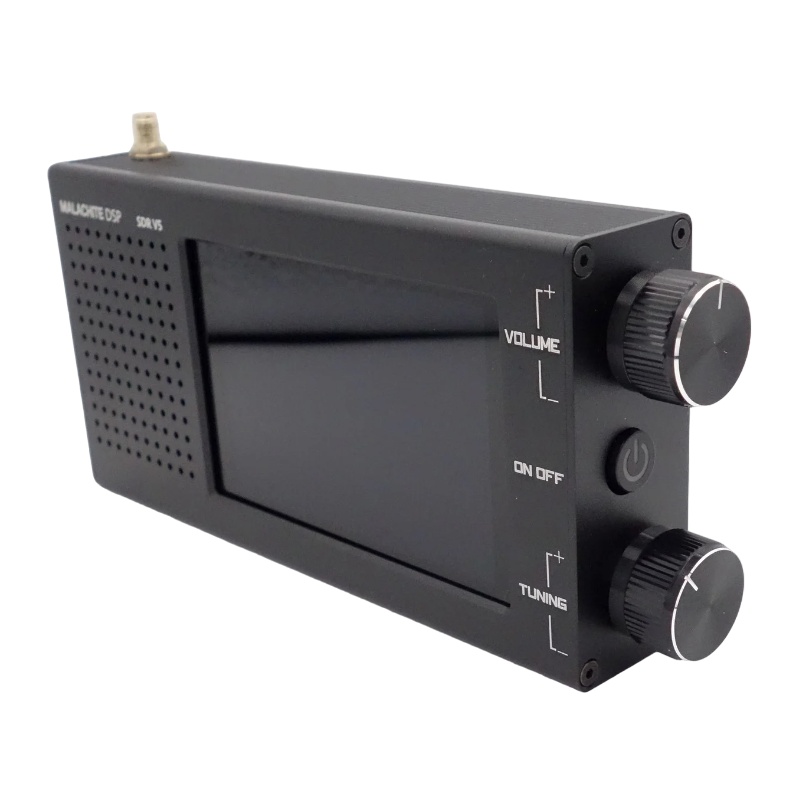

The Malachite DSP SDR V5 receiver is a robust radio receiver with an aluminium casing offering a wide frequency coverage range from 10 kHz to 250 MHz and from 400 MHz to 2 GHz.

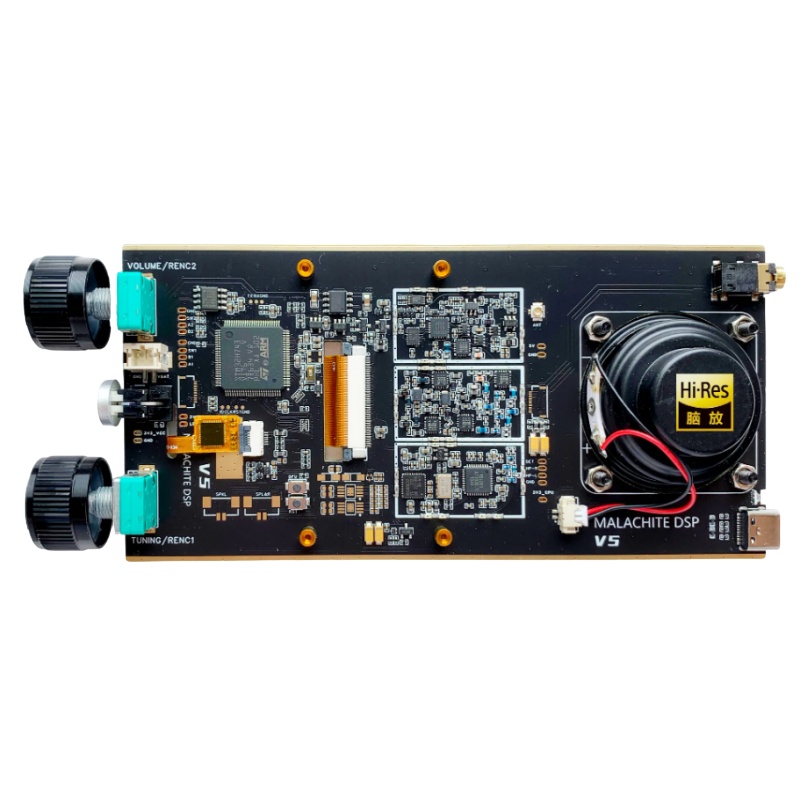

This model incorporates advanced features such as an RF preamplifier, a powerful processor and automatic switching of antenna input modes, making it ideal for users looking for a portable solution and reception over a wide range of frequencies, whether for leisure or professional use.

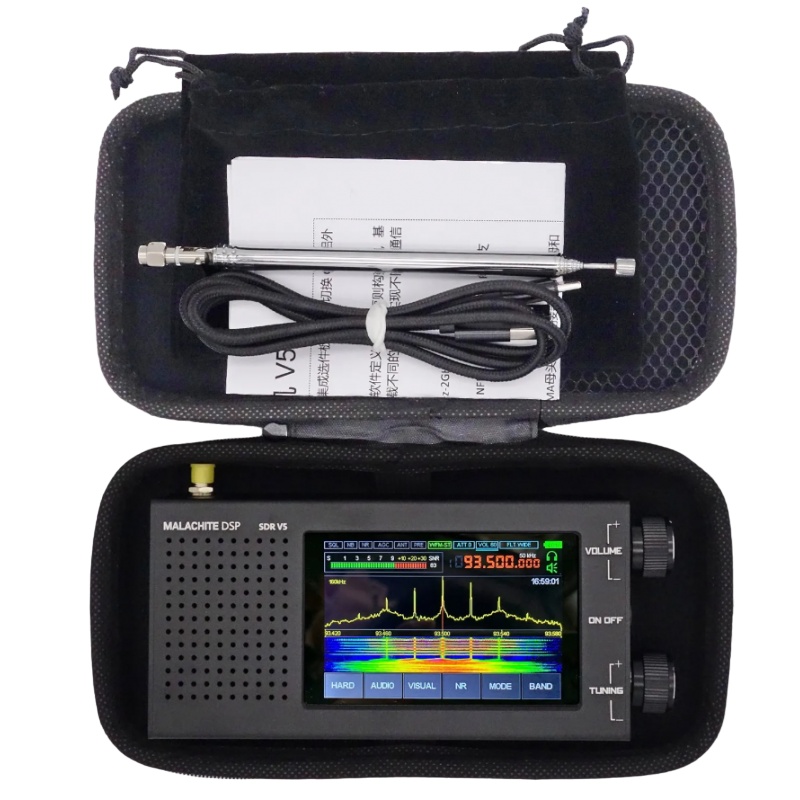

Scope of delivery: 1 Malachite DSP SDR V5 receiver, 1 70CM telescopic antenna, 1 EVA protective bag, 1 USB-C data cable, and a carrying case.

More details

295,00 € tax excl.

Available to order within 2-3 weeks

Data sheet

Technical specifications :

  • Processor: ARM STM32H743 at 480MHz, for increased responsiveness and performance
  • Frequency range: From 10 kHz to 250 MHz and from 400 MHz to 2 GHz, allowing wide frequency coverage
  • Sensitivity: Exceptional from 0.3uV up to 1GHz, ensuring outstanding sound clarity
  • Spectrum width: 160kHz, 80kHz, 40kHz
  • Dynamic Range: 82dB, guaranteeing excellent reception quality

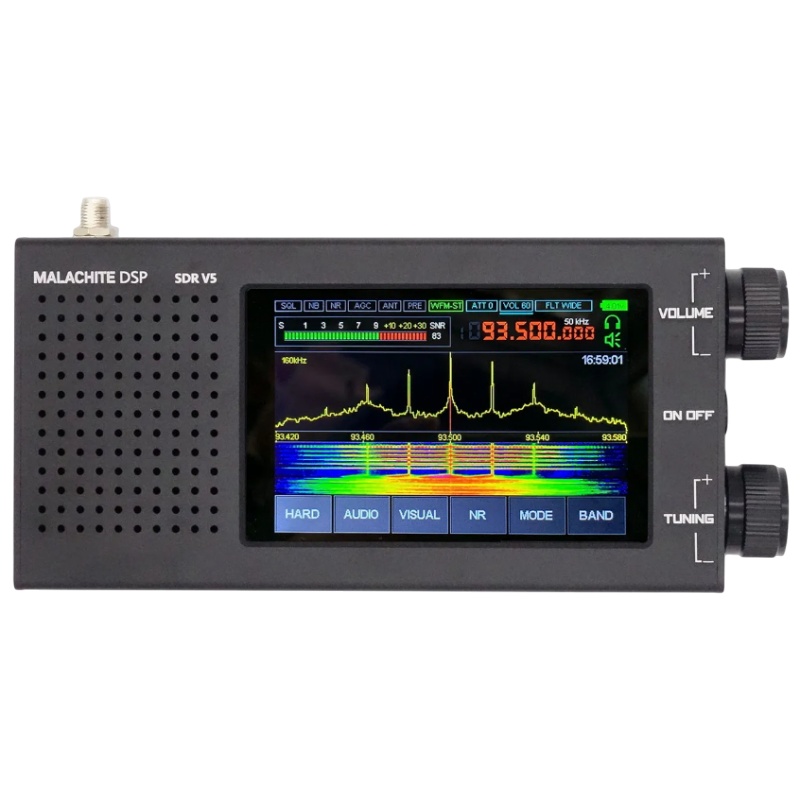

  • Display: 3.5" LCD touchscreen for intuitive navigation

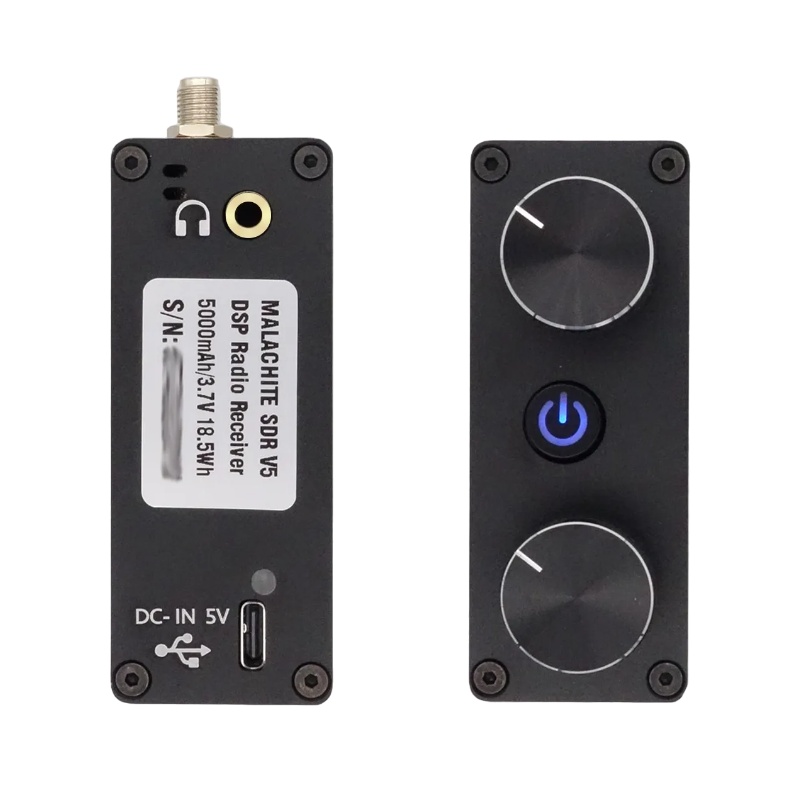

  • Antenna connector: Gold-plated SMA with automatic switch between 50 ohm and high impedance
  • Unique antenna port design: Standard gold-plated SMA female connector, automatic switching between 50 ohm and high-impedance input mode (HI Z), built-in RF preamplifier and software-controlled 0-30dB RF attenuator
  • Installed firmware version: 1.10d


Features :

  • Modulation types: AM, SSB, DSB, CW, NFM, WFM with stereo RDS support
  • Battery: 5000mAh Li-Po for up to 12 hours' operation
  • Portability: Dimensions of 162x74x29mm and weight of 350g, with accessories for easy portability
  • DSP functions: variable filter width, adaptive squelch, Noise Blanker, AGC automatic gain control, automatic filter
  • USB connection to a computer (capable of transmitting CAT, IQ and audio)
