Ham It Up Plus V2 Nooelec Up-Converter HF 0.3 to 65MHz for SDR

View larger

Display all pictures

Manufacturer: Nooelec

Reference: NOOELEC-100769-HAM-IT-UP2-2420

Condition: New product

Country of origin:

Canada

Online only

Ham It Up Plus V2 Nooelec UpConverter SDR HF 0.3 to 65MHz with TCXO & box

No review at the moment

RF converter (ULF/VLF/LF/MF/HF) for HF frequencies from 0.3 to 65 MHz and SDR (Software Defined Radio) devices such as NESDR keys, RTL-SDR, HackRF, or any VHF or SDR receiver covering the 125MHz to 190MHz band.

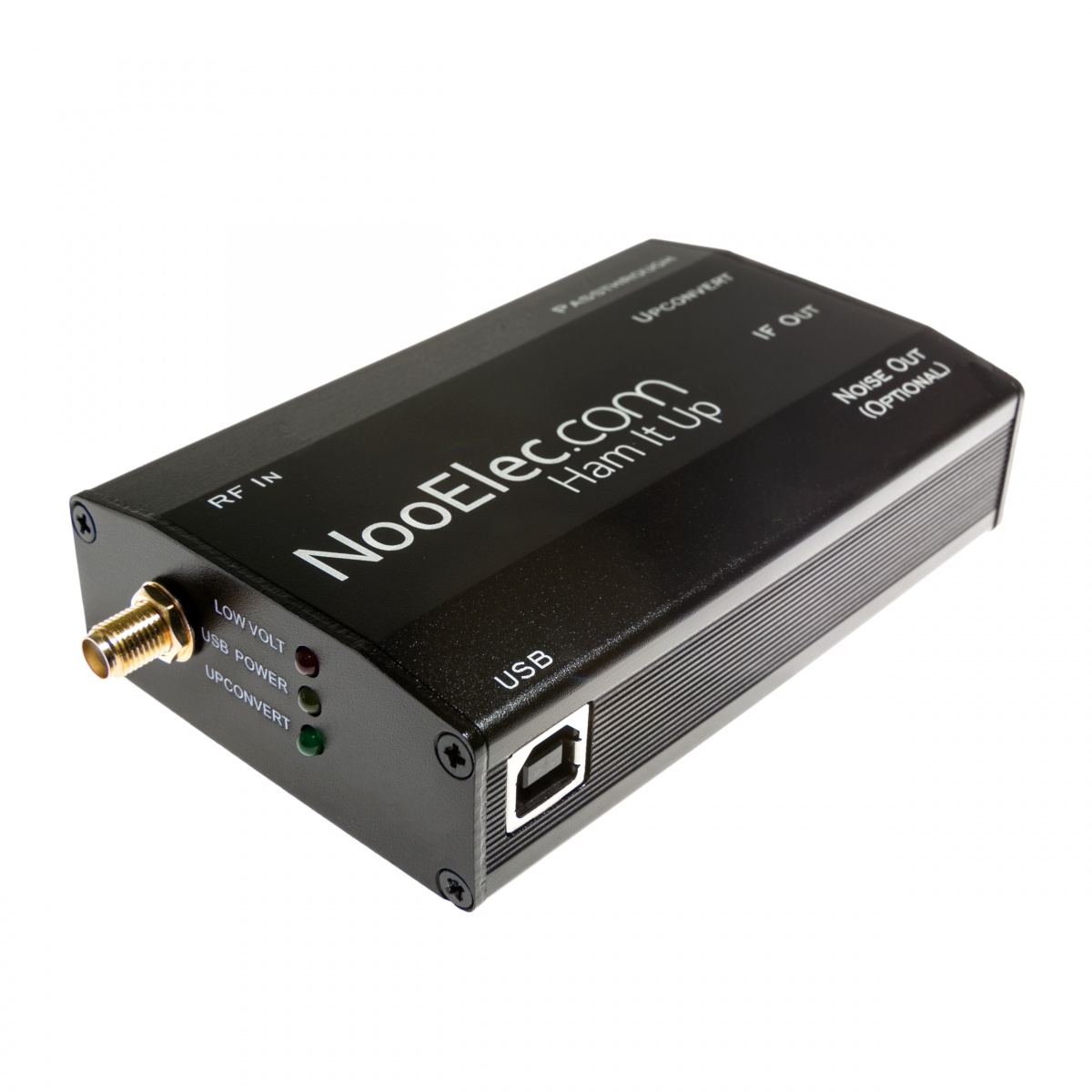

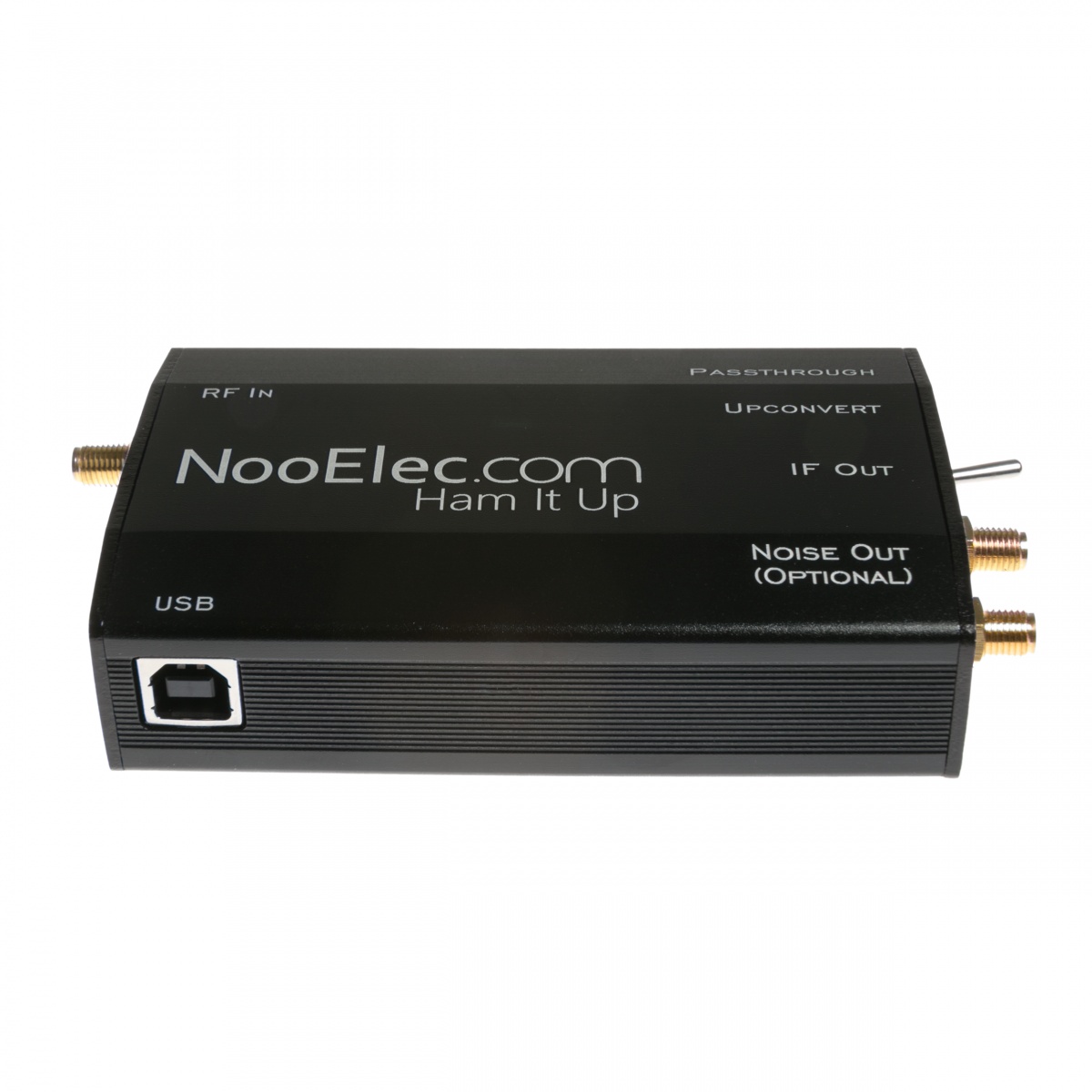

The Ham It Up Plus V2 is fitted as standard and mounted in a robust black aluminium case.

It can also be used as a pan-adaptor with transceivers offering an IF output below 65MHz.

The Ham it up upconverter can also be used as a transmitter with a maximum input power of 5mW.

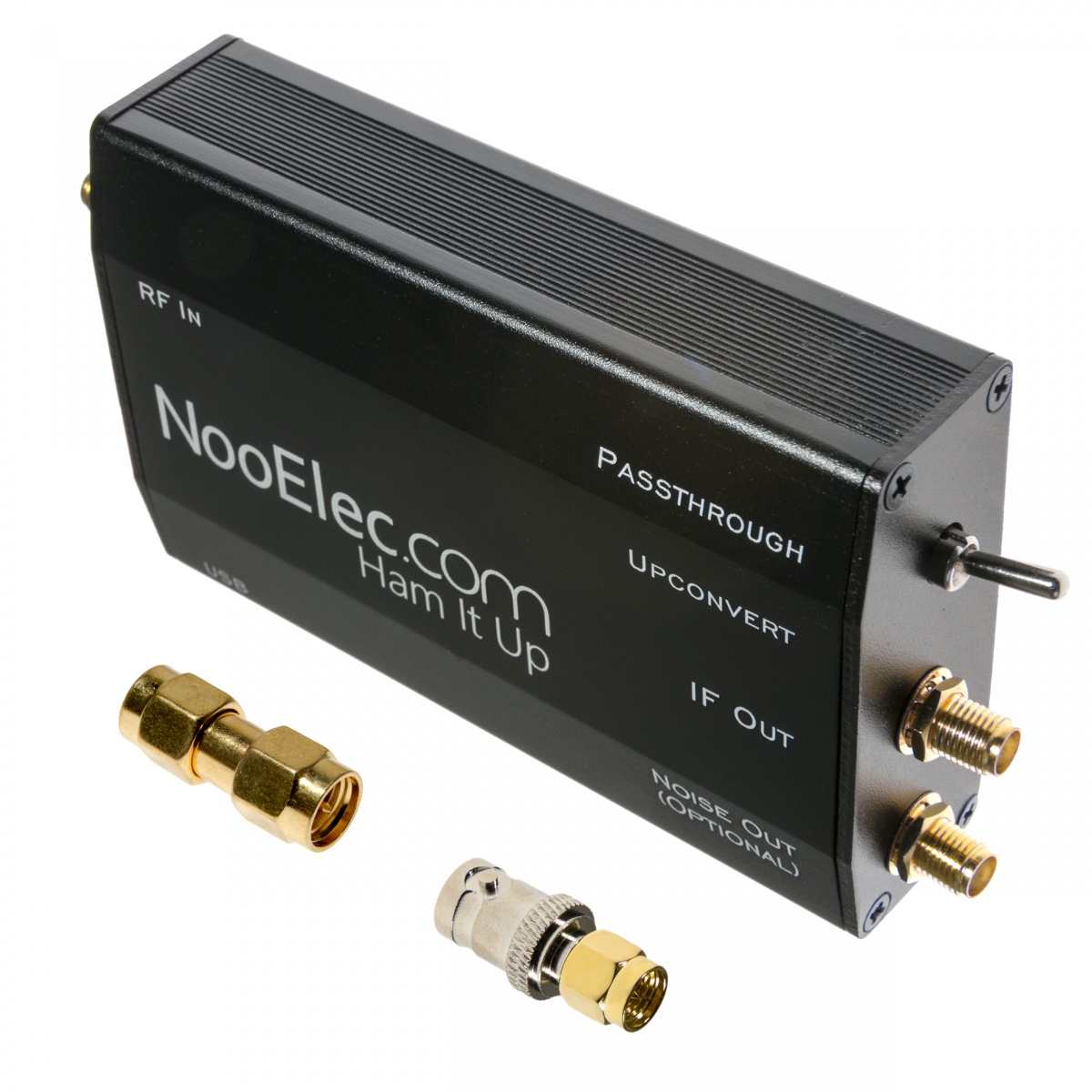

Supplied with an SMA male to SMA male adapter and an SMA male to BNC female adapter.

More details

Download

Datasheet Ham It Up Plus V2 (EN)

In English. 942.53k

Datasheet Ham It Up Plus V2 (FR)

In French. 560.16k

HamItUp V2 diagram

249.82k

Data sheet

Main changes Ham It Up Plus V2

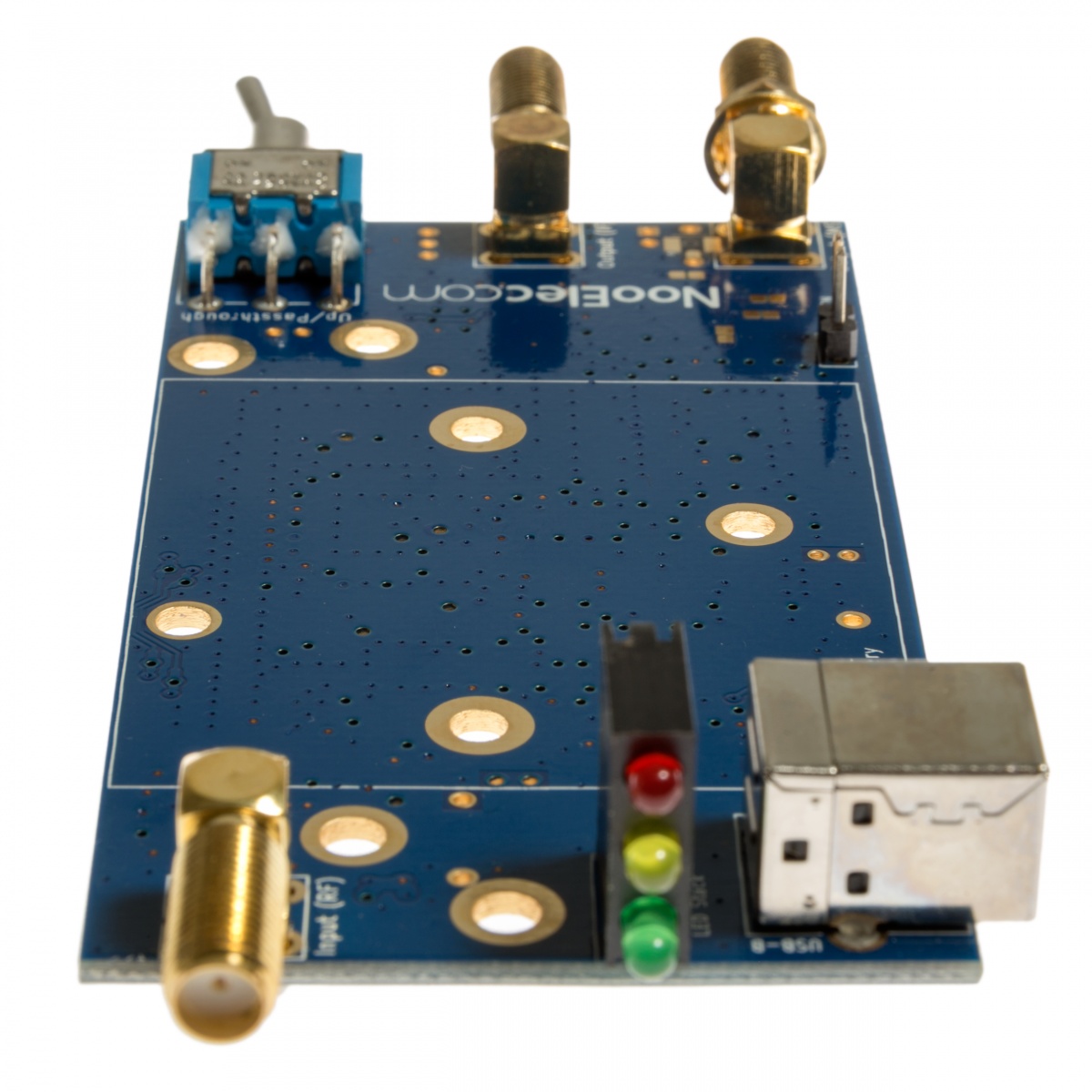

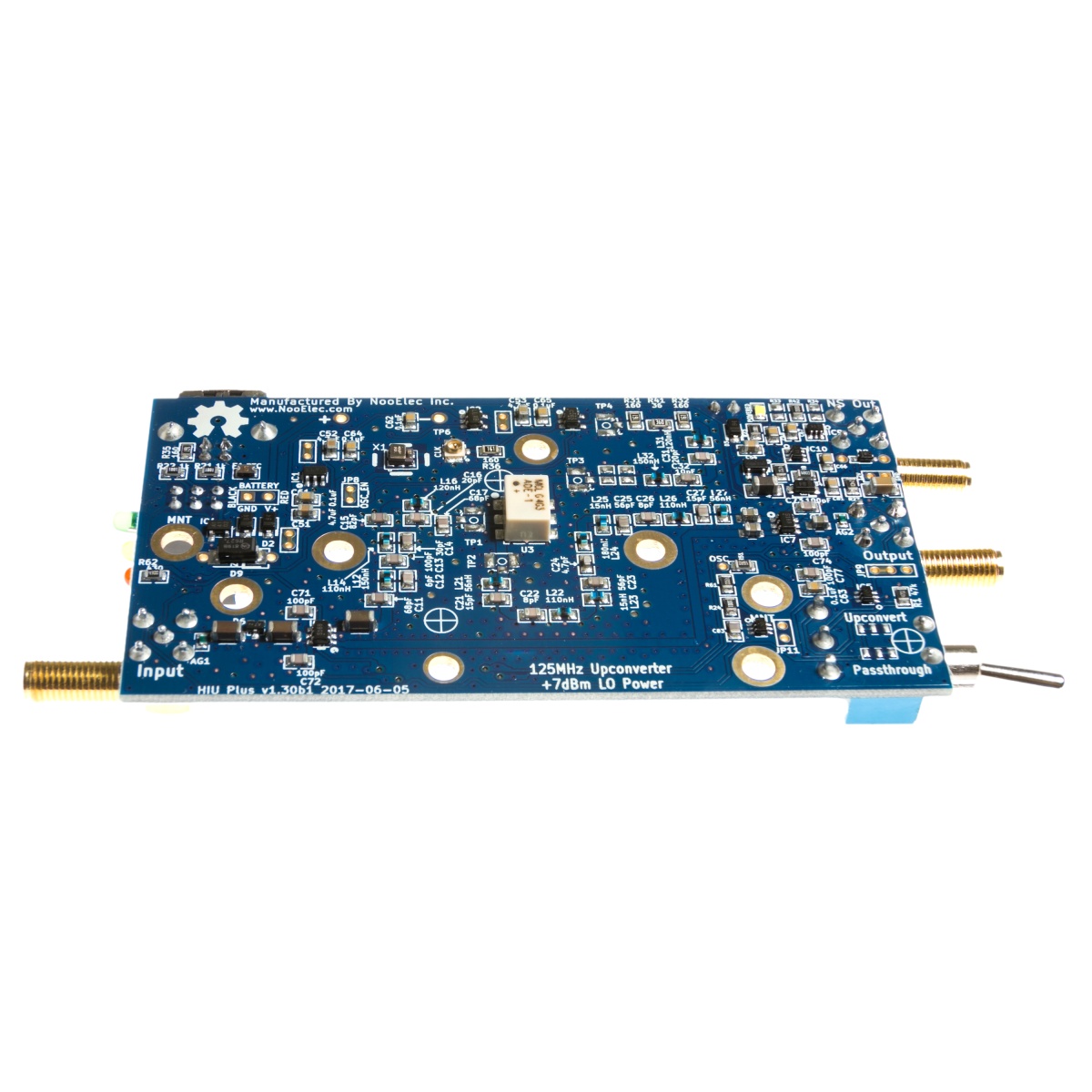

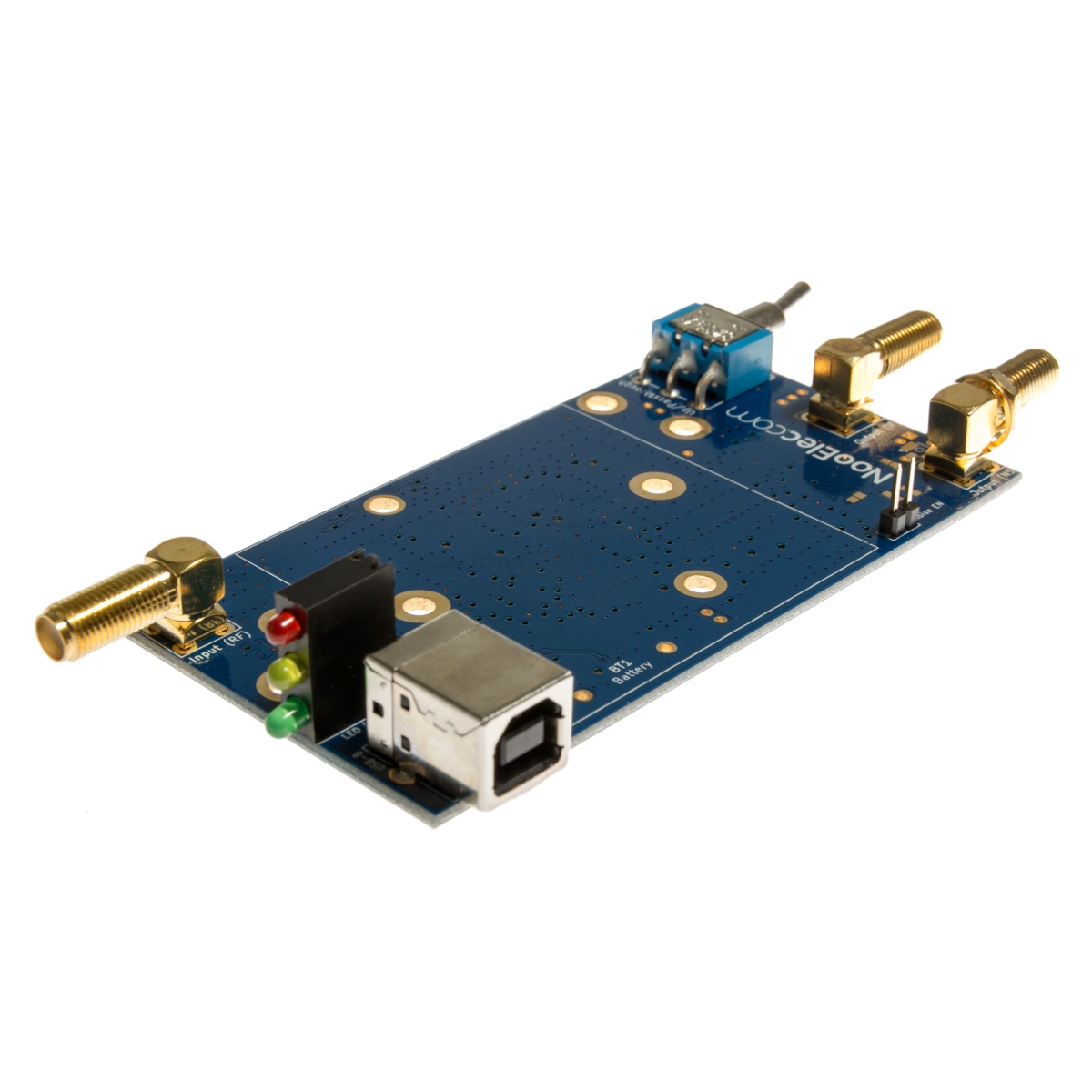

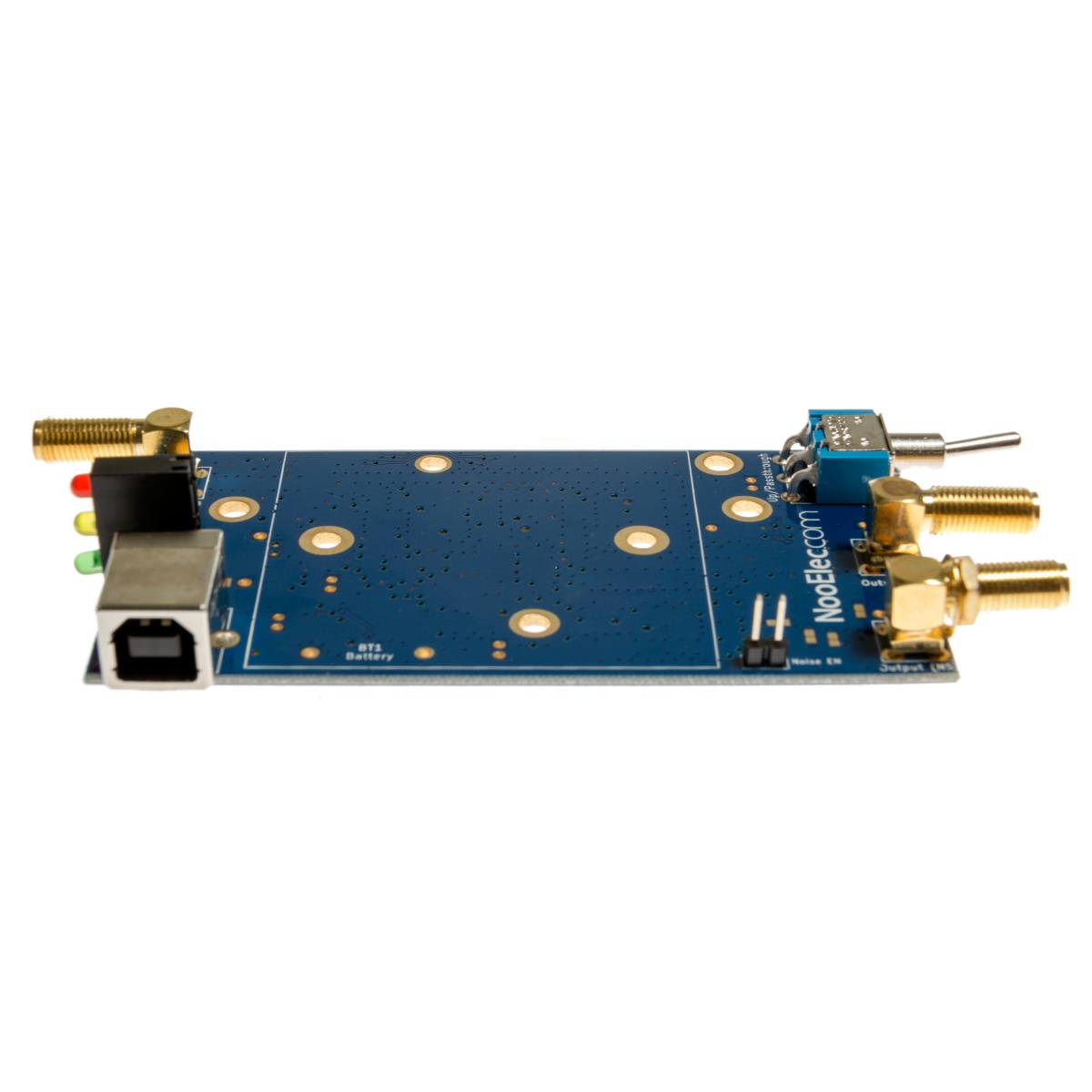

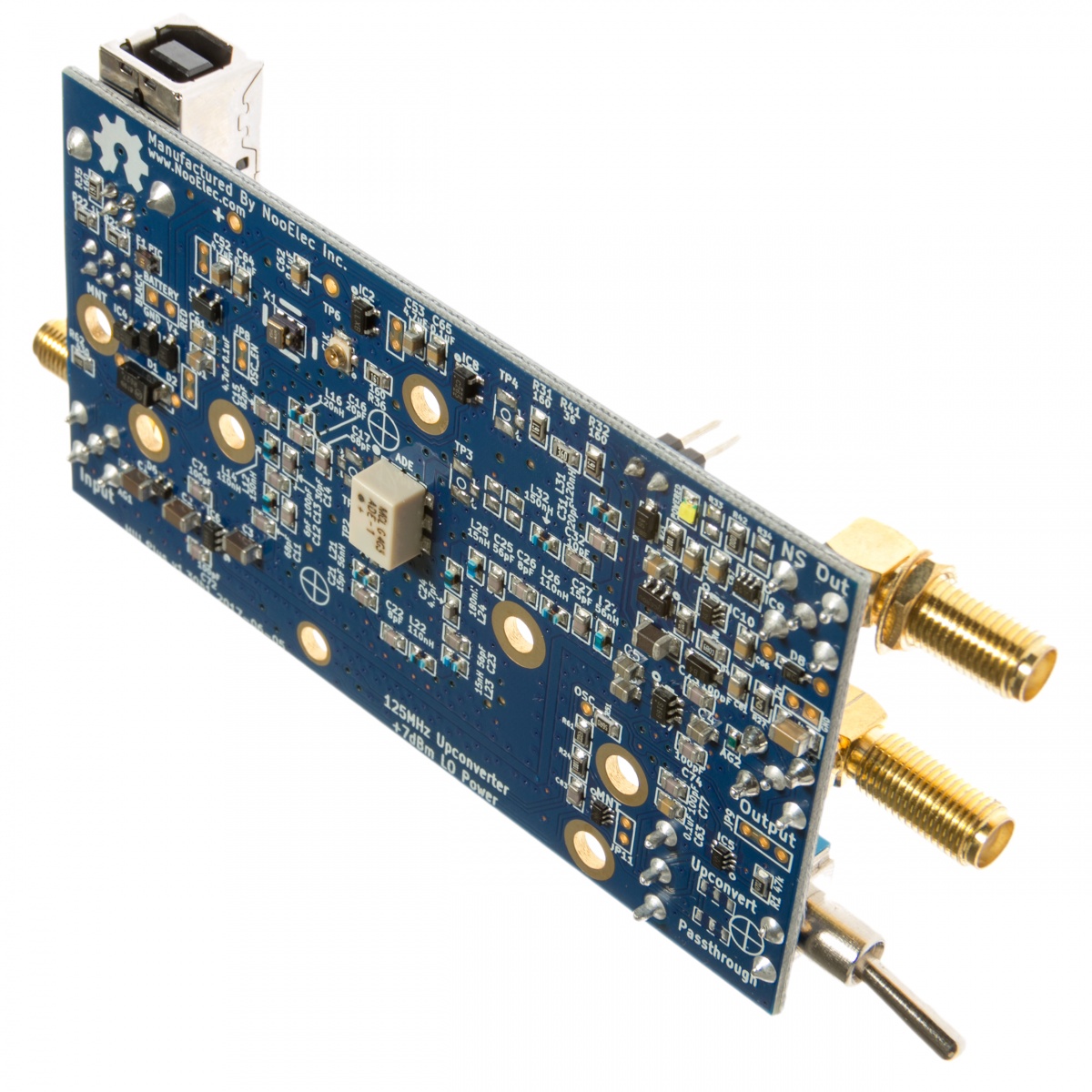

125MHz TCXO filter (0.5PPM), made in Japan for NooElec, included and pre-installed
Very low distortion ceramic capacitors, extending the coverage of the Ham It Up Plus up to 300Hz
Separate, fully assembled noise source circuit for use in RF calibration projects and tuning of filters, amplifiers and attenuators
Additional SMA connector for noise source circuitry
Input, output and LO filters configured for substantial improvements in sensitivity and selectivity
Ultra-low noise linear power regulator (LP5907), with voltage noise below 10 µVRMS
Optional battery operation with AAA battery holder sold separately or customised solution
New side-mounted LED indicators, (Green = upconvert mode enabled; Yellow = USB power; Red = low voltage)
u.FL (IPX and UMCC) socket available for injection of clock reference from external source
5 additional u.FL socket mounting indentations for simplified testing, troubleshooting and demonstrations
Additional mounting holes to facilitate custom installations
Robust right-angle SMA connectors to improve spacing tolerances
