Active 0-50 Mhz mini antenna for SDR receiver

rating Read the 6 reviews
Average rating: 5/5 Number of reviews: 6

This Mini-Whip SDR active mini-antenna enables reception of HF frequencies from 0 to 50 mhz with an SDR receiver.

Compact in size, the Mini-Whip active antenna can be used as a stand-alone device using a 9-volt battery (not included).

For optimum performance, this active antenna should be installed outdoors (protected by a waterproof case), away from all metal sources and at a height of at least 2 metres.

Supplied with: 1 SDR mini whip antenna, 1 3m SMA male cable, 1 bias-Tee, 1 9V battery power cord (battery not included), 1 15cm SMA male cable.

More details

25,90 € tax excl.

In stock

   More than 10 Items

Data sheet

Specifications HF mini whip active antenna

Reception frequency: HF bands from 0 to 50mhz
Integrated LNA preamp
Power supply via Bias-T supplied (9 to 15V power supply)
Length of coaxial cable: 3 metres

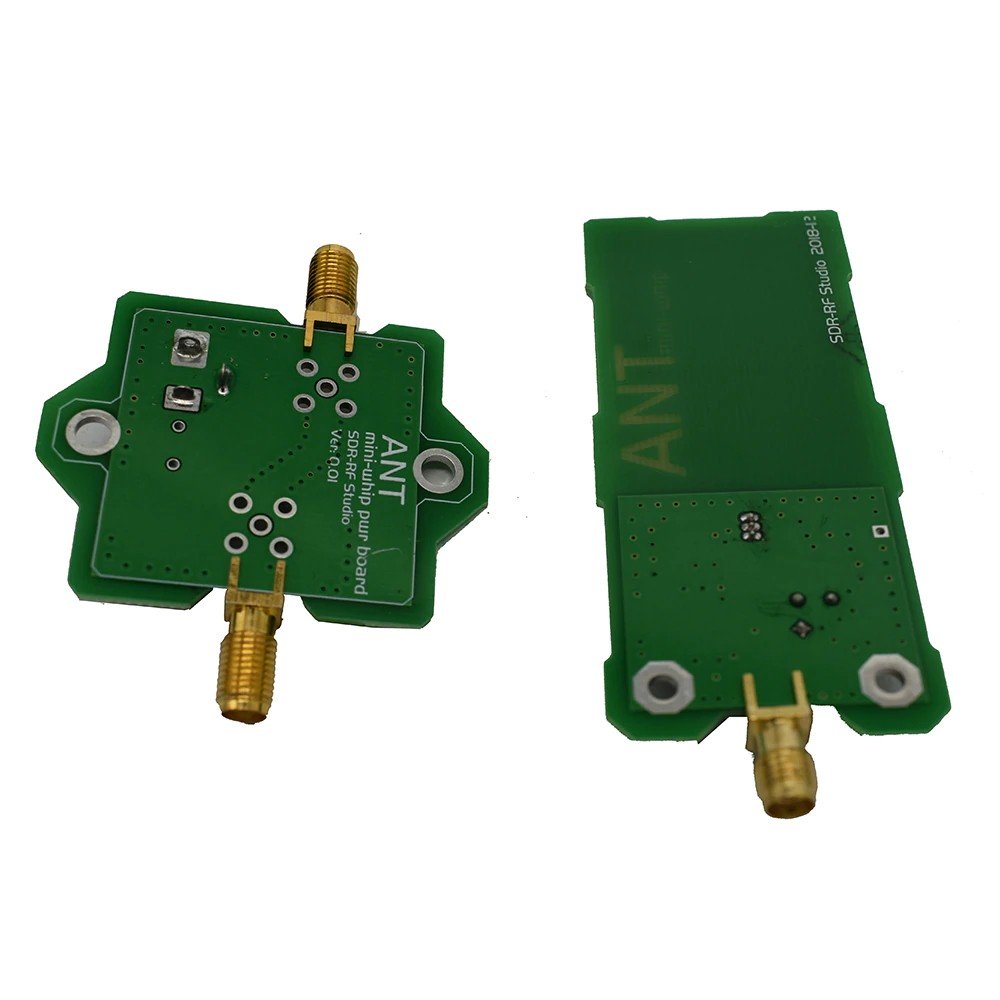

Dimensions of antenna PCB: 8cm x 3.5cm (8.7cm x 3.5 cm with connector) 1cm thick

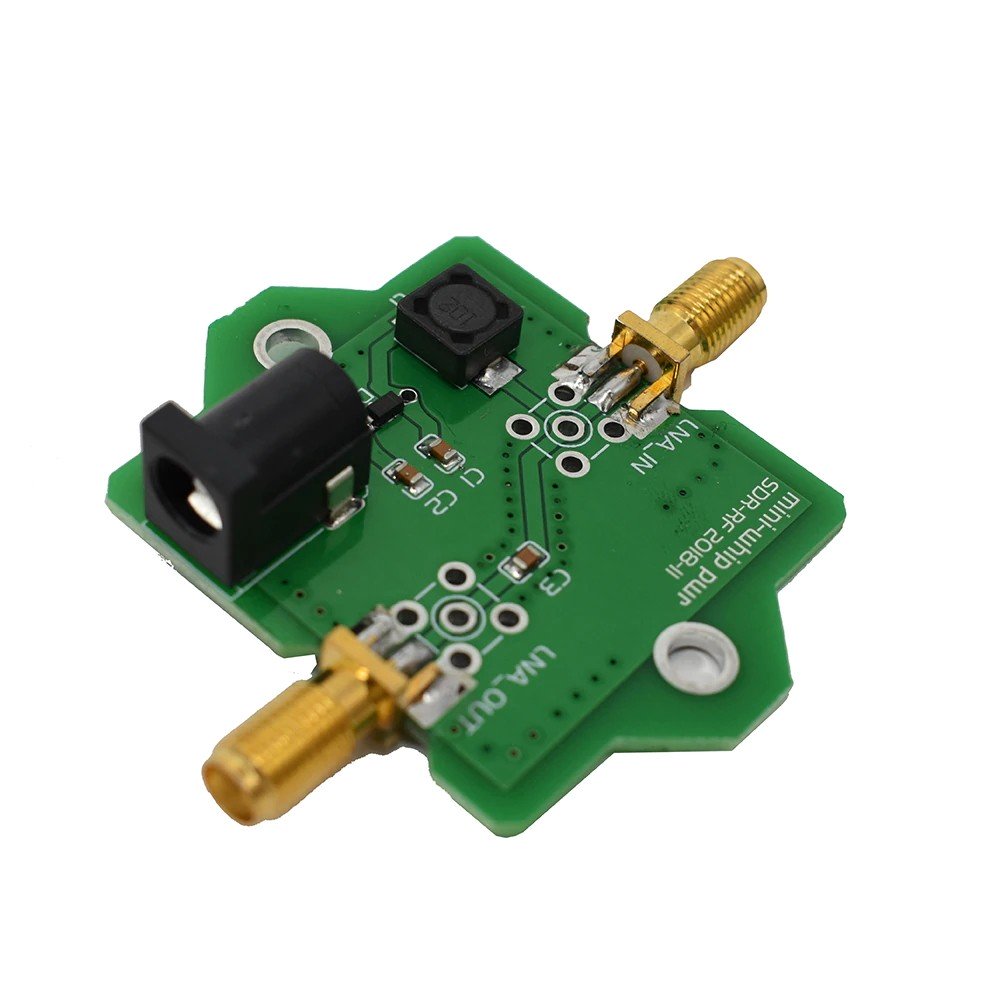

Bias-Tee power supply PCB dimensions: 5.3cm x 4cm (5.3cm x 7cm with connectors) 1.5cm thick

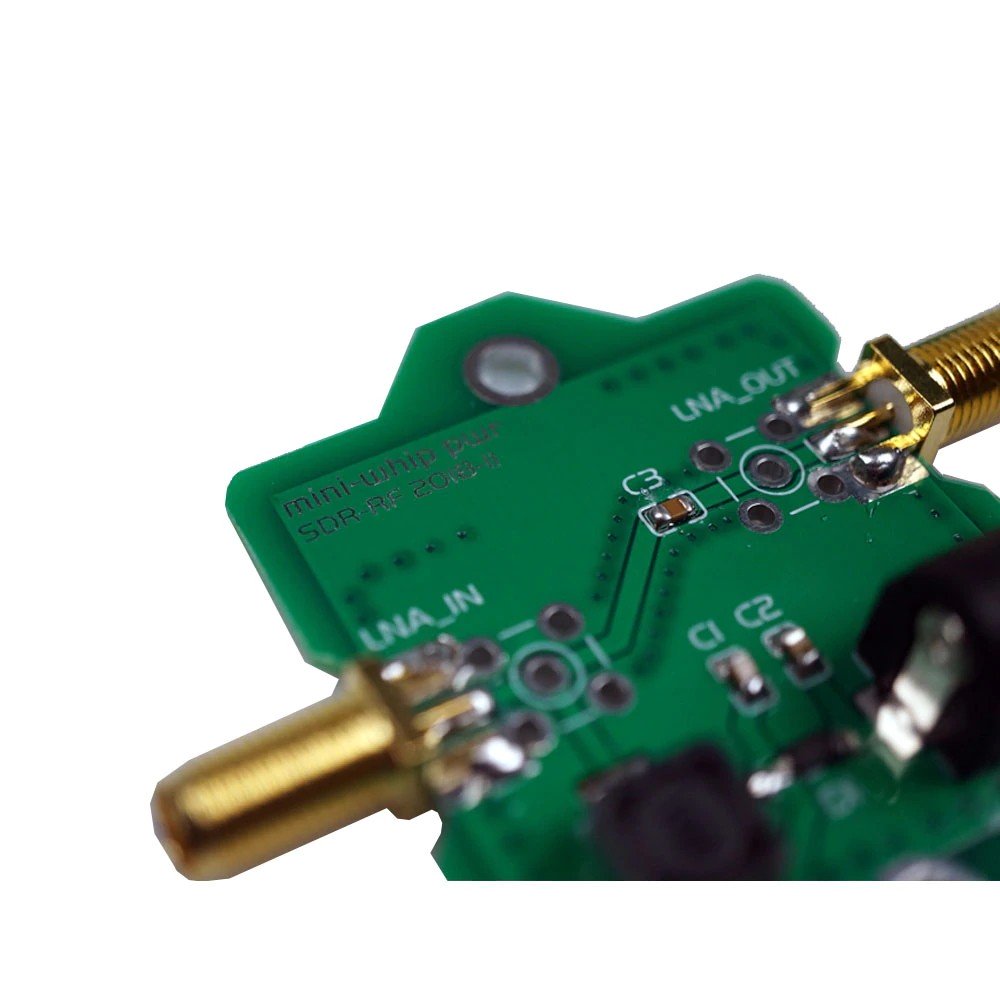

LNA IN: To antenna
LNA OUT: To receiver

  • Customers also bought

    • Active Loop antenna MLA-30 Plus MegaLoop 500 Khz - 30 Mhz
      49,90 €

      Reference: RFKONNECT-64T726-ANT-MLA30-968

      Active Loop antenna MLA-30 Plus MegaLoop 500 Khz - 30 Mhz

      MLA-30 Plus magnetic loop active antenna for receiving HF bands from 500 kHz to 30 MHz.The MLA-30+ antenna can be used with the RTL-SDR V3 stick in direct conversion mode, with the Ham it up

      49,90 €
    • RSP1A SDRPlay receiver 1 kHz to 2 GHz 14-bit + LNA
      135,00 €

      Reference: SDRPLAY-RSP1-356

      RSP1A SDRPlay receiver 1 kHz to 2 GHz 14-bit + LNA

      New version of the SDRPlay wideband receiver, the RSP1A now covers all frequencies from 1 kHz to 2 GHz without hole, all modes, with up to 10 MHz bandwidth on the screen and 14-bit sampling. In

      135,00 €
    • Pigtail SMA Male - SMA Male 15/50/100cm Passion Radio SMA PIGTAIL-SMA-M-81
      5,00 €

      Reference: PIGTAIL-SMA-M-SMA-M-81

      Pigtail SMA Male - SMA Male 15/30/50/100cm RG316

      SMA Male to SMA Male pigtail adapter, for connecting a card, for example converter Ham it upconverter card to the SDR transceiver HackRF One SDR transceiver, or the SDRPlay broadband receiverwideband

      5,00 €
    • Pigtail SMA Male UHF Female 15/50/100cm Passion Radio SMA PIGTAIL-SMA-M-UHF-F-80
      5,90 €

      Reference: PIGTAIL-SMA-M-UHF-F-80

      Pigtail SMA Male UHF Female 15/50/100cm RG316

      Adapter cable pigtail SMA Male to plug UHF Female. RG 316 50 ohm coaxial cable. Available in 3 lengths: 15, 50 and 100 cm.

      5,90 €

  • We also recommend

    • Ham it Up 1.3 & 1.3+ Converter HF 0.5-50Mhz Nooelec Nooelec SDR receivers NOOELEC-100555-HAM-IT-UP-44
      75,00 €

      Reference: NOO-100721-HAM-IT-UP-PLUS-441

      Ham it Up 1.3 & 1.3+ Converter HF 0.5-50Mhz Nooelec

      Nooelec's Ham It Up v1.3 is an up-converter HF, equipped with the 125Mhz filter soldered on the PCB and allows to listen to all MF / HF bands from 0.5 to 50 Mhz, in all modes of modulation, from a

      75,00 €
      Online only
    • Pigtail SMA Male - SMA Male 15/50/100cm Passion Radio SMA PIGTAIL-SMA-M-81
      5,00 €

      Reference: PIGTAIL-SMA-M-SMA-M-81

      Pigtail SMA Male - SMA Male 15/30/50/100cm RG316

      SMA Male to SMA Male pigtail adapter, for connecting a card, for example converter Ham it upconverter card to the SDR transceiver HackRF One SDR transceiver, or the SDRPlay broadband receiverwideband

      5,00 €
    • Deluxe SDR Passion Pack V3 Passion Radio SDR receivers PACK-SDR-DELUXE-81
      129,00 €

      Reference: PACK-SDR-DELUXE-281

      Deluxe SDR Passion Pack V3

      The new Deluxe Passion Radio SDR V3 pack include: - 1 USB TNT SDR stick new release (RTL2832U + tuner R820T2) - 1 converter HF SDR Ham it Up 1.3 (new release) - 1 USB cable male A-B 2.0 of 1.5 meters

      129,00 €
      Online only
    • HF Antenna Balun 1:9 for SDR Nooelec SDR accessory NOOELEC-100652-BALUN-HF-298
      18,86 €

      Reference: NOOELEC-100652-BALUN-HF-298

      HF Antenna Balun 1:9 for SDR

      This balun is the perfect accessory to connect a long wire antenna, for example with the converter HF SDR Ham it Up to listen shortwave and HF bands from 0.5 to 30Mhz, but this balun can work up to

      18,86 €
      Online only

Reviews

Click here to leave a review

rating 5
Efficacité : excellente
Site très clair
rating 5
Qualité matériel
Matériel complet sera testé lors de mon retour en Guyane
rating 5
test ok pas de bug
test ok pour dcf77 Pas de bug , C3 n'est pas en court circuit
rating 5
Mini Weaph ?
Apporte un gain en GO, moyen en PO, catastrofique en deca surtout au-delà de 6 ou 7 MHz
Beaucoup de bruit
rating 4
Bien mais il y a un bug à corriger
En fait le PCB de la partie alimentation est buggé (erreur de design du PCB), en fait le condensateur C3 est court-circuité par une piste passant dessous. C\'est ennuyeux car cela laisse passé la tension d\'alimentation DC vers le récepteur. La solution est simple, dé-souder C3, puis couper la piste entre les pads de l\'empreinte de C3 puis re-souder C en place. La chose est décrite dans cette vidéo (en anglais): https://www.youtube.com/watch?v=9Jtzw2QIvw0
rating 5
Excellente

Achetée pour test j'ai déployé cette antenne lors de mes vacances en rase campagne, loin du bruit urbain, et au bout d'un mat en fibre de verre de 10M. Je n'en attendais pas grand chose et j'ai tout eu, de la réception des VLF/LF/MF en passant par la HF cette antenne, associée à mon RSPDx permet de grandes réceptions
