Half aluminium case for PCB OPA Design

rating Read the 4 reviews
Average rating: 5/5 Number of reviews: 4

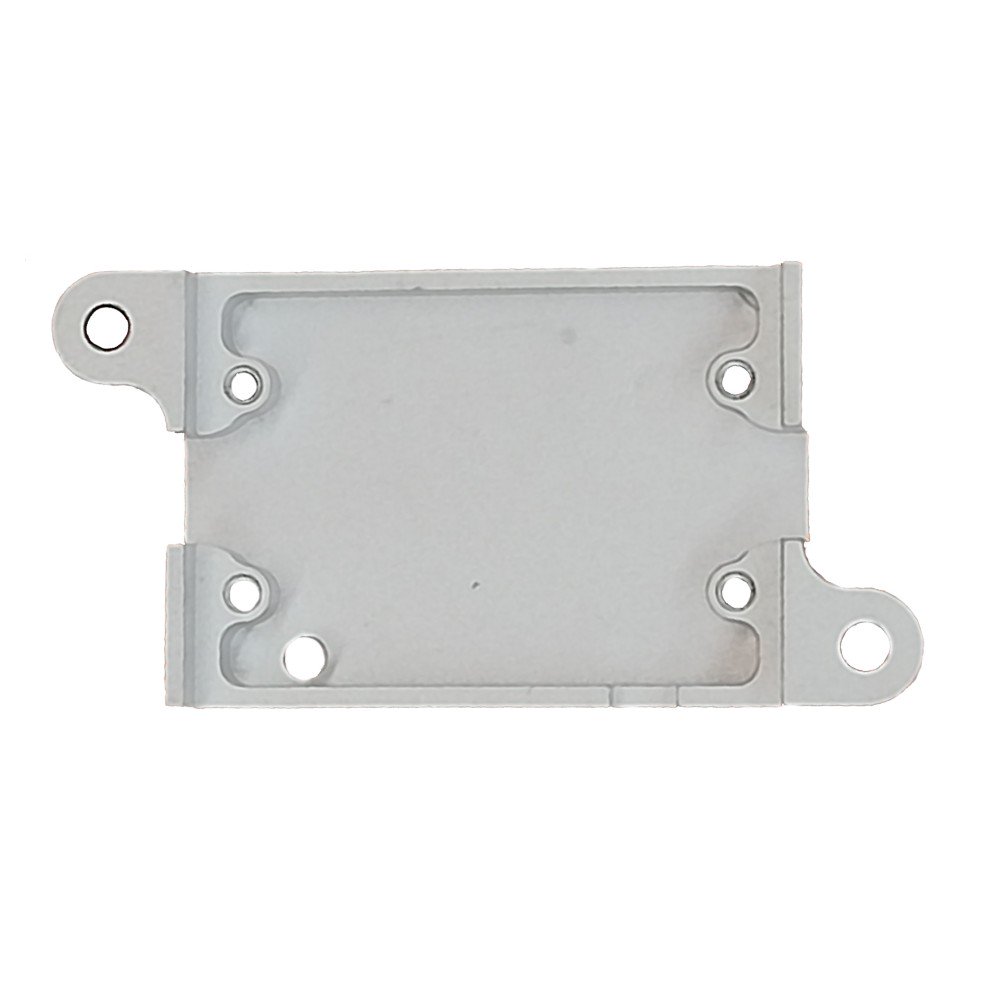

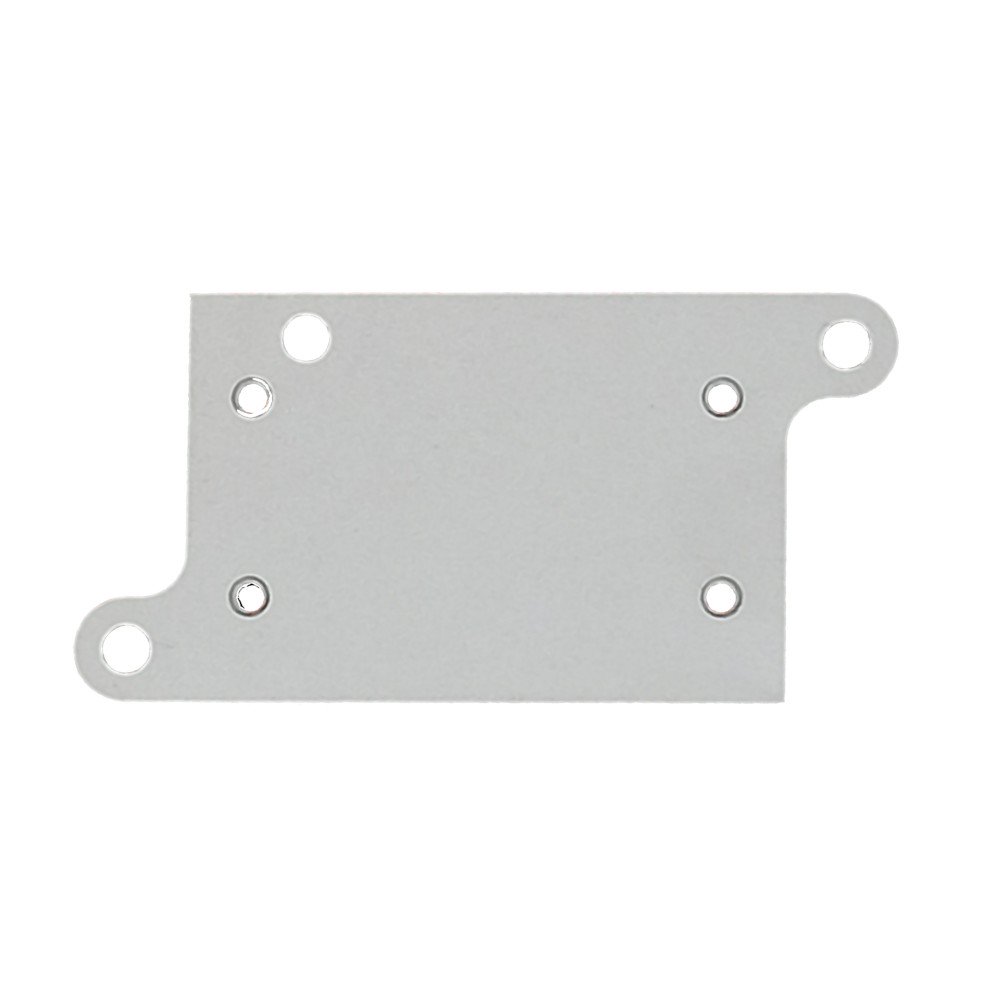

This milled half aluminum box is specially designed for the RF protection of PCB's from F1OPA Design: LNA VHF-UHF, Bias-T, 2.4Ghz amplifier, SAW 868Mhz filters, ADS-B, QO-100 2.4Ghz and HF LNA.

Case size: 51.4mm x 30mm

This case covers only the side of the PCB where the electronic components are located.

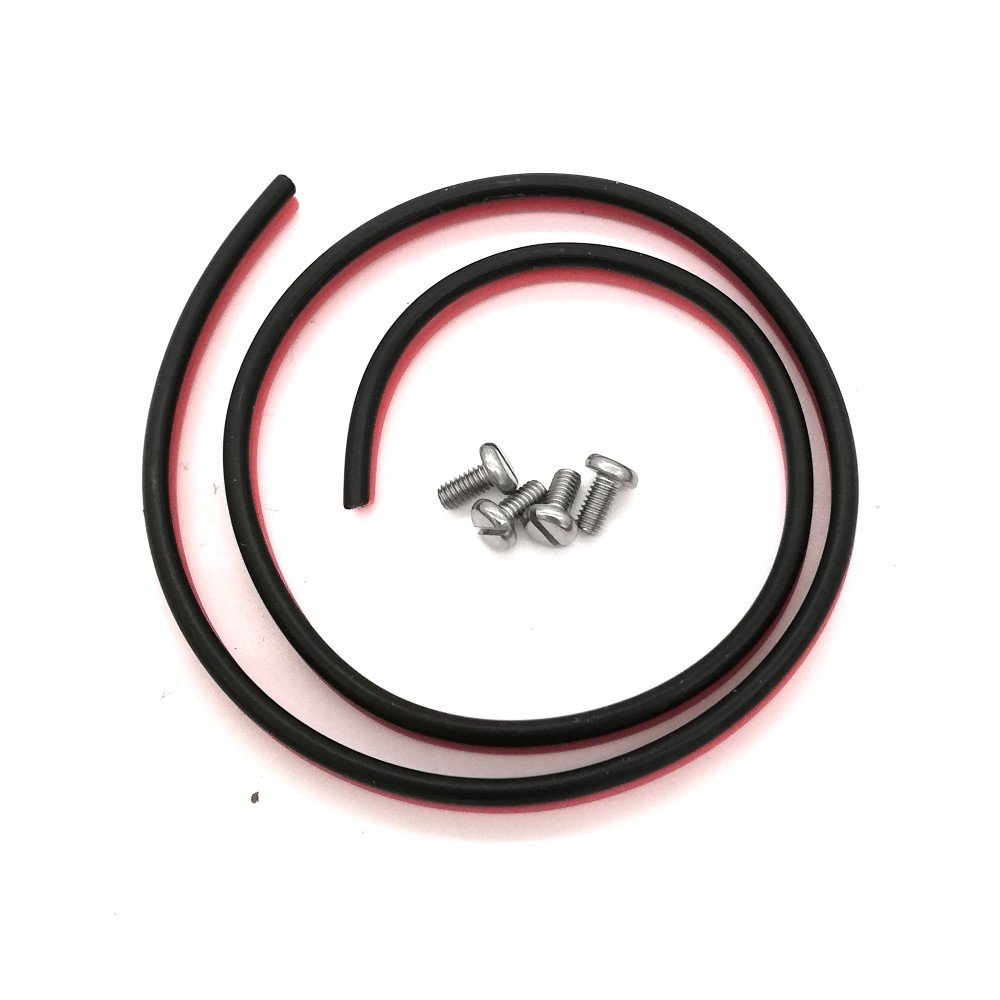

Delivered with: 1 aluminum case, 4 screws and 30cm power cable.

19,90 € tax excl.

Out of stock, available in 2 to 3 weeks

Download

Notice boitier OPA Design

516.32k
