TECSUN S-2200x (ex. S2000) multimode amateur radio receiver AM FM SSB 50khz - 30 MHz View larger
Previous Next

TECSUN

TECSUN-S2200X-2650

New product

China

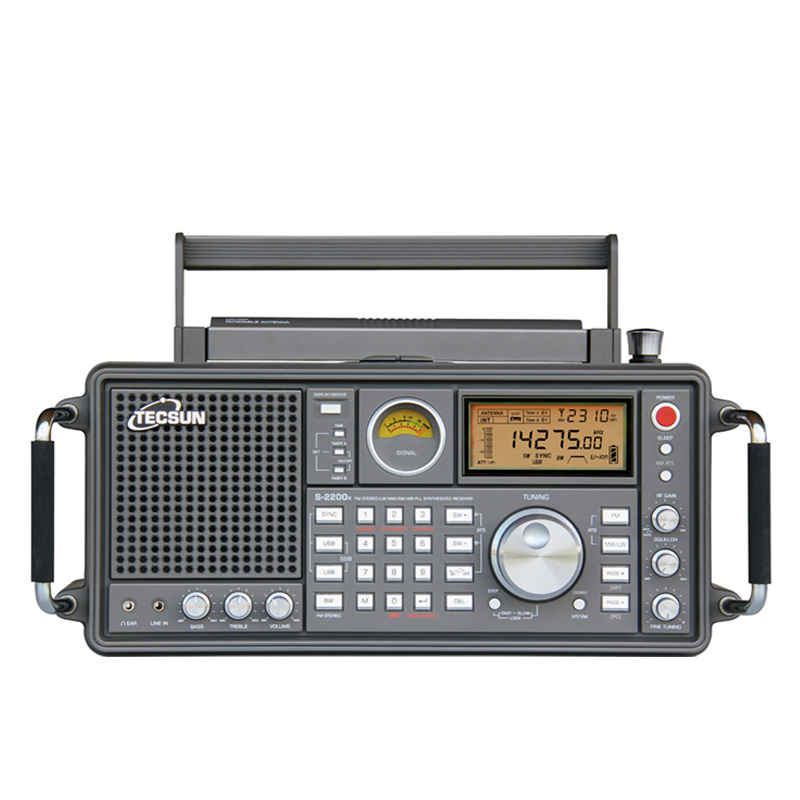

TECSUN S-2200x (ex. S2000) multimode amateur radio receiver AM FM SSB 50khz - 30 MHz

rating Read the review
Average rating: 5/5 Number of reviews: 1

The Tecsun S-2200x radio receiver is the new replacement for the famous S2000 / Grundig Satellite 750, covering all shortwave, mediumwave, longwave and amateur radio bands, in multimode AM, FM, SSB and with aviation band reception.

Frequency bands covered:

  • FM: 88-108 MHz
  • LW: 50-522 kHz
  • MW (AM): 520-1710 kHz
  • SW: 1621-29999 kHz
  • Aviation: 118-137 MHz

The S2200x is supplied with two 18650 Li-ion batteries, a USB-C charging cable, 2 BNC connectors and a manual.

More details

409,00 € tax excl.

In stock

   1 Item

Download

Manual S2200x (EN)

17.23M

Manual S2200x (FR)

3.73M

Data sheet

  • HF analogue circuit for amplitude modulation, triple conversion IF and DSP digital demodulation that significantly improves reception sensitivity, selectivity and interference suppression
  • Synchronous detection to suppress interference from adjacent signals
  • Antenna signal attenuation and RF gain control
  • Control to suppress background noise when listening to AM broadcasts (LW, MW and SW) and control of Aviation band signals
  • External antenna sockets for high and low impedance antennas
  • Independent fast/slow and fine frequency adjustment knobs
  • Automatic paging (AP) to create and recall time-specific memories
  • Automated and manual tuning functions to easily set and/or store frequencies
  • Single sideband (SSB) with USB and LSB
  • Auto scan, manual tuning or direct frequency entry function
  • Auto tune memory function (ATS) for FM / MW / SW
  • 9150 station memories in 25 banks
  • 24-hour clock and dual alarm via buzzer or radio transmission
  • Sleep function
  • Telescopic antenna for FM, SW and aviation
  • Built-in MW antenna, rotates 360 degrees
  • External or internal FM / MW antenna switch

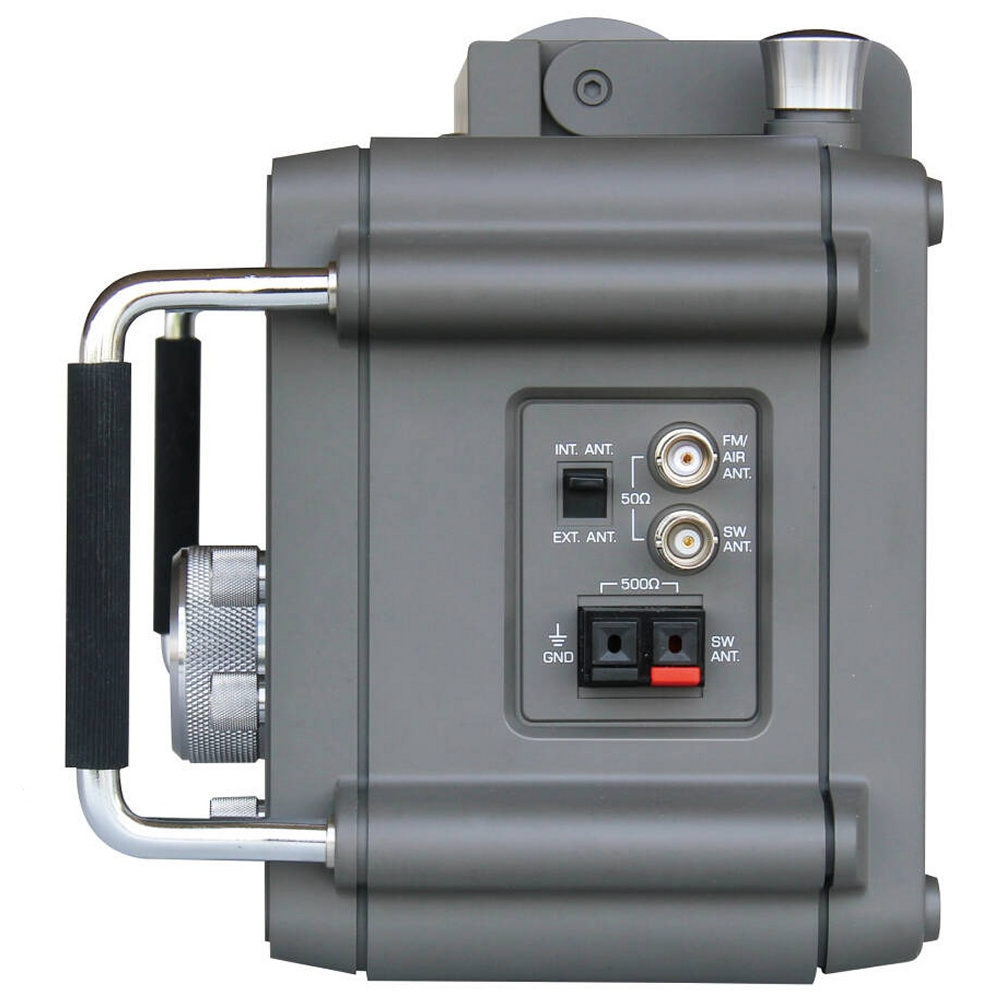

  • 2 BNC female external antenna connectors
  • Antenna attenuation for improved reception
  • Squelch control for quality FM and air band listening
  • Wide/narrow bandwidth selection
  • Independent audio controls for treble and bass
  • Headphone output jack (3.5 mm) suitable for FM stereo listening
  • Built-in 4" high quality speakers with excellent sound quality
  • Line input socket (works like a loudspeaker)

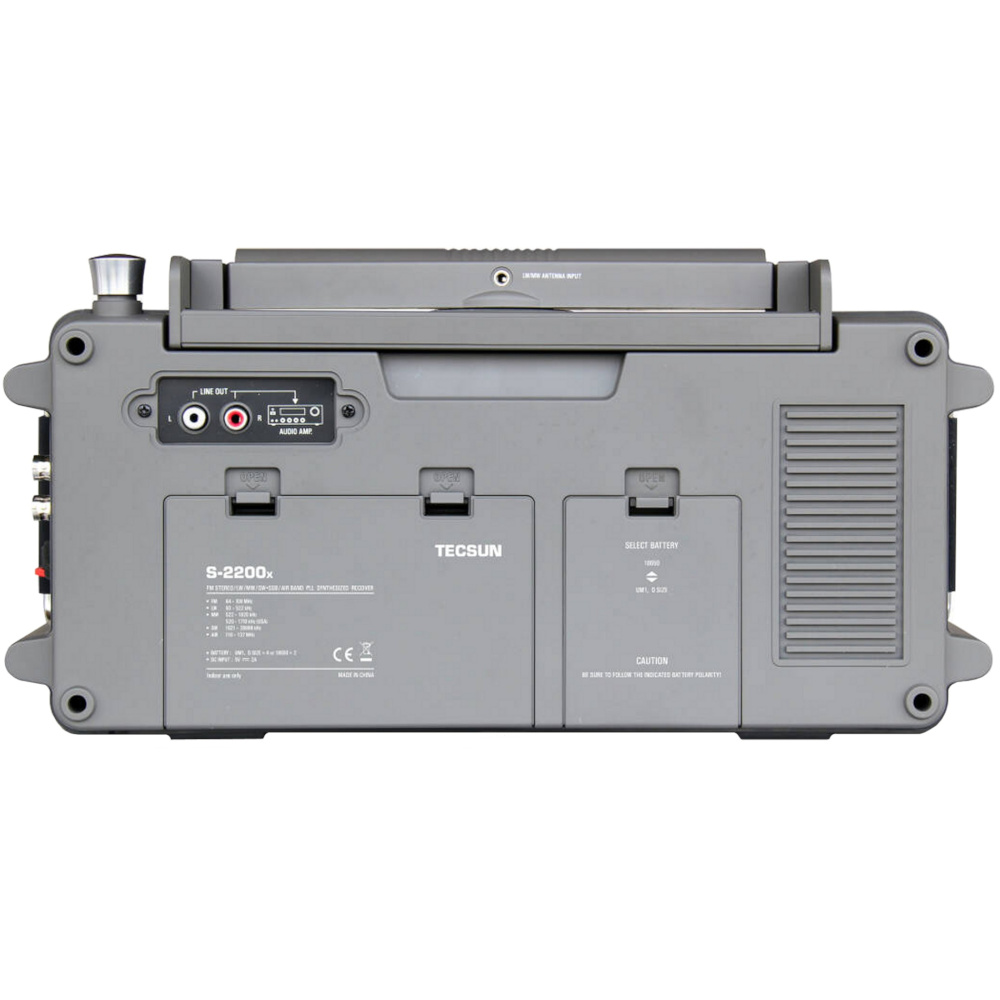

  • Line out socket (radio transmission can be transferred to another device)
  • Power sources: 2 removable 18650 Li-ion batteries (included) or 4 UM1 (R20 / D size) batteries (not included)

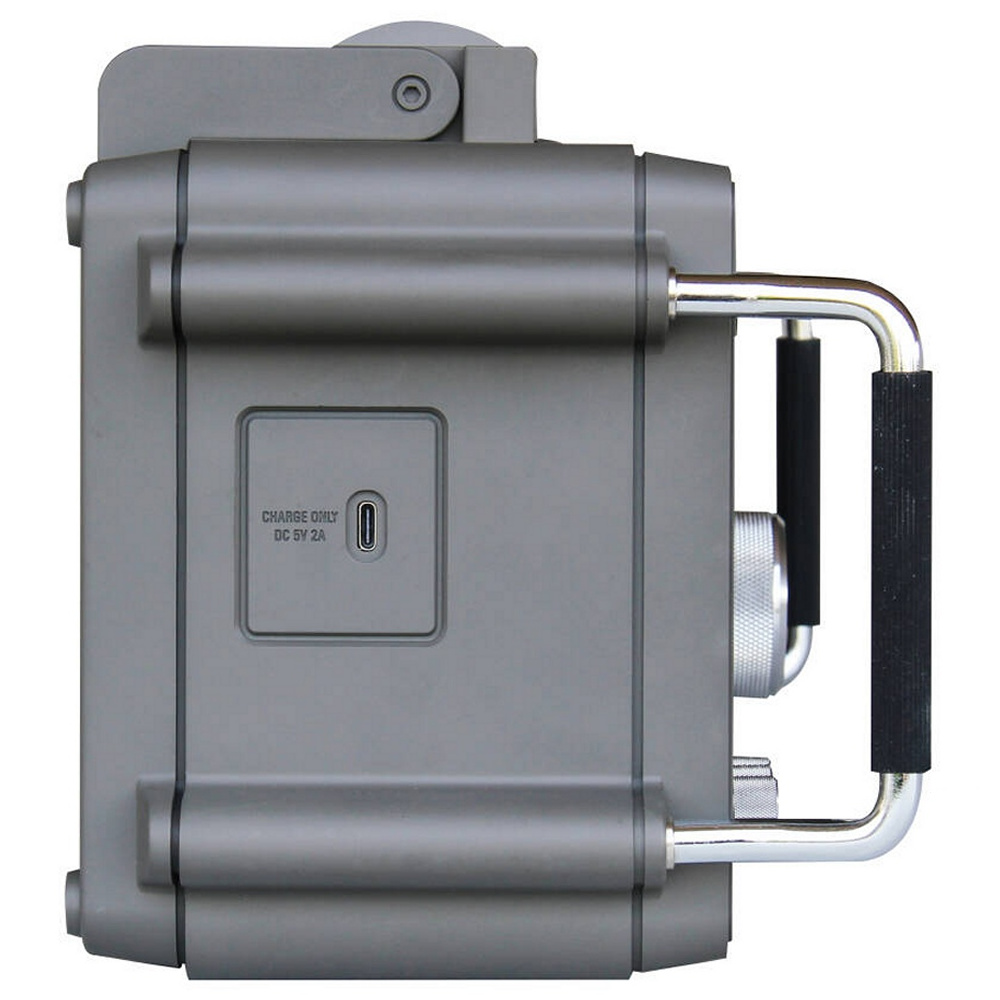

  • Charging via USB-C port
  • Weight: approx. 2430g
  • Dimensions: 372 x 183 x 153 mm
  • CE mark and 2-year warranty
