Pack TX QO-100 28/50/144/430MHz 10W + RX SDR 739 MHz

View larger

Reference: PACK-QO100-PR739-SDR-2724

Condition: New product

Pack TX QO-100 28/50/144/430MHz 5W + RX SDR 739 MHz

No review at the moment

This TX QO-100 Passion Radio pack includes the main components for transmitting from an analogue SSB transceiver on 28, 50, 144 or 430 MHz to the 2.4 GHz uplink channel of the QO-100 amateur radio satellite, with a maximum power of 5W, and receiving in SDR on 739 MHz.

The main compatible cables for linking the components together are included in the pack.

The upconverter card is housed in a waterproof case as close as possible to the dish.

For a fully operational station, add: 1 dish antenna (60-80cm) and 1 50 Ohm coaxial cable from the SMA male upconverter down to the transmitter and 1 75 Ohm cable with male F connector to link the LNB to the BIAS-T.

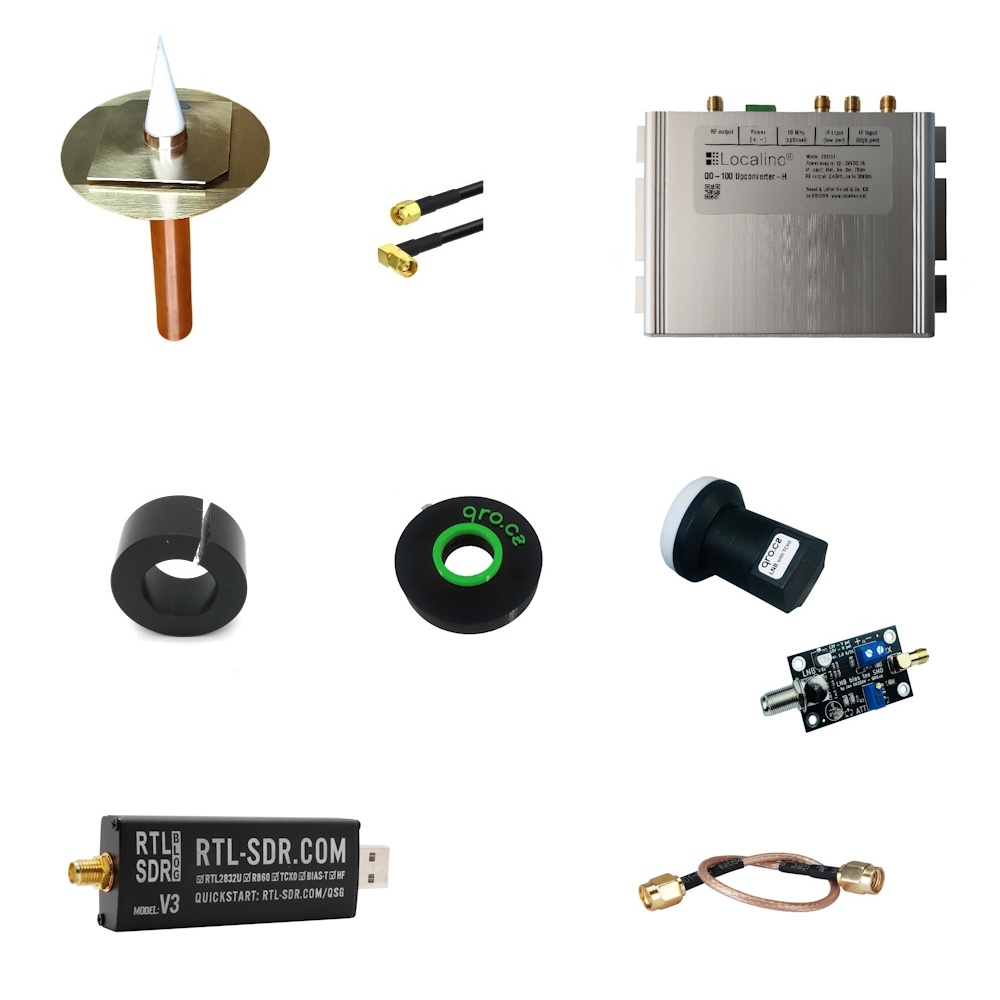

Supplied with: 1 x 2.4 GHz Localino upconverter, 1 x POTY antenna (with SMA connector), 1 x 80 cm KSR195 low-loss cable with straight male SMA connector and angled SMA connector, 1 x 40 mm/22 mm reduction ring for fixing the POTY antenna tube to the support arm on the dish, 1 x LNB head with 739 MHz output, 1 x adapter for POTY, 1 x RTL-SDR V3 key and 1 x 15 cm RG316 SMA male cable.

More details

Pack content

5,00 €
Reference: PIGTAIL-SMA-M-SMA-M-81
1 x Pigtail SMA Male - SMA Male 15/30/50/100cm RG316 Length-15cm
SMA Male to SMA Male pigtail adapter, for connecting a card, for example converter Ham it upconverter card to the SDR transceiver HackRF One SDR transceiver, or the SDRPlay broadband receiverwideband
5,00 €
45,91 €
Reference: CLE-RTLSDR-V3-472
1 x Dongle RTL-SDR.com V3 TCXO + SMA + Bias-T USB stick with R860 tuner Antenna-Without antenna
This USB stick is the optimized V3 version of RTL-SDR.com, with the R860 tuner chip (exactly the same as R820T2*) for reception from 24 to 1766 MHz. The characteristics of the dongle RTL-SDR.com v3:-
45,91 €
Online only
69,00 €
Reference: QO100-ANT-POTY-SMA-762
1 x POTY dual band feed antenna 2.4 Ghz & 10 Ghz for QO100 SMA or N connector Connector-N Female
The POTY (Patch Of The Year) antenna is a dual-band 2.4 GHz /10 GHz antenna, with left-hand circular polarization LHCP for 2400 MHz transmission and a linear horn antenna for 10500 MHz reception with
69,00 €
7,00 €
Reference: CABLE-COAXIAL-SMA-COUDE-1M-932
1 x Low-loss coaxial cable extension SMA Male angled & SMA straight KSR195 QO100 Length-80cm
KSR195 low-loss 50-ohm coaxial extension cable for use from 0 to 6Ghz, with angled SMA connector and straight male SMA connector.Available lengths: 50cm, 80cm, 1, 2, 5 and 10 meters Connector 1: SMA
7,00 €
69,00 €
Reference: QO100-REMOTEQTH-LNB-432-936
1 x Pack LNB PLL TCXO + BIAS-T for QO100 reception in 432MHz or SDR 739MHz Version-739Mhz (SDR)
The RemoteQTH Pack includes a LNB PLL head modified with TCXO and 25Mhz quartz, as well as a bias-T power supply with adjustable attenuation and available in 2 versions: With a SDR stick on 739Mhz and
69,00 €
13,60 €
Reference: QO100-REMOTEQTH-BAGUE2-QRO-999
1 x Adapter ring for POTY antenna with LNB RemoteQTH
This adapter ring allows the POTY antenna tube to be easily inserted and properly held in place on the modified LNB head supplied in the pack RX for QO-100 from RemotheQTH only.Inner diameter: 22
13,60 €
4,95 €
Reference: QO100-BAGUE3-207217-22MM-1029
1 x Reduction ring 40/22mm for POTY antenna
This ring allows a diameter of 40mm to be reduced to a diameter of 22mm. It is particularly suitable for mounting the POTY antenna on an LNB head support. Outside diameter: 40 mmInner diameter: 22
4,95 €
Online only
395,00 €
Reference: QO100-UPCONV- H10003-2704
1 x Upconverter Localino 2.4 GHz 5W QO-100 input 28/50/144/432 MHz VOX TCXO
The new Upconverter-H from Localino and for QO-100 makes it quick and easy to get up and running on the QO100 satellite using an SSB transceiver in 28/50/144 or 432 MHz, with a maximum power of 5W on
395,00 €

Data sheet

TX output frequency: 2400 MHz (13cm)
TX input frequency (IF): 28/50/144/434 MHz
TX input power: 10mW to 5W max.
TX output power: 5W maximum
Controlled by internal TCXO or external socket for 10MHz reference
With built-in 2.4 GHz bandpass filter
LED indication (voltage, PLL lock, power transmission)
Power supply: 10-24V DC
Power consumption: 60mA (standby) to 900mA (TX 10W @ 20V)
Circuit protection against undesirable power peaks over a short period of time
Connectors: SMA female
External 10 MHz reference socket
SDR reception on 739MHz
1-year warranty (except PA*)

Reminder: This equipment requires an amateur radio licence to be used. No returns or refunds will be given for upconverters with a burnt-out PA.

* The warranty does not cover the PA and the loss of power, which may result from an assembly error, incorrect antenna adjustment (VSWR), maximum input power not respected, a short-circuit in the power supply or a problem with the coaxial line.
