UpConverter mount + 2.4 Ghz 12W dxpatrol amplifier

View larger

Reference: PACK-QO100-PASSION-RADIO-947

Condition: New product

QO-100 28/50/144/430MHz 10W transmit + 432 MHz receive pack

No review at the moment

The TX QO-100 Passion Radio pack includes the main components for transmitting from a 28, 50, 144 or 430 MHz analogue SSB transceiver to the 2.4 GHz uplink channel of the QO-100 amateur radio satellite, with a maximum power of 10W max.

Compatible cables to link the components together are included in the pack.

The upconverter card is placed in a waterproof case as close as possible to the dish.

For a fully operational station, add: 1 dish aerial (60-80cm) and 1 50 Ohm coaxial cable from the upconverter to the SMA male transmitter.

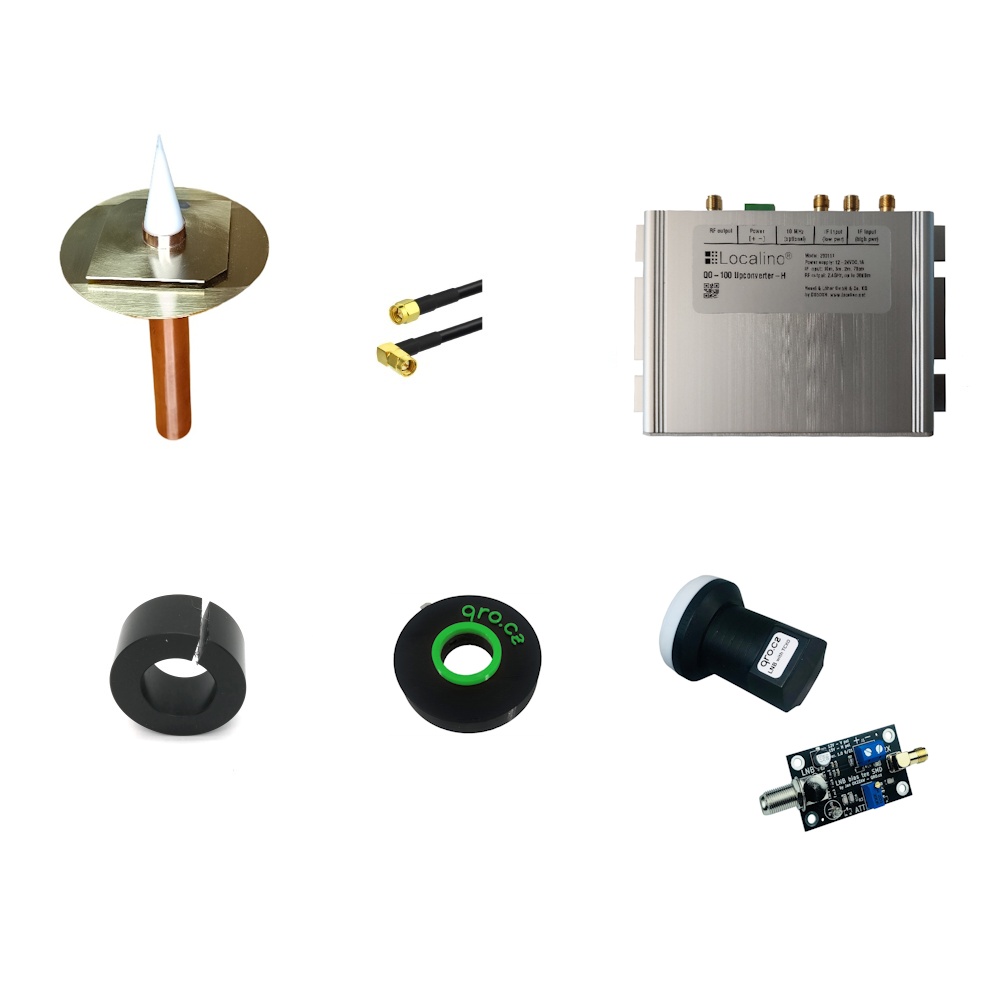

Supplied with: 1 Localino 2.4 GHz upconverter, 1 POTY antenna (with SMA connector), 1 KSR195 80cm low-loss cable with straight male SMA connector and angled SMA connector, 1 40mm/22mm reduction ring for fixing the POTY antenna tube to the support arm on the dish, an LNB head with 432MHz output and an adaptor for POTY.

More details

Pack content

69,00 €
Reference: QO100-ANT-POTY-SMA-762
1 x POTY dual band feed antenna 2.4 Ghz & 10 Ghz for QO100 SMA or N connector Connector-N Female
The POTY (Patch Of The Year) antenna is a dual-band 2.4 GHz /10 GHz antenna, with left-hand circular polarization LHCP for 2400 MHz transmission and a linear horn antenna for 10500 MHz reception with
69,00 €
7,00 €
Reference: CABLE-COAXIAL-SMA-COUDE-1M-932
1 x Low-loss coaxial cable extension SMA Male angled & SMA straight KSR195 QO100 Length-80cm
KSR195 low-loss 50-ohm coaxial extension cable for use from 0 to 6Ghz, with angled SMA connector and straight male SMA connector.Available lengths: 50cm, 80cm, 1, 2, 5 and 10 meters Connector 1: SMA
7,00 €
69,00 €
Reference: QO100-REMOTEQTH-LNB-432-936
1 x Pack LNB PLL TCXO + BIAS-T for QO100 reception in 432MHz or SDR 739MHz Version-432Mhz
The RemoteQTH Pack includes a LNB PLL head modified with TCXO and 25Mhz quartz, as well as a bias-T power supply with adjustable attenuation and available in 2 versions: With a SDR stick on 739Mhz and
69,00 €
13,60 €
Reference: QO100-REMOTEQTH-BAGUE2-QRO-999
1 x Adapter ring for POTY antenna with LNB RemoteQTH
This adapter ring allows the POTY antenna tube to be easily inserted and properly held in place on the modified LNB head supplied in the pack RX for QO-100 from RemotheQTH only.Inner diameter: 22
13,60 €
4,95 €
Reference: QO100-BAGUE3-207217-22MM-1029
1 x Reduction ring 40/22mm for POTY antenna
This ring allows a diameter of 40mm to be reduced to a diameter of 22mm. It is particularly suitable for mounting the POTY antenna on an LNB head support. Outside diameter: 40 mmInner diameter: 22
4,95 €
Online only
395,00 €
Reference: QO100-UPCONV- H10003-2704
1 x Upconverter Localino 2.4 GHz 5W QO-100 input 28/50/144/432 MHz VOX TCXO
The new Upconverter-H from Localino and for QO-100 makes it quick and easy to get up and running on the QO100 satellite using an SSB transceiver in 28/50/144 or 432 MHz, with a maximum power of 5W on
395,00 €

Data sheet

TX output frequency: 2400 MHz (13cm)
TX input frequency (IF): 28/50/144/434 MHz
TX input power: 10mW to 5W max.
TX output power: 10W maximum (adjustable by reducing supply voltage)
Controlled by internal TCXO or external socket for 10MHz reference
With built-in 2.4 GHz bandpass filter
LED indication (voltage, PLL lock, power transmission)
Power supply: 10-24V DC
Power consumption: 60mA (standby) to 900mA (TX 10W @ 20V)
Protection circuit against undesirable power peaks over a short period of time
Connectors: SMA female
External 10 MHz reference socket
2-year warranty (except PA*)

Reminder: This equipment requires an amateur radio licence to be used. There will be no return or refund for upconverting with a burnt-out PA.

* The guarantee does not cover the PA and the loss of power, which may result from an assembly error, incorrect adjustment of the antenna (VSWR), maximum input power not respected, a short-circuit in the power supply or a problem with the coaxial line.
