PACK-QO100-RX-GOOBAY-3019
New product
Kit RX SDR 10 Ghz Satellite Oscar-100
No review at the momentThis pack includes the main elements for the 10 Ghz reception of the Oscar-100 satellite in SDR mode on the 739 Mhz frequency with the RTL-R820T2 key and with the Goobay LNB PLL head.
Also available in DELUXE version with ultra-stable LNB head and RTL-SDR.com V3 key with TCXO.

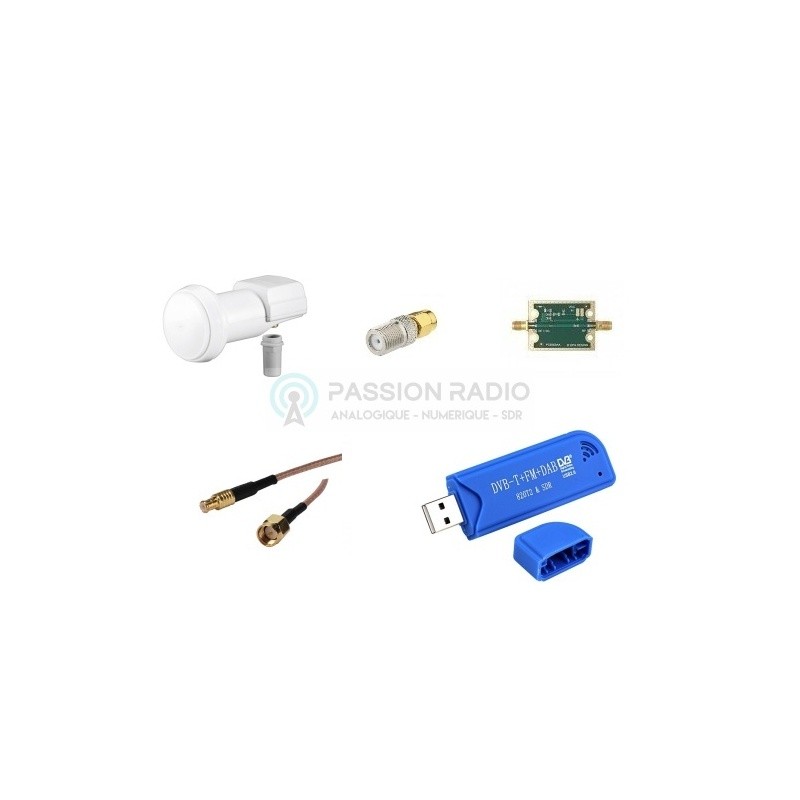

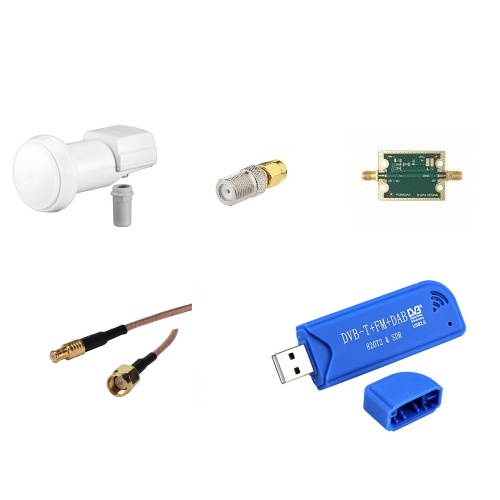

Supplied with: 1 Goobay LNB PLL head, 1 SDR R820T2 key, 1 Bias-Tee to supply the LNB head with 12V (NB SSB) or 18V (WB DATV), 1 SMA Male - MCX Male pigtail of 15cm to connect the input Bias-T on the SDR key and 1 SMA Male - F female adapter to connect a 75 ohm TV coaxial cable between the LNB head and the RTLSDR key.
Data sheet
To add to have an operational Oscar 100 receiving station
- 1 TV satellite dish of 40cm minimum (like our parabolic antenna camping), 60cm (recommended) or 80cm
- 1 TV 75 ohm TV cable and 2 F Male connectors to connect the LNB head to the bias-T output
The cable length should match the distance between the location of the RTL-SDR key and the location of the satellite dish.
In reception, the impedance of 75 ohms (instead of 50 ohms), is not a problem for the coaxial cable used and which can also be of a considerable length (10, 20 or 30 meters), without losses should be noted because the LNB head amplifies the output signal (+ 50-60dB).

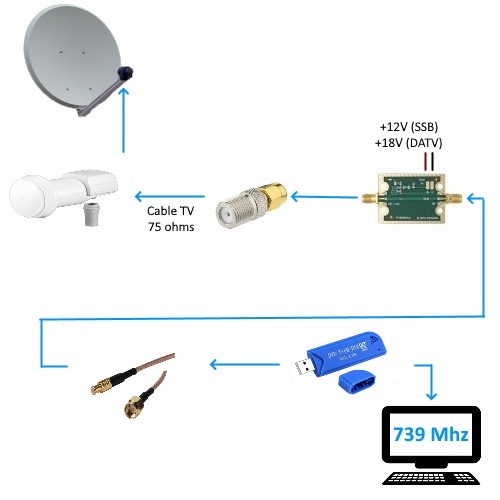

How to assemble/use the RX pack QO-100
The SDR software recommended to receive the QO-100 satellite is SDR-Console, this software incorporates an automatic frequency drift correction function by locking on the transponder beacon for a stable signal whatever the weather conditions, day or day. of the night.
