DJ7GP V2 antenna LNB modified 24 Mhz AMSAT DL

View larger

Display all pictures

Reference: QO100-ANT-207269-DJ7GP-LNB3-1218

Condition: New product

Online only

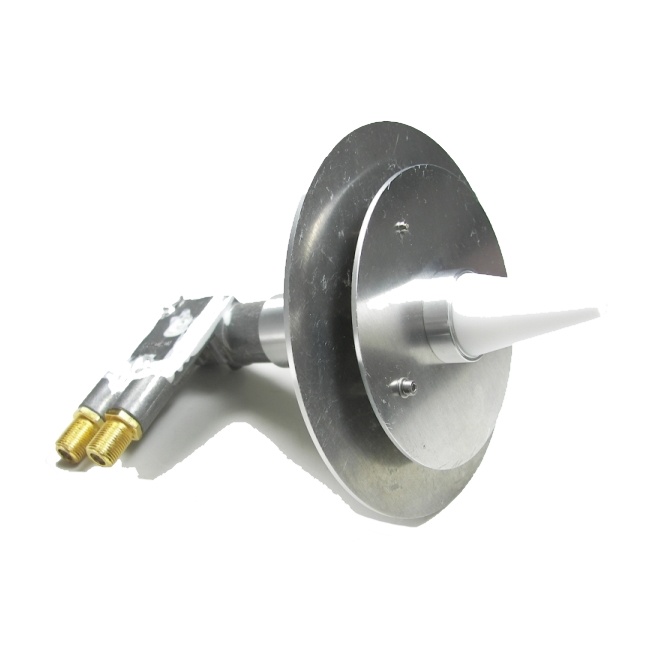

DJ7GP V2 2.4 Ghz & 10 GHz antenna with LNB modified 24 Mhz AMSAT DL

No review at the moment

Version V2 of the DJ7GP 2.4 Ghz & 10 Ghz duofeed antenna, ready to use, with modified LNB for stable reception of QO100 and LHCP circular polarization transmission on the 2.4 Ghz uplink channel of QO-100.

Version 2 improves the left hand circular polarization (LHCP), has more mounting space and a new lens for better reception gain on 10 Ghz.

This version has a modified PLL LNB head to have a 24 Mhz input on the second F connector, for use with the AMSAT DL downconverter.

Supplied with: 1 DuoBand-Feed 2.4/10Ghz antenna from DJ7GP with modified LNB, Twin 2 outputs.

More details

Data sheet

TX frequency: 2.4 GHz left hand circular polarization (LHCP)
RX frequency: 10.5 Ghz linear polarization converted to 739Mhz via Bias-T feed
Antenna diameter: 10.7cm
Antenna impedance: 50 Ohms
SWR adjustment: By screw on the antenna (preset for QO-100 frequencies)
Maximum power: 50 Watts
TX antenna connector: SMA female for 2.4Ghz
LNB: OPTICUM Twin LTP-04H
LNB 1 connector: F female for RX around 739Mhz of 10 Ghz
LNB 2 connector: F female for 24Mhz modified input for use with AMSAT-DL downconverter
Material: Aluminum, stainless steel screws
Outside diameter of the largest disc: 11cm
Rod diameter: Ø 23 mm
Amateur radio design: DJ7GP
