Pass-Band Filter 2400 Mhz 10W WiFi Zigbee QO100 Satellite & QO-100 QO100-FILTRE2-NMRF-944

View larger

Display all pictures

Reference: QO100-FILTRE2-NMRF-944

Condition: New product

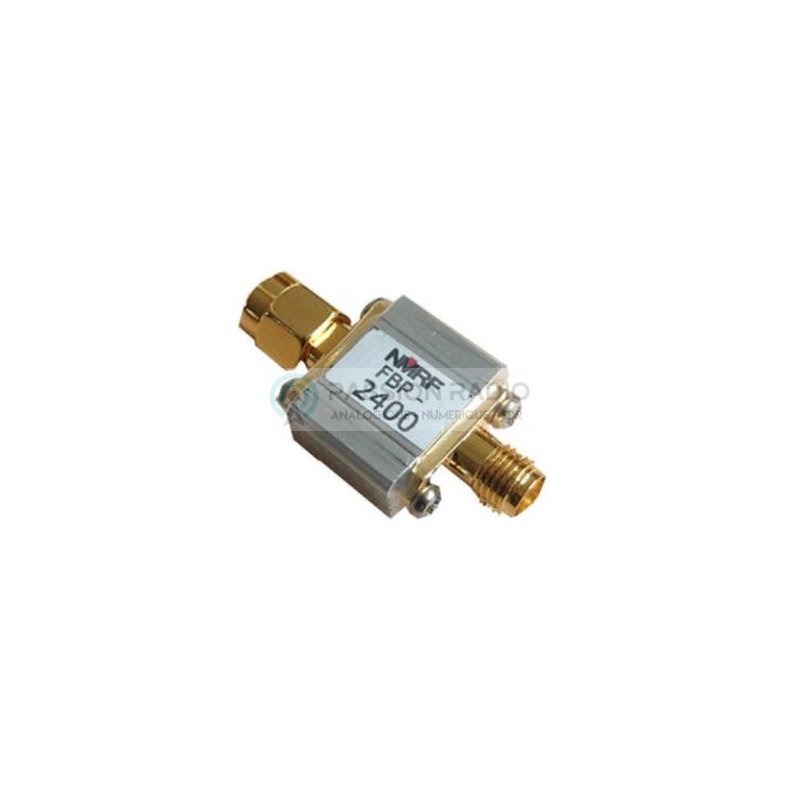

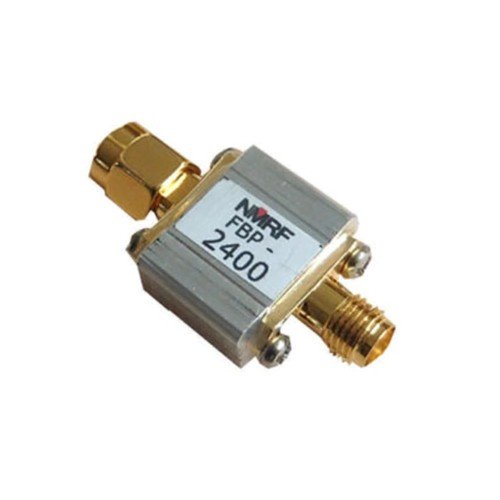

Pass-Band Filter 2400 Mhz 10W WiFi Zigbee QO100

No review at the moment

The NMRF filter is a bandpass filter centered on 2450Mhz with a bandwidth of 150Mhz, for use in frequency from 2400 to 2500Mhz with a maximum power of 10W, for radio applications: Wifi, Zigbee, Drone and the radio amateur QO100 satellite .

Connector 1: SMA Male
Connector 2: SMA Female

This filter is particularly recommended when using a WIFI amplifier to suppress parasitic and harmonic frequencies.

Supplied with: 1 NMRF FBP-2400 Mhz filter.

More details

Data sheet

Specification filter bandpass FBP-2400 Mhz

Optimal frequency range: 2400 - 2500 MHz
Center frequency: 2450 MHz
Bandwidth: 150Mhz
Impedance: 50 Ohms
Maximum power: 10W
Insertion loss: <2dB @ 2400 MHz
Connector 1: SMA Male (to the TX or the amp)
Connector 2: SMA Female (to the antenna)

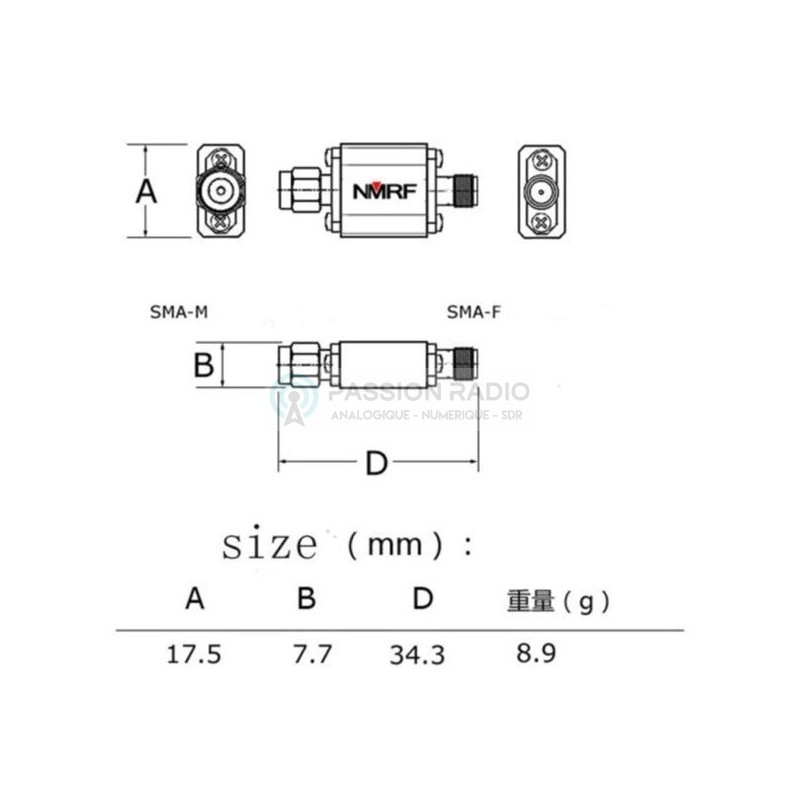

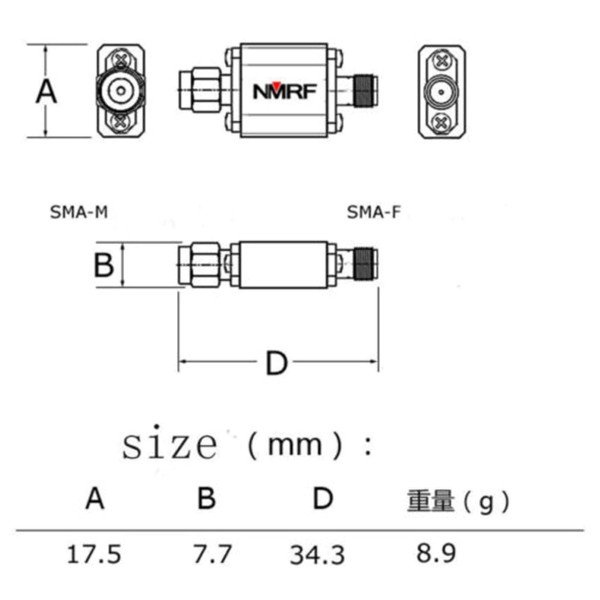

Dimensions: 34.3 x 17.5mm
Rohs Standards
