RF Amplifier EDUP EP-AB003 2400 MHz (8W) for QO100

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

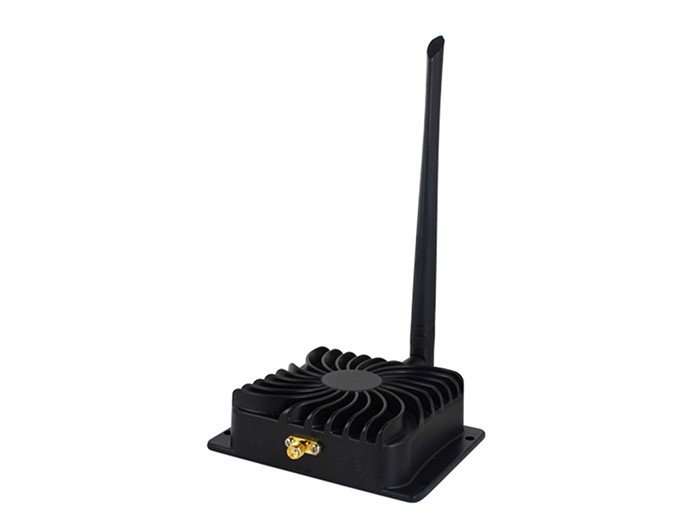

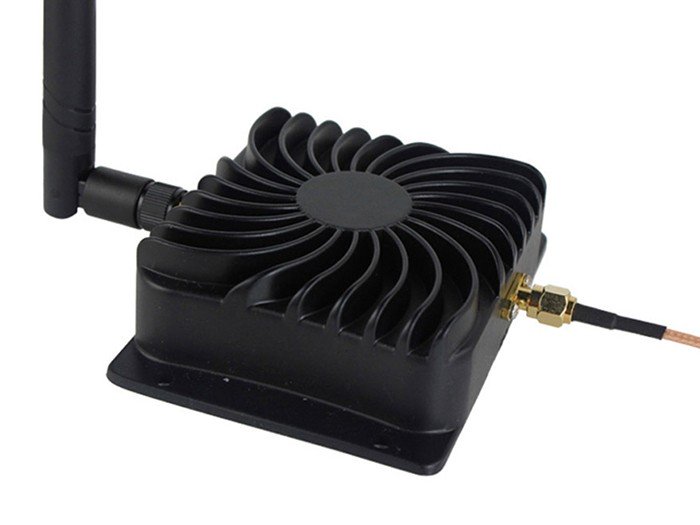

EDUP EP-AB003 amplifier for the amateur radio band 2400Mhz (13cm), this 2.4Ghz amp of 8W theoretical, is able to deliver an effective power of 3-4W max. with an input of 100mW maximum.

This equipment can be used with the following SDR hardware: LimeSDR mini, HackRF One, Adalm-Pluto.

It is compatible for use in 2.4Ghz transmission on the QO-100 amateur radio satellite.

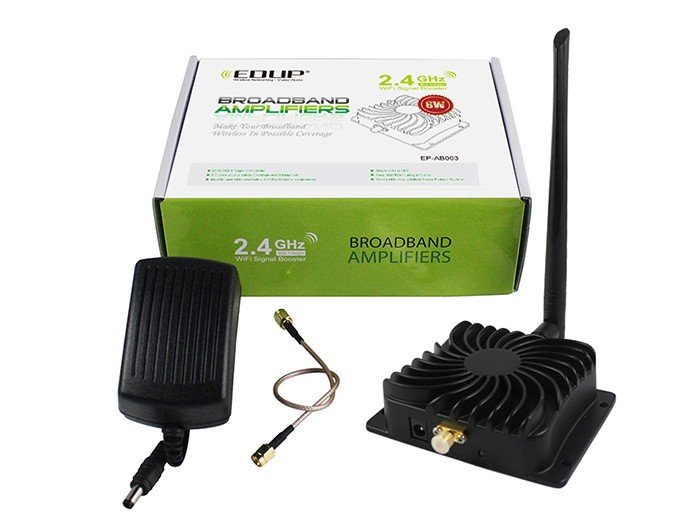

Comes with: 1 EDUP EP-AB003 2.4Ghz RF Amplifier, 1 power charger 220V, 1 cable RP-SMA Male (reverse SMA) - SMA Male, 1 WIFI antenna 6dBi in RP-SMA.

Material only reserved for amateur radio use only and on amateur satellite band from 2400 to 2450Mhz.

More details

This material is no longer available

Data sheet

Specifications EDUP EP-AB003 2400Mhz amplifier

Frequency range: 2400 - 2500 MHz
Max. Input power : 100mW
Max. Output power : Theoretical 8W - 4W maximum according to use
Impedance: 50 Ohms
Connector: SMA Female (TX side) and RP-SMA female (RX side antenna)
Operating mode: bidirectional, half duplex, automatic switching via carrier detection
Frequency response: ± 1dB
Input power: 5 to 20 dBm
Optimum input power recommended: 15-16dBm
Gain transmission: 17 dBm nominal
Gain reception: 11dBm
Operating temperature: -40 to 70 degrees
Operating humidity: Relative humidity up to 95%

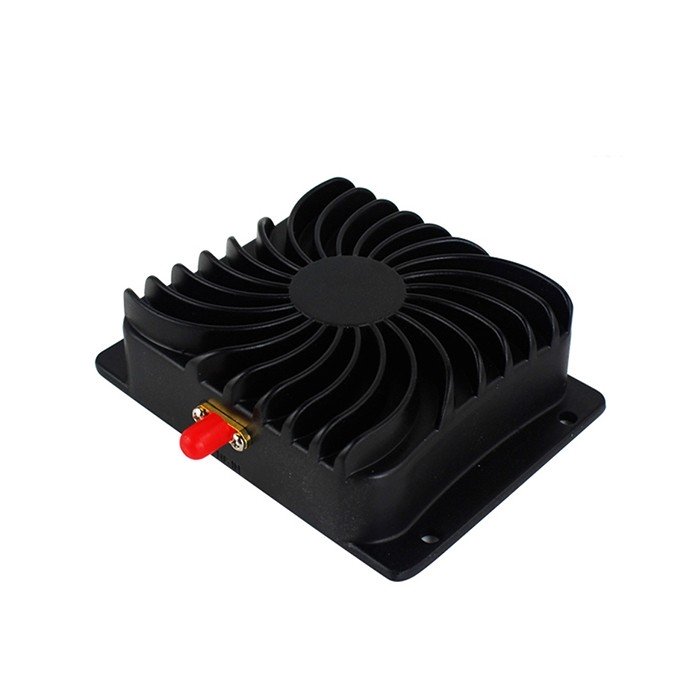

Aluminum case
Weight: 650g
Size: 8x8x2.5cm
2 years warranty*

This material is intended only for amateur radio use on the 13cm band, 2400-2450Mhz.

* The warranty does not cover PA and loss of power, which may result from assembly error, incorrect antenna adjustment (ROS), maximum input power not respected, short -circuit of the power supply or on the coaxial line.

  • Customers also bought

    No products available

  • We also recommend

    • RP-SMA Male SMA Male Passion Radio Adapter RF Cables & Adapters ADAPT-RP-SMA-M-262
      3,80 €

      Reference: ADAPT-RP-SMA-M-SMA-M-262

      RP-SMA Male Adapter

      This RF adapter converts an RP-SMA Male connector to an SMA Male connector. Please note that this adapter is a Reverse SMA, mainly used in WIFI connectivity.

      3,80 €
    • RP-SMA Female SMA Female Passion Radio RP-SMA Adapter ADAPT-RP-SMA-F-SMA-F-263
      4,95 €

      Reference: ADAPT-RP-SMA-F-SMA-F-263

      RP-SMA Female SMA Female Adapter

      This RF adapter converts a femaleRP-SMA connector to a female SMA connector. Please note that this adapter is a Reverse SMA, mainly used for WIFI applications.

      4,95 €
    • RP-SMA Female SMA Male Passion Radio RP-SMA Adapter ADAPT-RP-SMA-F-SMA-M-289
      4,50 €

      Reference: ADAPT-RP-SMA-F-SMA-M-289

      RP-SMA Female SMA Male Adapter

      This RF adapter converts a femaleRP-SMA connector to a male SMA connector. Please note that this adapter is a Reverse SMA, mainly used for WIFI applications.

      4,50 €
    • Adapter RP-SMA Male SMA Female Passion Radio RP-SMA ADAPT-RP-SMA-M-SMA-F-290
      3,50 €

      Reference: ADAPT-RP-SMA-M-SMA-F-290

      RP-SMA Male to SMA Female adapter (WIFI and Helium hotspot compatible)

      This RF adapter converts an RP-SMA Male connector to an SMA Female connector. Please note that this adapter is a Reverse SMA, mainly used for WIFI equipment. Also compatible with hotspot equipment for

      3,50 €

Reviews

Click here to leave a review

rating 5
8 watts chinois !
Cet ampli fonctionne très bien et "sort" allègrement ses deux watts sur 2400 MHz. Ne pas se fier aux "watts marketing" chinois. Attention à la prise de sortie qui est une SMA Reverse.
rating 5
Test EDUP 003
Bon ampli pour QO-100 et un pluto sdr sortie max à 0dbm -1mW après être drivé par un AD CN0417 de 23dbm - (200mW) on atteint 37.2 dbm exactement ( 5.248 W ) testé et mesuré en FM sur R&S.
