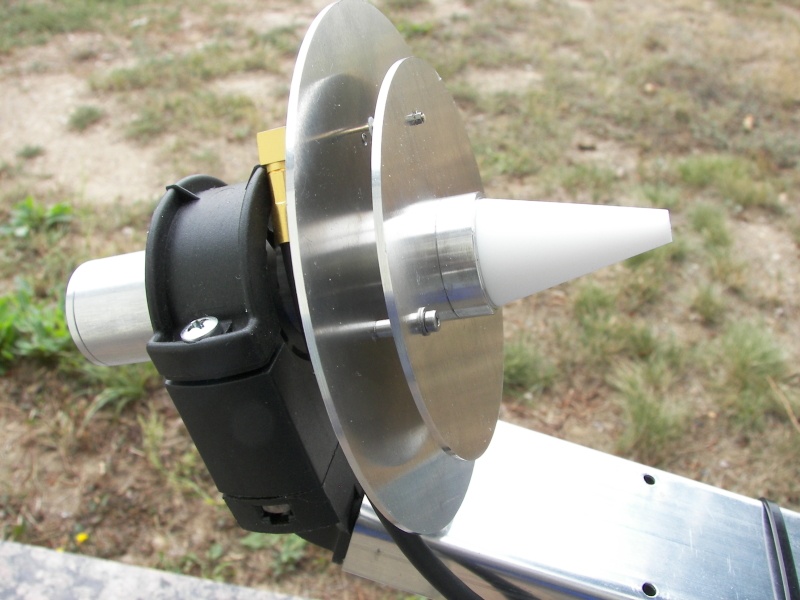

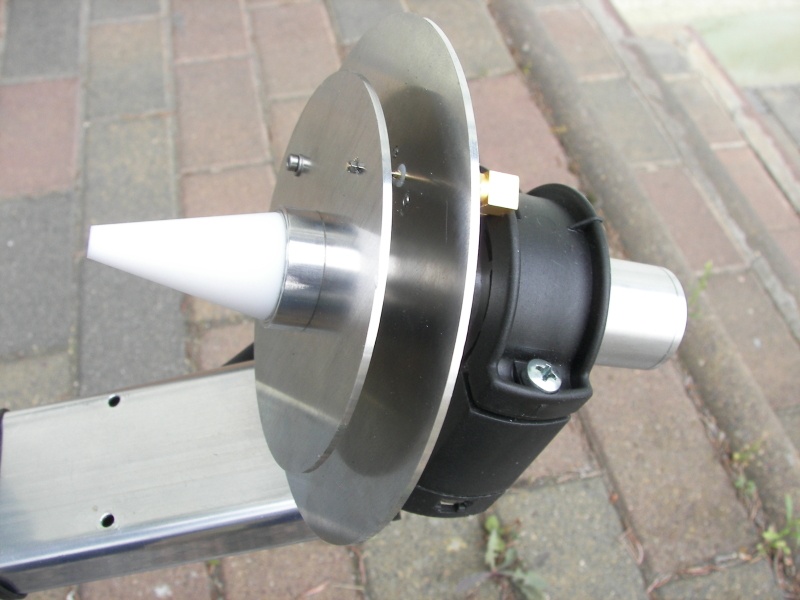

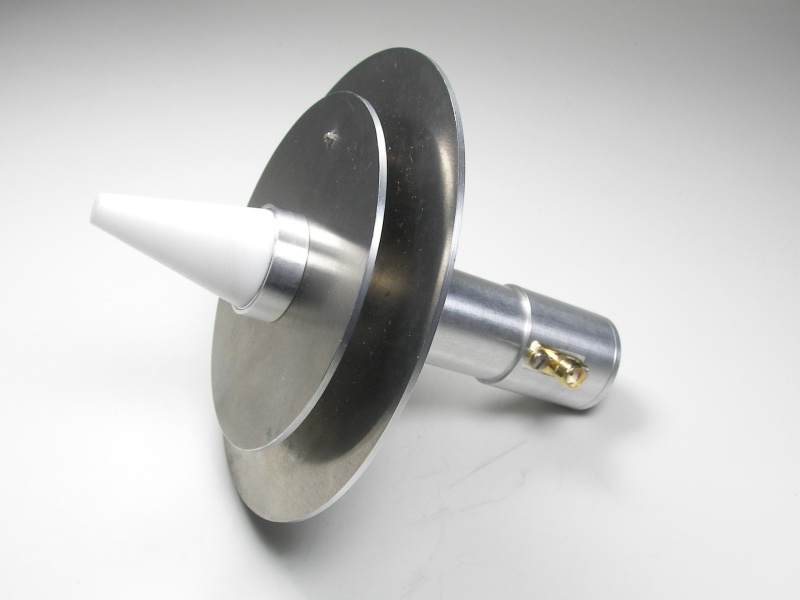

2.4 & 10 GHz Dual band feed V2 Antenna for Es'hail 2 / QO100

rating Read the 6 reviews
Average rating: 5/5 Number of reviews: 6

Dual-band feed antenna, 2.4 Ghz / 10 Ghz dual-band, version V2 circular polarized LHCP for transmission on 2400 MHz and reception on 10500 MHz for the Es'hail 2 / QO100 satellite.

Version 2 improves the left circular polarization (LHCP), has more space for mounting and a new lens for better reception gain on 10 Ghz.

Reception in 10Ghz with this model of antenna DJ7GP, requires the use of a down-converter (not included) to convert the 10 Ghz into a frequency easily listenable on a receiver 144, 432 Mhz or SDR on 739Mhz.

Available in 2 versions: With 1 single SMA 10 Ghz output or with 2 SMA 10 Ghz outputs (DUO version).

Supplied with: 1 Dual band feed 2.4 / 10Ghz DJ7GP V2 antenna with 1 or 2 SMA outputs to be chosen below.

More details

99,90 € tax excl.

In stock

   1 Item

  • With 1 SMA output
  • With 2 SMA output

Estimate directly shipping costs by clicking on "Add to cart", then enter your country and zip code on the cart page.

Download

Datasheet DJ7GP antenna

564.77k

Data sheet

Specification antenna DJ7GP dual band feed 2.4 / 10 Ghz

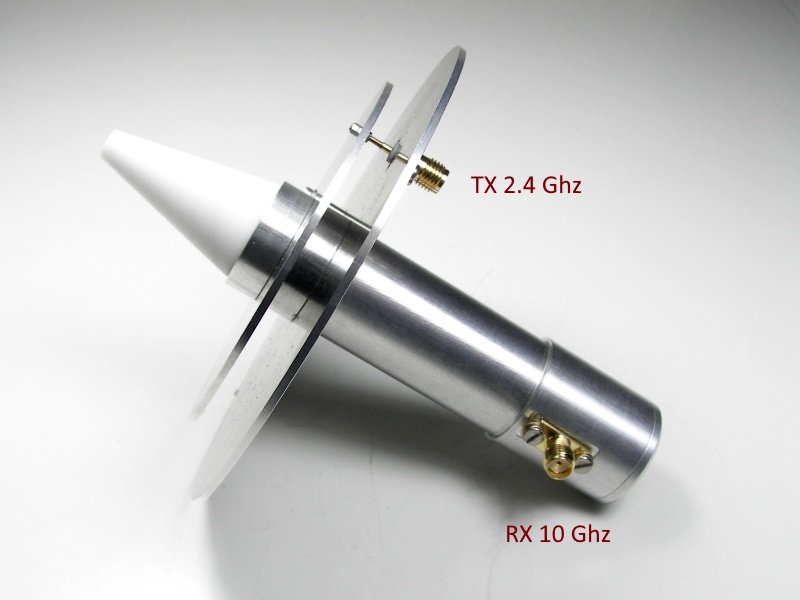

TX Frequency: 2.4 GHz Left Circular Polarization (LHCP)
RX Frequency: 10.5 Ghz linear polarization
Antenna impedance: 50 Ohm
Antenna connector: SMA female
Material: Aluminum, stainless steel screws
Diameter of the rod: Ø 23 mm
Outer diameter of the largest disk: 11cm
Amateur Radio Design: DJ7GP
Version: V2
