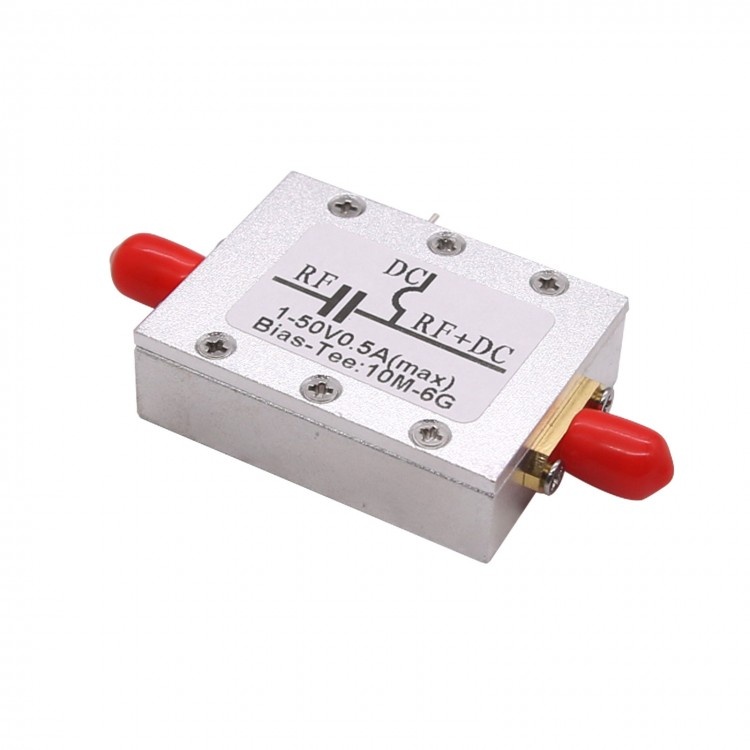

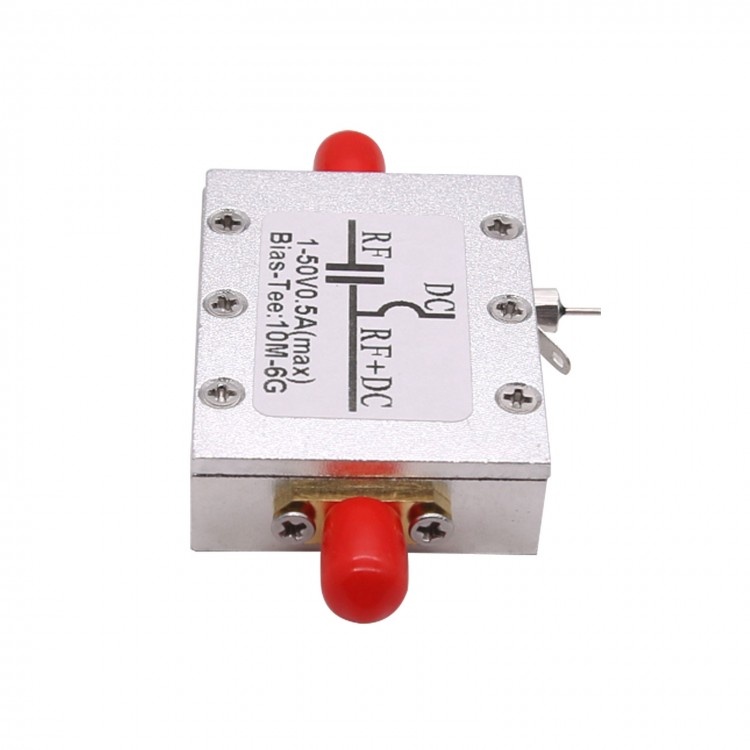

10MHz to 6 GHz SMA polarisation tee with aluminium housing

RF Biaser Bias Tee 10MHz-6GHz F HAM Radio RTL SDR LNA Low Noise Amplifier New

Features:/

* The power supply circuit of the broadband amplifier, the high frequency is affected by the parameters of parasitic capacitance, and performance drops sharply, so the power supply must use BiasTee.

* BiasTee consists of high-frequency inductors and capacitors with no resonant points.

* DC blocking capacitor: DC blocking prevents leakage of DC voltage to the following circuits or test instruments;

* High-frequency inductor: Isolates AC information to prevent high-frequency signals from leaking into the power system.

* Finesse of execution and good performance.

* Long service life.

Specification:

- Brand new and high quality

- Maximum operating current: <0.5A

- Insertion loss: <1.2dB

- Operating frequency: 10MHZ-6GHz

- Operating voltage : DC1-50V

- Colour: as shown

- Material: Electrical components

- Dimension: 32x42x12mm/ 1.34* 1.65* 0.47 "

Application area:

A) Wideband amplifier :

Some broadband amplifiers do not have a DC blocking capacitor inside and the output must be powered. A bias is required.

Some amplifiers have internal isolation capacitors which eliminate the need for additional biasing.

B) Fibre optic communication, laser control :

The control current required by the laser diode is injected via the DC terminal of the bias;

Communication data is injected from the RF side.

C) Optical modulation control

D) Application of other test and measurement aspects

The package comprises

- 1 x 10MHz-6GHz Bias Tee + case
