UpConverter 144 / 432Mhz to 2.4Ghz for QO-100 F1OPA OPA Design SAT Accessory QO100-F1OPA-UPCONVERTER-803

View larger

Display all pictures

Manufacturer: OPA Design

Reference: QO100-F1OPA-UPCONVERTER-803

Condition: New product

Country of origin:

France

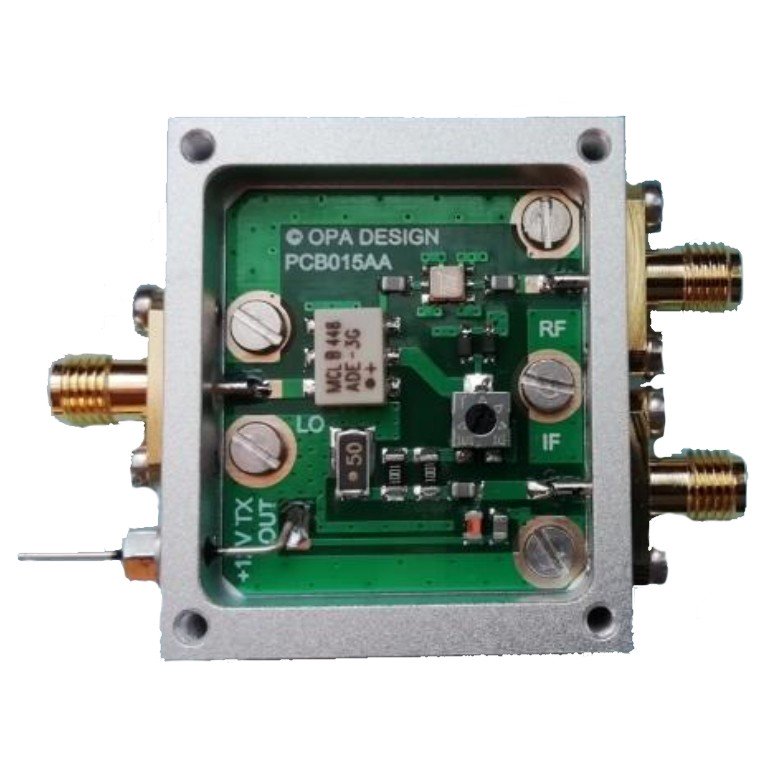

Mixer up-converter 144/432Mhz to 2.4Ghz for QO-100 F1OPA

No review at the moment

This 144/432Mhz mixer to the 2.4GHz band is intended to be used as a dedicated up-converter to traffic on the uplink of the QO-100 satellite. The included SAW filter allows system size reduction as well as the use of an intermediate frequency (IF) of 144MHz or 432MHz with an input power of 0.5W to 3.5W maximum.

This mixer requires injecting the frequency of the local oscillator (LO) which is not included to make it an upconverter.

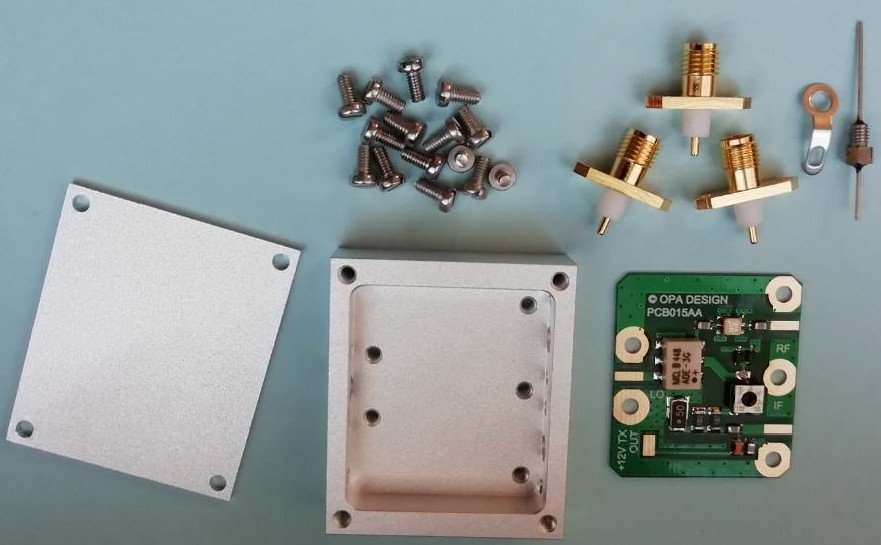

Delivered with: Assembled PCB board, delivered with a countersunk box to be mounted, SMA connectors to be soldered, screws and a ByPass 1nF / M3 capacitor. Assembly instructions in French to download below.

This equipment is no longer available and has been replaced by the upconverter-H.

More details

Download

Instructions upconverter 2.4Ghz

Instructions for use upconverter 2400Mhz de F1OPA 594.05k

Data sheet

Specification mixer 2400Mhz F1OPA

Frequency range: 2400 MHz - 2.4 Ghz
Maximum input power: 4W
Impedance: 50 Ohms
Power supply voltage: 12V
Operating temperature: -20°C to + 65°C
Dimension: 42 x 36 x 20mm
Amateur Radio Design: F1OPA

Getting Started OPA Design mixer 2.4Ghz QO-100:

- Inject the local oscillator with a power of 8dBm.
- Frequency of the LO to inject for IF 144Mhz: 2256Mhz
- Frequency of the LO to inject for IF 432Mhz: 1968Mhz
- Apply the intermediate frequency (0.5W-3.5W max).
- Adjust the potentiometer to have an output power of about -7dBm.
- Put the lid on the case.

This material is intended only for amateur radio use on the 13cm band.

The guarantee does not cover the errors of assembly or use as well as the minimum and maximum powers not respected.
