2400Mhz 12W amplifier V2 for DXpatrol transverter

rating No review at the moment

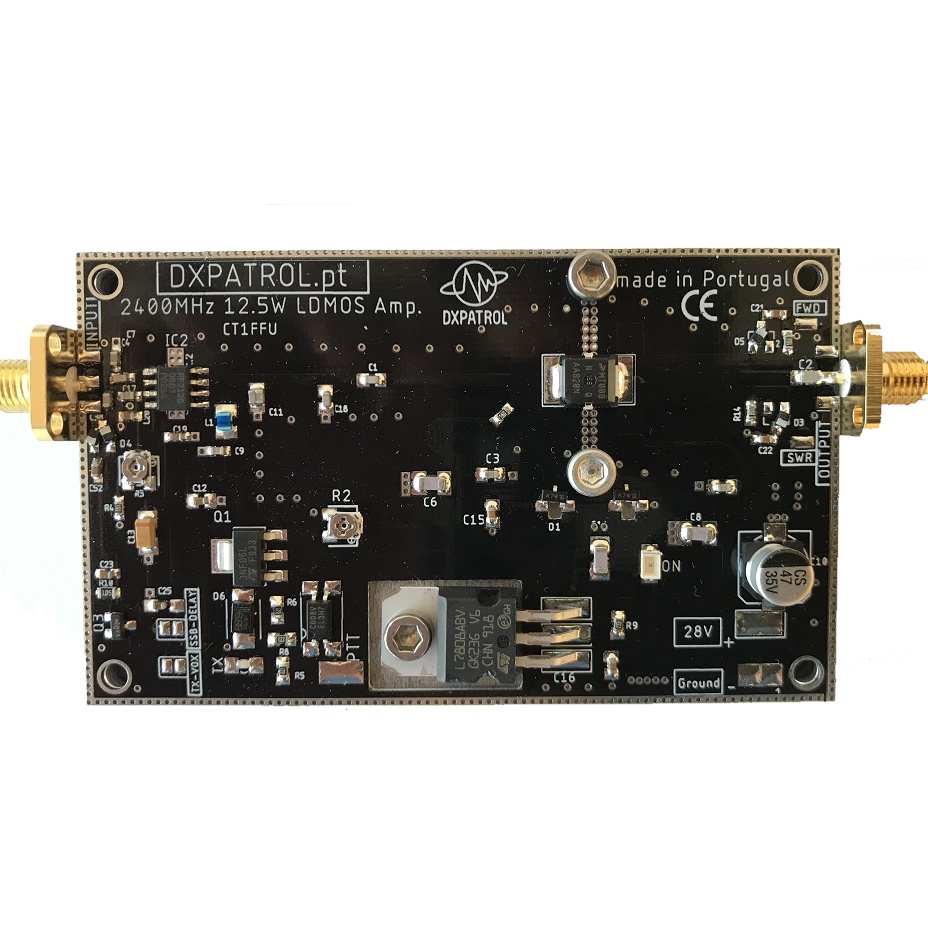

The DXpatrol 2400Mhz V2 amplifier is intended to be used with the DXPatrol transverter for QO-100, from version MK2.

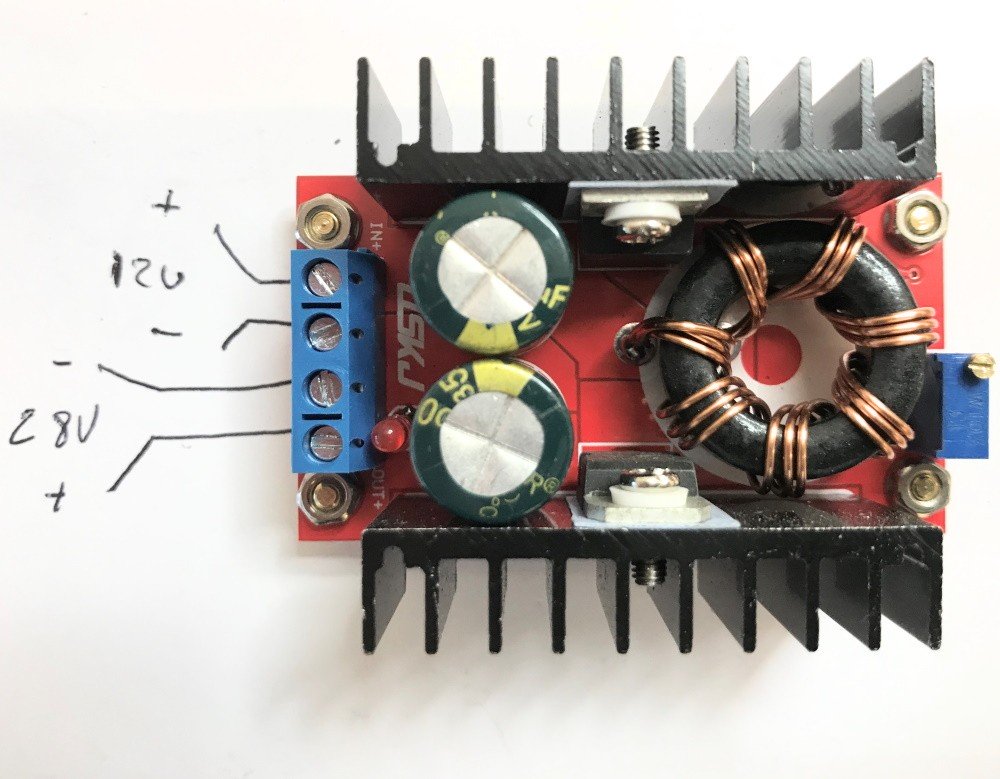

It allows to output 12W maximum from an input between 50mW and 100mW maximum. Powered by 28V, the amplifier comes with a 12V / 28V converter.

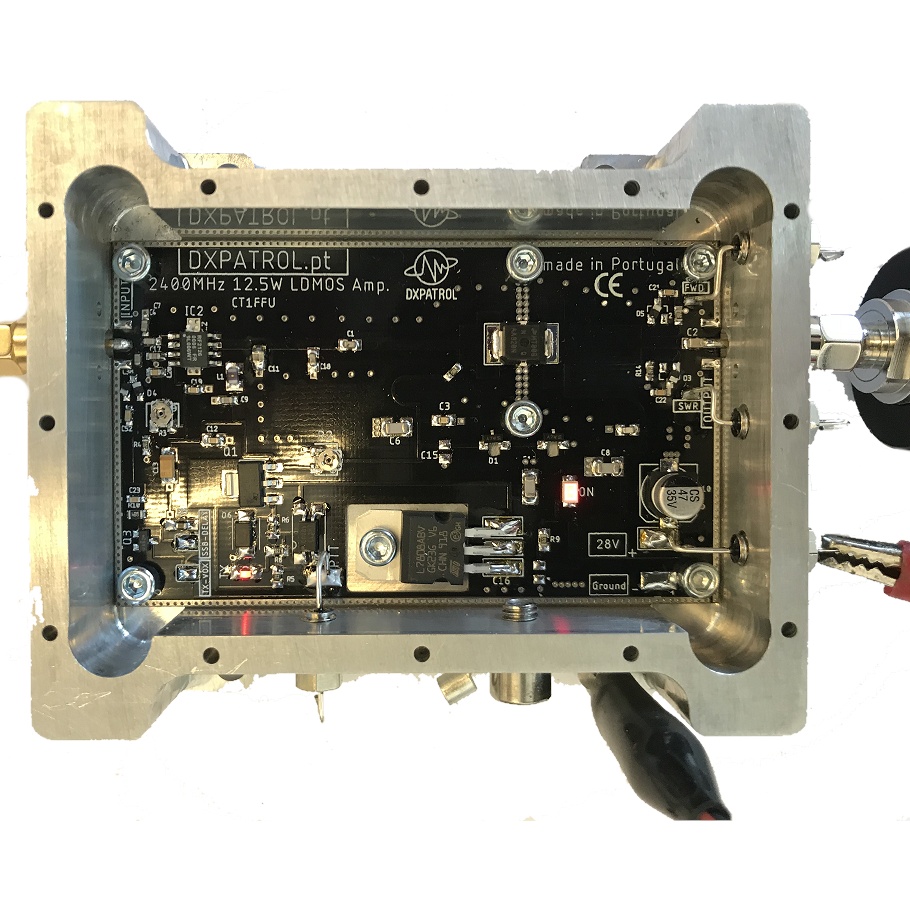

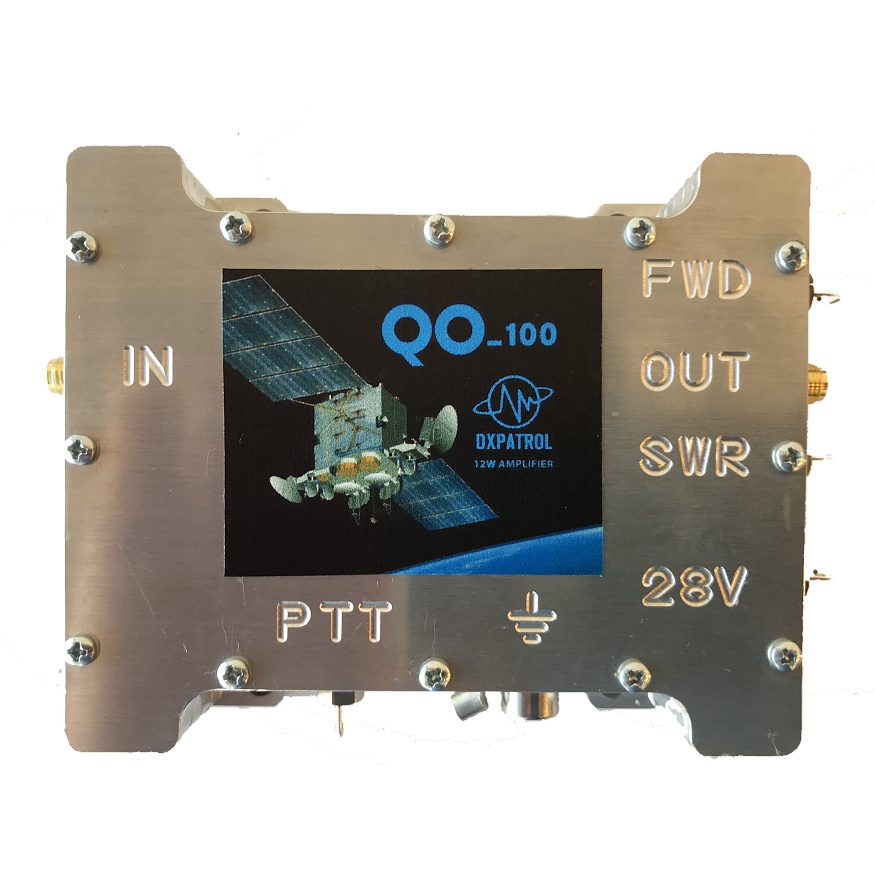

Available in 2 versions: With and without box.

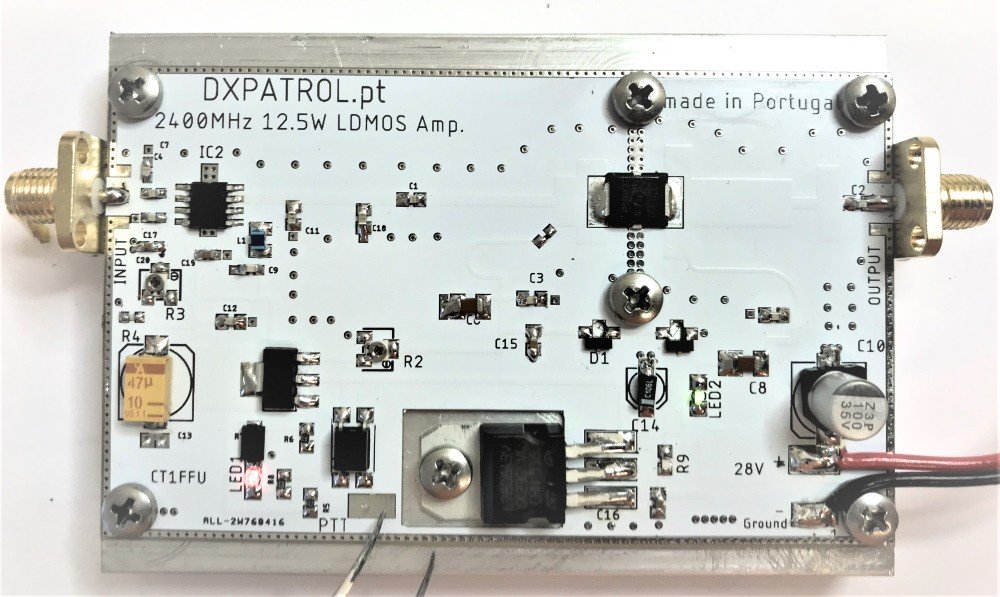

Supplied with: 1 2400Mhz DXPatrol amplifier, assembled and tested with welded SMA connector, 12V/28V converter.

This equipment is no longer available and has been replaced by the upconverter QO100 10W.

More details

This material is no longer available

Download

Datasheet ampli 2400

754.73k

Schema ampli 2400

Quick assembly instructions for the 2400 Mhz DX Patrol amplifier 185.4k

Doc ampli 2.4Ghz V2 DXPatrol

1003.58k

Data sheet

Specifications AMP DXPatrol 2400Mhz QO100

TX output frequency: 2400 MHz (2.4Ghz - 13cm)
Input frequency: 40mW to 100mW maximum
Output power: 12W maximum
Output bandwidth: around 10Mhz from 2395 to 2405 Mhz
RF amplifier: MHT1008NT1
Power supply: 28V (12 / 28V converter supplied)
Consumption: 600mA PTT and 1.5A full power
PTT to ground (by optocoupler)
Connectors: SMA female
Dimensions: 60mm x 87mm
Aluminum heatsink included
Amateur radio design: CT1FFU - DXPatrol
2 years warranty*

Reminder: This amplifier for QO-100 is a low-cost model and requires a minimum of 2.4 GHz knowledge to be used correctly. It will not be taken back or reimbursed for an amplifier with the toasted PA.

* The warranty does not cover the PA and the loss of power, which may result from an assembly error, an incorrect antenna adjustment (ROS), a maximum input power not respected, a short -circuit of the power supply or the coaxial line and the damage linked to electrostatic discharges.
