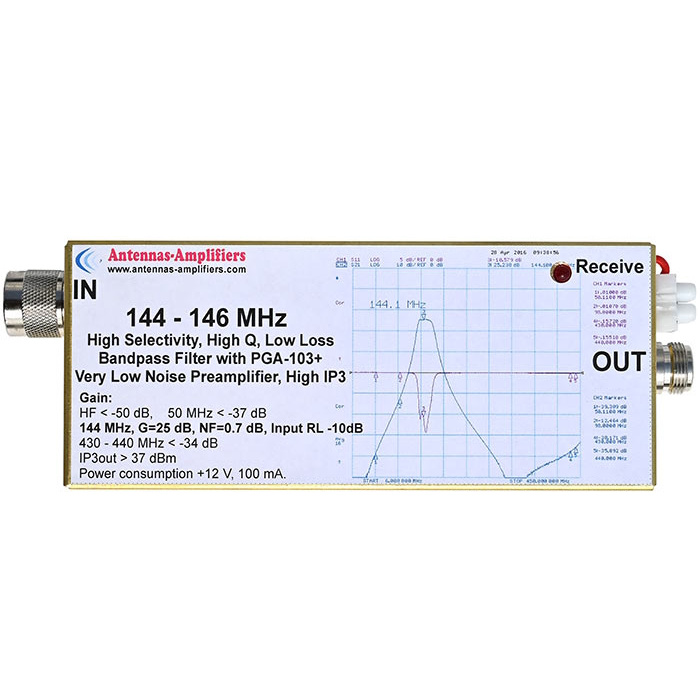

Very low-loss 2m +25dB preamplifier with 144-146MHz bandpass filter
No review at the momentIf you want to hunt for super-weak DX signals, in MS, EME, or during contesting, this low-noise 2m preamplifier with bandpass filter is the best choice for demanding users.
The very low noise, the input bandpass filter that will prevent overloading of stations on different bands, and the high IP3 of the preamplifier are the keys to successful contesting, DXing, or EME.
Data sheet
Why is there a male "N" connector on the input side of the preamplifier as opposed to the usual female "N" connector?
If you want the lowest possible noise level and therefore the best reception performance, you need to pay attention to every 0.1 dB of loss on the input side of the preamplifier. Every connecting cable has a loss. Even the best ones.
This way, there is virtually no loss and the best possible reception performance is obtained.
The second most important key to obtaining the best reception performance is input filtering. Nowadays, almost all manufacturers do not apply any filtering to the input of preamplifiers, which is a source of annoyance.
Thanks to input filtering, this combination of preamplifier and bandpass filter is much more protected against interference from strong out-of-band signals, such as 6m, 4m, 3m or 70cm.

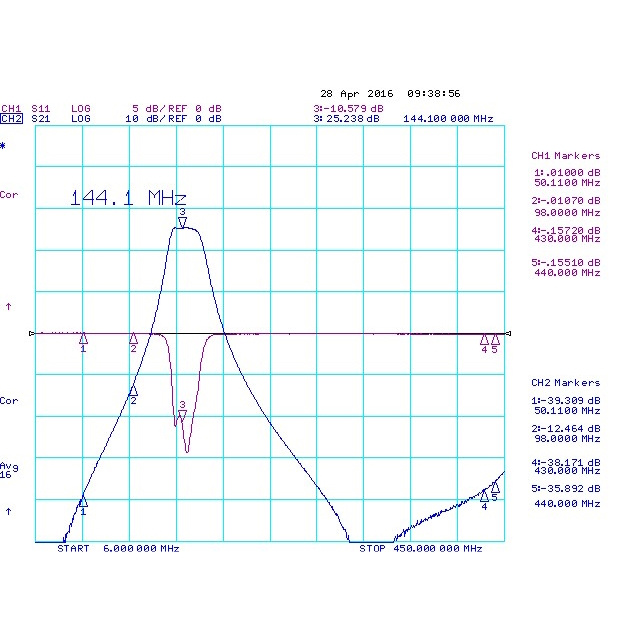

Results of measurements of the 2m low-noise preamplifier:
Receive gain :
7 MHz -79 dB
14 MHz -68 dB
21 MHz -53 dB
28 MHz -47 dB
50 MHz -39 dB
88 MHz -18 dB
98 MHz -12 dB
108 MHz -5 dB
144 MHz = +25 dB, NF=0.7 dB, input RL -10dB
288 MHz -42 dB
430 MHz -38 dB
432 MHz -37 dB
440 MHz -36 dB
IP3out > 37 dBm
Power consumption +12 V / 100 mA
IN connector (to antenna) : N male
OUT connector (to receiver) : N female
The connector positions are chosen so that the filter can be directly connected to the coaxial relay as shown. The band-pass filter is enclosed in a sturdy 0.8 mm thick brass housing. Solid mechanics ensure stability and longevity.
