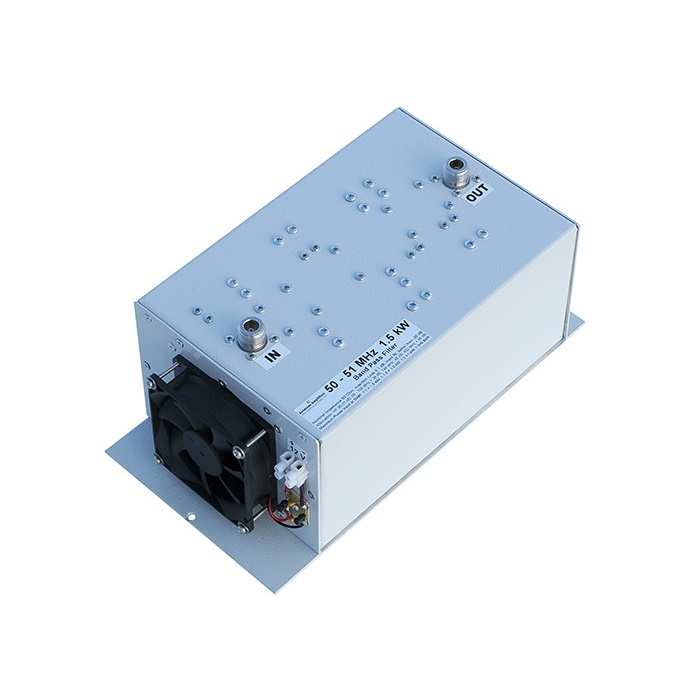

Bandpass filter 6m 50 51 MHz N 1500W connectors (AA)

View larger

Manufacturer: Antennas Amplifiers

Reference: AA-5960-FILTER6M-1500W-2705

Condition: New product

Country of origin:

Serbia

Band-pass filter BPF band 6m 50-51 MHz N plug 1500W (AA)

No review at the moment

The Antennas Amplifiers BPF bandpass filter for the 6m "magic" band covers 50 to 51MHz with a maximum power of 1500W, a very low insertion loss of 0.11 dB and N plug connectors.

Although this filter is intended for use as a transmit filter, its design also allows it to be used as a receive filter.

It can be used before the wideband LNA with the PGA-103+ to protect sensitive devices from out-of-band signals.

A low insertion loss filter should be placed before any LNA to protect the receiver from HF transmitters in DX shipments or in multi-multi environments. This GMP will suppress any harmonics on 100 MHz, 150 MHz, and above, and protect it from HF stations.

More details

Data sheet

For use with linear amplifiers up to 1.5 kW output.

The bandpass filter will eliminate any harmonic emission from your linear amplifier.

Measured insertion loss :

1.8MHz 75dB
3.8MHz 73dB
7.05MHz 70dB
14.1 MHz 53dB
21MHz 44dB
28MHz 32dB
50-51 MHz 0.11 dB, input RL -30 dB
88MHz 39dB
98MHz 49dB
108MHz 43dB
144MHz 45dB
430MHz 69dB

Maximum power input according to VSWR :

1:1 = 1500W
1:1.5 = 1200W
1:2 = 1000W
1:3 = 800W
