> Mini computer>Raspberry Pi>Raspberry Pi 5 WiFi 2.4 / 5.0 GHz HDMI 4K BLE 5.0 DDR 4GO or 8GO
Raspberry Pi 5 WiFi 2.4 / 5.0 GHz HDMI BLE 5.0 DDR 4GO or 8GO View larger

Raspberry Pi

New product

United Kingdom

Raspberry Pi 5 WiFi 2.4 / 5.0 GHz HDMI 4K BLE 5.0 DDR 4GO or 8GO

rating Read the review
Average rating: 5/5 Number of reviews: 1

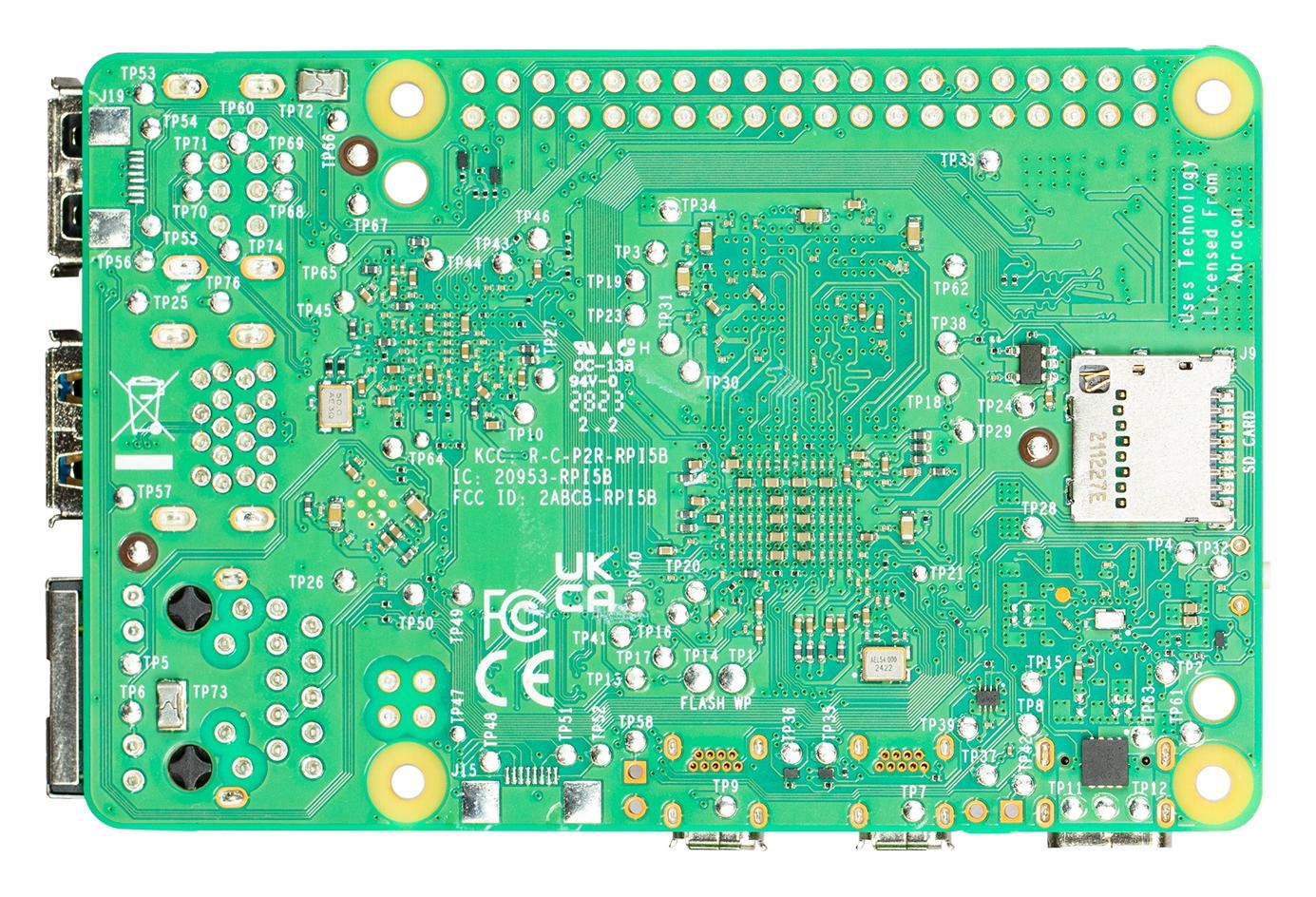

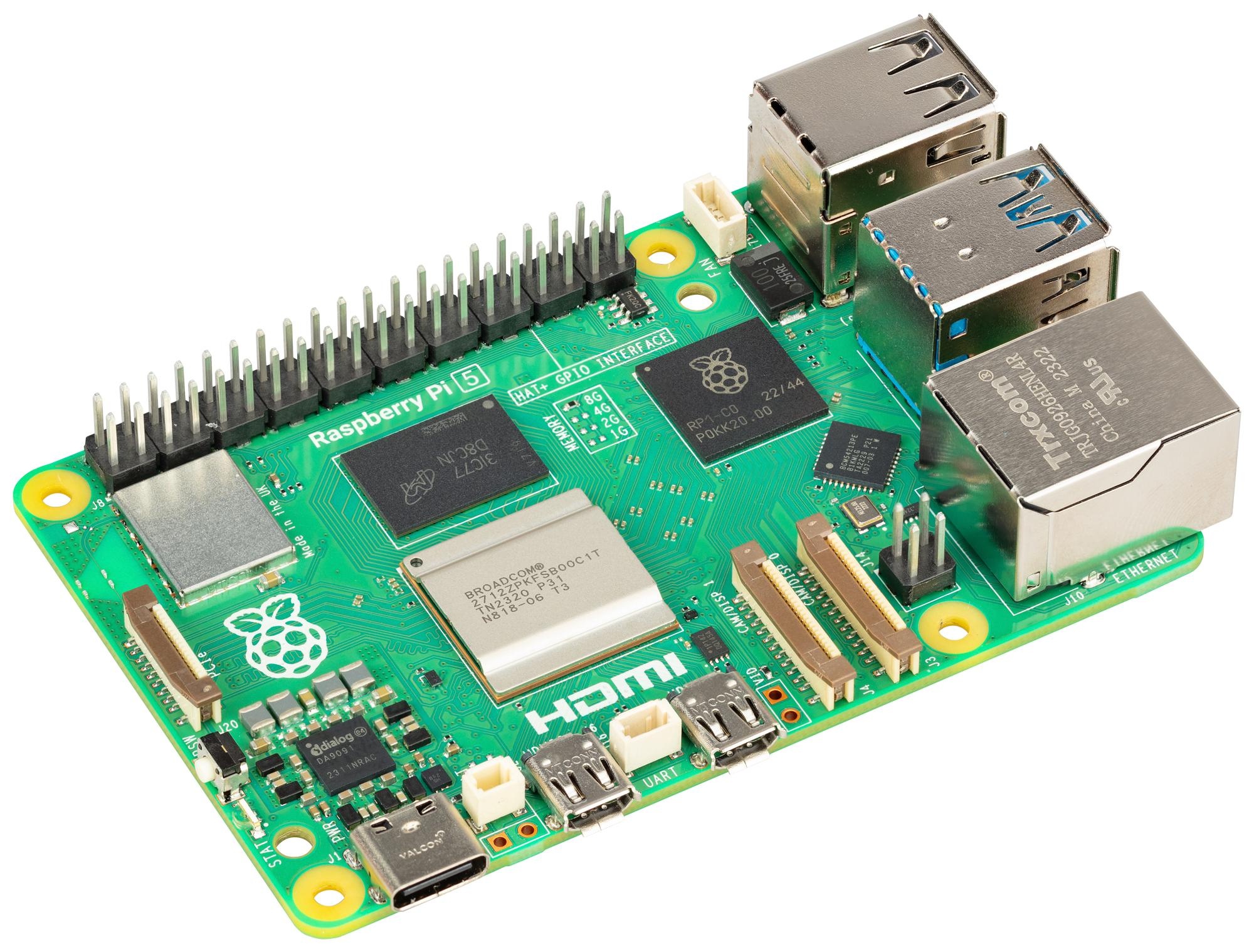

The new Raspberry Pi 5 is the latest development in the RPi series. Compared with its predecessor, it features a faster Broadcom BCM2712 processor running at 2.4 GHz, with 4GB or 8GB of SDRAM memory, combined with an ARM Cortex-A76 and a VideoCore VII GPU that supports OpenGL ES 3.1, Vulkan 1.2, as well as improved heat dissipation and dual 4K HDMI output.

Its power management now incorporates a real-time clock and a charging circuit for a button cell, ensuring continuous power supply to the clock in the absence of a main power supply.

The Raspberry Pi 5 is a versatile and powerful single-board computer, suitable for a wide range of applications such as R&D projects, development of educational and innovative tools, multimedia servers and many other applications in the field of IoT, RF and amateur radio.

Supplied with : Raspberry Pi5 board with 4 or 8GB to choose from below.

More details

84,75 € tax excl.

In stock

   4 Items

  • 4 Go
  • 8 Go

Data sheet

  • CPU: Broadcom BCM2712, QUAD-CORE ARM Cortex-A76, 64 bits at 2.4 GHz
  • SDRAM memory: 4GB or 8GB DDR
  • Dual-band WiFi 2.4GHz and 5.0GHz 802.11ac
  • Bluetooth Low Energy BLE 5.0
  • 40-pin GPIO
  • 2 USB 3.0 ports
  • 2 USB 2.0 ports
  • 2 micro HDMI ports with 4K 60Hz H.265 video resolution
  • 1 Gigabit Ethernet port compatible with Power over Ethernet (PoE) with PoE expansion card (optional)
  • Camera port, DSI display port for connecting a touch screen
  • Micro SD drive for OS and data (max 64GB)
  • 5.1V, 5A power supply via USB-C or GPIO
  • Dual 4K 60Hz HDMI output with HDR support
  • Real-time clock (RTC), powered by external battery
  • Operating temperature: 0°C to 50°C
