Signalink-SLUSB-8R + SLMOD-8RK module pack for Kenwood & Alinco with 8-pin mic jack

rating Read the 2 reviews
Average rating: 5/5 Number of reviews: 2

The Signalink SLUSB-8R interface pack with the SLMOD8RK module is compatible with Kenwood & Alinco radios equipped with an 8-pin micro such as: TS-450, TS-680, TS-690, TS-780, TS-790, TS-850, TS-940, TS-950

  • Low noise USB sound card
  • Quick and easy installation with the jumper
  • RX and TX setting from the front panel
  • Support ALL digital and digital modes such as SSTV, RTTY, Packet, PSK, ROS, FT8, FT4, JS8, ACARS, etc.
  • Complete RF isolation between computer and radio
  • Transmit Audio output and external speaker jack

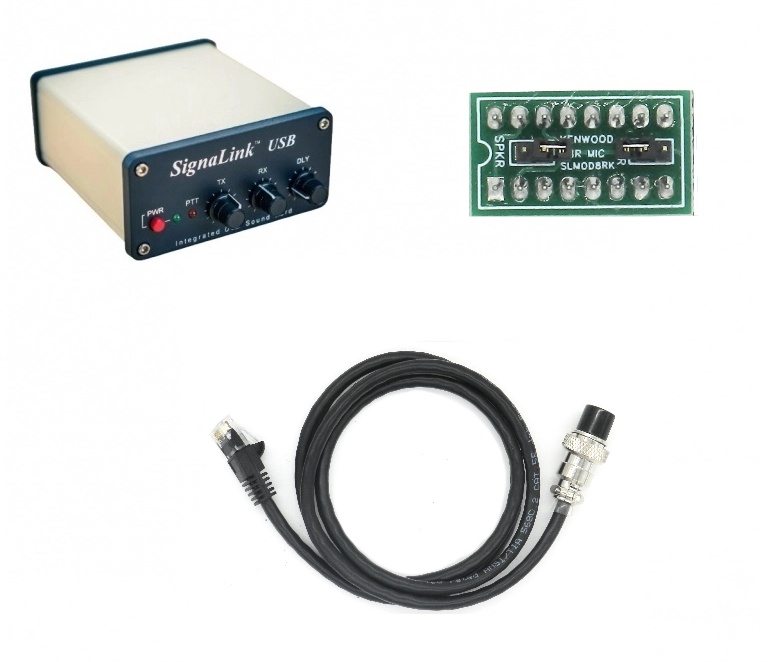

The pack includes: 1 Tigertronics Signalink USB interface, 1 SLCAB8R cable to connect the radio to the interface and the SLMOD8RK jumper to be installed inside the interface, 1 USB cable 2.5m, 1 mono jack cable, 6 pre-cut and stripped 24 AWG wires, 1 Allen key - 3/32 "size, rubber feet, 1 English manual.

Note: This interface does not allow frequency control (CAT control) on the radio station used, it allows switching to PTT and sending a signal to the radio station and receiving it, thanks to the USB peripherals created.

More details

189,00 € tax excl.

Instead of 192,80 €

Out of stock, available within 1-2 months

Pack content

Download

Signalink cable jumper guide FR

Guide in French to choose the right radio cable and jumper according to the brand and model of the radio used. 177.6k

Signalink cable jumper guide EN

Guide in English to choose the right radio cable and jumper according to the brand and model of the radio used. 666.13k

Manual Signalink USB (FR)

French manual and user guide Signalink USB 1.48M

Manual Signalink USB (EN)

English manual and user guide Signalink USB. 745.98k

Réglages Signalink (FR)

1.2M

Data sheet

  • Power supply: USB port compatible with USB 1.1 / 2.0 / 3.0, Male B connector
  • Consumption: ~ 140mA in transmission, ~ 80mA nominal
  • Operating temperature: -30 ° C to + 60 ° C
  • Audio frequency response: 200 Hz - 4000 Hz at 600 ohms
  • Sampling rate: 16 Bits, up to 48Khz
  • Operating System: Windows 98SE, ME, 2000, XP, Vista, Windows 7, 8.x and Windows 10
  • MAC OS 9.1, MAC OS X 10.00
  • Z radio input / output: 600 Ohm
  • Auto-PTT ™ delay: 30 ms to 3 seconds
  • PTT circuit: Relay, rated value - 1A @ 24VDC (max), 0.5A @ 120VAC (max)
  • Radio connection: Audio TX, Audio RX, PTT, GND and RJ-45 female
  • RX audio / speaker: 3.5mm mono jack mono
  • Housing: Extruded aluminum, powder coated
  • Dimensions: 40 x 81 x 91 mm
  • Weight: 187g

Compatible radio

This Signalink pack is compatible with the radios below and the European or American versions.

KENWOOD
TM-201/211/221/231
TM-241/2530/2550
TM-2570
TM-321/331/3530/401
TM-421/431/441/521
TM-531/541/621/631
TM-701/721/731
TR-50/751/851
TS-50/60/140/430/440
TS-450/570/660/670
TS-680/690/701/711
TS-780/790/811/850
TS-870/930/940/950
TS-2000
TW-4000/4100

ALINCO
ALD-24T
ALR-22T/22HT/72T
DR-110T/112T
DR-130T/135E/135T
DR-150/235T
DR-430T/435E/435T
DR-510T/570T
DR-590T/592T/599T
DR-600T /610E/610T
DR-620E/620T
DX-70T /70TH/70EH
DX-77
DX-SR8T/E
DX-SR9

PWR / SPKR Jumper Settings - To maintain compatibility with as many radios as possible, this jumper module has two small jumpers that can be set to enable power and audio speaker.

PWR - This jumper is *NOT* used with the SignaLink USB, but can be installed to power the older SignaLink SL-1 or SL-1+ model from your radio if there is enough power available on pin #5 of the mic connector (check your radio's manual).

SPKR - This jumper should only be installed if your radio has an audio speaker on pin #6 of the Mic jack (check your radio manual).  If the audio speaker is not available, you will need to connect an audio cable between the radio and the SignaLink as described in the SignaLink installation manual.

The SignaLink USB supports virtually ALL digital modes that are available for sound card interfaces including but not limited to, PSK31, MT-63, WSJT/WSJT-X  modes (FT8, JT4, JT9, JT65, QRA64, ISCAT, MSK144, WSPR, JTMS, FSK441, FSK315, ISCAT, and JT6M.), SSTV, APRS ®, Packet (300 and 1200 baud), VARA HF, VARA Narrow, and VARA Wide.

The SignaLink USB also supports virtually ALL Voice modes (VOIP, RoIP, etc.), such as EchoLink®, and Zello.

About the only modes that you can't operate with the SignaLink USB, or any other sound card interface, are Pactor, G-TOR and Clover.
